Comeup CWG-30750 Manuale utente

Electric Winch

Model: CWG-30750

PN: w/5.5kw x 4P motor

154452 380V50Hz 154453 380V50Hz 151736 380V50Hz

152840 415V50Hz 152855 415V50Hz

152850 440V50Hz 154985 400V50Hz

Introduction

Feature

Lifting capacity: 2,200 kg at 50Hz wire rope top layer

Lifting height: 97 m

Lifting speed: 4P: 6.9-12.6 m/min at 50Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

Unpacking

．Winch assembly 1pc

．Wire rope 16 mm x 100 m w/safety hook 1pc

．Wire rope 16 mm x 24 m w/safety hook for PN:151736 1pc

．Low voltage control ass’y LV-320 1pc

．Pendant switch PB-306 w/cord 1.25 mm2

x 3C x 3 m 1pc

Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

Performance

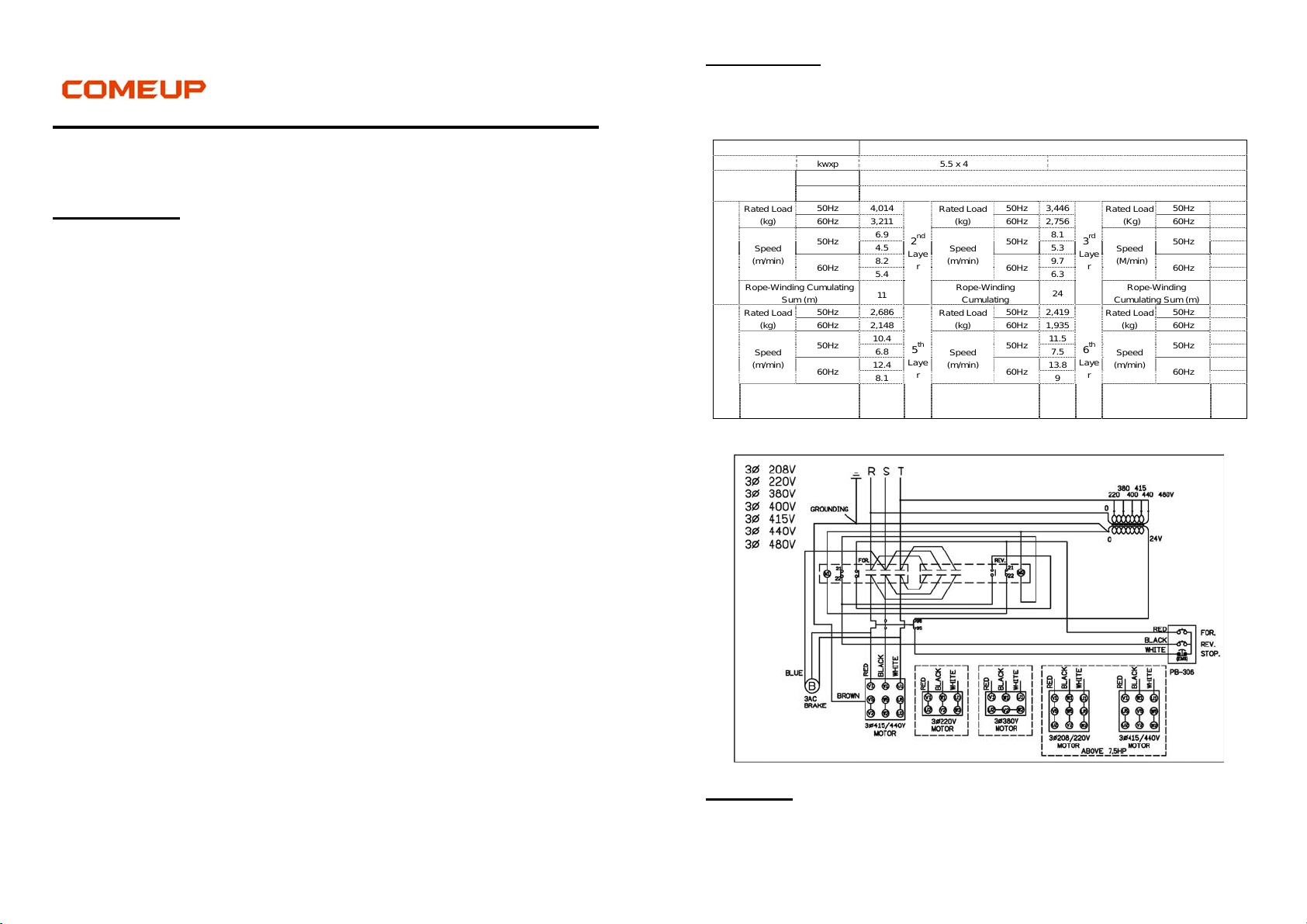

Wiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

Winch Model CWG-30750

Motor kwxp 5.5 x 4 3.8 x 6

Recommended

Wire Rope Size(mm) 16

Breaking (kg) 11,900

1st

Laye

Rated Load

(kg) 50Hz 4,014

2nd

Laye

Rated Load

(kg) 50Hz 3,446

3rd

Laye

Rated Load

(Kg) 50Hz 3,019

60Hz 3,211 60Hz 2,756 60Hz 2,415

Speed

(m/min)

50Hz 6.9 Speed

(m/min)

50Hz 8.1 Speed

(M/min)

50Hz 9.2

4.5 5.3 6

60Hz 8.2 60Hz 9.7 60Hz 11

5.4 6.3 7.2

Rope-Winding Cumulating

Sum

(

)

11 Rope-Winding

Cumulatin

24 Rope-Winding

Cumulatin

Sum

(

)

4th

Laye

Rated Load

(kg) 50Hz 2,686

5th

Laye

Rated Load

(kg) 50Hz 2,419

6th

Laye

Rated Load

(kg) 50Hz 2,200

60Hz 2,148 60Hz 1,935 60Hz 1,760

Speed

(m/min)

50Hz 10.4 Speed

(m/min)

50Hz 11.5 Speed

(m/min)

50Hz 12.6

6.8 7.5 8.3

60Hz 12.4 60Hz 13.8 60Hz 15.1

8.1 9 9.9

Rope-Winding Cumulating

Sum (m) 56 Rope-Winding

Cumulating Sum (m) 75 Rope-Winding

Cumulating Sum (m) 100

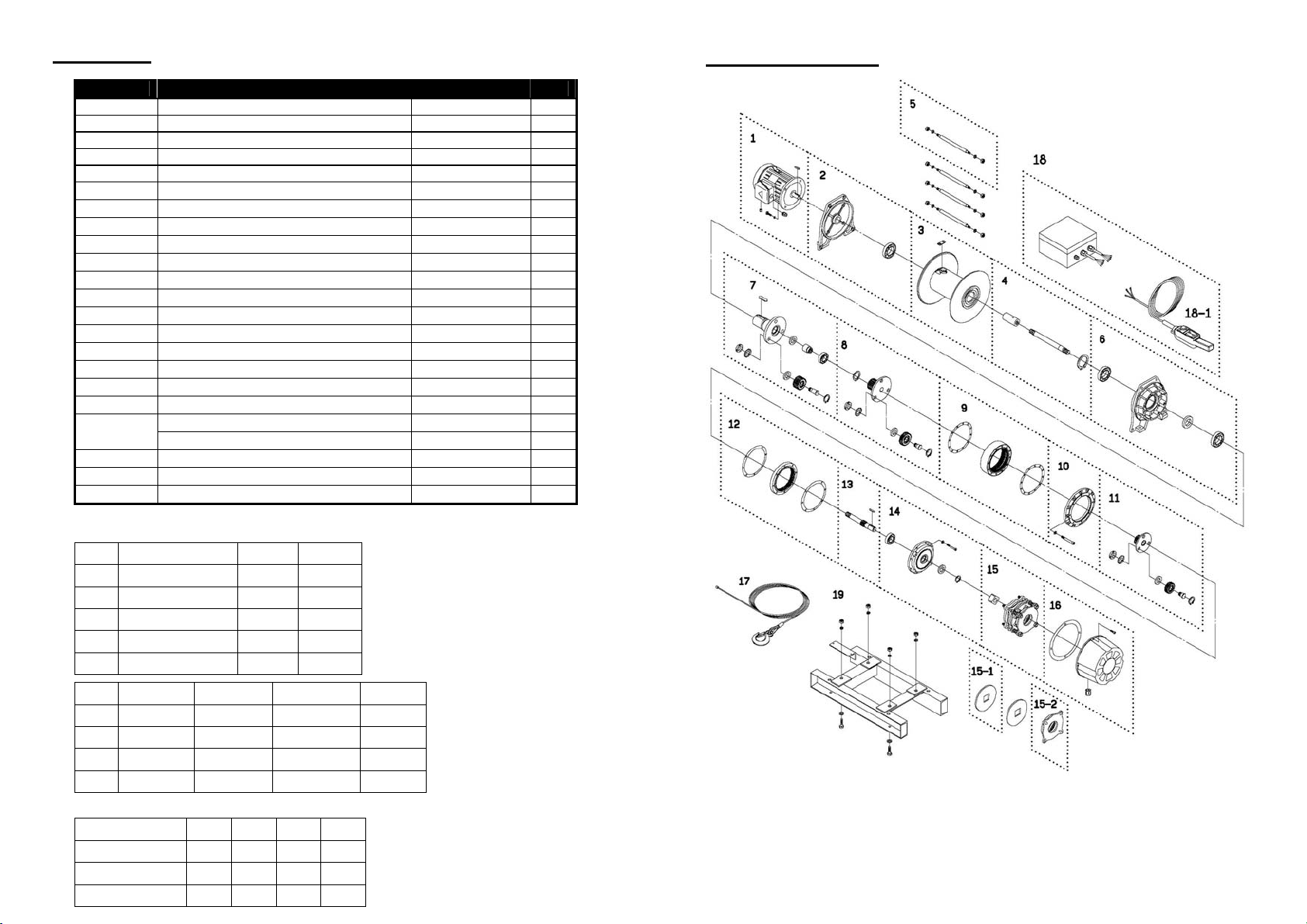

Parts List

Part No. configurations:

Cycle Voltage kw x p Motor

50 Hz 380 V 5.5 x 4 880637

50 Hz 220 / 380 /440 V 5.5 x 4 882619

50 Hz 400 V 5.5 x 4 881448

50 Hz 415 V 5.5 x 4 880638

50 Hz 440 V 5.5 x 4 880636

Cycle Voltage Brake kit Brake coil LV-320

50 Hz 380 V 881640 880648 881828

50 Hz 400 V 881641 881450 881829

50 Hz 415 V 881642 880649 881830

50 Hz 440 V 881643 880650 881833

Standard Value for brake coil (50Hz):

Voltage 220V 380V 415V 440V

Black & Blue wires 28Ω108Ω117Ω126Ω

Black & Red wires 12Ω48Ω52Ω56Ω

Red & Blue wires 15Ω54Ω62Ω70Ω

Item No. Description Part No. Qty

1 Motor kit As arranged 1

2 Motor support rack kit 880610 1

3 Drum kit 880611 1

4 Connect shaft kit 880612 1

5 Tie ba

kit 880613 4

6 Gearbox support rack kit 880614 1

7 3

stage carrier kit 880616 1

8 2n

stage carrier kit 880618 1

9 2n

& 3

ring gear kit 880619 1

10 Fix plate kit 880620 1

11 1s

stage carrier kit 880622 1

12 1s

ring gear kit 880623 1

13 1s

shaft kit 880624 1

14 Brake base kit 881638 1

15 Brake kit As arranged 1

15-1 Brake disc 880626 2

15-2 Brake coil As arranged 1

16 Brake rear cover kit 880627 1

17 Wire rope w/hook 880628 1

Wire rope w/hook for PN:151736 884004 1

18 Low voltage control ass’y LV-320 As arranged 1

18-1 Remote control,PB-306 881048 1

19 Base plate kit 881637 1

Winch Assembly

2020/12/04 Ver:6
