Comeup CWG-31500 Manuale utente

Electric Winch

Model: CW

31500

P/N: w/5.5 kw x 6P motor

159521 415V50Hz

Introduction

 Feature

Lifting capacity: 3,500 kg at 50Hz wire rope top layer

Lifting height: 144 m

Lifting speed: 6P: 5.8-8 m/min

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Low voltage control ass’y LV-320 1pc

．Low voltage control ass’y LV-360 for PN:155185 1pc

．Pendant switch PB-306 w/cord 1.25 mm2

x 3C x 3 m 1pc

 Read this manual carefully

You should carefully read and understand this manual carefully before

operating it. Careless winch operation may result in personal injury hazards

or property damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch part number

．Part description

．Quantity for each part

．Serial number

．Replacement part number

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Performance

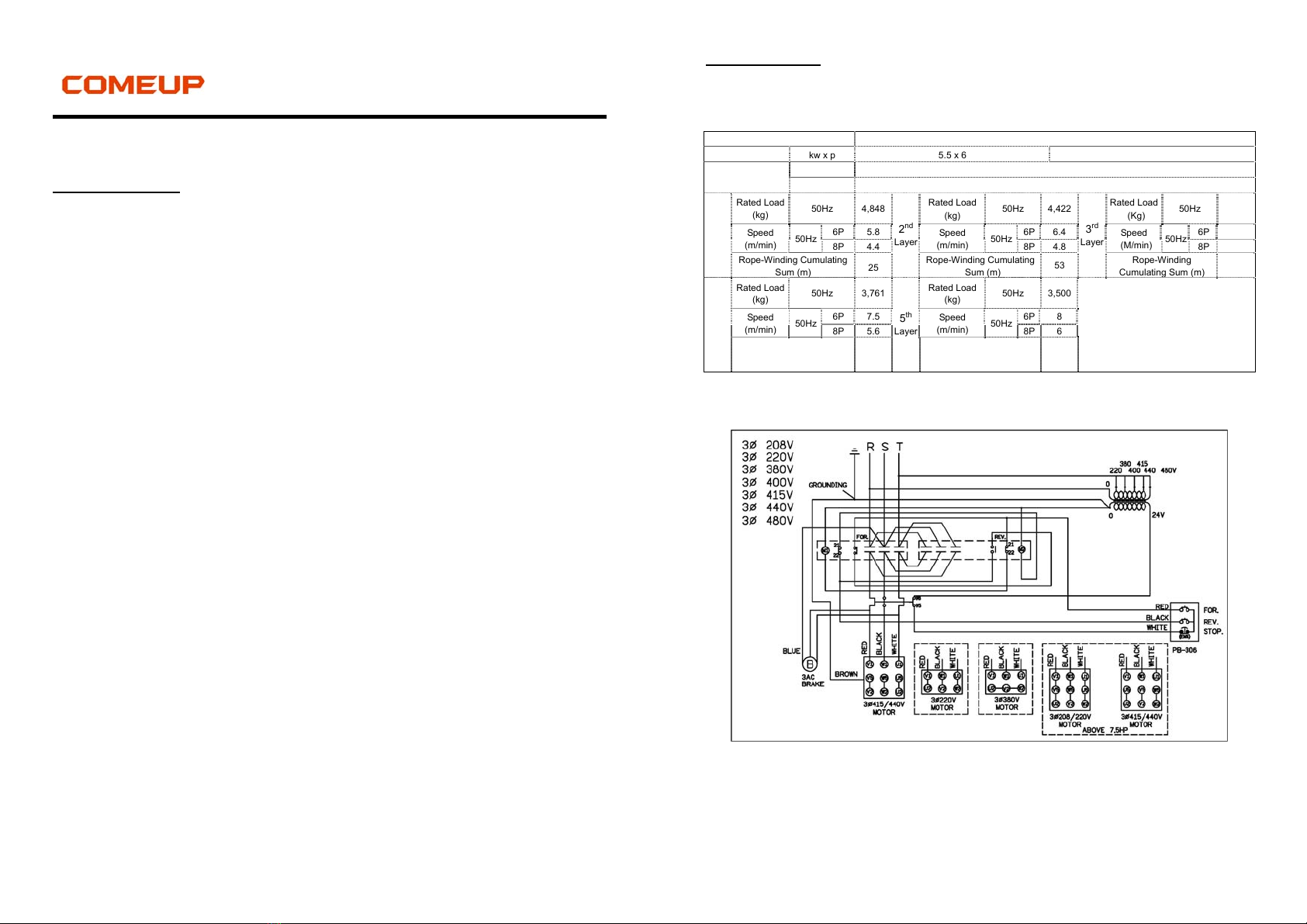

 Wiring Diagram

Winch Model CWG-31500

Motor kw x p 5.5 x 6 3.8 x 8

Recommend

Wire Rope

Size(mm) 18

Breaking (kg) 15,000

1st

Layer

Rated Load

(kg) 50Hz 4,848

2nd

Layer

Rated Load

(kg) 50Hz 4,422

3rd

Layer

Rated Load

(Kg) 50Hz 4,065

Speed

(m/min) 50Hz 6P 5.8 Speed

(m/min) 50Hz 6P 6.4 Speed

(M/min) 50Hz 6P 6.9

8P 4.4 8P 4.8 8P 5.2

Rope-Winding Cumulating

Sum

(

)

25 Rope-Winding Cumulating

Sum

(

)

53 Rope-Winding

Cumulatin

Sum

(

)

4th

Layer

Rated Load

(kg) 50Hz 3,761

5th

Layer

Rated Load

(kg) 50Hz 3,500

Speed

(m/min) 50Hz 6P 7.5 Speed

(m/min) 50Hz 6P 8

8P 5.6 8P 6

Rope-Winding Cumulating

Sum (m) 116 Rope-Winding Cumulating

Sum (m) 150

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

Parts List

Standard Value for brake coil :

Item No. Description Part No. Qty

1 Motor kit 880675 1

2 Motor support rack kit 880651 1

3 Drum kit 880652 1

4 Connect shaft kit 880653 1

5 Tie ba

kit 880654 4

6 Gearbox support rack kit 880655 1

7 3rd stage carrier kit 881631 1

8 2nd stage carrier kit 881632 1

9 3rd ring gear kit 880660 1

10 Fix plate kit 880661 1

11 1st stage carrier kit 881625 1

12 1st & 2nd ring gear kit 880664 1

13 1st shaft kit 880665 1

14 Brake base kit 881443 1

15 Brake kit 881361 1

15-1 Brake disc 880626 2

15-2 Brake coil 880649 1

16 Brake rear cover kit 880627 1

17 - - -

18 Low voltage control ass’y LV-320 881828 1

18-1 Remote control,PB-306 881048 1

19 Base plate kit 880671 1

Volta

e 415V

Black & Blue wires 117Ω

Black & Red wires 52Ω

Red & Blue wires 62Ω

Winch Assembly
