Comfort Zone CZ2011O Manuale utente

Model No.

CZ2011O –Oak Finish

CZ2011C –Cherry Finish

CZ2011W –Walnut Finish

CZ2011B –Black Finish

DIGITAL QUARTZ INFRARED HEATER

OWNER’S MANUAL

PLEASE SAVE THESE INSTRUCTIONS

WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

Thank you for choosing the Comfort Zone® Digital Quartz Infrared Heater. This owner’s

manual will provide you with valuable information necessary for the proper care and

maintenance of your new product. Please take a few moments to thoroughly read the

instructions and familiarize yourself with all the operational aspects of your new heater.

IMPORTANT INSTRUCTIONS

When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire,

electric shock, and injury to persons, including the following:

1. Read ALL instructions before using this unit.

2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If

provided, use handles when moving this heater.

4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft

from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or

other objects on the heater.

5. Do not leave heater unattended while on. Extreme caution is necessary when any heater/fan is used by

or near children or invalids and whenever the heater/fan is left operating unattended.

6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been dropped or

damaged in any manner. Return heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER

locate heater where it may fall into a bathtub or other water container. To protect against electrical

hazards, DO NOT immerse in water or other liquids.

8. DO NOT touch the control panel or plug with a wet hand.

9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings.

Arrange cord away from traffic area and where it will not be tripped over.

10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause

an electric shock or fire, or damage the heater.

11. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on

soft surfaces, like a bed, where openings may become blocked.

12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,

explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open

flames.

13. Do not use an extension cord because the extension cord may overheat and cause a risk of fire.

14. To avoid fire or shock hazard, plug the unit directly into a 120V AC electrical outlet.

15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO

NOT unplug by pulling on the cord.

16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

17. Use only for intended household use as described in this manual. Any other use not recommended by

the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not

recommended or sold by unauthorized dealers may cause hazards.

18. Always use on a dry, level surface. Use on floor only.

19. DO NOT use outdoors.

20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state

speed control device.

21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will

void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel

should perform all servicing only.

22. Connect to properly grounded outlets only.

23. SAVE THESE INSTRUCTIONS.

SPECIFICATIONS

Voltage Rating

120 V (60Hz)

Power Consumption

1000/1500W (12.5 Amps), 5120 BTUs

Unit Size

12-3/4 in. (W) x 20 in. (D) x 17-3/4 in. (H)

Unit Weight

41.8 lbs

SAFETY FEATURES

Tip-Over Safety Feature

This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will

automatically shut the heater off. Once the heater is restored an upright position, the heater will reset. To

continue operation, turn on the heater using the supplied remote control or the control panel on the heater.

Overheat Safety Feature

This heater is equipped with a overheat safety feature. When the heaters internal components reach a certain

temperature that could cause overheat and possible fire, the heater will automatically shut off. To reset the

heater simply turn the unit off, unplug the heater for about 10 minutes. Plug in and turn it on.

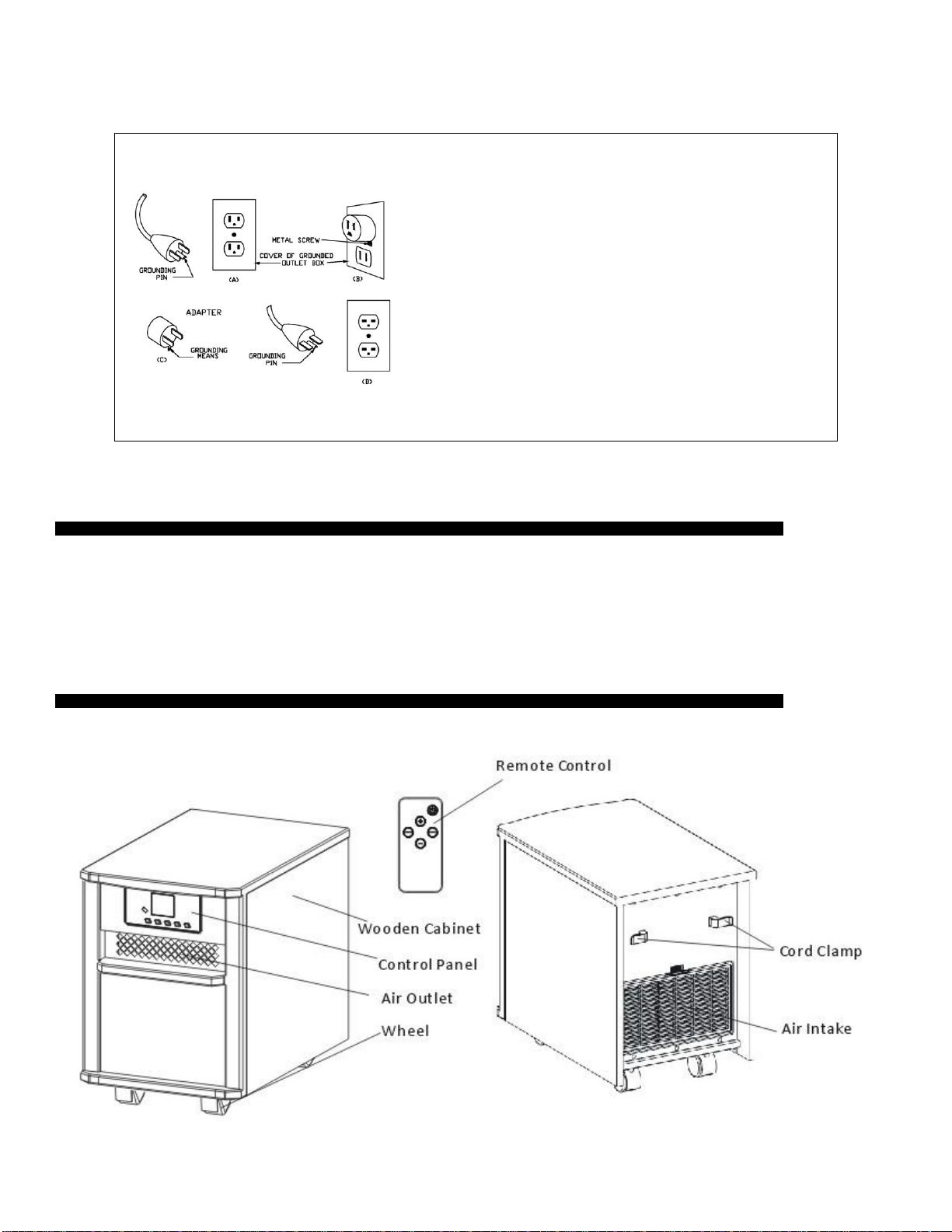

WARNING: This heater has a voltage rating of

120 volts. The cord has a plug as shown in A. An

adapter as shown in C is available for connecting

three-blade grounding-type plugs to two-slot

receptacles. The grounding lug extending from the

adapter must be connected to a permanent ground

such as a properly grounded outlet box. The

adapter should not be used if a three-slot grounded

receptacle is available.

DO NOT DEFEAT THE SAFETY PURPOSE OF

THE GROUNDED PLUG.

WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet

and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet.

Contact a qualified electrician to inspect the original outlet for damage.

IN THE BOX

·DIGITAL QUARTZ INFRARED HEATER

·REMOTE CONTROL

·REMOTE CONTROL BATTERY

·INSTRUCTION BOOKLET

PRODUCT DIAGRAM

Control Panel

1. Energy-Saving Function Indicator: indicates when energy-saving mode is on.

2. Low Power Indicator: indicates when low 1000 watt mode is on.

3. High Power Indicator: indicates when high 1500 watt mode is on.

4. Fan Indicator: shows when fan is running.

5. Timer Indicator: indicates when timer functions are on either in auto-on or auto-off mode.

6. Control Panel Lock: indicates when operation buttons are locked.

7. Signal Receiving Window: used for receiving remote control signal.

8. Timer Power-On/Off Button: used for turning timer function on or off.

9. Temperature Down Button: used for reducing set temperature and timer duration.

10. Temperature and Time Value Display: indicate set temperature and timer increment.

11. Temperature Up Button: used for raising set temperature and timer duration.

12. Mode Button: used for selecting running mode, high power, low power or energy-saver.

13. On/Off Button: turns heater on or off.

Remote Control

The remote control buttons function the same way as they do on the control panel.

PREPARATION

Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. Only operate heater

in upright position with caster wheels attached.

When using remote control, please pull out the clear insulating film to activate the battery as shown below.

PULL

Remote Control

Clear Insulating Film

Battery Cover

Mode Button: used for selecting running mode.

ON/OFF Button: used for power-on /power-off.

Temp Up Button: used for raising set temperature or

timer value.

Timer On/Off Button: used for setting timer power on/off.

Temp Down Button: used for reducing set temperature

or timer value.

OPERATING INSTRUCTIONS

1. Power On and Select Power Mode.

Turn the heater on by pressing the ON/OFF button on the

control panel or by pressing the POWER button on the

supplied remote control.

Select a heat setting.

Press the MODE button to toggle between the three heat

settings.

Power for high mode is 1500 watts; and low mode is 1000

watts. ECO mode is an Energy Saving Function. When ECO

mode is chosen the heater will automatically switch from high

mode to low mode and consume 1/3 less power when the room

temperature reaches the set temperature point.

2. Set Thermostat Room Temperature

Or Or

Adjust the thermostat by pressing the - or + on the

control panel or remote control to desired temperature.

The temperature indicator will flash during the setting

process. The heater will accept the temperature when it

stops flashing and begin to operate.

Set temperature indication varies from 59℉to 86℉.

Once you have chosen the desired temperature, the

heater will remain on until the room temperature

increases to the temperature on the digital display. The

heater will cycle on and off to maintain the desired

room temperature.

3. Set Timer Power-Off

The unit has a timer feature that will turn the heater OFF after a set amount of time. The

duration is set in 1-hour intervals.

With heater power ON, press the ”Timer” on the control panel or

“TIMER”button on remote control.

Time in the LED display flashes.

Press the “Timer” button on the control panel or “TIMER” button on

the remote control to adjust time value for timer power-off. Time

value can be increased at 1-hr intervals.

Time value for timer power-off stops flashing 10 seconds after time

value adjustment, the timer is now set to turn heater off.

Timer indicator on control panel indicates timer’s functioning.

Press ON/OFF button either on control panel or remote control to

cancel the timer. The timer indicator is off and time value disappears.

4. Set Timer Power-On

The unit has a timer feature to turn the heater ON after a set amount of time. The duration is

set in 1-hour intervals.

With the heater power OFF, press the button ”Timer” button on

control panel or “TIMER”button on remote control.

Time in LED display flashes.

Press the “Timer” button on control panel or “TIMER” button on

remote control to adjust time value for timer power-on. Value can be

increased at 1-hr intervals.

Time value for timer-power-on stops flashing 10 seconds after time

value adjustment for timer power-on. Then timer is now set to turn

heater on.

Timer indicator on control panel indicates timer’s functioning.

Press ON/OFF button either on control panel or remote control to

cancel the timer. The timer indicator is off and time value disappears.

5. Set Control Panel Button Lock

The control Panel has a locking feature for child safety. The control panel lock will also

disable the remote control.

And

On the control panel, press Temp Up and Temp Down buttons

together for 3 seconds. The control panel is locked when you hear

the tone.

Lock mark on the LED screen indicates control panel is locked. Unit

can be locked in both timer power-on and timer power-off modes.

When locked, control panel and remote control will not operate.

And

To unlock control panel, press Temp Up and Temp Down buttons

together for 3 seconds. The unit will unlock and confirm with a tone.

Lock indicator disappears. Control panel and remote control function

as normal.

6. Additional LED Screen Indicators and Information

Indicator will rotate showing fan is moving.

Solid fan indicator shows when fan is in stand-by mode when

temperature in space is reached.

When power is turned off to he heater, the fan will continue to run

for a period of time (up to 4 minutes) to use any residual heat inside

the unit and cool down the Infrared Quartz Elements inside the unit.

This is a normal function of the heater.

MAINTENANCE

1. Unplug the unit and let it cool completely.

2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild

detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid

enter the heater.

3. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater.

This may cause damage or deteriorate the surface of the heater.

4. DO NOT immerse the heater in water.

5. Wait until the unit is completely dry before use.

6. Clean the air filter after 3 months of use or when the filter appears to be dirty. The below diagram

shows the location of the air filter. Remove the Air Intake Grille by pulling handle down and outwards.

Wash the filter with clean water. Allow filter to completely dry before reassembling back onto the

heater.

Unit

PUSH

PULL

Air Filter

Air Intake Grille

Altri manuali per CZ2011O

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Comfort Zone Stufa

Comfort Zone

Comfort Zone CZ2022O Manuale utente

Comfort Zone

Comfort Zone CZ2018 Series Manuale utente

Comfort Zone

Comfort Zone CZ449E Series Manuale utente

Comfort Zone

Comfort Zone CZ290 Series Manuale utente

Comfort Zone

Comfort Zone CZ273 Series Manuale utente

Comfort Zone

Comfort Zone CZ466BK Manuale utente

Comfort Zone

Comfort Zone CZ277 Series Manuale utente

Comfort Zone

Comfort Zone CZ40E Series Manuale utente

Comfort Zone

Comfort Zone CZQTV007E Series Manuale utente

Comfort Zone

Comfort Zone CZ9010 Series Manuale utente

Comfort Zone

Comfort Zone CZ220 Series Manuale utente

Comfort Zone

Comfort Zone CZ2011P Manuale utente

Comfort Zone

Comfort Zone Powergear CZ798 Manuale utente

Comfort Zone

Comfort Zone CZ410 Series Manuale utente

Comfort Zone

Comfort Zone CZ457E Series Manuale utente

Comfort Zone

Comfort Zone CZ463EBK Manuale utente

Comfort Zone

Comfort Zone CZ465E Series Manuale utente

Comfort Zone

Comfort Zone CZPH25RSLS3 Series Manuale utente

Comfort Zone

Comfort Zone CZ523 Series Manuale utente

Comfort Zone

Comfort Zone CZ2011O Manuale utente

Comfort Zone

Comfort Zone CZQTV008E Series Manuale utente

Comfort Zone

Comfort Zone CZ650B Series Manuale utente

Comfort Zone

Comfort Zone CZHTV9 Series Manuale utente

Comfort Zone

Comfort Zone CZ488 Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
