ComfortClick Jigsaw Pro CC-JP-3 Manuale utente
Jigsaw Pro
CC-JP-3
Jigsaw KNX Manual
1. About
Jigsaw Pro is used for controlling and monitoring building
automation systems in larger residential houses, villas and small
offices.
ComfortClick - www.comfortclick.com
2. Specifications

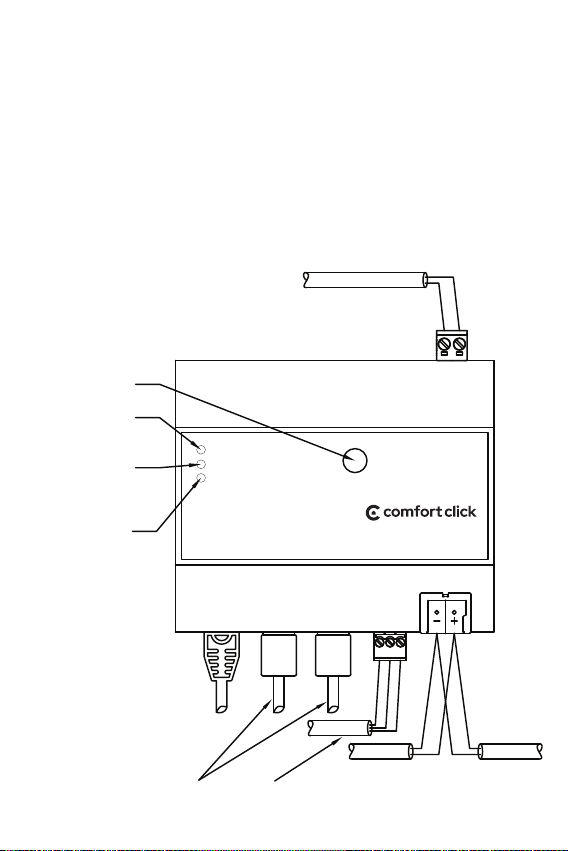

RJ 45 LAN
(10/100/1000)
4x USB Type A
RS 485
KNX KNX
Power supply
RS 485 BUS
KNX TP BUS
AC Power Supply
100-240 V, 50/60 Hz
Power LED
Reset Button
KNX LED
Warning LED
Jigsaw Pro
CC-JS-3
KNX
Power
Warning
ETH
USB 1
USB 2
USB 3
USB 4 KNX
- +
RS-485
+- GND
Restart (1s)
Shutdown (5s)
Network reset (10s)
Factory reset (20s)
L N
110-240VAC
0.35A 50/60 Hz
Dimensions:
Power Supply:
Power Consumption:
OS:
CPU:
Memory:
Storage:
Connectors:
KNX:
Temperature:
Storage:
Protection rating:
Software specifications
Software:
License:
Devices:
107 mm x 91 mm x 62 mm
100-240 V, 50/60 Hz
Approx. 5 -10 W
Embedded Linux
Quad-core 1,5 GHz ARM 64-bit
4 GB
MicroSD card 32GB, Industrial
1x KNX, 1x RS485, 2x USB 2.0,
2x USB 3.0, 1x Gigabit Ethernet port
Integrated KNX IP Secure Interface
Operation: -5°C - 45°C
Storage / transport: -25 °C – +70 °C
IP20
bOS - Building Operating System
bOS Pro License with 3 Users
Technical specifications
Name:
Model:
Description:
Jigsaw Pro
CC-JP-3
Building automation server
DIN rail, 6UMounting:
KNX, Z-Wave, Modbus, BACnet, Alexa,
Google Home, IP cameras, Sonos, Hue,
IP Cameras, TCP/IP devices, DSC,
Satel, Paradox, Kodi, Global Caché…
Logic: Program, Schedule, Time, Scene,
Regulator, Logging, Messaging,
Calculations, Logic Gates…
3. Installation - mount your Jigsaw Pro on the DIN rail, connect the
power supply, KNX and connect the Jigsaw Pro to the network.
4. Download and install bOS Configurator on your PC. You can get
bOS Configurator on our web page:
https://www.comfortclick.com/BOS/Software/BOSConfig
5. Connecting to the Jigsaw Pro
5.1
5.2 Open bOS Configurator.
5.3 Click on the menu button on the top right corner and select Add.
Status LEDs
Power (green color)
• ON: when power supply is connected.
• OFF: power supply is disconnected / power supply malfunction.
KNX (green color)
•ON: when KNX bus is connected and Jigsaw KNX Driver is
connected.
•OFF: when KNX bus is disconnected or Jigsaw KNX Driver is not
connected.
Warning (red color)
• OFF: normal operation.
• ON: problem with the server:
- no internet connection,
- license problem,
- no KNX connection.
Connect to the server with bOS Configurator and check for details.
Reset button
• 1s: Restart
• 5s: Shutdown
• 10s: Network reset (IP set to DHCP)
• 20s: Factory reset (IP set to DHCP, clear configuration, logs,
users…)
ComfortClick - www.comfortclick.com
b) Connect remotely – if you are connecting to your Jigsaw Pro
remotely via the Internet, port forwarding should be enabled
first. On your router port 443 (TCP) should be forwarded to your
Jigsaw’s local IP. If port forwarding is not possible, you can use
ComfortClick Cloud Gateway.
a) Connect locally - make sure that your PC with bOS
Configurator is connected to the same network as your Jigsaw
Pro then follow the steps below.
ComfortClick - www.comfortclick.com
3. Installation - mount your Jigsaw Pro on the DIN rail, connect the
power supply, KNX and connect the Jigsaw Pro to the network.
4. Download and install bOS Configurator on your PC. You can get
bOS Configurator on our web page:
https://www.comfortclick.com/BOS/Software/BOSConfig
5. Connecting to the Jigsaw Pro
5.1
5.2 Open bOS Configurator.
5.3 Click on the menu button on the top right corner and select Add.
By default, Access ID is the serial number of your Jigsaw Pro. You can
find the serial number on the sticker on the side of your Jigsaw Pro
(e.g. JP3XXXX). Access ID is a unique name for accessing the bOS
Server. This name enables adding profile and accessing your bOS
Server, without the need of knowing its IP address.
Enter Username: User and Password: Pass and click OK.

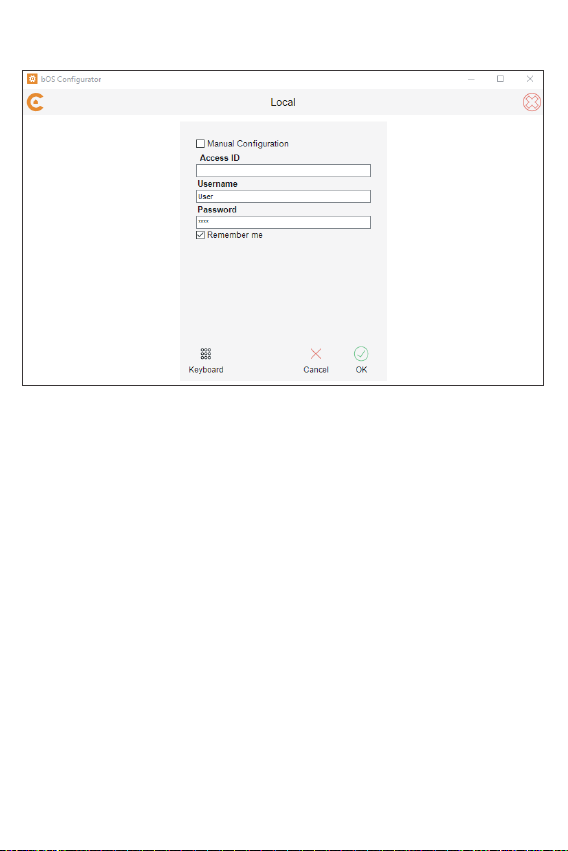

5.4 Enter your Access ID, User name and Password
6. Start creating your bOS configuration or open an existing
configuration.
Please check our support tools for more information on how to work
with bOS: www.comfortclick.com/Support
e.g. JP3XXXX
ComfortClick - www.comfortclick.com
It is recommended that you change your default Access ID and
other access settings. See procedure below.

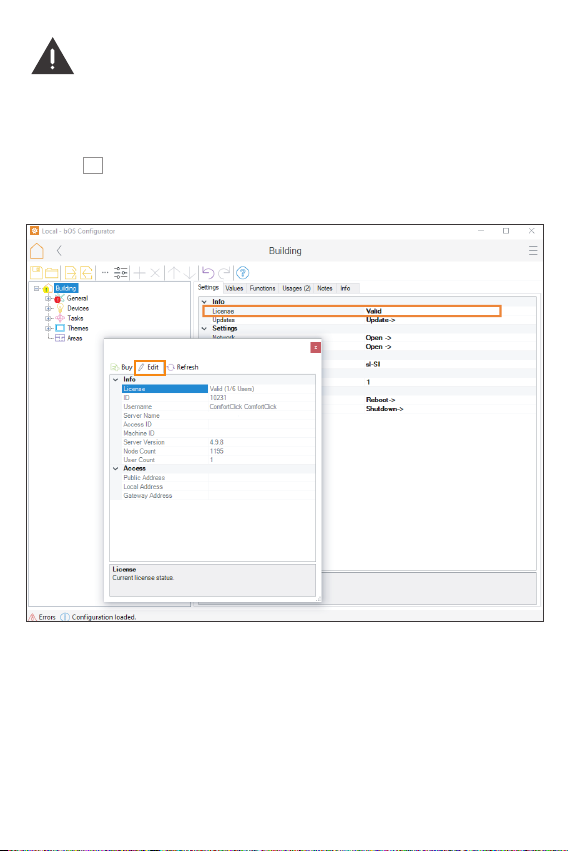

Edit Jigsaw Access Settings
1. Open bOS Configurator.
2. Click ... button under Building - License.
3. Click Edit button
5. You can now change your Server name, Access ID, and set the
Public IP Address.
ComfortClick - www.comfortclick.com
4. Login in with your ComfortClick account.
7. Open bOS Configurator and click Refresh button. You can now
connect to the Jigsaw Pro via internet.

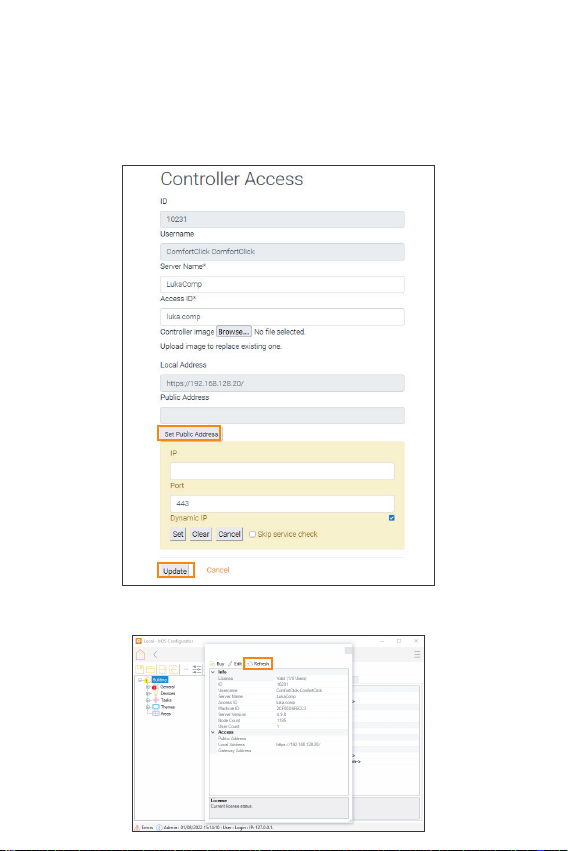

6. Setting Public IP - when setting Public IP, port (443 TCP by default)
on your router should already be opened and forwarded to your
Jigsaws Pro local IP. Public IP is verified and if connection can be
established (server accessible from the internet) you will be able to
save it. If port forwarding is not possible, you can request activation
of ComfortClick Cloud Gateway. After setting the Public IP click
Update.
ComfortClick - www.comfortclick.com
Oce
• It is recommended that you change the default user
name and password; under Building - General - Users.
• Always shut down the Jigsaw Pro properly by shutting
it down in bOS Configurator or via Reset Button.
• Don't shut down the Jigsaw Pro by unplugging it from
the power supply.
• DHCP server should be running on the network in order
to automatically obtain IP address on the Jigsaw Pro.
• Do not expose this product to moisture, water or other
liquids
• Do not attempt to examine or repair this product by
yourself.
• This product is designed for indoor use only.
• The use of UPS is recommended.
Miscellaneous
ComfortClick - www.comfortclick.com

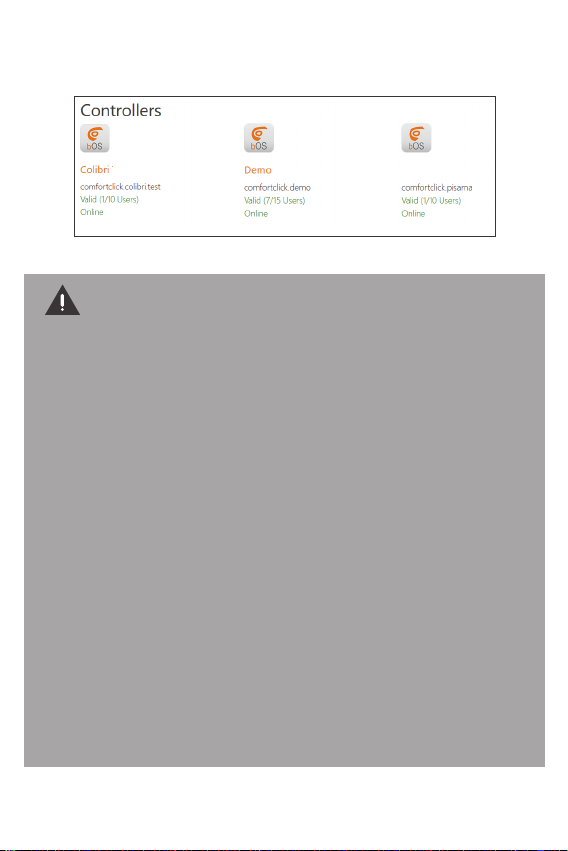

8. You can see the list of all your other Controllers and edit their
settings under your account profile on ComfortClick web page.
ComfortClick d.o.o. with its office at Meskova 4,
1000 Ljubljana, Slovenia, other contact
information is available at: www.comfort-
click.com (hereinafter “the Manufacturer")
guarantees that the device sold (hereinafter: ”the
Device") is free from material and manufacturing
defects.
The Manufacturer shall be responsible for
malfunctioning of the Device resulting from
physical defects inherent in the Device that
cause its operation to be incompatible with the
specifications within the period of:
24 months from the date of purchase by the
consumer,
12 months from the date of purchase by a
business customer (the consumer and business
customer are further collectively referred to as
“Customer").
The Manufacturer shall remove any defects
revealed during the guarantee period, free of
charge, by repairing or replacing (at the sole
discretion of the Manufacturer) the defective
components of the Device with new or
regenerated components. The manufacturer
reserves the right to replace the entire Device
with a new or regenerated device. The Manufac-
turer shall not refund money paid for the device.
Before making a complaint, the Manufacturer
recommends using the online support
available at http://www.comfortclick.com/Sup-
port
In order to make a complaint, the Customer
should contact the Manufacturer via the email:
support@comfortclick.com.
The faulty device shall be provided by the
Customer with complete standard equipment
and documents proving its purchase.
The cost of transporting the Device shall be
covered by the Customer. For unjustified
complaints, Manufacturer may charge the
Customer with costs related to the case.
Defects shall be removed within 30 days from
the date of delivering to the Manufacturer. The
guarantee period shall be extended by the
time in which the Device was kept by Manufac-
turer.
Manufacturer shall not accept a complaint
claim when:
• the Device was misused or the manual was
not observed,
• the Device was provided by the Customer
incomplete, without accessories,
• it was determined that the fault was caused by
other reasons than a material or manufactur-
ing defect of the Device,
• the guarantee document is not valid or there is
no proof of purchase,
The guarantee shall not cover:
• mechanical damages (cracks, fractures, cuts,
abrasions, physical deformations caused by
impact, falling or dropping the device or other
object, improper use or not observing the
operating manual);
• damages resulting from external causes, e.g.:
flood, storm, fire, lightning, natural disasters,
earthquakes, war, civil disturbance, force
majeure, unforeseen accidents, theft, water
damage, liquid leakage, battery spill, weather
conditions, sunlight, sand, moisture, high or
low temperature, air pollution;
• damages caused by malfunctioning software,
attack of a computer virus, or by failure to
update the software as recommended by the
Manufacturer;
• damages resulting from: surges in the power
and/or telecommunication network,
improper connection to the grid in a manner
inconsistent with the operating manual, or
from connecting other devices not
recommended by the Manufacturer;
• damages caused by operating or storing the
device in extremely adverse conditions, i.e.
high humidity, dust, too low (freezing) or too
high ambient temperature. Detailed permissi-
ble conditions for operating the Device are
Warranty Terms and Conditions
ComfortClick - www.comfortclick.com
