ComfyGo Mobility Z-1 Manuale utente
User Manual / Warranty
Table of Contents
1
Preface 2
Product Performance 3
Safety Instructions 5
Usage and Operation 9
Battery and Charger 14
System Diagnostics 17
Controller 19
Maintenance Areas 21
Tech Support 23
Warranty 24
For all your spare parts needs, please visit
www.ComfyGoMobility.com
Don't forget to register your product to activate your warranty, detailed
information can be found on page 33.
If you need technical support, please contact our customer support
team. Detailed information is on the back of the user manual and is
found on page 33.
Preface
2
Please read the user manual carefully before using this product.
- This manual contains the operation, assembly methods, and simple
faults solutions. The manual applies to our model: Z-1
- This manual contains scooter maintenance information and self-checking
methods. Please be sure to keep this manual in a safe location for future refer-
ence.
- The annotations and illustrations in this manual may vary slightly from your
actual model because we continuously improve and upgrade our components
and design.
- Please provide this manual to all users of this scooter and make sure all
users understand how to operate this scooter.
- Please contact with your dealer if there is any ambiguity or questions about
this produce or manual.
- Improper use of any vehicle may lead to injury. Unsafe driving could harm
yourselves and others.
- The electric scooter is intended to comfortably transport those with walking
difficulties or those with limited or no walking abilities.
- This electric scooter is designed to transport only one person.
Follow the instructions next to his symbol closely.
Please pay attention to these instructions, otherwise, it may result in physical
harm or damage to the user, scooter, or the environment.
1. Product Performance
3
- This series of electric scooter is powered by a Li-Ion battery that sup-
plies power to a DC drive motor(s). Users control the direction and
adjust the speed by using an analog speed controller. This scooter is
suitable for use at low speeds, on good road conditions, and moder-
ate slopes.
Performance Parameters and Technical Specs, Z-1
Overall size 43” x 20.5” x 38” (1100x520x970mm)
Fold size 43“ x 20.5” x 20” (1100x520x510mm)
Seat size* 16.5” x 15” (420x380mm)
Net Weight 90 lbs (40.8 kg) without battery
Net Weight 98 lbs (44.5 kg) with battery
Speed (0.62 mph - 3.7 mph (1 - 8km/h) Max 5 mph
Seat height 18.5” (460mm) from ground
Armrest height 9” (230mm), from cushion
Backrest height 15.5” (395mm)
Max loading weight 330 lbs (150 kg)
Front wheel diameter 7.5 inch (190 mm)
Rear wheel diameter 8.5 inch (216 mm)
Battery 12AH Li-ion
Motor DC 24V / 250W
Battery charge AC 220 (110V) ±10% 50-60HZ, 1.5 - 5A
Controller DC 18.5V-30.5V 25A MAX
Max distance** 13 miles (20 km)
Degree of protection IPX3
Max safe slope 10°
Turning radius ≤47 inches (≤1.2m)
Static stability 10°
Reversing width ≤59 inches (≤1.5m)
Climbing angle 12v°
Ground clearance 2 inches (50mm)
Obstacle climbing 2 inches (50mm)
* seat width is the distance between armrests
** varies based on weight, incline, speed factors
1. Product Performance
4
Main Structure
This series of electric scooter is composed of two main parts:
1) The Frame: Frame, Wheels, Footrest, Armrests, Seat, Steering
Column, Steering Handlebar etc.
2) The Electrical: Controller, Motor, Battery, Electrical Wires, etc.

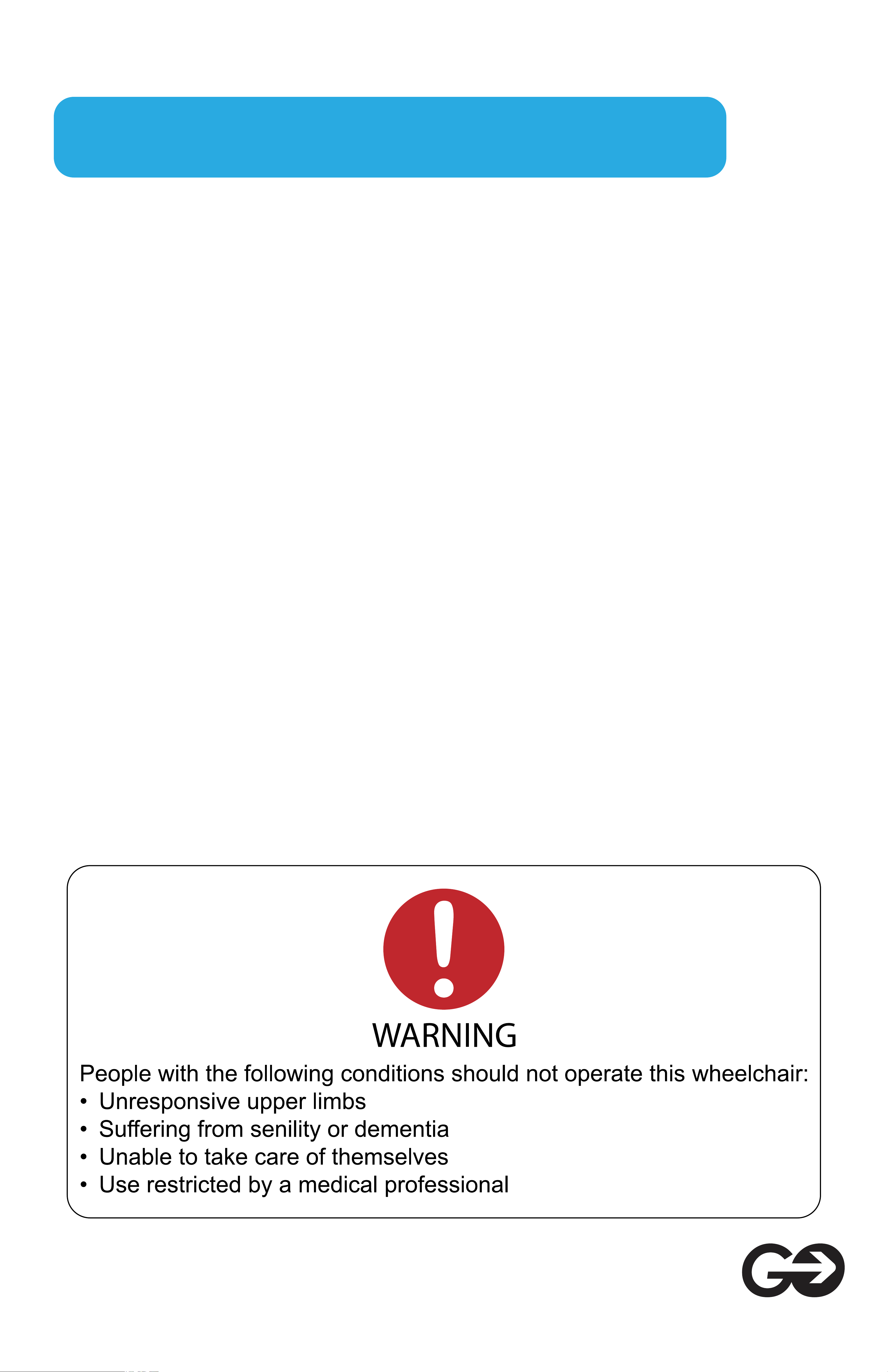

Application Range
This electric scooter is designed for individuals who have physical
disabilities that limits their mobility. This scooter is designed to carry
individuals weighing less than 150 kg (330 lbs.). This scooter is
intended to be used as substitution to walking and is not intended to
be used a substitution of a motorized vehicle. This scooter is intended
to be used indoors and outdoors in a safe and suitable location.
2. Safety Instructions
5
2.1 Main Security Features
- Classified based on the type of protection: Against electric shock, Inter-
nal power.
- Classified based on the type of protection: Against electric shock, Type
B application.
- Classified based on the degree of inlet liquid protection: IPX3
- Classified based on the safe use of in a flammable anesthetic mixture
with air or gas mixed with oxygen or nitrous oxide flammable a esthetic
gases occurs: Non-AP/APG type.
- Classified based on operation mode: Continuous operation.
- Rating voltage: DC 24V.
- Have no protective effect on the application of defibrillator discharge
section.
- No signal output or input part.
- Safety of any non-permanent equipment installed.
2.2 Driving Notice
General Riding Cautions
- Please keep your arms and hands on the direction bar at all times to
properly control the scooter.
- To avoid injury, first practice using this scooter in a safe and open envi-
ronment, such as a park. Practice moving forward, backward, stopping,
and turning. As you gain skill and become comfortable with the controls,
you can begin to use this scooter in other suitable environments.
- Before riding on any roads, be sure to have a caregiver with you and
be sure to always ride safely.
- Please follow all pedestrian traffic rules, the scooter is not considered
an automobile.
- Please ride on the sidewalk and the zebra crossings only. Do not ride
on vehicle lanes.
- Ride at steady speeds and avoid sharp turns or zig zagging.
- If your model comes equipped with a seat belt, please fasten it while in
use
- Please maintain proper tire pressure. The lower or higher than recom-
mended pressures may cause unsafe conditions or excessive power
loss.
Order #17880 - 281111097940 - Lost Item
2. Safety Instructions
6
Avoid Riding in These Conditions Unless Accompanied by a
Caretaker
- Riding in inclement weather such as rain, heavy fog, strong winds,
snow, etc. If your scooter gets wet, electronic functions may be dam-
aged so please wipe off all water immediately.
- Riding in sub optimal conditions such as muddy areas, trails, sand,
gravel, etc.
- Riding in crowded areas, riding on unfenced roads, near ditches,
near bodies of water, or near any other dangerous areas.
- Riding over railroad tracks. If you must cross a railroad track, inspect
the tracks to confirm it is safe to cross. Turn the scooter off and disen-
gage the wheels from the motor so that you or your caregiver can
freely push the scooter across the tracks. Cross at an angle that en-
sures your tires will not get stuck in the track.
- Carrying people or cargo. This electric scooter is designed to be
used by only one person. It is not designed to carry additional people
or cargo.
Precautions for Uphill and Downhill
-Avoid riding on steep hills, uneven surfaces, high steps, channels or
any other steep areas.
- Avoid riding on steep slopes, the slope range should be less than 9
degrees.
- If possible, please keep the scooter moving forward during uphill
climbs. It may be difficult to restart an uphill climb from a stand still.
- Use slow speeds during downhill descent.
- Avoid driving sideways on steep areas.
- Avoid riding on or nearby stairs.
- Avoid crossing ditches.
- If you must cross a ditch, try to cross at a 90° angle.
Do not set the scooter to manual mode during uphill or
downhill use. If the scooter malfunctions at traffic crossing,
please immediately ask passersby for help. Set scooter to
manual mode by disengaging the wheels from the motor, then push
scooter to a safe location.
Precautions for Caregivers
- Caregivers should confirm that the users’ feet are in the proper posi-
tion on the footrest.
- Caregivers should make sure the user is in the seat properly and
that the user is properly secured
- Caregivers should confirm that there are no loose clothing articles
that can get tangled by the wheels or drive motor.
- Caregivers should use caution while pushing the scooter and be
always mindful of the surrounding environment to avoid injury.
2.3 Other Important Notices
Repair and Refit
Repair and Reform: If a repair or modification is necessary, please
contact your dealer. Do not modify this scooter yourself, it may lead to
injury or malfunction.
Protect Environment: In order to protect environment, do not casual-
ly discard the wheelchair and/or discard the battery. If necessary,
please contact your local dealer for replacement battery.
Keep the Storage Environment Dry: Do not store the scooter in
damp conditions, such as near a bathroom. If the scooter gets wet,
wipe the water off immediately.
Pushing Someone Else in the scooter: When user is sitting on the
scooter, make sure the scooter is set to manual mode by disengaging
the motors. Do not push the scooter if the motors are engaged.
Do not replace parts or material randomly.
Do not add weight randomly, as it may cause an imbalance.
Do not use other vehicles to pull or push the scooter when
somebody is sitting on the scooter.
If there are abnormal sounds coming from the scooter, con-
tact service immediately.
2.4 Service Lifetime
- The service lifetime is 5 years from date of manufacture. To avoid
injury or accidents, users should not use this scooter for more than
the service lifetime.
2. Safety Instructions
7
2.5 Electromagnetic Compatibility
- The scooter should away from strong magnetic fields and large in-
ductive electrical equipment, such as radio station, TV stations, under-
ground radio stations, or cell phone transmitting radio stations. Please
avoid any strong electromagnetic fields. The electric scooter should
always avoid electromagnetic interference.
2.6 Compatibility with Other Devices
- Electric scooters should not be used together in conjunction with any
other devices. If you need to connect a device to it, please contact
ComfyGO Mobility, so that we may confirm that the scooter will not be
adversely affected.
When using the scooter, please do not exceed the rated
obstacle height. When crossing obstacles, please remain a
low speed and the angle between the vehicle body and
obstacles is 90°.
When using the scooter on the uneven ground, please slow
down. The scooter cannot wade into the water. If the water
level submerges the controller, electric motor or circuit, it
may lead to short circuit and damage the electrical
appliance.
2. Safety Instructions
8
3. Usage and Operation
9
Please visit YouTube channel for a detailed Usage and Operations ex-
planation. Simply search "ComfyGO Mobility Electric Scooter
(Model # Z-1)" on YouTube.
www.youtube.com/c/ComfyGO
