Comica CVM-VP2 Manuale utente

CVM-VP2

Condenser Shotgun Microphone for Camera / Camcorder

USER MANUAL

Foreword

Main Features

Thanks for purchasing COMICA CVM-VP2 condenser shotgun microphone.

Comica CVM-VP2 Professional Super cardioid Condenser Shotgun microphone , is

specially designed for video shooting, meeting, and interview for devices like

camera, camcorder ; Meanwhile the Microphone support low noise circuit, two

step high-pass filter (100Hz), 48 phantom power or 1.5V AA battery, full metal

material construction and super shielding , which provides video a broadcast

sound quality.

Please read this manual carefully before using. This product has been precisely

calibrated at the factory, do not assemble and disassemble parts by yourself.

. Low Noise Circuit

. Two Step High-pass Filter

. 48 Phantom Power or 1.5V AA Battery

. Full Metal Material Construction and Super Shielding

. Broadcast Sound Quality

Low-noise Low Cut Filter Support 48V

Phantom Power

Cardioid Pattern Full Metal and

Super Shielding

1

CVM-VP2

CondenserShotgun Microphone for Camera / Camcorder

USER MANUAL

Notice

When putting the batteries in, please notice the “positive and negative poles” to

avoid reversed assembling to cause product damage.

Please do not put the device beside the heat or interference source.

Please avoid falling, collision or pounding during usage.

Don’t expose the device in rain or moist environment .

After usage, please turn it off for storage.

Package Content

Microphone Inteference Tube

XLR-3.5mm Output Cable

XLR-XLR Output Cable

Camera Bracket

Boom Bracket

Windscreen

Black Portable Bag

User Manual

Warranty Card

1

2

3

4

5

6

7

8

9

1

2 3

45 6

78 9

10 11

Standard Parts

Wind Muff

Shock Mount

10

11

Optional parts

2

Components Introduction

Microphone

Audio Receiver End

Low-cut Filter / Normal Audio / Power swtich

Working Status Indicator Light

Audio Output Jack

Battery Holder

1

2

3

4

5

1

2

3

5

4

3

Installation and Operation

1. Installation

1.1 Installation of AA Battery

1.11 Rotate the tube , open the battery holder

1.12 Insert the battery

1.13 Rotate the tube, close the battery holder

4

1.2 Install Mic onto Camera/Camcorder

Connect the Mic and Camera/Camcorder Via Camera Bracket

1.21 Connect the mic onto Camera Bracket

1.22 Connect the mic onto camera/camcorder via Camera Bracket , fasten the

Tightness Adjusting Screw

5

1.23 Connect the 3.5mm output cable / XLR output cable to the Camera/ Camcorder

6

Connect the Mic and Camcorder Via Boom

1.31 Connect the Mic and Boom Bracket

1.32Connect the Boom Bracket and Boom

7

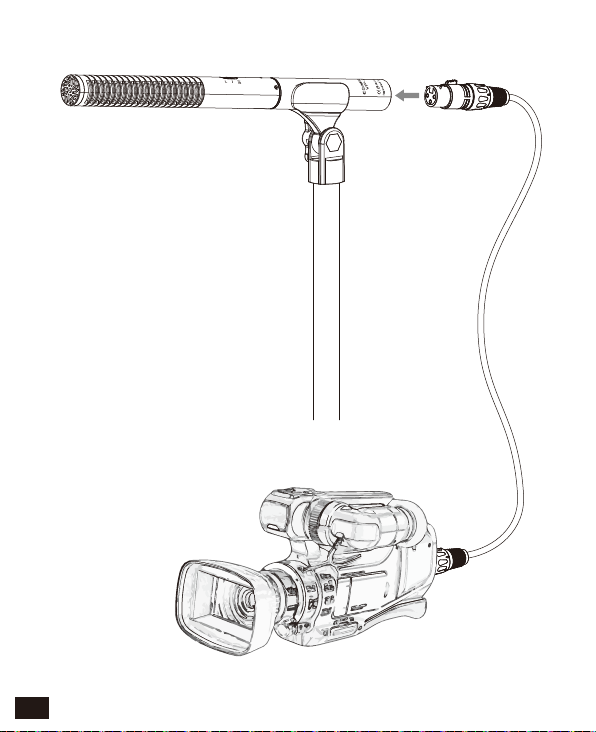

1.33 Connect the 3.5mm / XLR output cable to the Camcorder

8
