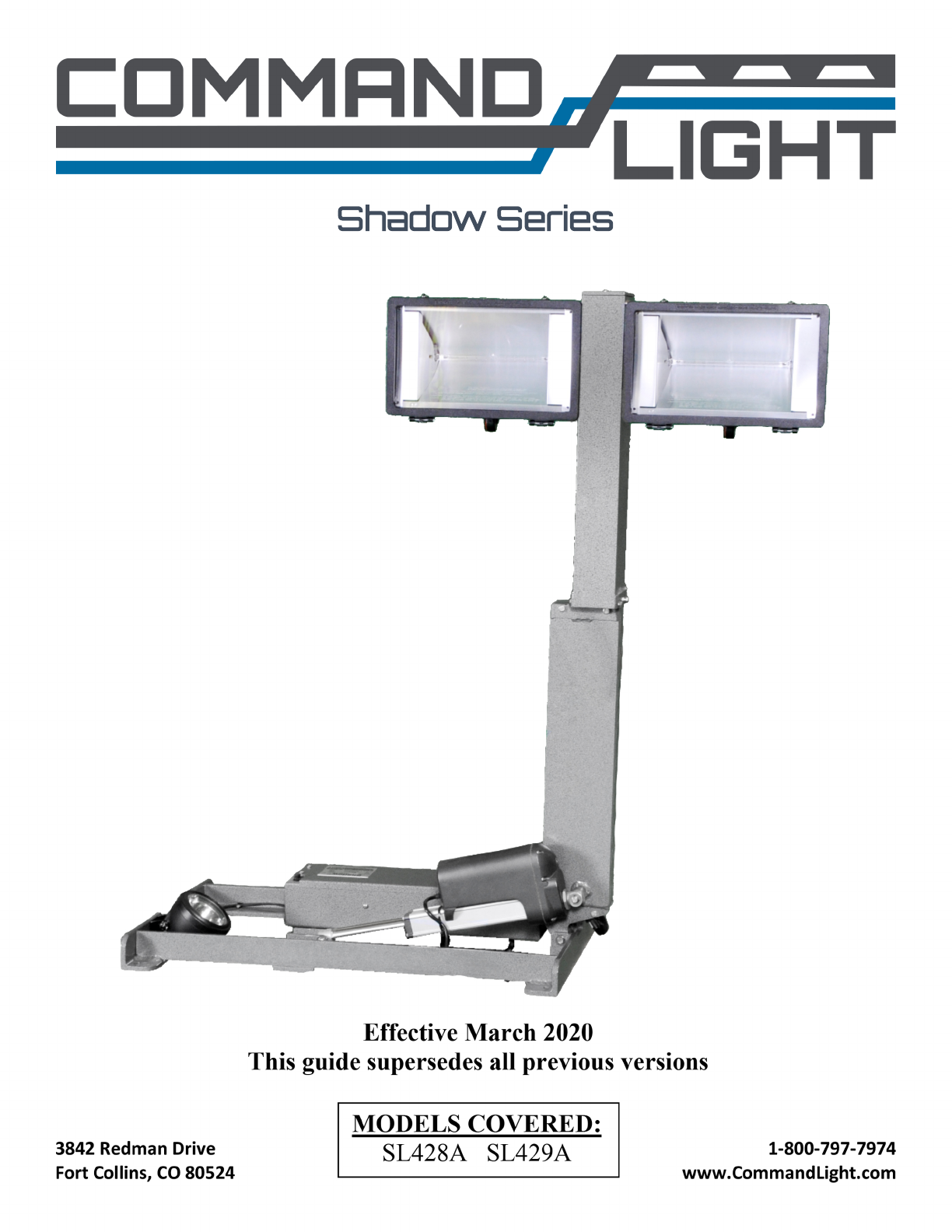

Command Light SHADOW Series Manuale utente
Shadow Series
Shadow RTB
2
THANK YOU
Please allow us to express a simple thank you for investing in a COMMAND LIGHT product.
As a company we are dedicated to producing the very best and most versatile flood lighting
package available. We take great pride in the quality of our work and hope that you will find
many years of satisfaction from the use of this equipment.
Should you have any problems with your product please do not hesitate to contact us.
COMMAND LIGHT_
3842 Redman Drive
Fort Collins, CO 80524
PHONE: 1-800-797-7974
FAX: 1-970-297-7099
WEB: www.CommandLight.com
USER GUIDE
3
Shadow RTB
4

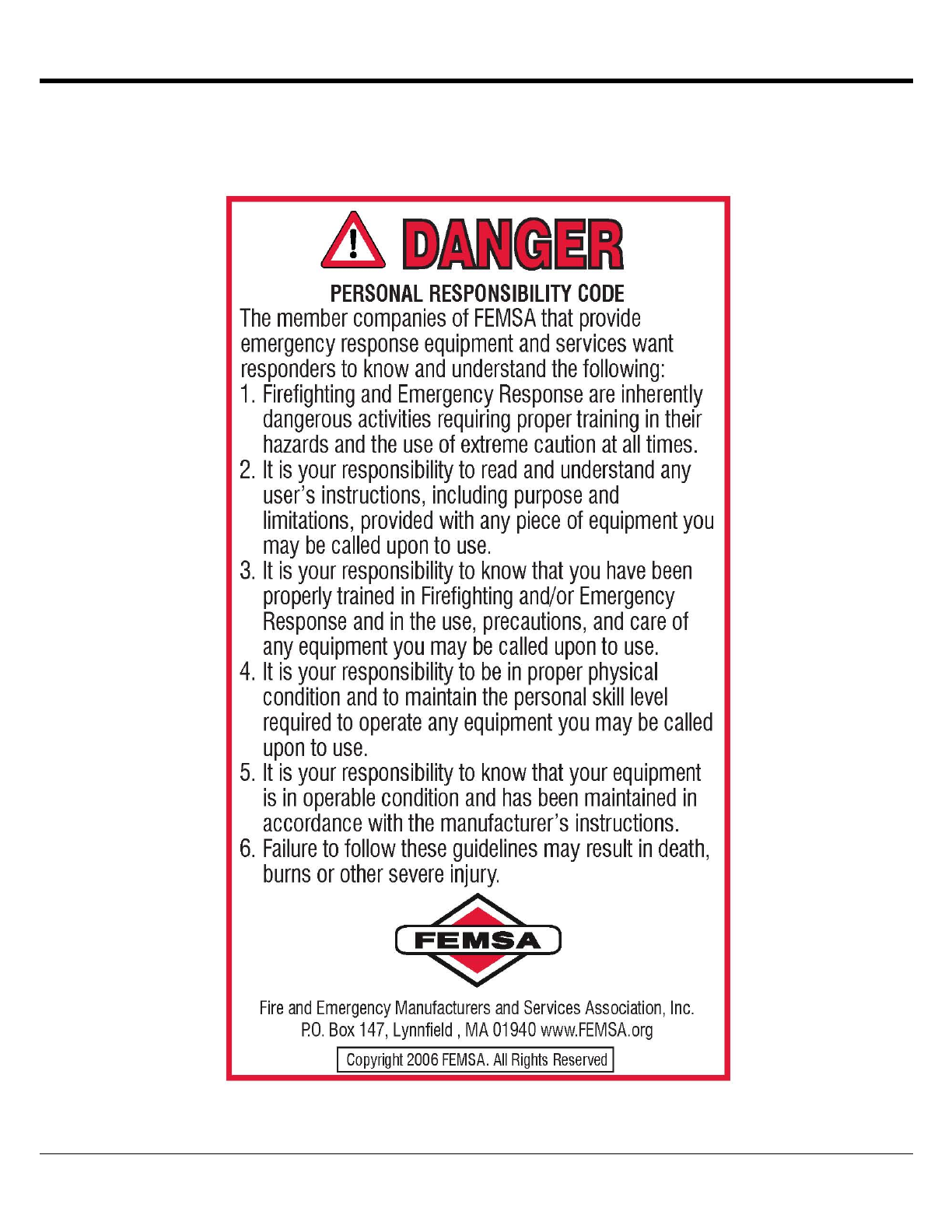

Please take the time to read this manual before installing or operating the ShadowRTB.
Save this guide for future reference.
Contents
Limited Warranty ........................................................................................................................................ 5
Breakage or Damage During Shipment ....................................................... Error! Bookmark not defined.
Product Safety Precautions ......................................................................................................................... 7
General Description and Specifications ..................................................................................................... 8
Operation ...................................................................................................................................................... 8
Raising the light from the nested position ............................................................................................... 8
Returning the light to the nested position ............................................................................................... 8
Installation .................................................................................................................................................... 9
Installation Kit ........................................................................................................................................... 9
Tools Required .......................................................................................................................................... 9
Installation Notes ................................................................................................................................... 11
Location Requirements .......................................................................................................................... 11
Mounting ................................................................................................................................................ 12
Control Box Holster Mounting ................................................................................................................ 12
Electrical Wiring ........................................................................................................................................ 13
240 VAC 220 (Euro) VAC ............................................................................................................... 13
Warning Device Installation ..................................................................................................................... 13
Maintenance ............................................................................................................................................... 14
Cleaning .................................................................................................................................................. 14
Troubleshooting ......................................................................................................................................... 15
Technical Specifications – Standard AC Model (SL428A, SL429A) .................................................... 16
Description ............................................................................................................................................. 16
Drawing .................................................................................................................................................. 17
Parts Lists - Exploded Views .................................................................................................................... 17
Wiring Schematics ..................................................................................................................................... 23
USER GUIDE
5
Command Light PHONE: 1-800-797-7974
3842 Redman Drive FAX: 1-970-297-7099
Fort Collins, CO 80524 WEB: www.CommandLight.com
Limited Warranty
Five Year
COMMAND LIGHT warrants that the equipment is free from defects in materials and workmanship
when used and operated for a period of five years. The responsibility of COMMAND LIGHT under this
limited warranty is limited to the repair and replacement of any parts found defective. Parts must be
returned to COMMAND LIGHT at 3842 Redman Drive, Ft Collins, Colorado 80524 with transportation
charges prepaid (C.O.D. shipments will not be accepted).
Prior to returning defective parts to COMMAND LIGHT, the original purchaser shall make a claim in
writing to COMMAND LIGHT at the above address indicating the model number, serial number and
type of defect. No parts or equipment will be received by COMMAND LIGHT for repair or replacement
under this warranty without specific written authority from it in advance.
Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not
covered by this warranty.
All equipment manufactured by us is tested before leaving our plant, and is shipped in good working
order and condition. We therefore extend to the original purchasers the following Limited Warranty for
the period of five years from the original date of purchase:
1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor
can we be held responsible for incidental and consequential expense and loss, nor does this
warranty apply to equipment where alterations have been executed without our knowledge or
consent. These conditions are readily discernable when the equipment is returned to us for
inspection.
2. On all component parts not manufactured by COMMAND LIGHT, their warranty is to the extent
that the manufacturer of such component warrants them to COMMAND LIGHT, if at all. Look in
your local business telephone directory for the nearest repair station for the brand of parts you
have or write to us for the address.
3. If equipment received has been damaged in transit, a claim should be made against the carrier
within three days, as we assume no responsibility for such damage.
4. Any service other than our Authorized Service voids this warranty.
5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral
or written, including any warranties of MERCHANTIBILITY or FITNESS for a particular
purpose.
6. Travel time paid at a maximum of 50% and only if pre-approved.
Shadow RTB
6
Warranty/Service
COMMAND LIGHT products* come with a industry leading 5 year warranty against any defects in materials
and workmanship when used and operated for a period of five years. If during this time period, you have any
malfunctions not related to misuse, accident, neglect, or normal wear and tear, please take the following steps
in order to have your light tower serviced under COMMAND LIGHT’s warranty.
1. Contact us immediately for initial diagnosis and parts if needed at 800-797-7974 or
2. You will need to have immediate access to light tower. This process can be done by
individuals with little mechanical ability. (Involves pushing buttons and telling us what the
light tower is doing or not doing)
3. We then send parts (if needed) and have a technician dispatched (if needed) with a written
work authorization number and a base amount of hours allotted to do repair
4. We remain available for service support via phone, email, or video conference while
technician completes repair, also to extend original time allotted if additional issue arise
5. Mark repair as completed and validate the work authorization number for hours of labor /
travel rates as agreed during diagnosis
6. Finally, we will pay out or credit the invoice when we receive it from person/company
performing the repair
Please make contact with us as soon as problems arise in order to execute our warranty. We must have
knowledge of the issue and a work order in place in order to pay or reimburse the department with the issue.
Any unauthorized service voids this warranty. (No work is authorized until the call is made to us)
Contact Us Early – before any work is done – We’d love to help!
*excludes light producing components (bulbs, lasers, LEDs) These components come with their own
manufacturer warranty. Contact us and we can help get it.
Breakage or Damage During Shipment
The transportation company is fully responsible for all shipping damage and will resolve problems promptly if
you handle it correctly. Please read these instructions carefully.
Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and
have them make a description on the freight or express bill describing the damage and the number of pieces.
Then contact us and we will send you the original bill of lading. Also promptly contact the transportation
company and follow their procedure for filing a claim. Each company will have a unique procedure to follow.
Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your
local freight agent for verification and investigation. This time can be saved by you filing the claim directly.
Every consignee is on the ground floor, in contact with the local agent who inspects the damaged goods, and
thus, each claim can be given individual attention.
Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we
cannot allow deduction from any invoice because of any damage, however, be sure to file your claim
promptly. Our goods are sold F.O.B. factory. We take receipt from the transportation company certifying that
the goods were delivered to them in good order and our responsibility ceases.
It is seldom that any breakage or damage occurs in any of our shipments and in no case will the customer be
out any expense if they follow the above instructions.
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may
call on you some time later. These damaged goods, of course, will belong to them, and they will inform you
what to do with them. If you dispose of these damaged goods, your claim may not be paid.
USER GUIDE
7

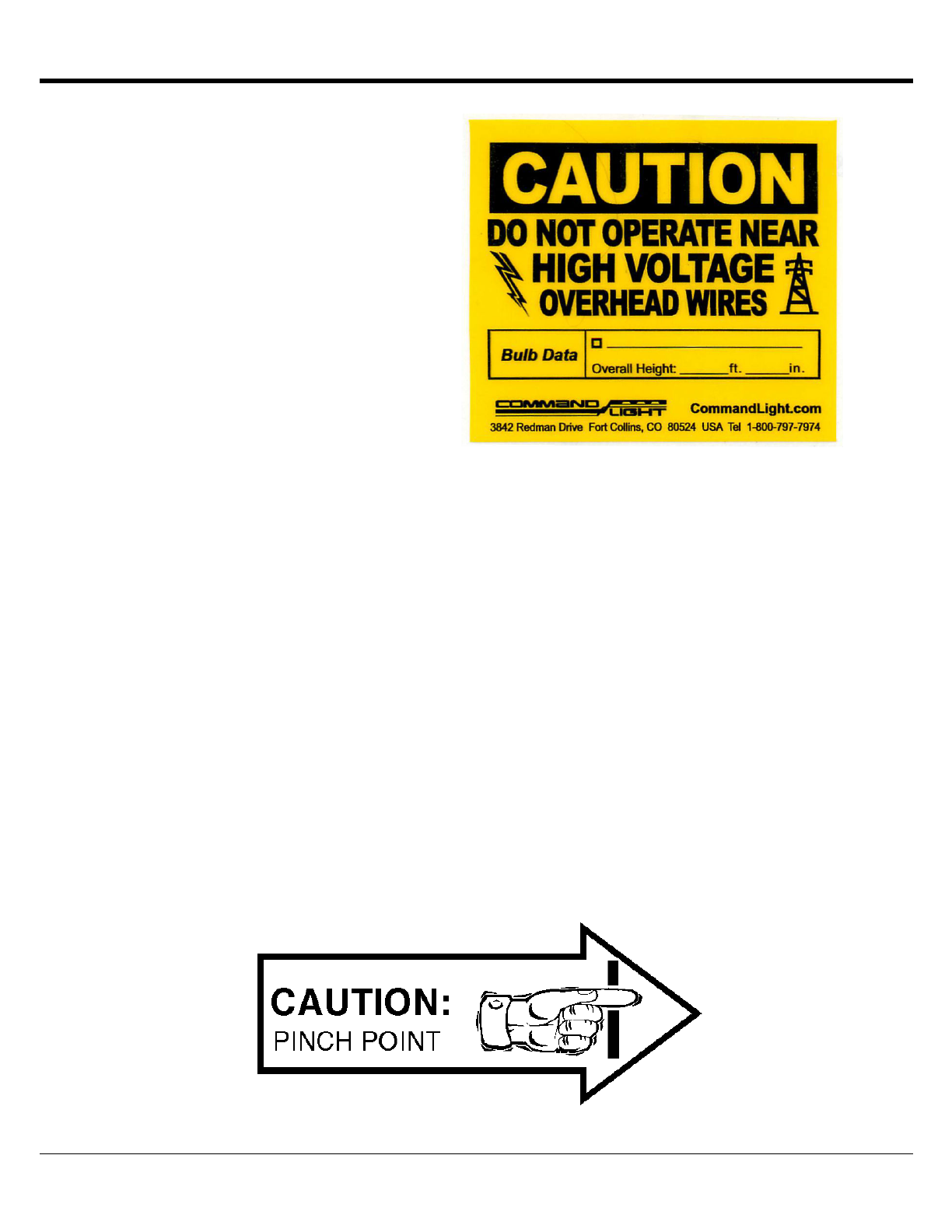

Product Safety Precautions
• Never operate the Command
Light Shadow RTB near overhead
high voltage power lines. The
Command Light Shadow RTB is
manufactured from electrically
conductive materials.
• Do not use the Command Light
Shadow RTB for uses other than its
intended purpose.
• Do not move emergency vehicle
with the light extended. Visually verify that the light is completely nested
before moving vehicle.
• Do not change light position while people are located within its operating
envelope. There are numerous pinch points that can cause serious bodily injury.
• Do not use a high-pressure washer or subject the light to high volumes of water
when cleaning.
• Never use the Command Light Shadow RTB as a lifting device or mobile arm.
• Do not use a Command Light Shadow RTB that has been damaged or is not fully
functional, including non-working indicator lamps.
• Never hold any part of the Command Light Shadow RTB with a hand or foot
while it is in motion.
• The Command Light Shadow RTB has numerous pinch points. Keep loose
clothing, hands and feet clear of moving parts.
Shadow RTB
8
General Description and Specifications
The Shadow RTB is designed to provide high intensity emergency scene lighting with quick
precision. As with any electromechanical device, take precautionary steps to ensure safe
operation.
The vehicle provides power for the 12 VDC circuitry. A 15 Amp breaker is recommended.
The umbilical corded control unit is powered via 12 VDC eliminating hazardous voltage
levels within the hand held control box.
The Shadow RTB is manufactured to provide years of service with a minimum of
maintenance.
Operation
Raising the light from the nested position
Using the control box, raise the lower stage. Control switches are of momentary action style
and must be held in the “on” position to actuate the stages.
The Shadow RTB has an override system that precludes rotation of the lamp tree until the
lower stage has elevated approximately 16” from the nested position. When the lower stage
is below 16” the following conditions exist:
• Lamp Tree is prevented from rotating.
• All lights are turned off, including strobe light if equipped, regardless of light switch
positions.
• Prevents the lower stage from moving down if lamp tree is not centered.
If the supply from the vehicle is marginal, position the Shadow RTB before turning on lights.
Returning the light to the nested position
The Shadow RTB is equipped with an Autopark function as a standard feature. Releasing the
Autopark button acts as an “Emergency Stop” and will cancel the Autopark sequence.
Autopark Sequence
Press and hold the black Autopark button on the controller. The Autopark sequence begins:
1. Lamps are extinguished.
2. Lamp tree begins rotation to the center position. If equipped with back light
option, back light begins rotation and returns to the home position.
3. Once lamp tree is centered, rotation stops, green center indicator illuminates, and
lower stage begins retracting.
Model #
Description
Minimum Power Requirements
SL428A
2 x 1000W
9 Amps, 240 VAC
SL429A
2 x 1500W
13 Amps, 240 VAC
USER GUIDE
9
4. After lower stage has fully retracted, upper stage begins retracting. Upon upper
stage retracting fully, red nest indicator will be extinguished
Installation
The Shadow RTB must be installed by a designated installation facility or by an EVT
certified Level FA4 Technician. All safety precautions must be thoroughly understood
before installation. Please consult the factory for additional installation information
assistance.
Improper installation can cause overheating of electrical power wires that could catch fire
and void the warranty.
Ensure all wiring is properly protected with correct sized breakers and fuses before
connecting to the power source.
AC powered light towers require a high current draw to provide high levels of lighting.
Verify all connected electrical components are able to handle the load for this light tower as
listed in the Technical Specifications on page 15.
If in doubt, contact Command Light at 1-800-797-7974 or [email protected].
Installation Kit
Included with the Shadow RT is an installation kit. Verify that the kit contains the following
items:
(1) 25 feet of 12GA-2 Conductor power cable (1) 25 feet of 22GA-20 conductor cable
(1) 25 feet of 10GA-4 Conductor power cable
(1) Pre-wired HOLSTER BOX w/cover (1) Handheld Controller
(1) Small hardware parts bag with:
(4) mounting spacers (4) 5⁄16-18 X 2 ½” bolts
(4) 5⁄16-18 nylon lock nuts (8) 5⁄16” flat washers
(4) large diameter flat washers (2) ¼-20 X 5⁄8” Phillips pan head machine screws
(4) ¼” flat washers (2) ¼-20 nylon lock nuts
(1) ½” 90° sealing connector w/nut (1) ¾” 90° sealing connector w/nut
Tools Required
Lifting device (crane, forklift, block and tackle, etc.)
Sling for lifting
Drill
21/64”, 17/64” drill bits
Hole punch for metal with 7/8” and 15/16” diameter capacity
Phillips head screwdriver, #2
Command Light flat blade screwdriver (included with light)
7/16” and 1/2” combination wrenches and/or ratchet and 7/16” and 1/2” sockets
8” adjustable wrench
Tongue and Groove Pliers
Wire stripper or razor blade knife
Shadow RTB
10
Solder-less wire connector crimp tool
Silicone based gasket sealer, RTV™ recommended
Altri manuali per SHADOW Series
3
Questo manuale è adatto per i seguenti modelli
2
Indice
