Entrance Camera

Model No. DRC-4BG/4CG

Use And Care Guide

.in.ua

www.commax.in.ua

!!" !

Tab

l

e

of Con

t

e

n

t

s

1. G reeting !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 2

2. O verview !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 3

3. W iring and Installation !!!!!!!!!!!!!!!!!!!!!!!!!!!! 4

4. Specification !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!"

1. Gr

ee

t

i

ngs

*Thank you for purchasing a C O MMAX product.

*Please read this manual before use and properly follow its instructions.

!!# !

2. Ov

e

rv

i

e

w

N o. contentsN ame

1 Front Panel

2 Mounting Holes

3 Speaker Transmits sounds from the household.

4 C amera Lens Protect it from foreign substances.

5 LED Lamp Turns on at night for better viewing.

6 MIC For use when communicating with the household.

7 Page Button Used to page the household.

8 Door Release C able

9 Monitor C able C onnect to the household monitor, after matc hing up the

polarity

!!$ !

3. W

i

r

i

ng and Ins

t

a

ll

a

t

i

on

1. C ut out the mounting template included in the manual and use it to drill mounting holes (#6.5)

on the wall. Insert Concrete anchors in the holes.

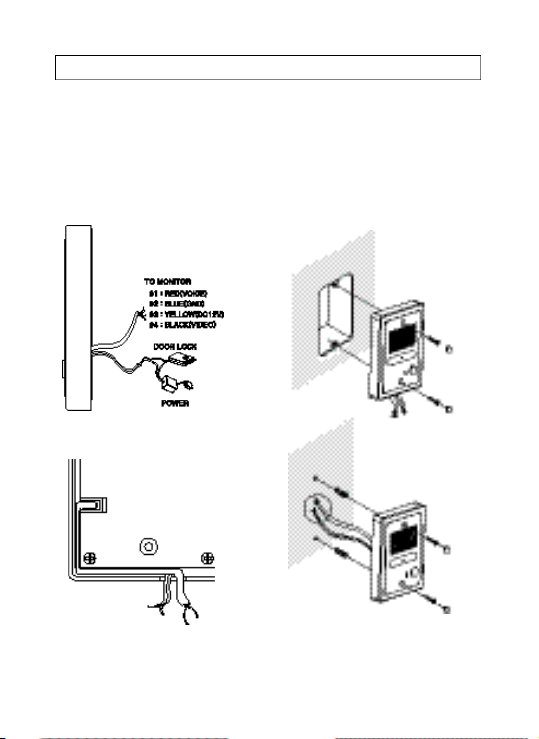

2. W ire the household monitor cable as shown below, with matched polarity. [FIG -2]

(#1:RED/VO IC E, #2:BLUE/G N D, #3:YELLO W /DC 12V, #4:BLAC K/VIDEO )

3. C onnect the door release cable as shown below. [FIG-2]

4. For exposed wiring, organize the wiring through the case as shown below. [FIG -3]

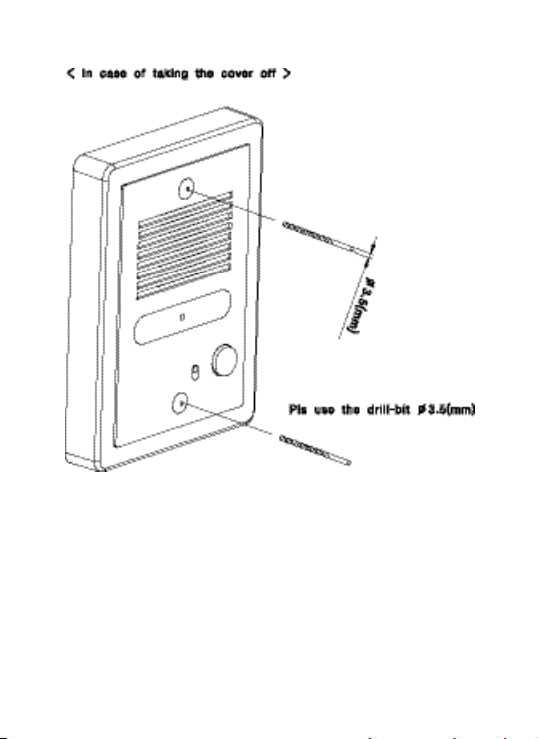

5. Secure using bolts and Cover with AL.. Screw C overs. [FIG -4]

[FIG -2]

[FIG -3] [FIG -4]

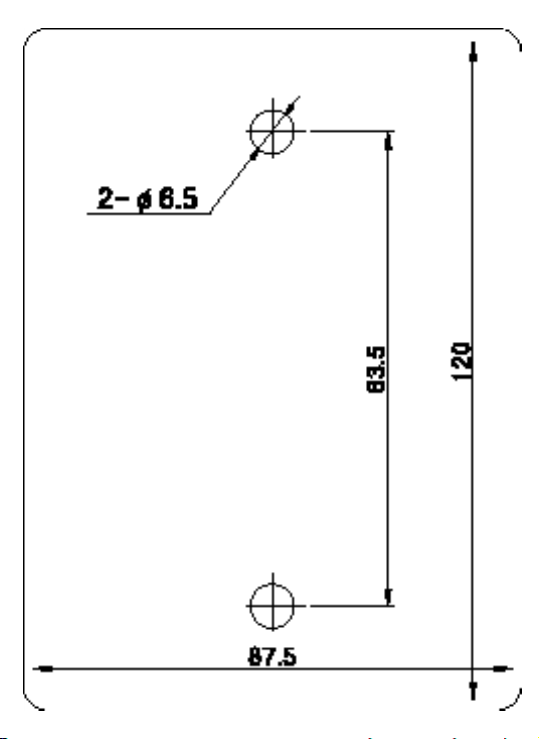

[MO UN TIN G TEMPLATE]

!!% !

!!& !

4.

Sp

e

c

i

f

i

c

a

t

i

on

DRC-4BG/4CG

Resolution 270,000 pixel C C D

Rated Voltage DC 12V (supplied from the monitor)

W iring Method (household) 4-wire polarity

Effective Viewing Angle Horizontal 55°, Vertical 40°

Angle Adjustment Fixed

Broadc ast Method N TSC STA N DA RD

Horizontal/Vertical Scanning Frequency

15.734KHz / 60Hz, 15.625KHz / 50Hz

Lamp DRC -4BG: Enclosed infrared LED

DRC -4C G : Enclosed white LED (night operation)

Minimum Luminance 0.1 LUX (Up to 30cm in front of the camera)

Ambient Temperature -10 !~ +50!

External Dimensions (mm) 93.5(W ) x 126(H) x 18(D)

W eight (g) 180

Model

Specification

C ommax User Manual

05-08-01

513-11, Sangdaewon-dong, Jungwon-gu,

Seongnam-si, G yeonggi-do, Korea

In

t

’

l

Bus

i

n

e

ss D

e

p

t

:

Tel.; +82-31-7393-540~550

Fax.; +82-31-745-2133

W eb site : www. commax. com

Printed In Korea
