Commax DRC-4CGN2 Manuale utente
DOOR CAMERA DRC-4CGN2
User Manual
•Thank you for purchasing COMMAX products.
•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
•The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
1
1. Introduction.....................................................2
2. Important Safeguards .....................................3
3. Overview.........................................................4
4. Wiring and Installation ....................................6
5. Package..........................................................9
6. Specification ................................................10
Table of Contents
www.safemag.ru
www.safemag.ru
10
specification Model
DRC-4CGN2
Image Sensor CMOS 1/4"
Power source 12V (supplied from the Monitor)
Wiring(household) Polar 4 wires
Call mode Duplex
Camera angle horizontal angle 47°, vertical angle 34°
Angle adjustment Fixed
Format NTSC or PAL STANDARD
Lamp Built-in white LED (automatically turns on in night)
Low illumination 0.1 LUX (Up to 300mm in front of the camera)
Workable temperature -10℃(tested up to -40℃)+50℃
Dimension(mm) 87.5(W) x 120(H) x 21(D)
Weight(g) 280
6. Specification
www.safemag.ru
www.safemag.ru
2
Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the
unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided
below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.
Model No. Serial No.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the use to the presence of uninsulated
“
“dangerous Voltage”
”
within the product’s enclose that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the
literature accompanying the appliance
1. Introduction
CAUTION : To reduce the risk of electric shock, do not remove cover(or back) no user-serviceable
part inside refer servicing to qualified service personnel
caution
Risk of electric shock
do not open
www.safemag.ru
www.safemag.ru
3
▲
Damage Requiring Service : This equipment from the power source and source and refer servicing to qualified service per-
sonnel under the following conditions
ⓐwhen the power is damaged.
ⓑif liquid has been spoiled or objects have hallen into the unit
ⓒif the equipment has been exposed to rain or water.
ⓓif the equipment has been dropped or otherwise damaged.
ⓔwhen the equipment exhibits a distinct change in performance- this indicates a need for service.
▲
Water and Moisture : Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry
tub, in a wet basement, or near a swimming pool, and the like.
▲
Accessories : The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any
mounting of the manufacture’s instructions, and should use a mounting accessory recommended by the manu-
facturer.
▲
Object and Liquid Entry : Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
▲
Lightning : For added protection for this product before a lightning storm, or when it is left unattached and un used for long
periods of time, unplug it from the wall outlet and disconnect the other system. This will prevent damage to the
product due to lightning and power-line surges. If you live in an ared heavily prone to lightning storms, it is recom-
mended that you invest in power-line, telephone-line, RF cable and actuator / polarization surge protectors to pro-
tect your appliance system from possible damage
2. Important Safeguards
www.safemag.ru
www.safemag.ru
4

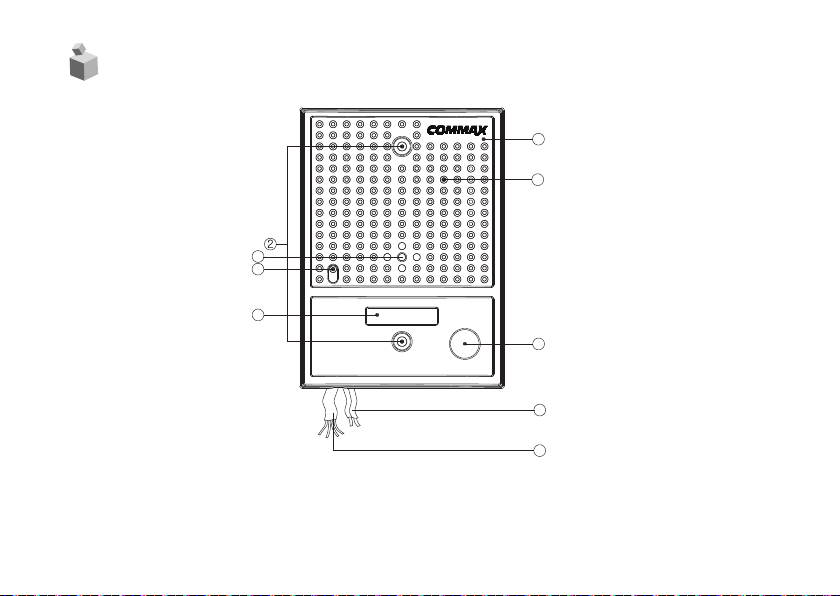

3 Name of each part and function
X
Z
]
\
[
^
_
`
mpnTX
www.safemag.ru
www.safemag.ru
5
①Front panel
②Mounting Holes
③Speaker : Transmits sounds from the household
④Camera Lens : keep cleaning up from dust or foreign substances.
⑤LED Lamp : The LED lamp is turned on for clear view during night.
⑥Microphone : For use when communicating with the household
⑦Page Button : Used to page the household
⑧Door release cable : Connect with door release switch
⑨Monitor cable : Connect with household monitor after matching up the polarity
www.safemag.ru
www.safemag.ru
6

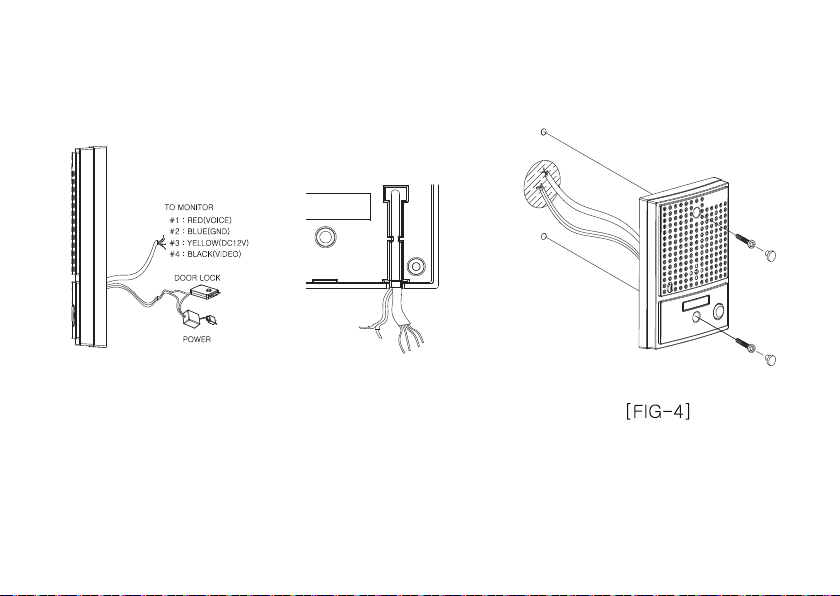

1. Cout out the MOUNTING TEMPLATE included in the manual and use it to drill mounting
holes(Ø6.5) on the wall. insert Concrete anchors in the holes.
2. Wire the household monitor cables as shown below with matched polarity as picture below.
[FIG-2]
(#1:RED/VOICE, #2:BLUE/GND, #3:YELLOW/DC12V, #4:BLACK/VIDEO)
3. Connect the door release cable as picture below. [FIG-2]
4. For exposed wiring, organize the wiring through the case as shown below.[FIG-3]
5. Secure using bolts and cover with AL.Screw Covers. [FIG-4]
4.
Wiring and Installation
www.safemag.ru
www.safemag.ru
7
mpnTY mpnTZ
www.safemag.ru
www.safemag.ru
8
60cm
34

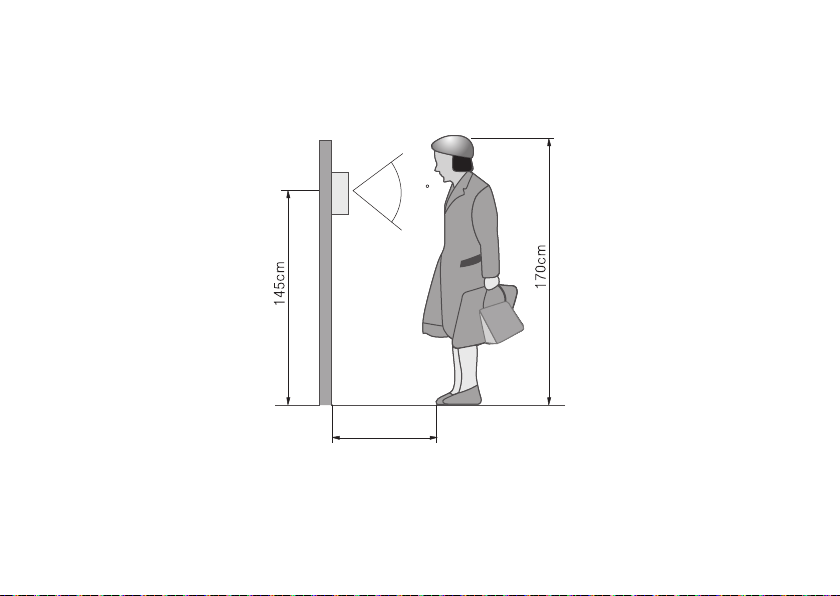

●Please refer to the below images regarding the installation position of the product.
www.safemag.ru
www.safemag.ru
