Commax DRC-nUC Manuale utente

DOOR STATION DRC-nUC

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

1. Introduction.........................................................................2

2. Important Safeguard...........................................................3

3. Overview.............................................................................4

4. How to use .........................................................................6

5. Wiring .................................................................................7

6. Part List ...........................................................................13

7. Installation .......................................................................14

8. Specification ....................................................................15

Contents

Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the

unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided

below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use to the presence of uninsulated

“

“dangerous Voltage”

”

within the product’s enclose that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the

literature accompanying the appliance

1. Introduction

CAUTION : To reduce the risk of electric shock, do not remove cover(or back) no user-serviceable

part inside refer servicing to qualified service personnel

caution

Risk of electric shock

do not open

▲

Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per-

sonnel under the following conditions:

ⓐwhen the power is damaged.

ⓑif liquid has been spilled or objects have fallen into the unit

ⓒif the equipment has been exposed to rain or water.

ⓓif the equipment has been dropped or otherwise damaged.

ⓔwhen the equipment exhibits a distinct change in performance- this indicates a need for service.

▲

Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, or near a swimming pool, and the like.

▲

Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any

mounting of the manufacture’s instructions, and should use a mounting accessory recommended by the manu-

facturer.

▲

Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any

kind on the product.

▲

Lightning: For added protection for this product before a lightning storm, or when it is left un attached and un used for long

periods of time, unplug it from the wall outlt and disconnect the other system. This will prevent damage to the prod-

uct due to lightning and power-line surges. If you live in an area heavily prone to lightning storms, it is recom-

mended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge protectors to protect

your appliance system from possible damage

2. Important Safeguard

3. Overview

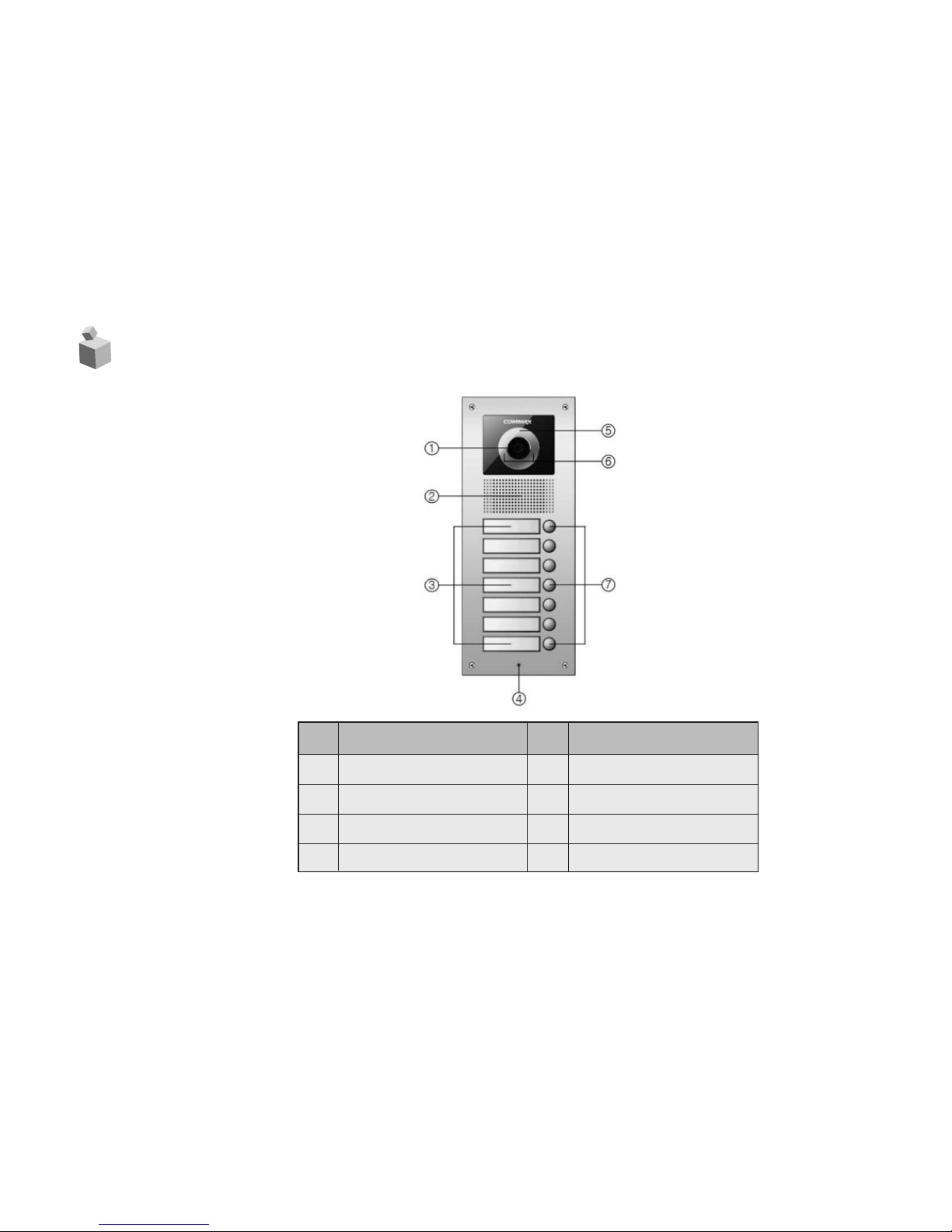

No.

FUNCTIONS

1 CAMERA 5 LIGHTNING SENSOR

2 SPEAKER 6 LIGHT(WHITE LED)

3 NAME CARD 7 CALL BUTTON

4 MIC

No.

FUNCTIONS

Notice

1. DRC-nUC is a Master unit which has functions to call or communicate with a house unit.

2. “ n “ stands for the No. of house that DRC-nUC can call.

✽DRC-nUC : DRC-2UC / 3UC / 4UC / 5UC / 6UC / 7UC are available.

4. How to use

FEATURES AND CAUTIONS

1. The power supply of this product is DC12V( Including LED lamp of name label etc.)

2. If user answer the household phone when you call from the door camera(entrance),

you can talk.

3. Please note that it makes call other household phone you don’t want if you press

other call button mistakenly.

4. Please note that 3-way communication is possible when another user turn on the

monitor when you are talking with door camera user on household video phone.

5. Wiring

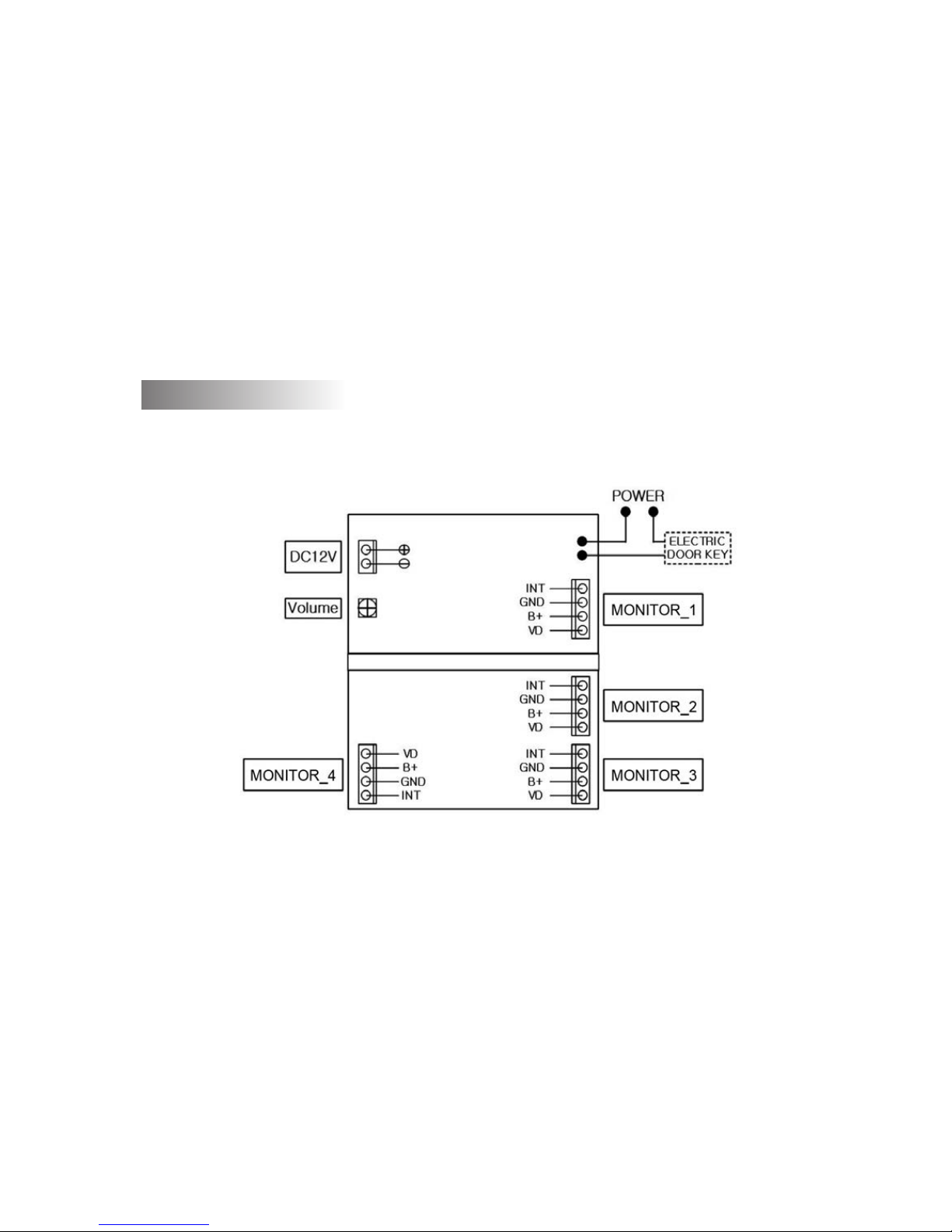

(1) DRC-2UC

(2) DRC-3UC

(3) DRC-4UC
