Color Door Camera DRC-4G
User Manual
•Thank you for purchasing COMMAX products.
•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
•The company is not responsible for any safety accidents caused by abnormal operation of the product.

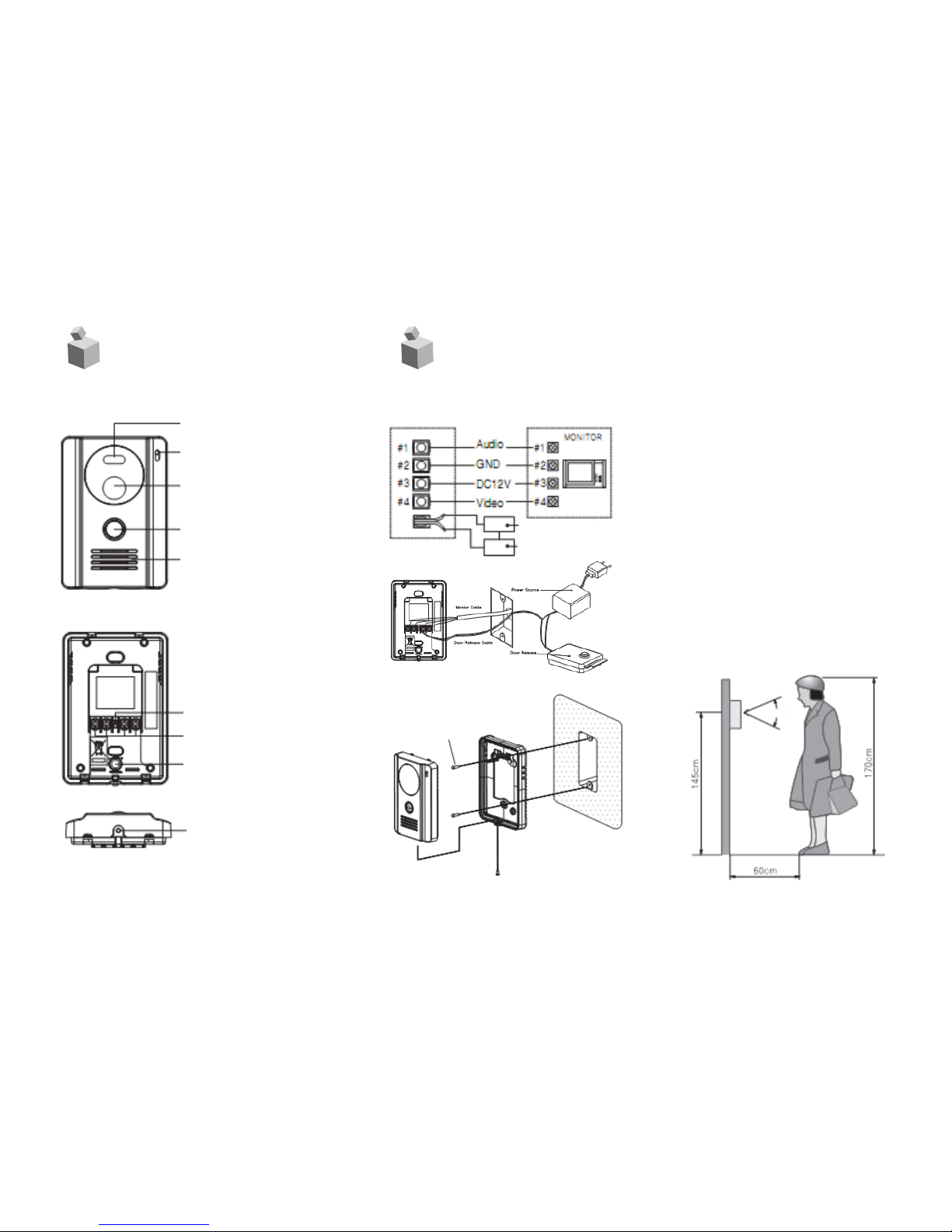

1. Overview
LED & Sensor
Microphone
Camera Lens
Speaker
Call Button
Angle Adjustment Lever
Volume Adjuster
Monitor Connection Terminal
Door Release
Connection Line
2. Wiring and Installation
1. Match the fix the whole in the wall and the fixing
2. Match and connect monitor line as shown below
(#1: Audio, #2: GND, #3: DC12V, #4: Video)
3. Adjust camera location on the wall by checking
4. Connect the Door Release Connection Line as
5. Tighten a screw at the bottom side of the camera
fixing bracket [FIG.1]
[FIG.2]
the image on monitor screen and fix its location
shown below [FIG.2]
[FIG.1]
SCREW M3X8 (1EA)
▶Position of camera
66.5°
Screw Hole
SCREW T4X18 (2EA)
Power Source
Door Release
Wiring
Installation
[FIG.1]
[FIG.2]
▶
▶
4. Specification
DRC-4G
DC 12V (Supplied t o monitor)
4 wires (polarity) to a monitor
2 wires (non-polarity) to a electric door lock
NTSC or PAL STANDARD.
CMOS IMAGE SENSOR
Full duplex
0.1 Lux (within 300mm)
Embedde d white LED (night working)
Horizontal 82°, Vertical 66.5 °
Upward 6°
-10℃(tested up to -40°C)~ +40℃
30 0g
101(W) x 142(H) x 32(D)
Diameter(pie) Ø
0.5
Ø
0.6
Ø
0.8
Ø
1
Distance(meter)
28m 50m 70m 115m
Model No.
Rated Voltage
Video Transmission Standard
Sensor Type
Transmission
Minimum Illumination
LED
Effective Viewing Angle
Angle Adjustment
Operating Temperature
Weight (g)
Dimension (mm)
Installation between a door
camera and a monitor(TIV Cable)
Wiring
5. Contents
Door camera Bracket
Camera fixing
screw
Braket fixing
screw
Volume
Sheet
Printed In Korea / 2016.04.105
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
