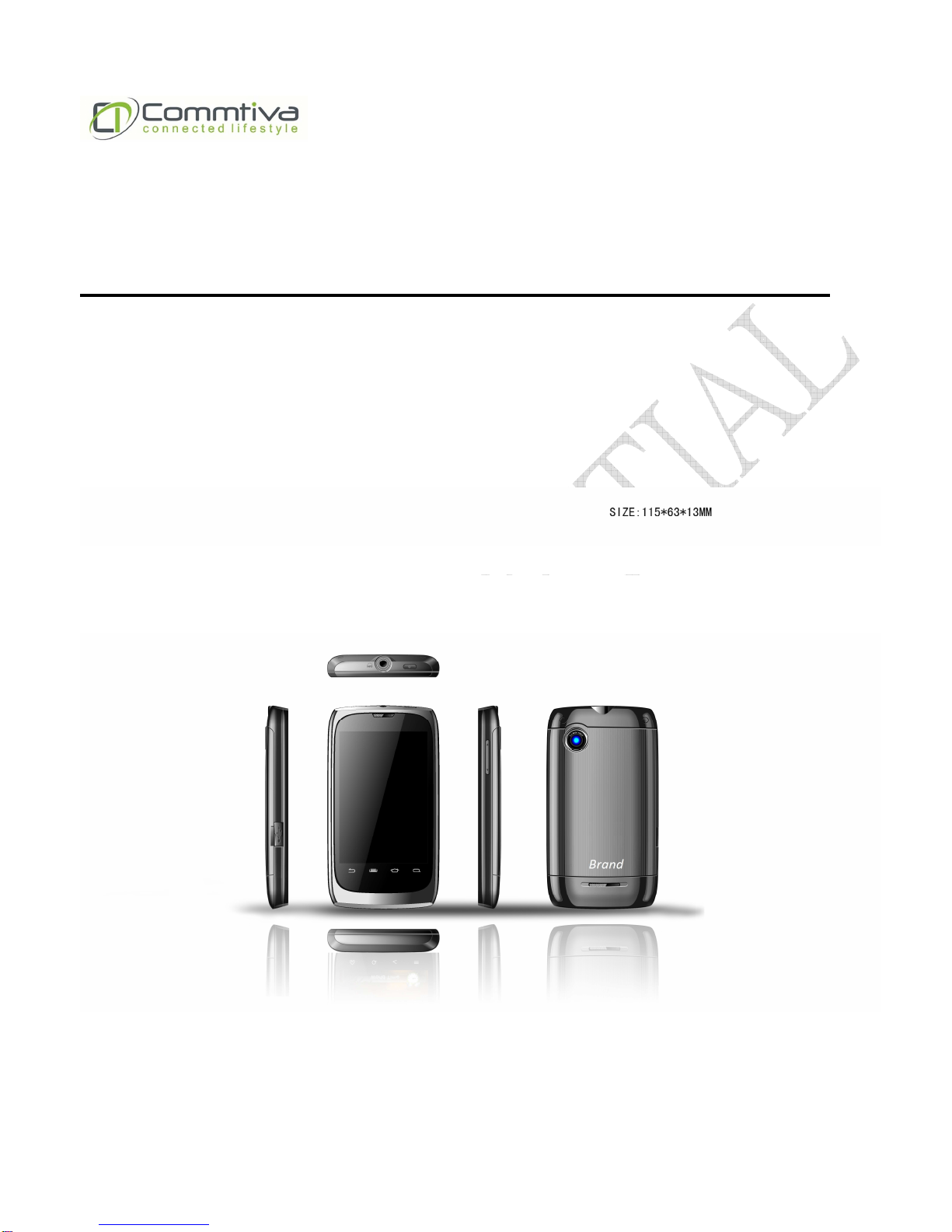

E501 L1~L2 Service Document

Version 2.0

E501

L1~L2 Service Manual

E501 L1~L2 Service Document

Version 2.0

Contents

Revision..........................................................................................................................................3

1. Specification...........................................................................................................................4

2. General Introduction ..............................................................................................................6

3. Equipment.............................................................................................................................11

4. Exploded View ....................................................................................................................................12

5. Disassembly .........................................................................................................................15

6. Assembly ..............................................................................................................................19

7. FQC mode testing instruction …………………………………..…………………………….… 22

8. SUT Tool …………………………………………...…………...……..………………...….…….… 63

9. UT Help Tool ……….……………………………...…………...……..………………...….…….… 70

E501 L1~L2 Service Document

Version 2.0

Revision

Date Version Comment Owner

2011-05-16 V1.0 Initial release of document Bogi Lin

Calvin Dong

2011-05-18 V2.0 1. Add SUT Tool

2. Make-up FQC Test SOP Bogi Lin

2011-05-26 V3.0 Add UT Help Tool Bogi Lin

E501 L1~L2 Service Document

Version 2.0

1.Specification

Hardware Platform Specification

Operating System Android Froyo

Dimension Size: 114.8mm (H) x 62.8mm (W) x 14.7mm (T)

Weight: 122.5g (device 91g + batt 31.5g)

Processor/Chipset Qualcomm MSM7227-1 with DSDS BSP (App: ARM11 600Mbps)

Memory 512MB NAND Flash/512MB DDR

Display Size: 3.5”

Type: TFT transmissive LCD

Resolution: 480 x 320, HVGA

Color: 18bit, 262K

Touch panel: Capacitive-type touch lens (with LED soft key)

Radio Band & Standard Dual SIM / Dual Standby (WCDMA + GSM)

SIM 1:

GSM/GPRS/EDGE/UMTS/HSDPA

GSM Qual bands: 850/900/1800/1900

UMTS: 900/1900/2100 for EU band, 850/2100 or 850/1900 for US band

GPRS: GPRS Class 12

EGPRS/EDGE: Multi-Slot Class 12

UMTS: DL/UL, HSDPA 7.2Mbps

SIM 2:

GSM Qual bands: 850/900/1800/1900

GPRS: GPRS Class 12

Phone Services Speech with HR/FR/EFR/AMR codec

Call hold/wait/forward

Call History

Call line identification (CLI)

Multi-party conference call

DTMF tone generation

Unstructured Supplementary Service Data (USSD)

SMS class 0/1/2/3

Dual-Mode UMTS-FDD/GSM, UMTS/GSM handover

Preferred network and band selection

Emergency call

PIN1/2, SIM tool kit, SIM lock

Connectivity GPS/AGPS

E501 L1~L2 Service Document

Version 2.0

Wi-Fi: 802.11b/g/n

Bluetooth 2.1 + EDR

USB 2.0 High-Speed client (micro-B type)

Audio Built-in microphone, receiver, and loudly speaker

3.5mm audio jack for stereo headset interface

Advanced Echo Cancellation for phone

AAC LC/LTP, HE-AACv1 (AAC+), HE-AACv2 (enhanced AAC+),

AMR-NB, MP3, MIDI, Ogg Vorbis, PCM / WAVE

FM Radio with RDS, RBDS

Video Video playback: H.263, H.264 AVC, MPEG-4 SP

Picture Still image: JPEG, GIF, BMP, PNG

Camera CMOS 5M pixel, Auto focus

Interface micro-USB connector with data sync, power charging features

Micro SD card slot

USIM card slot (Dual SIM slots)

Sensor G-sensor

E-compass sensor

Proximity + Ambient light sensor

E501 L1~L2 Service Document

Version 2.0

2.General Introduction

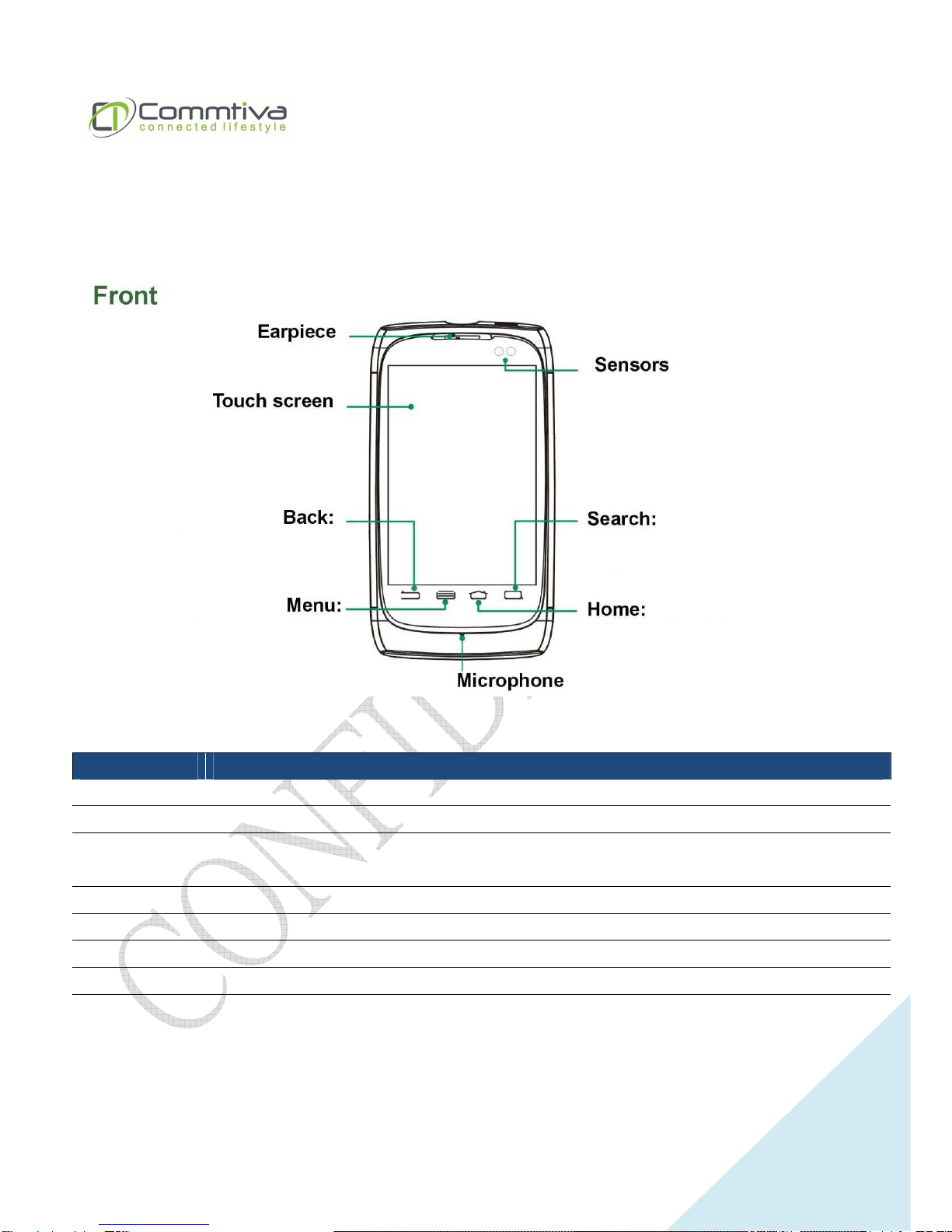

2.1 Feature Diagram

Component Description

Earpiece Serves as the phone earpiece during a call.

Sensors

Touch screen Displays the output of your device. Tap the screen with the stylus to select menu

commands or enter information.

Back Press to return to the previous screen.

Search Press to search for items on the phone or the Internet.

Menu Press to view menu options.

Home Press to return to Home screen.

Microphone An instrument for converting sound waves into electrical energy variations, which may

then be amplified, transmitted, or recorded.

E501 L1~L2 Service Document

Version 2.0

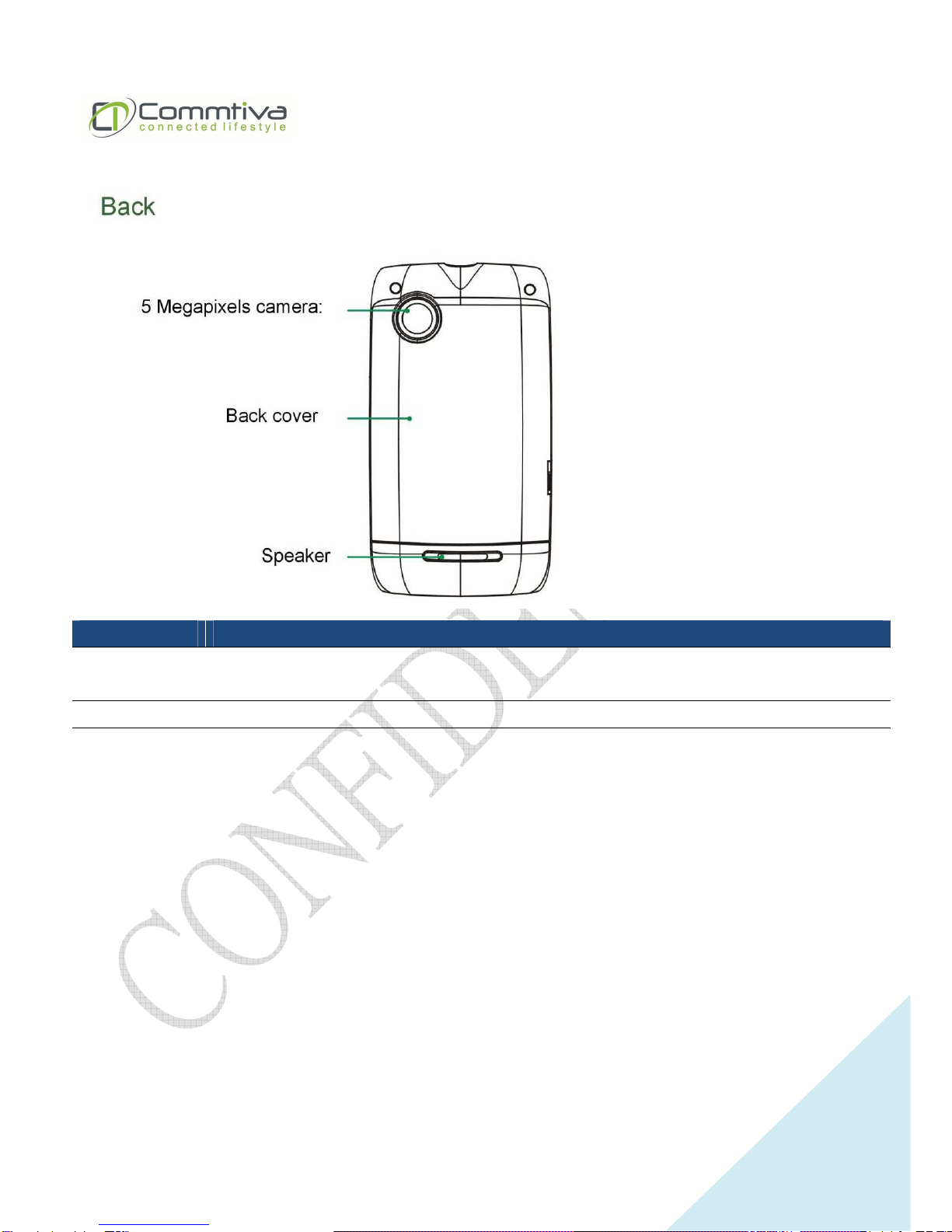

Component Description

5 Megapixels

camera Takes pictures or records video clips.

Back Cover To remove or replace the battery, push and slide out the battery cover

Speaker Plays back music, sounds and voice.

E501 L1~L2 Service Document

Version 2.0

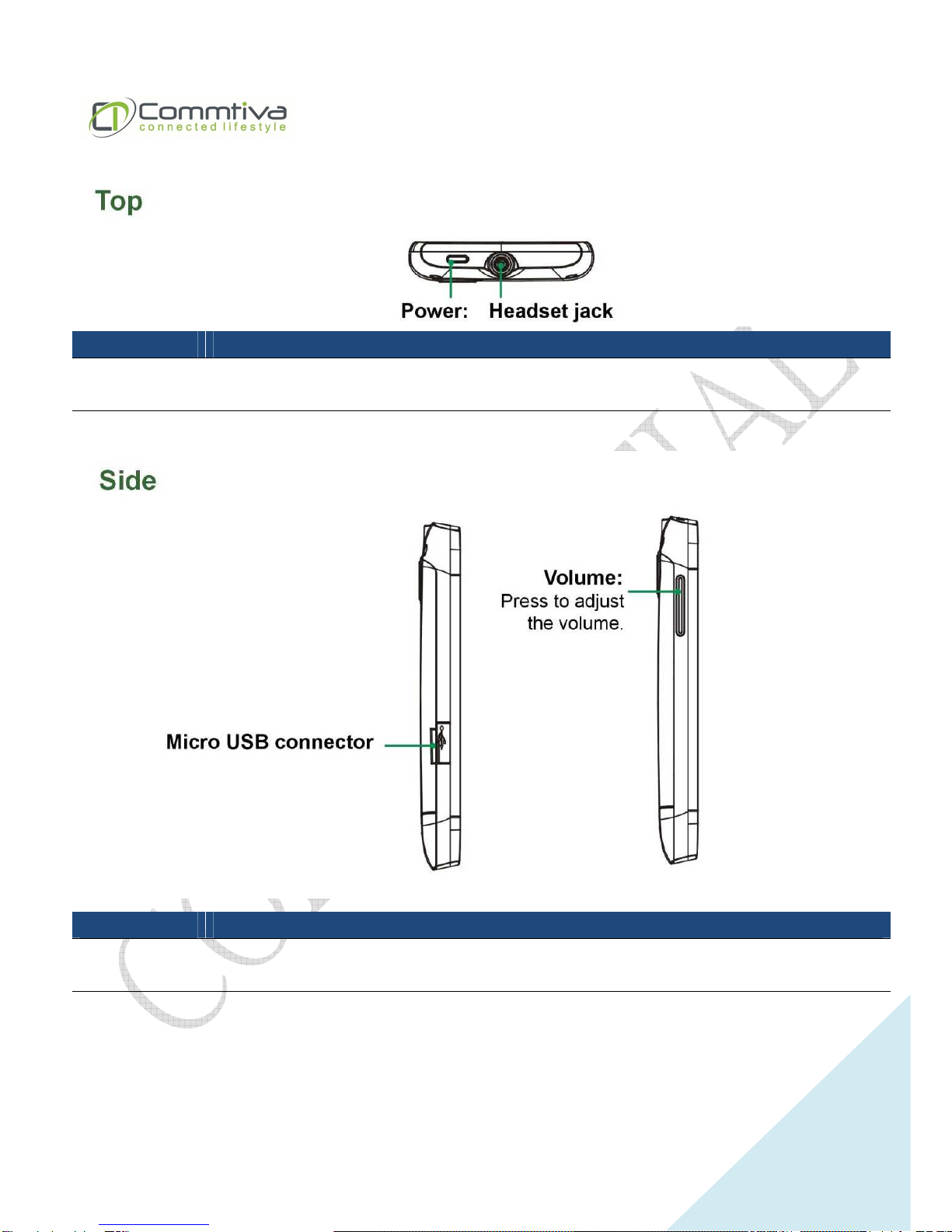

Component Description

Power Press to turn off the display temporarily. To turn off the power, press and hold for about

3 seconds.

Headset jack A jack of inserted a set of headphones

Component Description

Micro USB

connector Connect the USB data cable to a PC for synchronization of direct Video Out function.

Volume Press to adjust the volume in standard mode.

E501 L1~L2 Service Document

Version 2.0

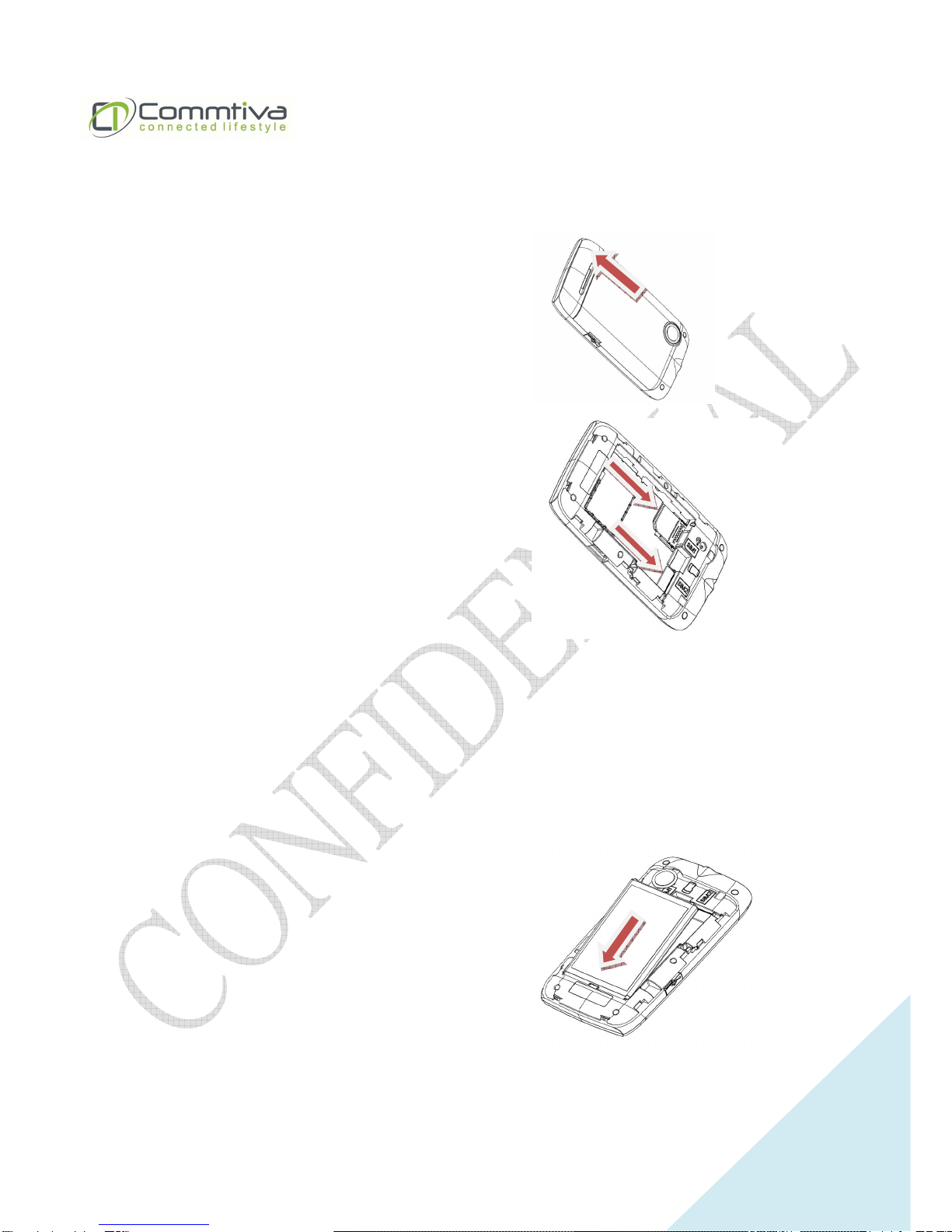

2.2 Installing SIM card and Battery

To remove the back cover

1. Make your device is turned off.

2. Push the back cover up with your

thumb until it disengages from the

device and then slide it up to remove.

To install the SIM card

1. Make sure your device is turned off.

2. Locate the SIM card slot, then insert

the SIM card with its gold contacts

facing down and its cut-off corner

facing out the card slot.

3. Slide the SIM card completely into the

slot.

To remove the SIM card

1. Remove the battery if it is installed.

2. Slide the SIM card out from the SIM

card slot with your thumb.

To install the battery

1. Align the battery’s exposed copper

contacts with the battery connectors

inside the battery compartment.

2. Insert the contact’s side of the battery

first and then gently push the battery

into place.

E501 L1~L2 Service Document

Version 2.0

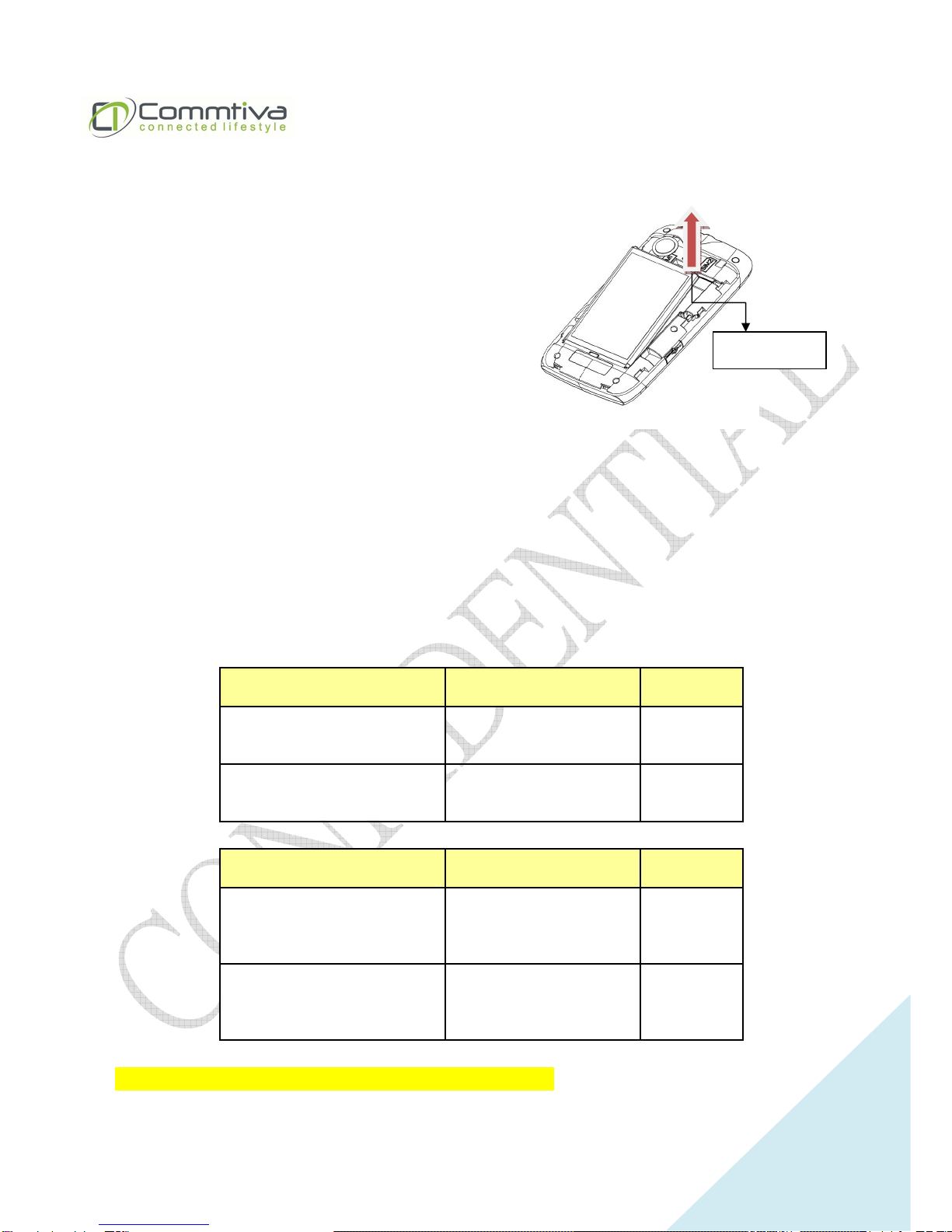

To remove the battery

1. Make sure your device is turned off.

2. Remove the back cover.

3. The top left and right sides of the

battery have protruding grips. Lift a

protruding grip from either side to

remove the battery.

Battery

Your device comes with a rechargeable Lithium-ion or Lithium-ion polymer battery and is designed

to use only manufacturer-specified original batteries and accessories. Battery performance

depends on many factors, including network configuration, signal strength, the temperature of the

environment in which you operate your device, the features and/or settings you select and use,

items attached to connecting ports, and your voice, data, and other program usage patterns.

Battery life estimates(approximations):

Standby time:

Test item & user scenario

Test condition

Life Time(hrs.)

GSM LCD off, measure 3 minutes

468.75

WCDMA LCD off, measure 3 minutes

540.00

Talking time:

Test item & user scenario

Test condition

Life Time(hrs.)

Talking mode (GSM) LCD off, measure 3 minutes

10.98

Talking mode (WCDMA) LCD off, measure 3 minutes

7.89

Note: Battery life is subject to network and phone usage.

Battery grip
