COMO AUDIO Amico Manuale utente

Your Guide to Amico

Note: References to DAB/DAB+ apply only to models outside North America.

Front

1. Power/Volume: Push in briefly to turn Amico on or off. Rotate to adjust the volume.

2. Menu/SELECT: Press and hold to call up the main Menu. Rotate to navigate the

Menu and push in briefly to select.

In DAB mode, rotate to call up the DAB station list and push in briefly to select a

station. Be sure to fully extend the antenna.

In FM mode, rotate to manually tune stations or push in briefly to auto seek to the

next strongest FM station. Be sure to fully extend the antenna.

When artwork is displayed, such as an album cover or station logo, push in briefly to

expand the image to fill the display. Push in briefly again to return to the standard

display.

When the alarm activates, push in briefly to Snooze. Push in briefly again during

Snooze to reset the Snooze timer.

Push in twice in standby (when the power supply is connected) to turn the display

off, and twice again to turn the display back on.

3. Source/BACK: Rotate to call up and navigate the source menu. Push in briefly to

select the highlighted source.

In most individual Menu pages, push in briefly to go back one menu page with each

push.

Push in twice in standby (when the power supply is conncted) to turn the display off,

and twice again to turn the display back on.

4. Presets: Press and hold to save a tuned station or a source. Push in briefly to recall

the saved station or source. The presets are independent and are not restricted to

whichever source is playing. The presets will also turn Amico on from standby (when

the power supply is connected) if a station or source has been saved to that preset.

Carefully selected Internet stations have been saved to each preset.

5. NFC (Top of cabinet):

If your Android smart phone has NFC, make sure it is switched on in your device and be

sure the display on your device is unlocked. Change Amico’s source to Bluetooth. When

the Bluetooth icon begins flashing after about 15 seconds in the lower right corner of

the display, touch the NFC area of your smart phone to the NFC logo on the top of

Amico’s cabinet. You may need to adjust your smart phone’s position around the

cabinet’s NFC logo until it locates the signal. If your smart phone is in a case, the case

might reduce the NFC signal. Once NFC is established, follow the instructions displayed

on your smart phone’s display to establish the Bluetooth connection. Touch your smart

phone to the cabinet’s NFC logo again to disconnect from Bluetooth. If your device does

not support NFC, see the section marked “Bluetooth”. You should not need to pair or

use NFC again after successfully pairing a device, except to disconnect from Bluetooth.

You can peel off the NFC sticker if you prefer.

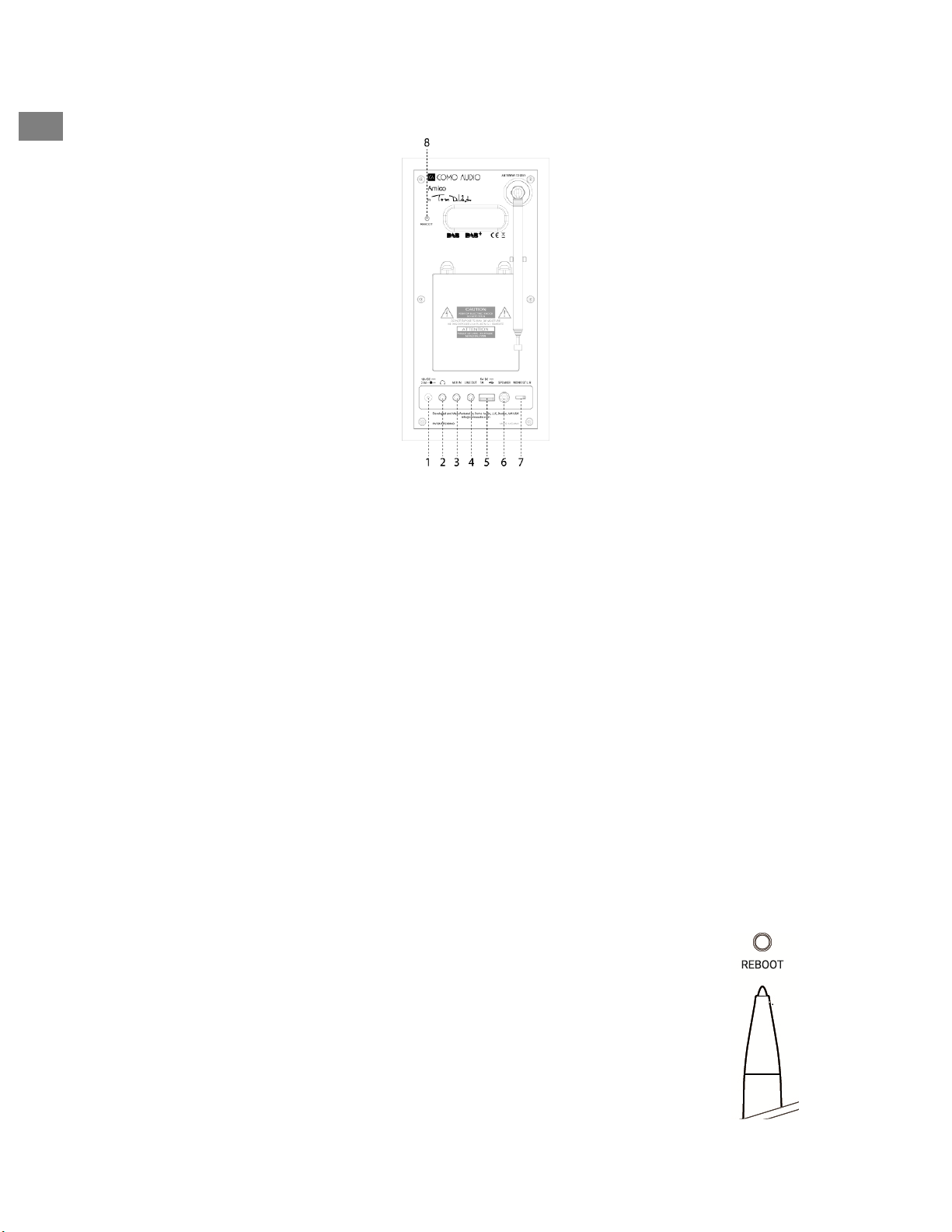

Back

1. 18VDC/2.8A power inlet: Connect the included external power supply and snap in

the plug for your region if more than one is provided. The power supply will

automatically detect the correct voltage. The battery will charge whenever the

adapter is connected regardless of whether Amico is on or in standby. When Amico

is off without the adapter connected, it is completely off, not in standby. This is

intentional to preserve battery power.

2. Headphones: Connect a set of stereo headphones. The primary speakers will be

muted.

3. Auxiliary 1 (Hi-Res): Connect the analog audio out from another device.

4. Line out: Fixed level output to connect Amico’s audio to a home receiver or other

device with an analog audio input.

5. USB: Insert a USB flash drive to playback music files then rotate the source knob and

push in briefly to select ‘My Music’. This jack will also power Google’s Chromecast

for Audio and Amazon’s Dot. This jack can also charge many smart phones. Do not

exceed the jack’s 5V/1A capacity. To play audio from an MP3 player, use Bluetooth

or an audio cable connected to the Auxiliary input.

6. Speaker: For use only with Como Audio’s optional speaker for stereo sound.

7. Audio switch: When using Amico independently, set to Mono. When the optional

speaker is connected, set to ST (Stereo). When using two Amico’s

together as a wireless stereo dedicated left and right pair, set one

Amico to L (Left) and the other to R (Right).

8. Reboot: Press briefly to reboot Amico if an issue occurs. You will not

lose any settings or need to repeat the setup process.

➢Bass port: Rest your palm on the top of the cabinet and insert

fingers to carry.

Remote Control* (install the included AAA batteries):

1. Power = Power

2. “i”= Info: Press repeatedly to see more info about the current

source.

3. Speaker X = Mute, and Snooze when alarm sounds.

4. Up = Navigate up when in the menu. Also acts as seek up when

in FM mode. Also shows station list in DAB mode (use

up/down/enter to navigate and select).

5. Left arrow = Track back.

6. Down = Navigate down when in menu. Also acts as seek down

when in FM mode. Also shows station list in DAB mode (use

up/down/enter to navigate and select).

7. Play/Pause/SELECT = Track Play/Pause. Long press brings up

menu; Brief press within menu acts as Select; Brief press in

Internet radio mode saves tuned station to Favorites.

8. Right arrow = Next track; Hold to fast forward through track.

9. 3 Lines = Source icon menu (use up/down/enter to

navigate/select source).

10. Clock = Alarm menu (use up/down/enter to navigate and

select); Toggle alarms 1 & 2 on and off in standby.

11. Vol +/Vol- = Volume up/down

*Note: The remote control cannot operate Amico when it is Off and

the external power supply is not connected.

Display Off: Press any remote key twice except Power and Alarm in standby to toggle

the display off/on (when the power supply is connected). When the display is off, press

any key (except Power and Alarm) once to turn the display on for 7 seconds. Once

Amico is turned on, the display will reset to the previous Backlight Menu setting when

placed in standby again.

Set Up Wizard

After turning Amico on for the first time, the Como Audio logo will be displayed,

followed by the Setup Wizard. Follow the on-screen instructions for each step. Rotate

the Menu knob and push in briefly to select, or use the track, arrow, and Play (which

doubles as “Select”) keys on the included remote control.

When prompted, we highly recommend you choose “Keep network connected” to

maintain accurate time, receive prompt notification of software updates, use the Como

Control app, etc.

If your WiFi network requires a password, select “skip WPS” if prompted and enter your

password. While in the password screen, rotate the Menu knob continuously up or

down to access additional letters and characters and press it in briefly to select. You may

find the remote keys handier for entering a password than using the menu knob. After

completing your entry, navigate over to the three boxes on the right side and select

“OK” to enter your password. If the password screen is shown again it means you failed

to enter the password correctly.

If you make a mistake and need to start over again from the beginning, press and hold

the Menu knob, select System Settings, Network, and Network Wizard. If your WiFi

network is not shown, press and hold the Menu knob, select System Settings, then

Factory Reset, and start the Setup Wizard again.

For more detailed setup information, visit www.comoaudio.com to view the latest,

comprehensive user manual, FAQs, and “how-to” videos.

How to use Spotify Connect

You’ll need Spotify Premium to use Connect –

see details overleaf.

1. Add your speakers to your wifi network (see product user instructions for details).

2. Fire up the Spotify app on your phone, tablet or PC using the same wifi network as

above.

3. Play a song on Spotify and hit ‘DEVICES AVAILABLE’.

4. Choose your speakers and your music will start playing out loud.

Happy listening.

For more information on how to set up and use Spotify Connect please visit:

www.spotify.com/connect

Alarms:

With Amico on, press the alarm key on the remote control, or press and hold the Menu

knob. Select Main Menu, then Alarms, then select Alarm 1 or 2. Set each category as

desired and be sure to select “Save” when you are done or else none of your settings

will be saved and the alarm will not be set. If you choose to wake to one of the Aux

inputs, you must have your Aux device playing, such as an MP3 player, as Amico cannot

activate your source device. In standby, press the remote’s alarm key to toggle the

alarms on or off without having to go into the Menu.

To Snooze, press the Menu knob or the Snooze key on the remote. Snooze will re-set

each time it is pressed.

To stop the alarm, press Amico’s power button or the Alarm button on the remote.

Note: If Amico is Off and the external adapter is not connected, the alarm cannot

activate.

Sleep:

To set the Sleep timer, press and hold the Menu knob, rotate to “Main menu” and select

it by pressing in the Menu knob, then rotate to and select “Sleep”. Rotate the Menu

knob to scroll through the sleep time options and select a Sleep period by briefly

pushing in the Menu knob. The display will eventually time out to the “Now playing”

screen and the Sleep icon and time will be displayed at the bottom of the display.

Note: If Amico is Off and the external adapter is not connected, Sleep cannot operate.

Daylight Savings Time adjustment/Clock accuracy:

If the time is incorrect by 1 hour, go into the System settings menu > Time/Date > Adjust

to DST > and select +1 or -1 hour to correct the time. While in System settings, verify

“Auto update” under Time/Date is set to “Update from network” and that you have a

consistent WiFi signal, as loss of signal will reset the time to twelve o’clock until the WiFi

signal is restored.

Bluetooth:

Rotate the source knob to Bluetooth and push in briefly to select. Open Bluetooth on

your enabled device and search/scan for the “Como Amico”name, then pair and

connect. Once you’ve paired you shouldn’t need to do it again. If your device prompts

you to enter a passcode, enter “0000”. Set your smart device’s volume at 100% and

adjust Amico’s volume as needed. If you use other Apps for music streaming, you can

connect your smart device via Bluetooth to stream them to Amico.

Backlight (in Menu > System settings > Backlight):

The On Level affects the backlight level whenever the unit is on.

The Dim Level affects the backlight level whenever the unit is in standby. You must

select a Timeout value in the Backlight menu in addition to the Dim Level in order for

the Dim Level to take effect in standby.

Adding Internet stations:

To request an Internet station be added, customize Internet station Favorite categories

and other options, please register on our web portal as described in the comprehensive

manual on our web site: www.comoaudio.com

Enhanced EQ:

Found under Equalizer in the System settings menu, this selection enhances the bass

response.

My Music: UPnP

If you have music on other devices on your WiFi network you wish to stream to Amico

(most commonly using Windows Media Player (WMP)), open Windows Media Player on

your device and make it the default player. Under the “Stream” tab, select “Turn on

media streaming”, and next to “CA Amico”, tic “Allowed”.

On your Amico, rotate the Source knob and select My Music followed by Shared media.

Be sure your device and Amico are both connected to the same WiFi network.

Amico will scan your network and present a list of device names. Select the device you

wish to play music from.

Use the track and play/pause keys on the included remote control to control the audio

tracks.

Note Amico’s display cannot play videos or show pictures from another device.

If you are streaming from a MAC, you will need to use a third-party UPnP server app.

DLNA:

You can stream audio from a DLNA media server.

Multi-room:

Set up and control of multi-room is primarily done through Como Audio’s Como Control

app. In the list of devices in the Como Control app, press the “plus” symbol to the right

of the unit you wish to make the host, then click on the units you wish to add to the

group to play whatever is playing on the host.

Download the free Como Control iOS or Android app from iTunes or the Google Play

store. The Como Control app will allow you to control many functions along with

multi-room.

Reboot/Reset:

In the event you experience a problem or atypical behavior, press the Reboot button on

the rear panel. If this doesn’t resolve the issue, try rebooting your router using it’s reset

button or by unplugging its power adapter. As a last resort, perform a Factory re-set in

the System Settings menu. Take note of your settings, WiFi password, and Presets, as

the Factory reset will erase your settings.

Outdoor use:

Amico is weather resistant but not water proof. It should never be placed under running

water or submerged.

Battery Playback and Charging time:

Results will vary depending on use, but at approximately 60% volume with a fully

charged battery, expect roughly 8 hours of playback time. A depleated battery pack

could take up to 3 hours to fully charge (a lightning bolt icon will be shown during

charging). A warning message will repeatedly appear on the display several minutes

before the battery is about to run out of power. If a distortion sound is heard, that is an

audible warning the battery is about to die. The external power supply should be

connected immediately under either condition. Doing this repeatedly could shorten

battery life.

When operating on battery power, lower volume levels and a lower backlight setting

will extend battery playback time.

During extended periods of non-use, be sure Amico is kept at room temperature with a

40% battery charge.

To replace Amico’s battery, remove the battery cover and follow the instructions

included with the replacement battery pack (sold separately).

Warranty

Como Audio, LLC provides a two-year parts and labor warranty to the original owner

from the date of purchase.

This warranty does not cover accidental damage, cosmetic damage, normal wear and

tear, improper installation, negligence, commercial applications, acts of God,

lightening/power surges, unauthorized modifications, or service by unauthorized

facilities.

Como Audio will repair or replace the defective product at its discretion. Please retain

the original receipt and packing materials.

Contact your point of purchase for warranty service.

Please contact Como Audio for an authorization number before returning any product

to us at: info@comoaudio.com

Specifications:

Model name: Como Audio Amico

Max power output: 30 watts RMS per channel; Class D Digital amplifier

Power input: 18VDC/2.8A: Use only a like power adapter if a replacement adapter is

ever needed.

Battery: LI-Ion 2200mA/14.8V (For your safety and optimal performance, replace only

with a genuine Como Audio Amico battery pack). Dispose of a spent battery pack

according to your country’s requirements.

Transducer configuration: ¾” Soft dome tweeter and 3” woofer

Dimensions: 242 mm H x 125 mm W x 130.5 mm D (including antenna)

Weight: 1.68kg/3.7 lbs

This manual was written by Peter Skiera. This document, as well as all specifications

and features, are subject to change without notice.

Como Audio, LLC is not liable for technical or editorial errors/omissions.

Como Audio, the Como Audio logo, Amico, and Como Control are trademarks or

registered trademarks of Como Audio, LLC.

Thompson Licensing: MP3 audio decoder

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Fraunhofer: MPEG-4 HE AAC Audio decoder

MPEG-4 HE-AAC audio coding technology licensed by Fraunhofer IIS.

http://www.iis.fraunhofer.de/amm/

The Spotify Software is subject to third party licenses found here:

https://developer.spotify.com/esdk-third-party-licenses/

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth

SIG, Inc. and any use of such marks by Como Audio, LLC is under license. Other

trademarks and trade names are those of their respective owners.

Altri manuali per Amico

Indice

Lingue:

Altri manuali COMO AUDIO Convertitore multimediale

COMO AUDIO

COMO AUDIO Amico Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
