Compaq Presario V3000 - Notebook PC Manuale utente
Drives
User Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2007
Document Part Number: 430303-001
Table of contents
1 Handling drives
2 Drive light
3 Hard drives
Replacing the hard drive ...................................................................................................................... 3
4 Optical drives
Inserting an optical disc ........................................................................................................................ 7
Removing an optical disc when running on battery or external power ................................................. 8
Removing an optical disc when no computer power is available ......................................................... 9
Avoiding the Sleep state or Hibernation ............................................................................................. 10
Index ................................................................................................................................................................... 11
ENWW iii
iv ENWW
1 Handling drives
Drives are fragile computer components that must be handled with care. Refer to the following cautions
before handling drives. Additional cautions are included with the procedures to which they apply.
CAUTION To reduce the risk of damage to the computer, damage to a drive, or loss of
information, observe these precautions:
Before you move a computer or external hard drive from one location to another, initiate Sleep,
and allow the screen to clear.
Before handling a drive, discharge static electricity by touching the unpainted metal surface of
the drive.
Do not touch the connector pins on a removable drive or on the computer.
Handle a drive carefully; do not drop a drive or place items on it.
Before removing or inserting a drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the
operating system.
Do not use excessive force when inserting a drive into a drive bay.
Do not type on the keyboard or move the computer while the optical drive is writing to a disc. The
write process is sensitive to vibration.
When the battery is the only source of power, be sure that the battery is sufficiently charged
before writing to media.
Avoid exposing a drive to temperature or humidity extremes.
Avoid exposing a drive to liquids. Do not spray the drive with cleaning products.
Remove media from a drive before removing the drive from the drive bay, or traveling with,
shipping, or storing a drive.
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “FRAGILE.”
Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport
walk-through devices and security wands. The airport security devices that check carry-on
luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.
ENWW 1
2 Drive light

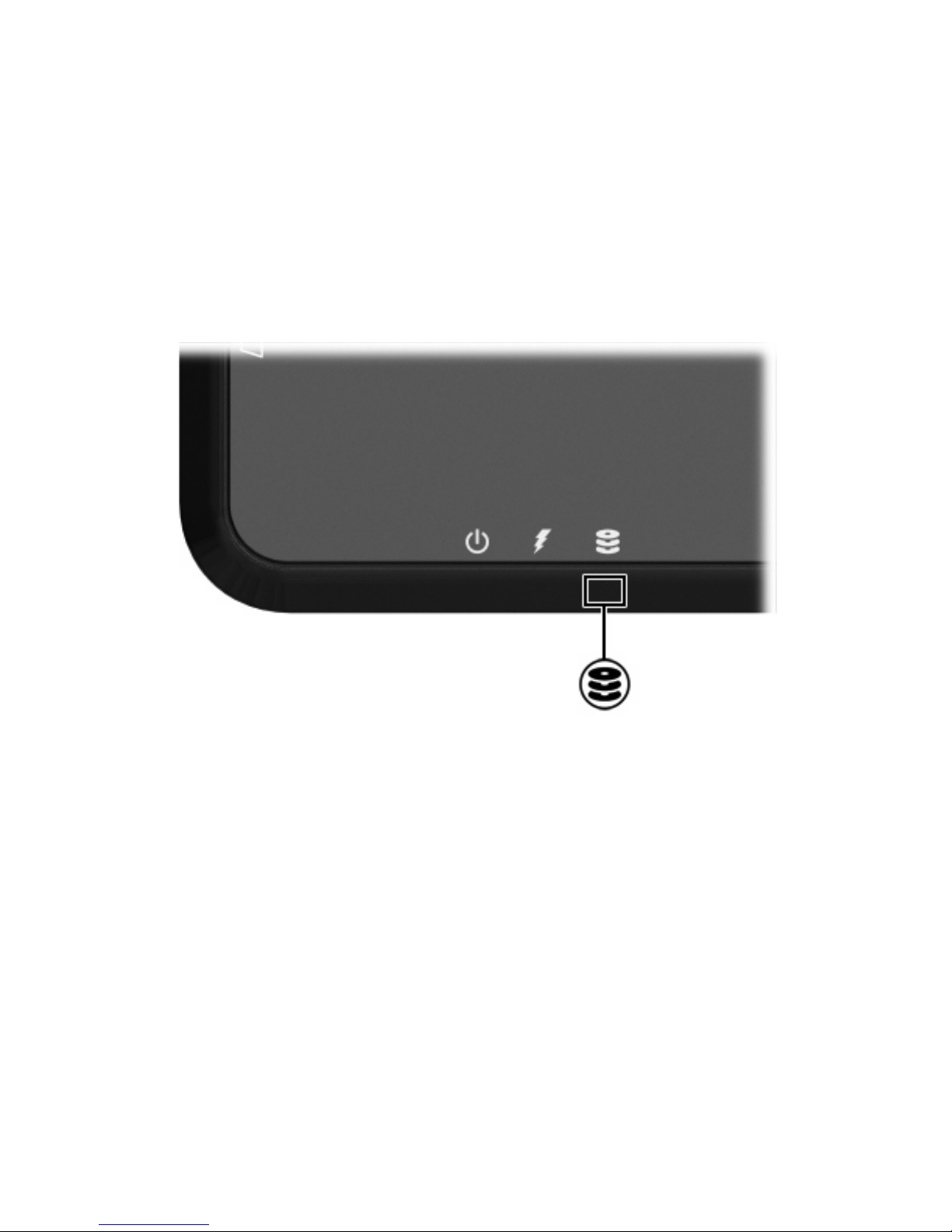

The drive light blinks when either the primary hard drive or an optical drive is being accessed.
2 Chapter 2 Drive light ENWW
3 Hard drives
Replacing the hard drive
CAUTION To prevent system lockup and loss of information:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove
the hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing
the power button. Then shut down the computer through the operating system.
To remove the hard drive:
1. Save your work.
2. Shut down the computer and close the display.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface.
6. Remove the battery from the computer.

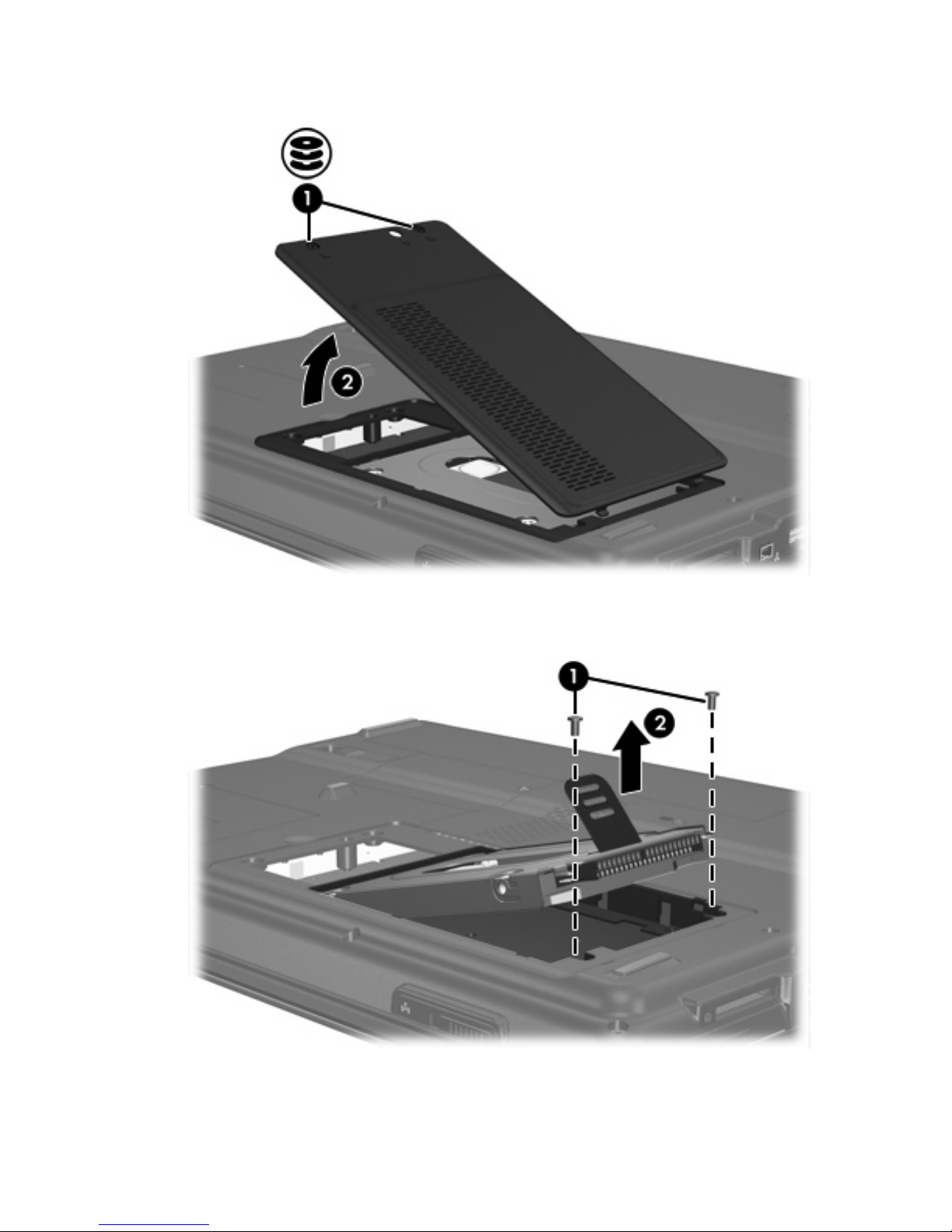

7. With the hard drive bay toward you, loosen the 2 hard drive cover screws (1).
ENWW Replacing the hard drive 3
8. Lift the hard drive cover away from the computer (2).
9. Remove the 2 hard drive screws (1).
10. Pull the hard drive tab up (2), and then lift the hard drive away from the computer.
4 Chapter 3 Hard drives ENWW
To install a hard drive:
1. Insert the hard drive into the hard drive bay.
2. Gently press the hard drive down until it snaps into place (1).
3. Replace the 2 hard drive screws (2).

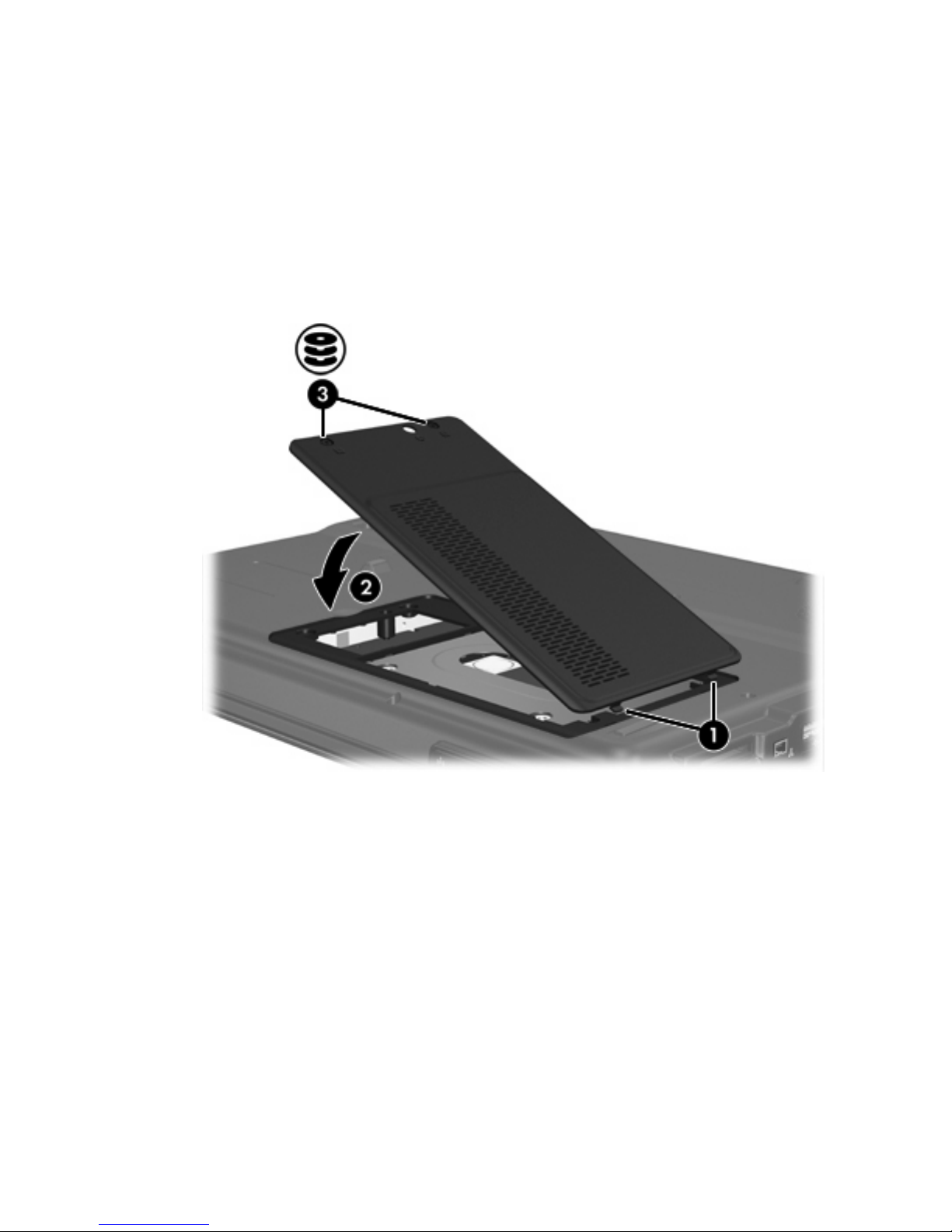

4. Align the tabs (1) on the hard drive cover with the notches on the computer.
5. Close the cover (2).
6. Tighten the hard drive cover screws (3).
ENWW Replacing the hard drive 5
4 Optical drives
The computer can read or write to optical drives as described in the following table.
Type of optical drive Read CD and
DVD-ROM
Write to CD-RW Write to DVD
±RW/R
Write to DVD+R
DL
DVD/CD-RW Drive Yes Yes No No
DVD±RW Double Layer Yes Yes Yes Yes
LightScribe DVD±RW Double
Layer
Yes Yes Yes Yes
NOTE Some of the optical drives listed may not be supported by your computer. The listed drives are not
necessarily all of the supported optical drives.
An optical drive, such as a DVD-ROM drive, supports optical discs (CDs and DVDs). These discs are
used to store or transport information and to play music and movies. DVDs have a higher capacity than
CDs.
6 Chapter 4 Optical drives ENWW
