REFERENCE GUIDE Compaq Deskpro 4000S Series of Personal Computers

REFERENCE GUIDE

Compaq Deskpro 4000S

Series of Personal Computers

288393-001

Writer: Dianne Fielden Saved by: Alyce Klingler-Castle Saved date: 05/29/97 4:35 PM

Pages: 2 Words: 175 Template: c:\template\commercial\commnoti.dot

Writer: Dianne Fielden Saved By: Alyce Klingler-Castle Saved Date: 05/29/97 4:35 PM

Pages: 2 Words: 175 Template: c:\template\commercial\commnoti.dot

File Name Notice.doc Part Number 288393-001

Notice

The information in this guide is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE

FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS

CONTAINED HEREIN; NOR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE

FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.

This guide contains information protected by copyright. No part of this

guide may be photocopied or reproduced in any form without prior written

consent from Compaq Computer Corporation.

1997 Compaq Computer Corporation.

Compaq and Deskpro registered U.S. Patent and Trademark Office.

Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft

Corporation.

Windows NT is a trademark of Microsoft Corporation.

The software described in this guide is furnished under a license agreement

or nondisclosure agreement. The software may be used or copied only in

accordance with the terms of the agreement.

Product names mentioned herein may be trademarks and/or registered

trademarks of their respective companies.

Reference Guide

Compaq Deskpro 4000S Series of Personal Computers

First Edition (July 1997)

Part Number 288393-001

Compaq Computer Corporation

Writer: Dianne Fielden Saved by: Alyce Klingler-Castle Saved date: 05/29/97 4:35 PM

Pages: 2 Words: 175 Template: c:\template\commercial\commnoti.dot

Using This Guide ix

Writer: Dianne Fielden Saved by: Dianne Fielden Saved date: 05/16/97 10:07 AM

Pages: 2 Words: 292 Template: c:\template\commercial\commpref.dot

File Name: Preface.doc Part Number: 288393-001

preface

USING THIS GUIDE

This Reference Guide includes general information about your

computer, troubleshooting and diagnostics information, and

technical specifications.

Symbols and

Conventions

The following format conventions distinguish elements of the

text throughout this guide:

■ When keys must be pressed at the same time, the action is

represented by the key names and the plus (+) symbol. For

example, Ctrl+Alt+Delete.

■ The names of files are presented in uppercase italic type as

shown here: FILENAME.

■ The names of commands, folders, or directories are

presented in uppercase type as shown here: COMMAND or

DIRECTORY. Commands that are to be entered at the

system prompt are shown on a separate line.

■ When you are asked to type something without pressing the

Enter key, you are directed to “type” the information.

■ When you need to type information and press the Enter key,

you will be directed to “enter” the information.

■ When you need to make a selection with a mouse, you will

be directed to “select” or “click” the information.

xUsing This Guide

Writer: Dianne Fielden Saved by: Dianne Fielden Saved date: 05/16/97 10:07 AM

Pages: 2 Words: 292 Template: c:\template\commercial\commpref.dot

File Name: Preface.doc Part Number: 288393-001

The following words and symbols mark special messages

throughout this guide:

!WARNING: Text set off in this manner indicates th at failure to

follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to

follow directions could result in damage to equipment or loss of

information.

✎Text set off in this manner presents clarifying information,

specific instructions, commentary, sidelights, or points of

information.

Environmental

Commitment

Compaq is committed to making environmentally friendly

products. Your computer was produced in a

chlorofluorocarbons (CFC)-free factory. All plastics used in the

product are stamped with material composition to make

recycling more efficient. Reduce, reuse, and recycle are words

to live by at Compaq.

Reference Guide 1-1

Writer: Dianne Fielden Saved By: Alyce Klingler-Castle Saved Date: 05/30/97 9:54 AM

Pages: 8 Words: 1216 Template: c:\template\commercial\comm.dot

File Name Ch1.doc Part Number 288393-001

chapter 1

THE COMPUTER AT A GLANCE

Your Compaq Deskpro 4000S Personal Computer is a

networked PC in a dramatically smaller form factor. It is

designed specifically for convenient deployment in workspace-

constrained or countertop networked environments. An optional

mounting bracket allows you to mount the computer on, under,

or adjacent to your work surface in a horizontal or vertical

orientation to save more desk space. (See Chapter 5, “Upgrading

the Desktop Computer” for more information on mounting.)

Your computer combines an Intel Pentium Processor with MMX

technology (166 MHz or 200 MHz) with a generous 2.1-GB

hard drive and up to 32 MB of standard SDRAM system

memory.

Upgrades are simple with a slide-out system board and tool-less

removal of most internal components. This chapter describes the

features and components of your Compaq Deskpro 4000S

Personal Computer.

Compaq Deskpro

4000S Features

■ Intel Pentium Processor with MMX technology at 166

MHz or 200 MHz.

■ 256-KB standard secondary (L2) cache on all models.

■ 16 or 32 MB of synchronous DRAM (SDRAM);

expandable to 256 MB, installed in dual inline memory

modules (DIMMs).

■ Enhanced 64-bit Graphics with 2-MB SGRAM; 1280 X

1024 X 8 resolution.

■ Microsoft Windows 95 operating system delivered with all

models; Windows NT compatible.

■ Intelligent Manageability, including Asset Management,

Fault Management, Security Management, Configuration

Management, and Integration Management.

1-2 The Computer at a Glance

Writer: Dianne Fielden Saved by: Alyce Klingler-Castle Saved date: 05/30/97 9:54 AM

Pages: 8 Words: 1216 Template: c:\template\commercial\comm.dot

File Name Ch1.doc Part Number 288393-001

■ Fixed storage includes a 2.1-GB EIDE hard drive;

removable storage includes 3.5-inch, 1.44-MB diskette

drive.

■ Compaq Slimline 20X CD-ROM Drive on select models.

■ Compaq Netelligent 10/100 TX Embedded UTP

Controller; including RJ-45 cable and AUI interface; an

AUI-BNC connector is optional.

■ Compaq Enhanced Keyboard.

■ One PCI/ISA combo expansion slot.

■ Three drive bays, one internal and two external.

■ 76-watt continuous power supply.

■ Compaq-supplied drivers and utilities.

Preloaded Software

The following Compaq software is preloaded on the computer:

■ Partition-based Compaq Diagnostics utilities

■ Compaq Diagnostics for Windows

■ Compaq support software and device drivers

■ Online Safety & Comfort Guide

■ Intelligent Manageability

■ Power Management with Energy Saver features.

■ Security Management

■ Remote Management Tools

Reference Guide 1-3

Writer: Dianne Fielden Saved By: Alyce Klingler-Castle Saved Date: 05/30/97 9:54 AM

Pages: 8 Words: 1216 Template: c:\template\commercial\comm.dot

File Name Ch1.doc Part Number 288393-001

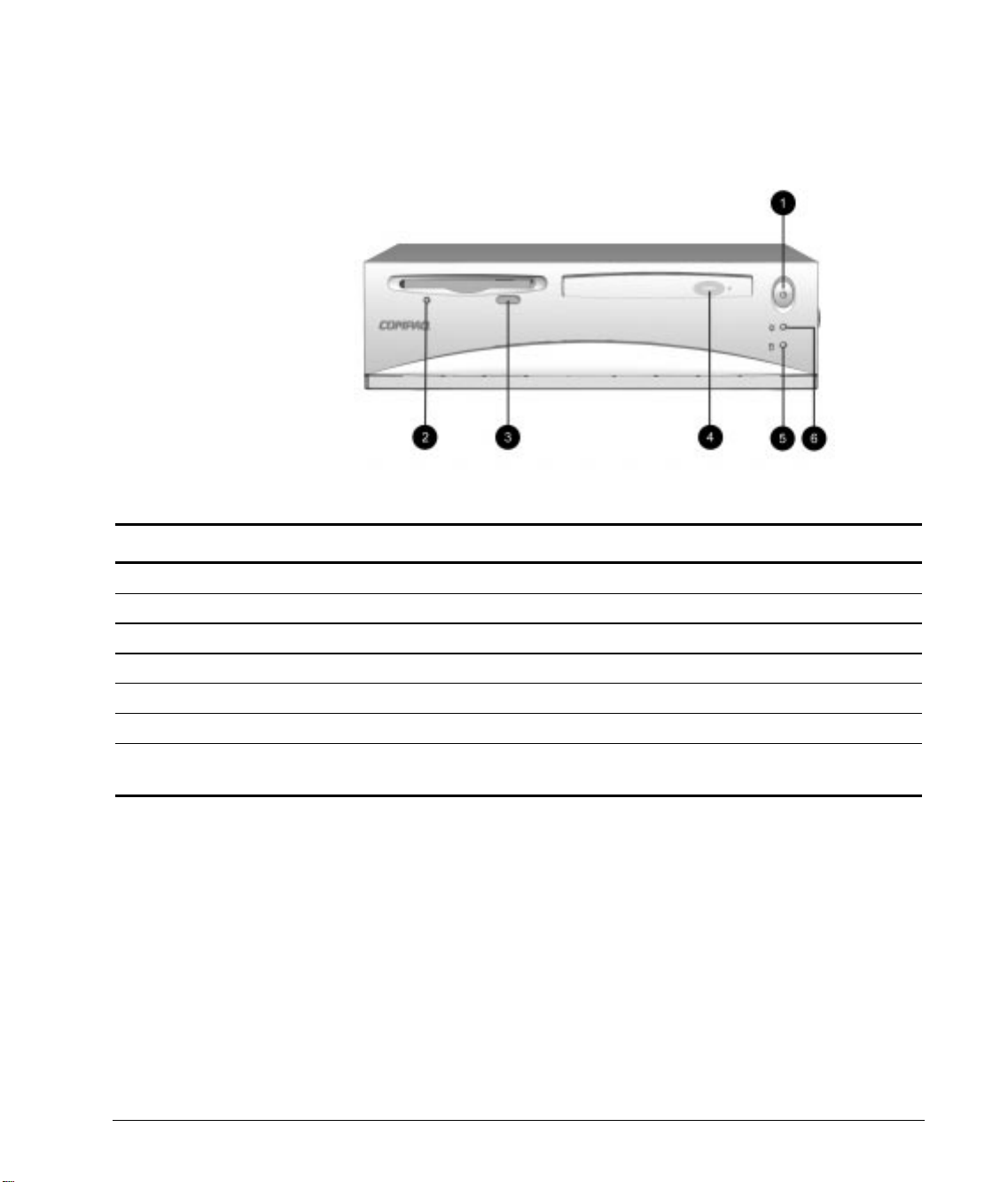

Front Panel

Components

Front Panel Components

Ref. Component Function

1Power Switch Turns the computer on and off.

2Diskette Drive Activity Light Turns on when the diskette drive is reading or saving data.

3Diskette Eject Button Ejects a loaded diskette.

4CD-ROM Eject Button On CD-ROM models, press to eject the CD-ROM tray.

5Hard Drive Activity Light Turns on when the hard drive is reading or saving data.

6Power-On Light Turns on when power to the computer is turned on and blinks

(optional) in Energy Saver mode.

1-4 The Computer at a Glance

Writer: Dianne Fielden Saved by: Alyce Klingler-Castle Saved date: 05/30/97 9:54 AM

Pages: 8 Words: 1216 Template: c:\template\commercial\comm.dot

File Name Ch1.doc Part Number 288393-001

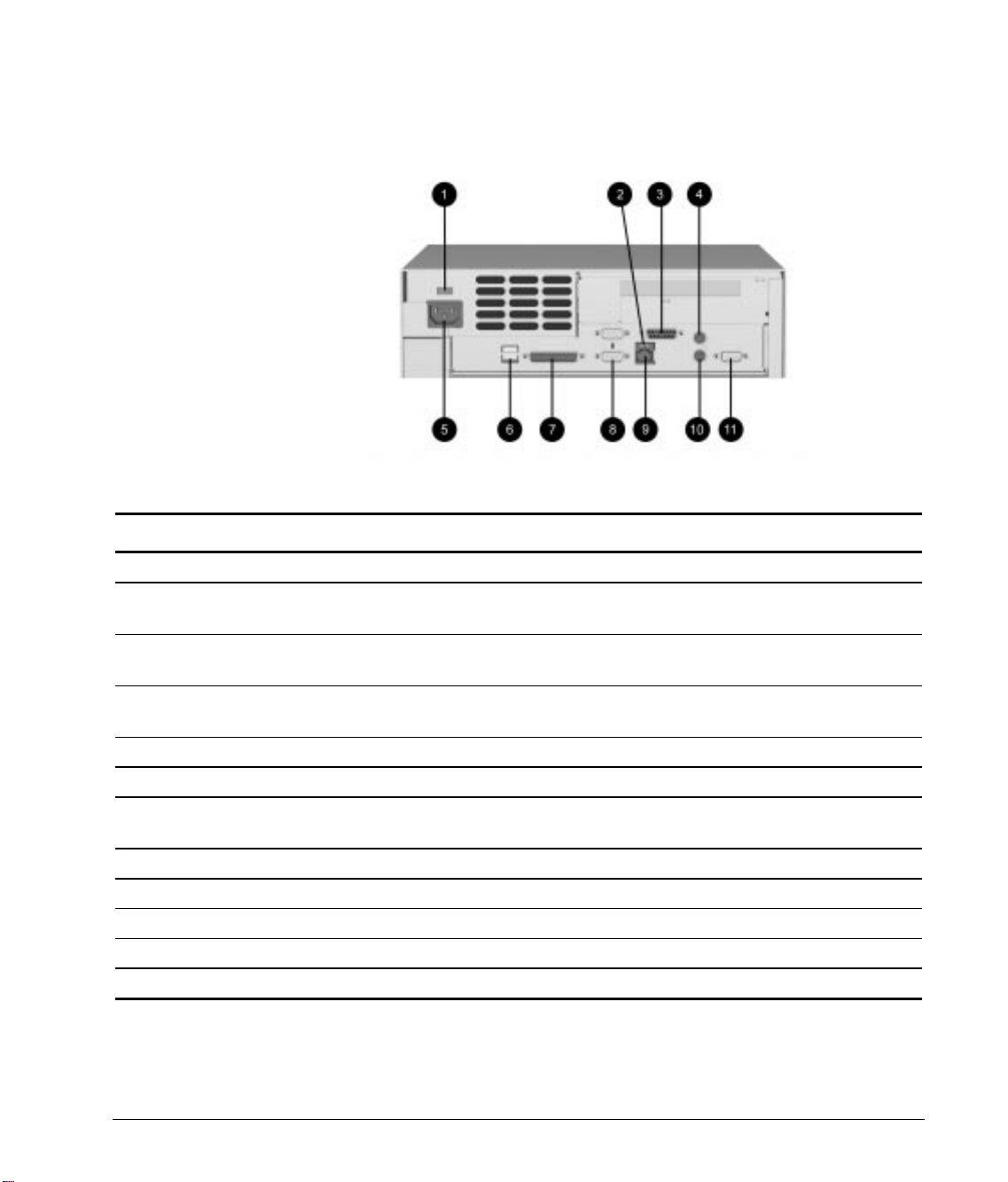

Rear Panel

Components

Rear Panel Components

Ref. Connector Function

1Voltage Select Switch Switches voltage between 115V (U.S.) and 230V to match

geographical requirements.

2Ethernet RJ-45 Activity Lights Yellow light blinks when linking to the network; green light

blinks during network activity.

3Ethernet AUI Connector

(15-pin connector) Connects the Ethernet network, using an AUI cable or an AUI

to BNC transceiver.

4Mouse Connector Connects the mouse. (green-colored connector)

5Power Cord Connects the computer to an electrical power outlet.

6Universal Serial Bus (USB)

Connectors Connects the computer to any USB device while the computer

is operating; a fully functional plug and play connector.

7Parallel Connector Connects a parallel device, such as a parallel printer.

8Serial Connector Connects a serial device, such as a serial mouse or scanner.

9Ethernet RJ-45 Connector Connects the Ethernet network, using an RJ-45 cable.

:Keyboard Connector Connects the keyboard. (orange-colored connector)

;Monitor Connector Connects a monitor. (black-colored connector)
