Compaq Professional Workstation AP200 Maintenance and Service Guide
Chapter 1
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spares parts for the
Compaq Professional Workstation AP200.
Mechanical Parts
74d
74f
1
3
74i
74g
2
73a
2
74e

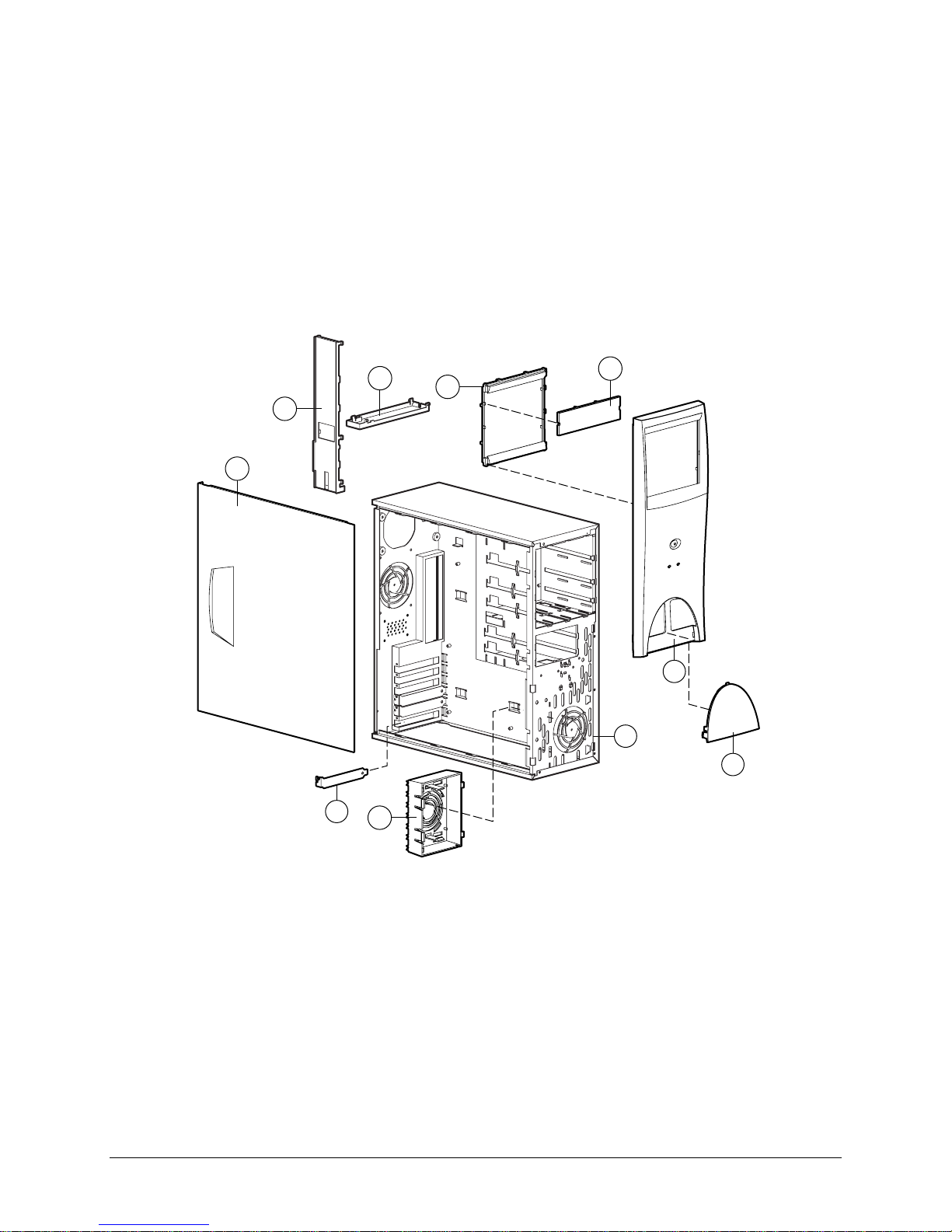

Figure 1-1. Exploded view of the Compaq Professional Workstation AP200 mechanical parts.
1-2 Illustrated Parts Catalog
System Components
52
58
61
15
9
10
14 74c
4
17
22
2019
21
29
18
7
28
23
25
8
3
33
32

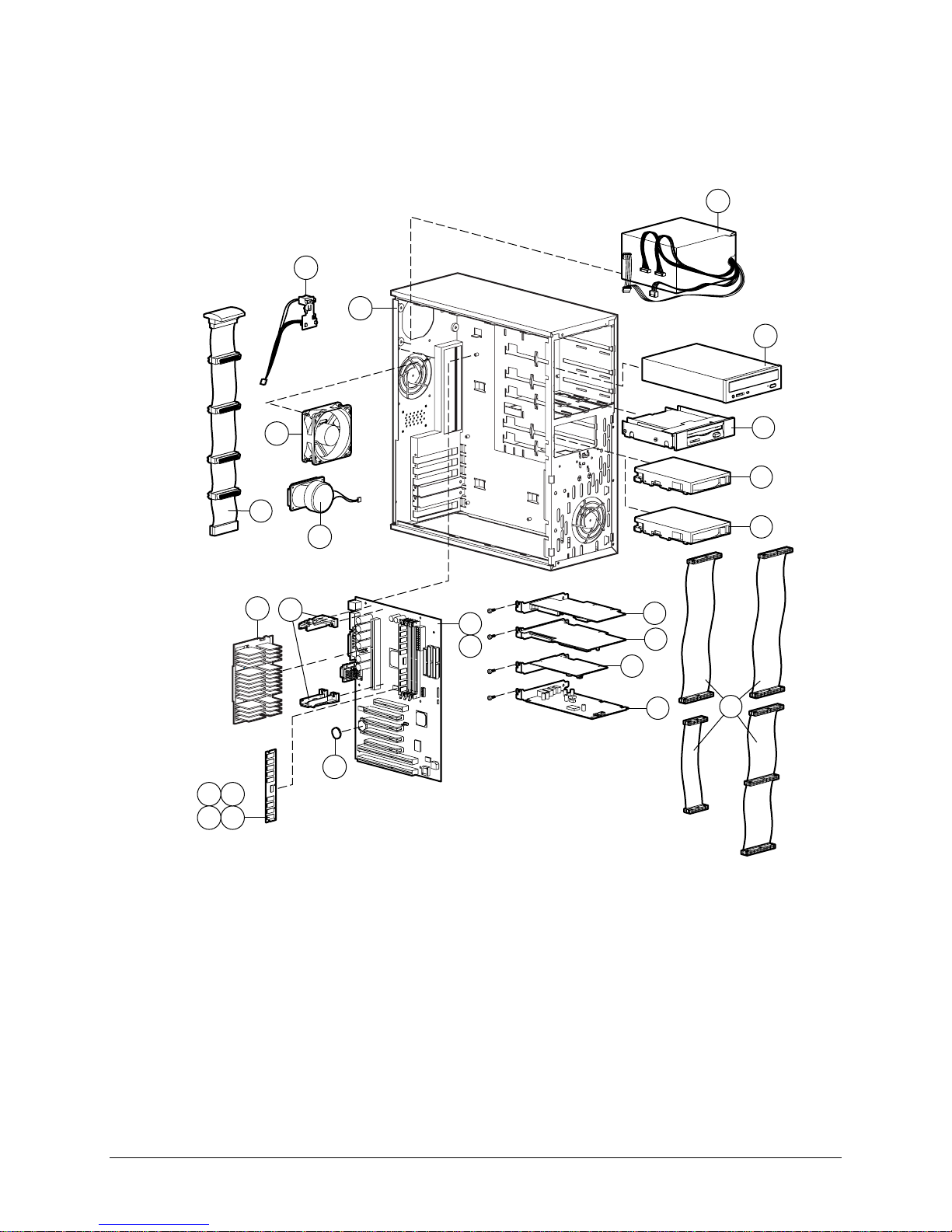

Figure 1-2. Exploded view of the Compaq Professional Workstation AP200 system components.
1-3
Compaq Professional Workstation AP200 Maintenance and Service Guide
Spares Parts List
Parts or components marked with an asterisk (*) are not illustrated.
Table 1-1
Compaq Professional Workstation AP200
Spares Parts List
Reference Description Spares Part #
MECHANICAL
1 Access panel 166867-001
2 Front bezel with minitower logo 352649-001
3 Chassis/base pan 166880-001
SYSTEM
4 Speaker 166507-001
5 SPS-Speaker 5 watt 167029-001*
6 SPS-BD audio Ess 1869 5 watt 356081-001*
7 Auxiliary fan (optional) on the Compaq Professional AP200 Workstation,
models 350- and 400-MHz.
Auxiliary fan (standard) on the Compaq Professional AP200 Workstation,
models 450- and 500-MHz.
166922-001
8 Power supply, 200W 166814-001
9 System board for the Compaq Professional AP200 Workstation, models
350-,400-, and 450-MHz. 352648-001
10 System board for the Compaq Professional AP200 Workstation, models
350-,400-, 450- and 500-MHz. 110940-001
11 Intel Pentium II Processor, 350/100 MHz, 512K with heat sink 166874-001*
12 Intel Pentium II Processor, 400/100 MHz, 512K with heat sink 166882-001*
13 Intel Pentium II Processor, 450/100 MHz, 512K with heat sink 167032-001*
14 Intel Pentium III Processor, 500/100 MHz, 512K with heat sink 116401-001
15 Audio board 332859-001
16 Lock security bracket 199109-001*
17 Battery 234556-001
18 Power switch and LEDs with cable 166925-001
Continued
1-4 Illustrated Parts Catalog
Compaq Professional Workstation AP200 Spares Parts List
Continued
Reference Description Spares Part #
MEMORY
19 16-MB memory module (Unregistered 100-MHz SDRAM) 166964-001
20 32-MB memory module (Unregistered 100-MHz SDRAM) 166968-001
21 64-MB memory module (Unregistered 100-MHz SDRAM) 166967-001
22 128-MB memory module (Unregistered 100-MHz SDRAM) 166965-001
MASS STORAGE
23 4.3-GB Wide-Ultra SCSI hard drive 179287-001
24 9.1-GB Wide-Ultra SCSI hard drive 179288-001*
25 6.4-GB Ultra ATA hard drive 166973-001
26 10-GB Ultra ATA hard drive (5400 RPM) 320662-001*
27 10-GB Ultra ATA hard drive (7200 RPM) 330520-001*
28 1.44-MB diskette drive 179161-001
29 32X Max CD-ROM drive (IDE) 327659-001
30 DVD-ROM drive 105771-001*
31 Zip drive 401624-001*
CABLE KITS
32 Miscellaneous Cable Kit (166838-001, 288489-002, 247116-001,
242947-001) 166879-001
33 SCSI cable 297511-001
34 SCSI LED cable 247485-001*
35 NIC Wake-on-LAN cable 166974-001*
36 Power cord 121258-001*
KEYBOARD AND MOUSE
37 Keyboard 269513-xxx*
38 3-button mouse 327716-001*
Continued
1-5
Compaq Professional Workstation AP200 Maintenance and Service Guide
Compaq Professional Workstation AP200 Spares Parts List
Continued
Reference Description Spares Part #
MONITORS
39 P75 307815-xxx*
40 V75 307713-xxx*
41 V90 305602-xxx*
42 P1610 monitor 305708-xxx*
43 P110 monitor 284959-xxx*
44 P110 monitor (INT) 284959-xxx*
45 SPS, TFT5000 Aoki flat panel monitor - TC099 carbon, touch screen, NA 115712-001*
46 SPS, TFT5000 Aoki flat panel monitor - TC099,opal, touch screen, NA 115714-001*
47 TFT8000 Indian Chief flatpanel monitor Opal, without protective panel,
TC095,WW 307911-001*
48 TFT8000 Indian Chief flatpanel monitor Opal, with protectivepanel,
TC095,WW 102358-B24*
49 TFT8000 Indian Chief flatpanel monitor Carbon, without protective panel,
TC095,WW 102359-B24*
50 TFT8000 Indian Chief flatpanel monitor Carbon, with protectivepanel,
TC095,WW 102360-B29*
51 TFT 500:
Order TFT 500 spares part from the TFT 500 guide
(PN 285012-001)
*
GRAPHICS
52 GLoria Synergy+ Graphics Controller with 4 MB memory (Accelerated
Graphics Port or AGP) 327599-001
53 GLoria Synergy+ Graphics Controller 4 MB memory upgrade (AGP) 327600-001*
54 GLoria Synergy Graphics Controller (PCI) 298796-001*
55 Matrox Productiva G100 Multi-Monitor Series 101239-001*
56 Matrox Millennium G200 AGP 8 MB Graphics Controller (SGRAM) 294409-001*
57 Matrox Millennium G200 AGP Graphics Controller 8 MB memory upgrade
(SGRAM) 386047-001*
CONTROLLERS
58 Wide-Ultra SCSI Controller, PCI 179261-001
Continued
1-6 Illustrated Parts Catalog
Compaq Professional Workstation AP200 Spares Parts List
Continued
Reference Description Spares Part #
COMMUNICATIONS
59 Netelligent 16/4 TR PCI UTP/STP Controller 268010-001*
60 Compaq NC3120 Fast Ethernet NIC PCI, 10/100 317606-001*
61 Compaq NC3121 Fast Ethernet NIC PCI, 10/100, Wake-on-LAN 323556-001
SOFTWARE
62 Magellan Driver CD 297863-001*
63 Spaceball Driver CD 298033-001*
64 Microsoft Windows NT Workstation 4.0 CD 275573-xx1*
65 Compaq SmartStartfor Workstations CD 275574-xx3/xx2(SP)*
MISCELLANEOUS
66 Magellan 3D Pointing Device (spacemouse) 297645-001*
67 Spaceball 3D Pointing Device 297644-001*
68 3.5- to 5.25-inch diskette drive mounting bracket with screws
and brace for use in bay 3 only 166923-001*
69 3.5- to 5.25-inch hard drive mounting bracket 243231-001*
70 3.5- to 5.25-inch 1/2 height mounting bracketfor use in bays 1 and 2 only 243230-002*
71 Shipping box with buns (US) 166990-001*
72 Shipping box with buns (INTL) 166990-002*
Continued
1-7
Compaq Professional Workstation AP200 Maintenance and Service Guide
Spares Parts List - Compaq Professional Workstation AP200
Continued
Reference Description Spares Part #
MISCELLANEOUS
73 Miscellaneous hardware kit includes:
a. slot cover (5)
b. I/O panel*
c. fan guard*
d. screw, 6-32 pan head x 1/4 inch (4)*
e. screw, M3 x 1/4 inch*
f. thumbscrew (2)*
g. plastite flathead screw (4)*
h. plastic push lock fastener for fan assembly (4)*
166877-001
74 Miscellaneous plastics kit, minitower and desktop includes:
a. diskette bezel*
b. rubber feet (8)*
c. processor retainer with pins
d. blank bezel
e. subpanel
f. drivelock, minitower
g. drivelock, desktop
h. drivelock springs (2)*
i. card guide
j. desktop logo plate*
352656-001
DOCUMENTATION
75 Maintenance and Service Guide 352658-001*
76 Illustrated Parts Map 352659-001*
77 Service Quick Reference Guide (revision -038) 162212-001*
*Not illustrated
