Compaq Professional Workstation AP400 Maintenance and Service Guide
Chapter 1
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare parts for the
Compaq Professional Workstation AP400.
Mechanical Parts
2
6
7
1
5
3
8
4
Figure 1-1. Exploded view of the Compaq Professional Workstation AP400 mechanical parts
1-2 Illustrated Parts Catalog
System Components
23
40
39
31
10
12
11
28
46
2
77
18
5
25
9
15 111
72 22
115
48
21
50

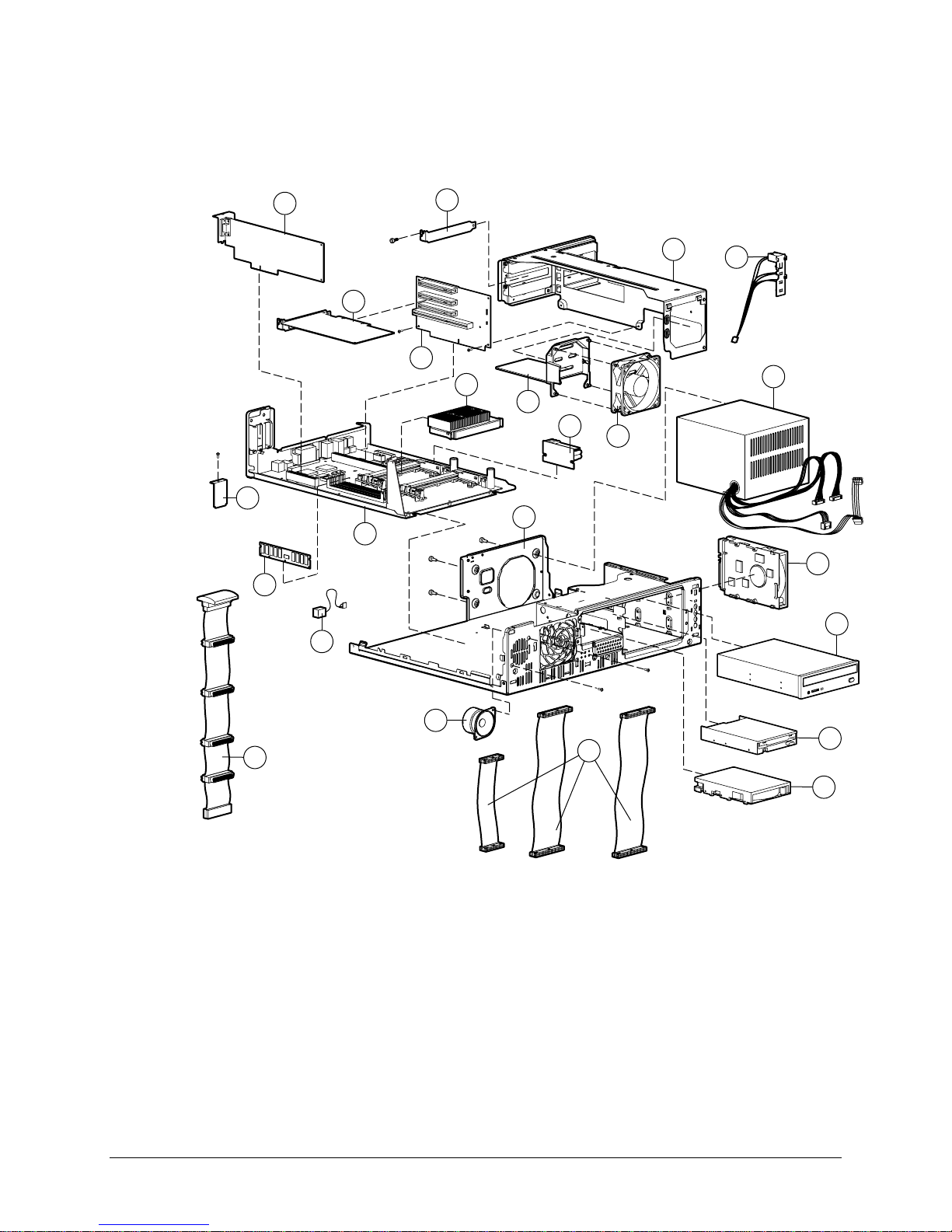

Figure 1-2. Exploded view of the Compaq Professional Workstation AP400 system components
1-3
Compaq Professional Workstation AP400 Maintenance and Service Guide
Spares Parts List
Parts or components marked with an asterisk are not illustrated.
Table 1-1
Compaq Professional Workstation AP400
Spares Parts List
Reference Description Spares Part #
MECHANICAL
1 Workstation Cover 327653-001
2 I/O Bracket 299383-001
3 Hard Drive Mounting Bracket (Bay 5) 299380-001
4 EMI Shield 327650-001
5 Base Pan 327652-001
6 Drive Cage 297517-001
7 Base Pan Cover with Feet 327654-001
8 Front Bezel 327645-001
SYSTEM
9 System Fan 297515-001
10 Speaker 327656-001
11 Power Supply 327651-002
12 System Board with Tray (for 350/400/450 MHz processors) 317706-001
13 System Board with Tray (for 350/400/450/500 MHz processors) 402124-001*
14 Intel Pentium II Processor, 350/100 MHz, 512K with heatsink 327647-001*
15 Intel Pentium II Processor, 400/100 MHz, 512K with heatsink 327648-001
16 Intel Pentium II Processor, 450/100 MHz, 512K with heatsink 328785-001*
17 Intel Pentium III Processor, 500/100 MHz, 512K with heatsink 116402-001*
18 Power Module (Voltage Regulator) for 350/400/450 MHz Processors 327660-001
19 Power Module (Voltage Regulator) for 350/400/450/500 MHz Processors 329267-001*
20 Lock Security Bracket 199109-001*
21 External Battery 160274-001
Continued
1-4 Illustrated Parts Catalog
Spares Parts List - Compaq Professional Workstation AP400
Continued
Reference Description Spares Part #
SYSTEM
22 Expansion Board Slot Cover 141081-001
23 Power Switch and LEDs with Cable 327655-001
MEMORY
24 32-MB Memory Module (Registered 100-MHz SDRAM) 317747-001*
25 64-MB Memory Module (Registered 100-MHz SDRAM) 317745-001
26 128-MB Memory Module (Registered 100-MHz SDRAM) 317756-001*
27 256-MB Memory Module (Registered 100-MHz SDRAM) 317749-001*
MASS STORAGE
28 4.3-GB Wide-Ultra SCSI Hard Drive (7200 RPM) 339514-001
29 4.3-GB Wide-Ultra SCSI Hard Drive (10K RPM) 336383-001*
30 4-GB Wide Ultra2 SCSI Hard Drive (7200 RPM) 349533-001*
31 6.4-GB Ultra ATA Hard Drive (7200 RPM) 166973-001
32 8.4-GB Ultra ATA Hard Drive (7200 RPM) 166981-001*
33 9.1-GB Wide-Ultra SCSI Hard Drive (7200 RPM) 339515-001*
34 9.1-GB Wide-Ultra SCSI Hard Drive (10K RPM) 336384-001*
35 9.1-GB Wide Ultra2 SCSI Hard Drive (7200 RPM) 349534-001*
36 9.1-GB Wide Ultra2 SCSI Hard Drive (10KRPM) 386539-001*
37 10.0-GB Ultra ATA Hard Drive (5400 RPM) 320662-001*
38 10.0-GB Ultra ATA Hard Drive (7200 RPM) 330520-001*
39 1.44-MB Diskette Drive 179161-001
40 32X Max CD-ROM Drive (IDE) 327659-001
41 DVD-ROM Drive 105771-001*
42 Zip Drive 401624-001*
43 12/24-GB DAT Drive 340593-001*
44 4/8-GB SLR Drive 340591-001*
45 Hard Drive Mounting Bracket (Bay 4) 243231-001*
46 Backplane Board 317707-001
47 Hard Drive Mounting Bracket with Fans 329176-001*
Continued
1-5
Compaq Professional Workstation AP400 Maintenance and Service Guide
Spares Parts List - Compaq Professional Workstation AP400
Continued
Reference Description Spares Part #
CABLE KITS
48 Miscellaneous Signal Cable Kit (CD-ROM, HD, Diskette) 327649-001
49 CD-ROM Audio Cable 171139-001*
50 SCSI Cable, Wide 297511-001
51 SCSI Cable, Wide Ultra2, 4-device 402226-001*
52 SCSI Adapter, 50- to 68-Pin (internal) 189638-001*
53 Cable, 4-Port Splitter (MVP Pro-128) 299386-001*
KEYBOARD/MOUSE
54 Keyboard 269513-001*
55 3-Button Mouse 327716-001*
MONITOR
56 P75 Monitor 307815-xxx*
57 V75 Monitor 307713-xxx*
58 V90 Monitor 305602-xxx*
59 QVision 210 Monitor 210407-xxx*
60 P1610 Monitor 305710-001*
61 P110 Monitor 284959-001*
62 P110 Monitor (INT) 284959-B23*
63 TFT 500:
Order TFT 500 spare parts from the TFT 500 guide
(PN 285012-001)
*
64 TFT 450:
Order TFT 500 spare parts from the TFT 450 MSG
(PN 170431-001)
*
65 TFT5000 Aoki Flat Panel Monitor - TC099, carbon, touch screen, NA 115712-001*
66 TFT5000 Aoki Flat Panel Monitor - TC099, opal, touch screen, NA 115714-001*
67 TFT8000 Indian Chief Flat Panel Monitor - TC095, carbon, with protective
panel, WW 102360-B29*
68 TFT8000 Indian Chief Flat Panel Monitor - TC095, carbon, without protective
panel, WW 102359-B24*
69 TFT8000 Indian Chief Flat Panel Monitor - TC095, opal, with protective
panel, WW 102358-B24*
70 TFT8000 Indian Chief Flat Panel Monitor - TC095, opal, without protective
panel, WW 307911-001*
Continued
1-6 Illustrated Parts Catalog
Spares Parts List - Compaq Professional Workstation AP400
Continued
Reference Description Spares Part #
GRAPHICS
71 Fire GL 4000 Graphics Controller 298797-001*
72 GLoria Synergy+ Graphics Controller (AGP) 327599-001
73 4-MB Memory Upgrade (GLoria Synergy+) 327600-001*
74 GLoria Synergy Graphics Controller (PCI) 298796-001*
75 GLoria-XL 3D Graphics Controller 247520-001*
76 16-MB Memory Upgrade (GLoria-XL) 297919-001*
77 Matrox Millennium II Graphics Controller 270242-001
78 12-MB WRAM Memory Upgrade (Millennium II) 270262-001*
79 4-MB WRAM Memory Upgrade (Millennium II) 270260-001*
80 Matrox Millennium G200 (AGP) Graphics Controller 294409-001*
81 8-MB Memory Module (Millennium G200) 386047-001*
82 Matrox Productiva G100 Multi-Monitor Series 101239-001*
83 MVP Pro-128 Graphics Controller (4-port) 327657-001*
84 PowerStorm 300 (AGP) Graphics Controller 338539-001*
85 PowerStorm 300 (PCI) Graphics Controller 329177-001*
CONTROLLERS
86 Wide Ultra2 SCSI Controller 114009-001*
87 Compaq SMART-2SL Array Controller 242777-001*
COMMUNICATIONS
88 Netelligent 16/4 TR PCI IBM UTP/STP Controller 301210-001*
89 Netelligent 16/4 TR PCI UTP/STP Controller 268010-001*
90 Netelligent 10 T/2 PCI UTP/Coax Controller 292857-001*
91 Netelligent 100 FDDI PCI SAS Fiber-SC 242506-002*
92 Netelligent 100 FDDI PCI DAS Fiber-UTP 242506-003*
93 Netelligent 100 FDDI PCI SAS Fiber-UTP 242506-004*
94 Netelligent 100 FDDI PCI SAS Fiber-MIC 242506-005*
95 Netelligent 56K ISA Fax Modem 294912-001*
96 Compaq Fast Ethernet NIC NC3122 317453-001*
Continued
1-7
Compaq Professional Workstation AP400 Maintenance and Service Guide
Spares Parts List - Compaq Professional Workstation AP400
Continued
Reference Description Spares Part #
COMMUNICATIONS
97 Compaq Fast Ethernet NIC NC3120 317606-001*
98 Compaq Ethernet NIC NC1120 317358-001*
99 Compaq Fast Ethernet NIC NC3161 323556-001*
SOFTWARE
100 Magellan Driver CD 297863-001*
101 Spaceball Driver CD 298033-001*
102 Microsoft Windows NT Workstation 4.0 CD 275573-xx1*
103 Compaq SmartStartfor Workstations CD 275574-xx2/-xx1 (SP)*
104 System ROMPaq 275595-001*
105 Compaq Setup and Compaq Diagnostics for Workstations Diskette 275575-xxx*
MISCELLANEOUS
106 Magellan 3D Pointing Device (spacemouse) 297645-001*
107 Spaceball 3D Pointing Device 297644-001*
108 Compaq Multimedia Sound System (US) 294122-001*
109 Country Kit 350686-001*
110 Heatsink Bridge 327658-001*
111 Miscellaneous Plastics Kit (card guide, bracket, and ½H blank bezel) 297518-001
112 Shipping Box with Buns (US) 297789-001*
113 Shipping Box with Buns (INTL) 297789-002*
114 SCSI Adapter, 68- to50-Pin (external) 270229-001*
115 Miscellaneous Hardware Kit (NLX slot cover) 166877-001
DOCUMENTATION
116 Maintenance and Service Guide 327709-001*
117 Illustrated Parts Map 327708-001*
118 Service Quick Reference Guide (revision -038) 162212-001*
*Not illustrated
