QUICKSPECS

Overview

1DA-10021-00A-018 — 07.19.2000

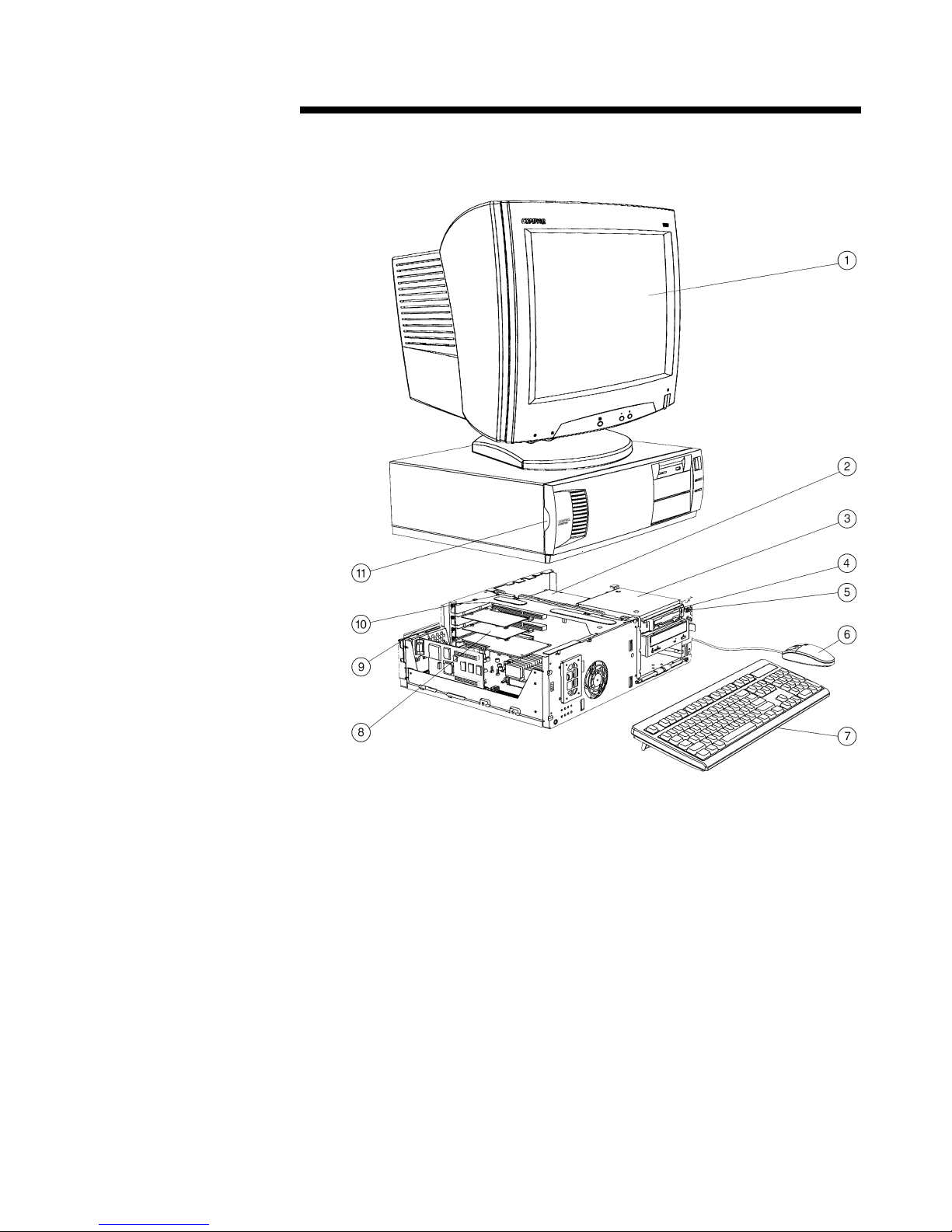

Compaq Deskpro EN Series

Desktop

1. V900 Color Monitor (optional)

2. 200-Watt Power Supply

3. Tilt Drive Cage

4. 1.44-MB Diskette Drive

5. Dual-State Power Button

6. Mouse

7. Enhanced Keyboard

8. Expansion Slots

9. Slide Out System Board

10. Expansion Card Cage with Lift Levers

11. Quick Release Cover Latches

WHAT

S NEW

•Windows 2000

•Sound Blaster PCI 128 Audio

Sound Card with internal

Premier•Sound

•8X/4X/32X CD-RW Drive

•SuperDisk (LS-120) 2X High

CapacityFloppy Drive

•Easy Access Keyboard

AT A GLANCE

•66-, 100-or 133-MHz Front Side

Busmodels

•Intel Pentium®III processors (133

MHz) 733, 667, or 600E MHz

•Intel Pentium III processors

(100 MHz) 500, 550,

600, 650or 700 MHz

•Intel Celeron™processors

(66 MHz) 466 or 500 MHz

•CompaqPremier•Sound™

•Compaq Intelligent Manageability

•Service-friendly design including

Quick Release Cover Latches,

Expansion Card Cage with Lift

Levers, Tilt Drive Cage and Slide

Out System Board

•Dual Installation Windows 95/98,

Windows 2000, Windows 95,

Windows 98, or Windows NT 4.0

pre-installed (model dependent)

•Protected byCompaqServices,

including a three-year, Limited

Warranty – Terms and conditions

varyby country. Certain

restrictionsand exclusionsapply.

QUICKSPECS

Standard Features

2DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

Processor

Choice of Intel Pentium III or Celeron Processor

Upgradability

Allows for upgrade of processor, memory, graphics and hard drive

Network Controller

Intel PRO/100+ Management Adapter

Note: Deskpro EN Series Desktop models with Intel 500-MHz processor transition to the Intel PRO/100+

Management Adapter effective May 17, 1999.

Expansion Slots

PCI 2

PCI/ISA 2

AGP 1

Note: Availability will depend on configuration.

Expansion Bays

Internal 1

External 3

Note: Availability will depend on configuration.

Storage

Diskette Drive 1.44 MB

CD-ROM Drive One of the following:

40X MaxCD-ROM Drive

32X MaxCD-ROM Drive

Hard Drives One of the following:

13.5-GB 7200 rpm SMART III Ultra ATA 66 with Drive Protection System

10.0-GB 7200 rpm SMART III Ultra ATA 66 with Drive Protection System

6.4-GB 5400 rpm SMART III Ultra ATA 66

6.4-GB 5400 rpm SMART III Ultra ATA 33

4.3-GB 5400 rpm SMART III Ultra ATA 66

Interfaces

Parallel 1

Serial 2

Pointing Device (mouse) 1

Graphics 1

Keyboard 1

RJ-45 1

USB 2

SCSI 0

Graphics –One of the following:

Matrox Millennium G400-SG AGP Graphics Controller with 16-MB SGRAM standard, not upgradable, providing

maximum resolution of 2048 x 1536 x 16.7M colors at 65 Hz

ATI RAGE PRO TURBO AGP 2X Graphics Controller card with 8-MB SDRAM standard not upgradable, providing

maximum resolution of 1280 x 1024 x 16.7M colors at 85 Hz

Integrated Intel 3D Graphics featuring Intel Dynamic Video Memory (DVM) technology with 8-MB video memory

equivalent performance, providing maximum resolution of 1280 x 1024 with 16.7M colors 85 Hz

MODELS

Deskpro EN Series Desktop

Available in multiple

configurations

QUICKSPECS

Standard Features

3DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

Audio –One of the following:

Compaq Premier•Sound using ESS 1869 16-bit Full-Duplex audio, input/output jacks, internal speaker

AC97 with Compaq Premier•Sound (integrated), input/output jacks, internal speakers

Intelligent Manageability

Compaq Intelligent Manageability, a key component of PC Lifecycle Solutions, is the broad set of manageability

features found on all Compaq Deskpro desktops, Armada portables, Professional Workstation, and Proliant serve

products. These best-in-class features on PC clients comply with industry standards, such as DMI and Wired for

Management, while pioneering new ground in client manageability. Compaq introduced the industry’s first line of

manageable clients in 1995 and has been driving the industry ever since. With Compaq’s lifecycle management

philosophy, enterprises have all of the pieces for end-to-end management and proven tools for hassle-free

management of PCs and significantly lower Total Cost of Ownership.

Intelligent Manageability offers solutions in the areas of Initial Configuration and Deployment, Asset Tracking and

Security, Software Updating and Management, and Fault Notification and Recovery. For more information, visit

our website: www.compaq.com/im.

Operating System – One of the following:

Windows NT 4.0

Windows 2000

Windows 98

Windows 95

Windows 95/98

(End user must make a one-time selection between Windows 95 and Windows 98. If end user desires the

rejected product(s) after selection is made, the end user must acquire and pay for rejected product

separately.)

Software

Insight Personal Edition

Computer Setup Utility

Microsoft Internet Explorer

Safety and Comfort Guide

Diagnostics for Windows

Intelligent Manageability Agent

QUICKSPECS

Standard Features

4DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

Security

Setup password

Memory Change Alert

Ownership Tag

QuickLock/QuickBlank

Power-On Password

Removable Media Boot Control

Removable Media Write Control

Serial Port Control

Parallel Port Control

USB Port Control

Network Server Mode

Smart Cover Lock

Smart Cover Sensor

Power Supply

200 Watts

Service and Support

On-site Warranty: This three-year limited warranty delivers three years of on-site, next business-day11 service for

parts and labor and includes free telephone support12 7 x 24. Global coverage11 ensures that any product

purchased in one country and transferred to another non-restricted country will remain fully covered under the

original warranty.

Note: Terms and conditions may vary by country. Certain restrictions and exclusions apply.

Note: On-site service may be provided pursuant to a service contract between Compaq and an authorized

Compaq third-party provider, and is not available in certain countries. Global warranty response times are

based on commercially reasonable best effort and may vary by country.

Note: Technical telephone support applies only to Compaq-configured Compaq and third-party Compaq-qualified

hardware and software. Toll-free calling and 7x24 support may not be available in some countries.

QUICKSPECS

Standard Features

5DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

Models

P733/820/13.5/128/C/4 FrontSideBus 133-MHz Optical Drive 40X Max CD-ROM Drive

164022-xx3 Processor Intel Pentium III 733-MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 512 MB

P733/820/13.5/128/C/9 FrontSideBus 133-MHz Optical Drive 40X Max CD-ROM Drive

164022-xx2 Processor Intel Pentium III 733-MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows 95/98

Maximum 512 MB

P700/10+/128/C/9 Front Side Bus 100-MHz Optical Drive 40X Max CD-ROM Drive

165569-xx2 Processor Intel Pentium III 700-MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows 95/98

Maximum 768 MB

P700/10+/128/C/4 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

165569-xx3 Processor Intel Pentium III 700-MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 768 MB

P667/820/13.5/128/C/4 FrontSideBus 133-MHz Optical Drive 40X Max CD-ROM Drive

122765-xx8 Processor Intel Pentium III 667 MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 512 MB

QUICKSPECS

Standard Features

6DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

P667/820/13.5/128/C/9 Front Side Bus 133-MHz Optical Drive 40X Max CD-ROM Drive

122765-xx5 Processor Intel Pentium III 667 MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows 95/98

Maximum 512 MB

P650/10+/128/C/4 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

159715-xx7 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 768 MB

P650/10+/128/C/9 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

159715-xx6 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows 95/98

Maximum 768 MB

P650/10+/64/C/4 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

159715-xx5 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P650/10+/64/C/9 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

159715-xx4 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95/98

Maximum 768 MB

QUICKSPECS

Standard Features

7DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

P650/10+/64/4 Front Side Bus 100-MHz Optical Drive None

159715-xx3 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P650/10+/64/9 FrontSideBus 100-MHz Optical Drive None

159715-xx2 Processor Intel Pentium III 650 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95/98

Maximum 768 MB

P600E/820/13.5/128/C/4 FrontSideBus 133-MHz Optical Drive 40X Max CD-ROM Drive

119449-xx5 Processor Intel Pentium III 600 MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 512 MB

P600E/820/13.5/128/C/9 FrontSideBus 133-MHz Optical Drive 40X Max CD-ROM Drive

119449-xx3 Processor Intel Pentium III 600 MHz Hard Drive 13.5-GB Ultra ATA 66

Cache Memory 256-KB integrated L2 Graphics Matrox Millennium G400-SG AGP Controller

Memory Audio AC97 with Compaq Premier•Sound

Standard 128 MB Software Windows 95/98

Maximum 512 MB

P600E/10+/128/C/2 FrontSideBus 100-MHz Optical Drive 40X Max CD-ROM Drive

174381-xx2 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 256-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows 2000

Maximum 768 MB

QUICKSPECS

Standard Features

8DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

P600/10+/128/C/5 Front Side Bus 100-MHz Optical Drive 32X Max CD-ROM Drive

154884-xx6 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows 95

Maximum 768 MB

P600/10+/64/C/4 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

154884-xx5 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P600/10+/64/4 FrontSideBus 100-MHz Optical Drive None

154884-xx3 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P600/10+/64/C/5 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

154884-xx4 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95

Maximum 768 MB

P600/10+/64/5 FrontSideBus 100-MHz Optical Drive None

154884-xx2 Processor Intel Pentium III 600 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95

Maximum 768 MB

QUICKSPECS

Standard Features

9DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

P550/10+/128/C/5 Front Side Bus 100-MHz Optical Drive 32X Max CD-ROM Drive

122785-xx8 Processor Intel Pentium III 550 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows 95

Maximum 768 MB

P550/10+/128/C/4 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

122785-xx9 Processor Intel Pentium III 550 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 128 MB Software Windows NT 4.0

Maximum 768 MB

P550/10+/64/C/4 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

150236-xx2 Processor Intel Pentium III 550 MHz Hard Drive 10.0-GB Ultra ATA 66

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P550/6.4/64/C/5 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

122785-xx6 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95

Maximum 768 MB

P550/6.4/64/4 FrontSideBus 100-MHz Optical Drive None

166000-002 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

QUICKSPECS

Standard Features

10 DA-10021-00A-018 — 07.19.2000

Compaq Deskpro EN Series

Desktop

P550/6.4/64/5 Front Side Bus 100-MHz Optical Drive None

122785-xx4 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95

Maximum 768 MB

P550/6.4/64/5/n FrontSideBus 100-MHz Optical Drive None

122785-xx2 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows 95

Maximum 768 MB

P550/6.4/64/C/4 FrontSideBus 100-MHz Optical Drive 32X Max CD-ROM Drive

122785-xx7 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

P550/6.4/64/4 FrontSideBus 100-MHz Optical Drive None

122785-xx5 Processor Intel Pentium III 550 MHz Hard Drive 6.4-GB Ultra ATA 33

Cache Memory 512-KB ECC L2 Graphics ATI RAGE PRO TURBO AGP 2X Controller

Memory Audio Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 768 MB

C500/810/6.4/64/C/4 FrontSideBus 66-MHz Optical Drive 32X Max CD-ROM Drive

150235-xx2 Processor Intel Celeron 500 MHz Hard Drive 6.4-GB Ultra ATA 66

Cache Memory 128-KB ECC L2 Graphics Integrated Intel 3D Graphics

Memory Audio AC97 with Compaq Premier•Sound

Standard 64 MB Software Windows NT 4.0

Maximum 512 MB

Altri manuali per Deskpro EN Series

Indice

Altri manuali Compaq Scrivania

Compaq

Compaq Presario 6500 - Desktop PC Manuale utente

Compaq

Compaq 100eu - All-in-One PC Manuale utente

Compaq

Compaq Compaq Evo Deskpro D300 Istruzioni utente

Compaq

Compaq Evo Desktop Series Manuale utente

Compaq

Compaq Presario SR1100 - Desktop PC Istruzioni per l'installazione

Compaq

Compaq dc5800 - Microtower PC Manuale operativo e di manutenzione

Compaq

Compaq SR5450F - Presario - 2 GB RAM Come usare

Compaq

Compaq Deskpro EX Manuale

Compaq

Compaq Compaq Presario Istruzioni per l'installazione

Compaq

Compaq 179740-001 - ProLiant - 3000 Manuale utente

Compaq

Compaq 3052 - LaserJet All-in-One B/W Laser Scheda tecnica

Compaq

Compaq 3000R - ProLiant - 128 MB RAM Manuale utente

Compaq

Compaq Personal Computer Scheda tecnica

Compaq

Compaq SR5410F - Presario - 1 GB RAM Come usare

Compaq

Compaq 127507-008 - Deskpro EP - 64 MB RAM Istruzioni di installazione e manutenzione

Compaq

Compaq Evo Workstation W4000 Manuale operativo e di manutenzione

Compaq

Compaq SR5250NX - Presario - 1 GB RAM Come usare

Compaq

Compaq 6005 - Pro Microtower PC Manuale

Compaq

Compaq dc5850 - Microtower PC Manuale utente

Compaq

Compaq d220 - Microtower Desktop PC Manuale del proprietario

Compaq

Compaq Evo Workstation W4000 Guida all'installazione

Compaq

Compaq dx2200 - Microtower PC Manuale utente

Compaq

Compaq 8000 - Elite Convertible Minitower PC Manuale utente

Compaq

Compaq EN Series Manuale operativo e di manutenzione

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente
