Compaq Evo D310 Microtower Manuale del prodotto

Compaq Evo D310

Micro Desktop

www.hp.com/go/support

technical

reference

manual

Status

System Overview

This chapter introduces the internal and external features, and lists the specifications of the

Compaq Evo D310 Micro Desktop PC.

System Overview

10 Evo D310 Micro Desktop

System Features

Component Description

Package

Description

1 front-accessible shelf for CD-ROM, DVD-ROM or CD-RW drive.

1 internal shelf for standard 3.5in hard disk drive (one pre-installed).

4 accessory board slots (3 PCI, 1 AGP).

Width: 35.9cm (14.36in.) Height: 13.7cm (5.48in.) Depth: 41cm (16.4in.).

Processor Intel Pentium 4: 1.7GHz and above (400/533MHz FSB).

Intel Celeron: 1.7GHz and above (400MHz FSB).

System Board:

Chipset Intel 845G.

Integrated I/O 6 USB 2.0 connectors (2 front, 4 rear), 2 serial ports (1 optional), 1 parallel port, audio (microphone, line in, line

out).

Graphics

Integrated Intel graphics solution.

Optional graphics card:

- ATI Radeon, 7000 32MB

- ATI Radeon, 7500 64MB

Audio Integrated Analog Devices AD1981A AC’97 SoundMAX CODEC.

LAN Integrated Intel Pro/100 VE Network Adapter (10 Base-T/100 Base-TX LAN Interface) or 3COM LAN controller.

Mass storage

Choice of hard disk drives:

Ultra ATA/100: 20GB (5400 rpm), 20GB (7200 rpm), 40GB (7200 rpm), 80GB (7200 rpm).

Floppy drive: standard 1.44MB 3.5” (or alternative second hard drive).

CD-ROM drive: 48X IDE.

DVD-ROM drive: 16X, 40X IDE (WinDVD MPEG2 decoding software from InterVideo included).

CD-RW drive: 40X, 10X, 40X IDE (DLA and MyCD software from Veritas included).

Main memory Two DDR-SDRAM sockets using: 128MB, 256MB and 512MB 266MHz DDR-SDRAM. Maximum of 1GB.

Input devices Compaq PS/2 keyboard and scrolling mouse.

Power supply

Input Voltage: 100-127V 6A max.

200-240V 4A max ac (voltage selection switch).

Input Frequency: 50/60 Hz.

Connectors Keyboard, mouse, VGA, parallel, serial, video, 6 x USB (4 rear, 2 front), 1 Ethernet port, 3 x audio (stereo-in,

stereo-out, microphone-in).

BIOS Based on American Megatrends Inc. (AMI) core 7.00T. BIOS, Version: JH.01.yy. This BIOS is not localized.

System Overview

Evo D310 Micro Desktop 11

Package Features

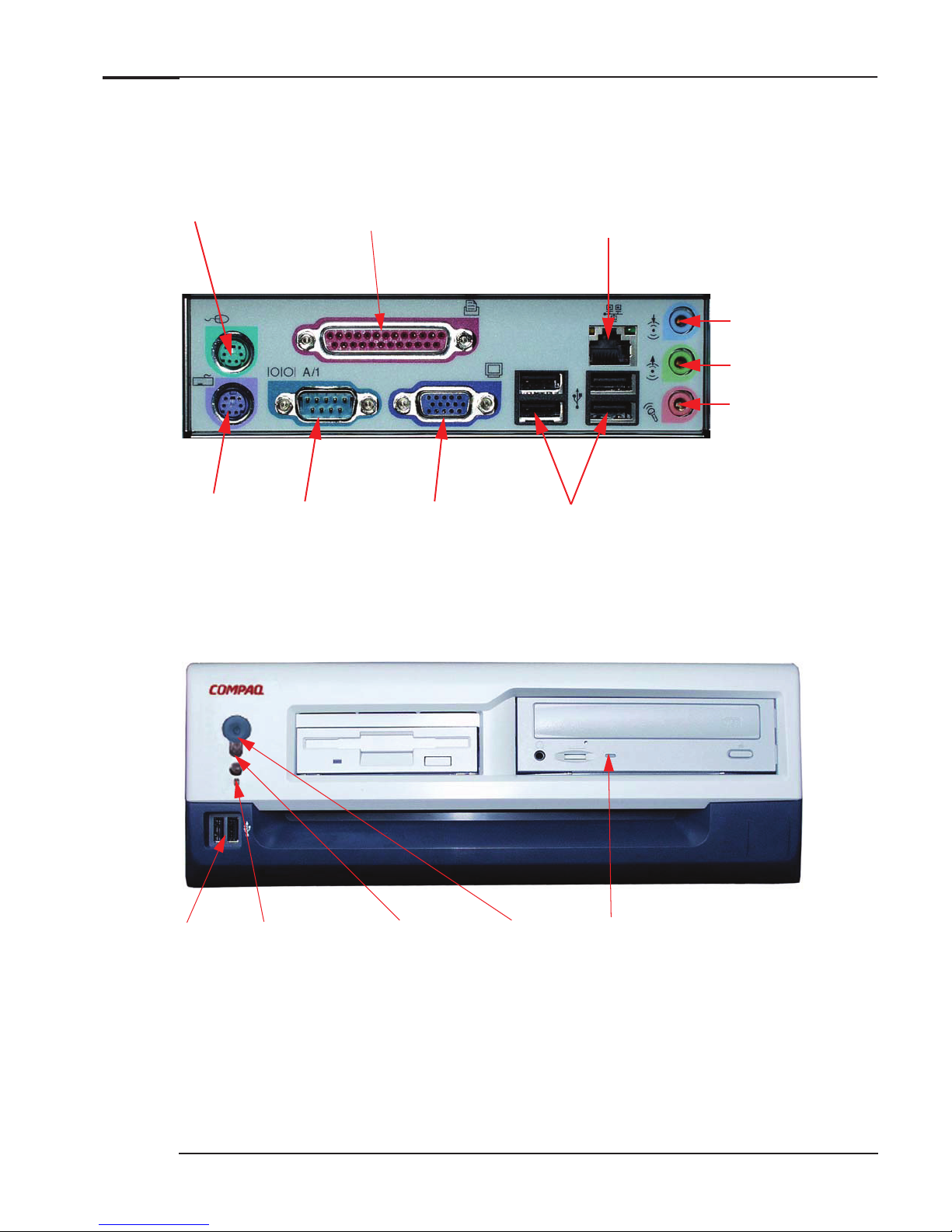

Rear Connectors

Front Panel

25-pin Parallel Connector

Serial

Connector

Keyboard

Mouse Network (LAN)

connector

4 USB 2.0

Connectors

Line Out

Line In

Microphone

Video

Connector

On/Off power

button

Power on status light

(green)

Hard disk drive activity light

(amber)

Disk activity light

(yellow)

2 USB 2.0

Connectors

System Overview

12 Evo D310 Micro Desktop

Inside the PC

Rear View

Main Memory

Sockets

CD-ROM, CD-RW drive, or

DVD drive

Hard disk drive

Accessory board slots

Processor covered by fan

Location of the voltage switch and

power connector on the desktop

AGP Graphic card (available as an option)

System Overview

Evo D310 Micro Desktop 13

Specifications

Physical Characteristics

Environmental Specifications

NOTE Operating temperature and humidity ranges may vary depending on the mass storage devices installed. High humidity

levels can cause improper operation of disk drives. Low humidity ranges can aggravate static electricity problems and

cause excessive wear of the disk surface.

Acoustic Noise Emission

Characteristic Compaq Evo D310 Micro Desktop

Weight (configuration with 1 CD-ROM

drive, excluding keyboard and display)

10.2kg (22.5 pounds)

Dimensions Width: 36cm (14.2in.)

Height: 13.5cm (5.3in.)

Depth: 41cm (16.2in.)

Footprint 0.16m2(1.78 sq ft)

Environmental Specifications (System Processing Unit, with Hard Disk)

Operating Temperature +5°C to +35°C (+41°F to 95°F)

Storage Temperature -40°F to +70°F (-40°C to +158°C)

Operating Humidity 15% to 80% (relative)

Storage Humidity (operating) 15% to 80% (relative), non-condensing at 40°C (104°F)

Storage Humidity (non operating) 8% to 85% (relative), non-condensing at 40°C (104°F)

Characteristic Compaq Evo D310 Micro Desktop

Acoustic noise emission (IS O7779)

•Idle (typical)

•Operating with hard disk access

•Operating with floppy disk access

•Operating with CD access

Sound pressure level at operator position

LpA ≤27 dB(A)

LpA ≤29 dB(A)

LpA ≤39 dB(A)

LpA ≤41 dB(A)

•Idle (typical)

•Operating with hard disk access

•Operating with floppy disk access

•Operating with CD access

Sound power level1

LwA ≤3.5 B(A)

LwA ≤3.8 B(A)

LwA ≤4.7 B(A)

LwA ≤4.8 B(A)

1.LwAd = LwA + 3 dB(A).

System Overview

14 Evo D310 Micro Desktop

Power Consumption

As an ENERGY STAR partner, HP has determined that this product meets the ENERGY STAR guidelines

for energy efficiency (Windows 2000 only). This value is only achieved when “Suspend to RAM” (S3

mode) is enabled. To enable Suspend to RAM, enter the PC’s Setup program by pressing F2 during

startup and select the Power menu.

In normal mode power consumption will be around 50W.

NOTE The power consumption figures given in the table above are valid for the standard configuration as shipped. For more

information, refer to the product’s data sheet at HP’s web site: www.hp.com/go/desktops

When the computer is turned off with the power button on the front panel, the power consumption falls below 5W, but it

is not zero. The special on/off method used by these computers considerably extends the lifetime of the power supply. To

reach zero power consumption in “off” mode, either unplug the power outlet or use a power block with a switch.

Characteristic Compaq Evo D310 Micro Desktop

Power Supply

•Input voltage

•Voltage selection switch

•Input frequency

100-127V 6A max

200-240V 4A max

50/60Hz

Power consumption

•Maximum Operating

•Typical

•Sleep (suspend)

•Off

115V/60Hz and 230V/50Hz

120W

50W

<5W
