Upgrade Guide

Evo D510 e-pc

Document Part Number: 305513-001

August 2002

305513-001.bookPageiTuesday,August20,20024:35PM

Compaq and the Compaq logo are trademarks of Compaq Information

Technologies Group, L.P. in the U.S. and/or other countries.

Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel Corporation in

the U.S. and/or other countries.

All other product names mentioned herein may be trademarks of their respective

companies.

Compaq Computer Corporation shall not be liable for technical or editorial

errors or omissions contained herein or for incidental or consequential damages

in connection with the furnishing, performance, or use of this material. The

information in this document is provided “as is” without warranty of any kind,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose, and is subject to change without notice. The

warranties for Compaq products are set forth in the express limited warranty

statements accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to

another language without the prior written consent of Compaq Computer

Corporation.

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Upgrade Guide

Evo D510 e-pc

First Edition August 2002

Document Part Number: 305513-001

305513-001.bookPageiiTuesday,August20,20024:35PM

Upgrade Guide iii

Contents

For Your Safety and Comfort

Upgrading and Replacing Hardware

General Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Opening the e-pc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Internal Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Upgrading or Replacing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Replacing the Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Replacing the Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring an IDE Device After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Removing or Replacing the System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Replacing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the Power Supply Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

305513-001.bookPageiiiTuesday,August20,20024:35PM

Upgrade Guide 1

For Your Safety and Comfort

ÅWARNING: Misuse of your personal computer or failure to establish a

safe and comfortable work environment may result in discomfort or serious

injury. Refer to the Safety & Comfort Guide, included in the documentation

provided with your computer and available on the Web site at

http://www.compaq.com/comfortguide, for more information on

choosing a workspace and creating a safe and comfortable work

environment.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. For more

information, refer to Safety & Regulatory Information, also included in the

documentation provided with your computer.

305513-001.bookPage1Tuesday,August20,20024:35PM

Upgrade Guide 3

Upgrading and Replacing Hardware

This guide describes how to upgrade or replace hardware

components, such as memory, hard drive, optical drive, processor,

system board, battery, and power supply.

If you want to find out about accessories available for your e-pc, refer

to the following Web site:

http://www.compaq.com/products/desktops/options/index.html

General Precautions

Before upgrading or replacing components, be sure to carefully read

all of the applicable instructions, cautions, and warnings in this guide.

ÅWARNING: To reduce the risk of personal injury from electrical shock

and/or hot surfaces, be sure to disconnect the power cord from the wall

outlet, and allow the internal system components to cool before touching.

ÄCAUTION: Static electricity can damage the electronic components of

the personal computer or optional equipment. Before beginning these

procedures, ensure that you are discharged of static electricity by briefly

touching a grounded metal object.

Opening the e-pc

1. Exit all software applications, shut down the operating system

software, turn off the personal computer and any external devices,

then disconnect the power cord from the power outlet.

2. Unlock the e-pc and remove the port control system (if fitted).

305513-001.bookPage3Tuesday,August20,20024:35PM

4Upgrade Guide

Upgrading and Replacing Hardware

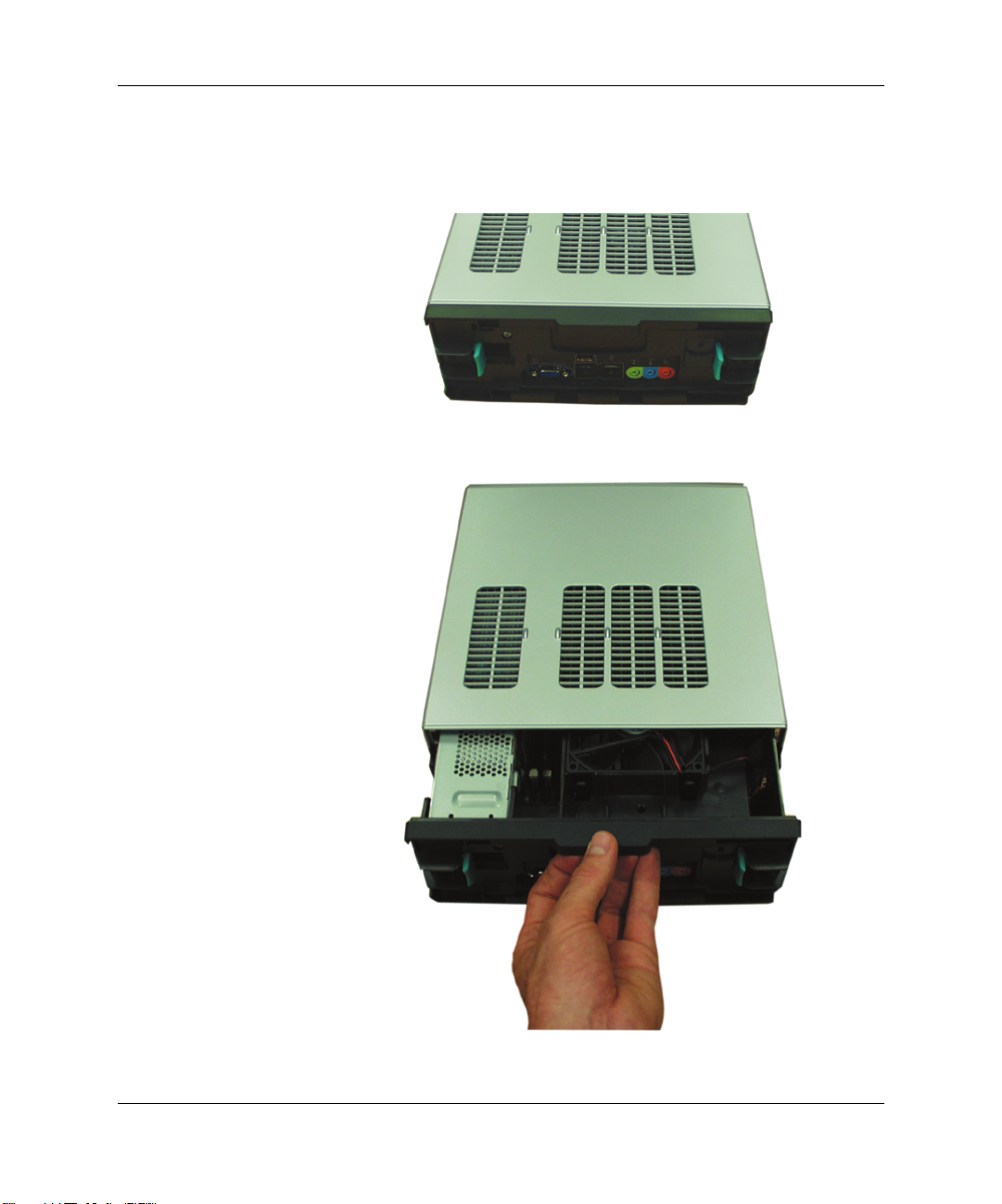

3. Disconnect all cables from the computer.

4. Push the two green latches inward.

5. Slide out the chassis from the enclosure.

305513-001.bookPage4Tuesday,August20,20024:35PM

Upgrade Guide 5

Upgrading and Replacing Hardware

Internal Components

Hard Drive

You can replace hard drive with a

larger one

One Front-Access Device Shelf

CD-ROM drive, CD-RW drive or DVD drive

Main Memory Modules:

(266MHz DDR SDRAM)

2 sockets for 128 MB, 256 MB, 512

MB or 1GB modules up to 2 GB

maximum

Switch block

One Front-Access Device Shelf

CD-ROM drive, CD-RW drive or DVD drive

305513-001.bookPage5Tuesday,August20,20024:35PM

6Upgrade Guide

Upgrading and Replacing Hardware

Upgrading or Replacing Memory

✎Use only memory modules provided for your e-pc model. The use of

other memory modules is not supported. For information about

supported accessories, connect to http://www.compaq.com. 32 MB

and 64 MB modules are not supported. Install 128 MB, 256 MB,

512 MB or 1 GB non-ECC DDR SDRAM modules.

1. Open the e-pc as shown in “Opening the e-pc” on page 3.

2. Lift up the hard drive retaining bracket.

3. Slide out the drive tray to gain access to the memory modules.

memory modules

305513-001.bookPage6Tuesday,August20,20024:35PM

Upgrade Guide 7

Upgrading and Replacing Hardware

4. There are two memory sockets. Align the notches on the bottom

of the module with the corresponding marks on the socket and

push it firmly into place. The clips close automatically.

5. Replace the chassis in the enclosure.

Replacing the Hard Drive

ÅWARNING: For your safety, disconnect the power cord and all external

cables.

1. Open the e-pc as shown in “Opening the e-pc” on page 3.

2. Lift up the hard drive retaining bracket.

305513-001.bookPage7Tuesday,August20,20024:35PM
