Compaq Presario 6500 Manuale di istruzioni

Filename: S3adtv2K.doc Title: Addendum [3-column 3 + pages]

Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: JimL

Revision #: 32 Page: 1 of 4 Printed: 10/25/02 12:49 PM

Connecting the Computer to a Television

Your PC has TV-out capability, which means you can connect it to a

television to view the computer image on a TV. With the TV-out feature, you

can view the computer image, watch DVD movies (if you have a DVD drive),

or play games on your TV.

Cables you may need

To connect a TV to the computer, you may need a video cable and an

audio cable. The type of video cable depends on your TV. If your TV has

an S-Video jack, you need an S-Video cable. If your TV has a composite

video jack, you need a composite video cable and, depending on the jacks

on the back of your computer, an S-Video adapter cable.

2Connecting the Computer to a Television

Filename: S3adtv2K.doc Title: Addendum [3-column 3 + pages]

Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: JimL

Revision #: 30 Page: 2 of 4 Printed: 10/24/02 12:07 PM

Connecting to a TV Set

To connect a TV to the computer:

1 Turn off the computer.

2 Connect the TV cable using one of the following

scenarios, depending on the connection jacks on

your TV:

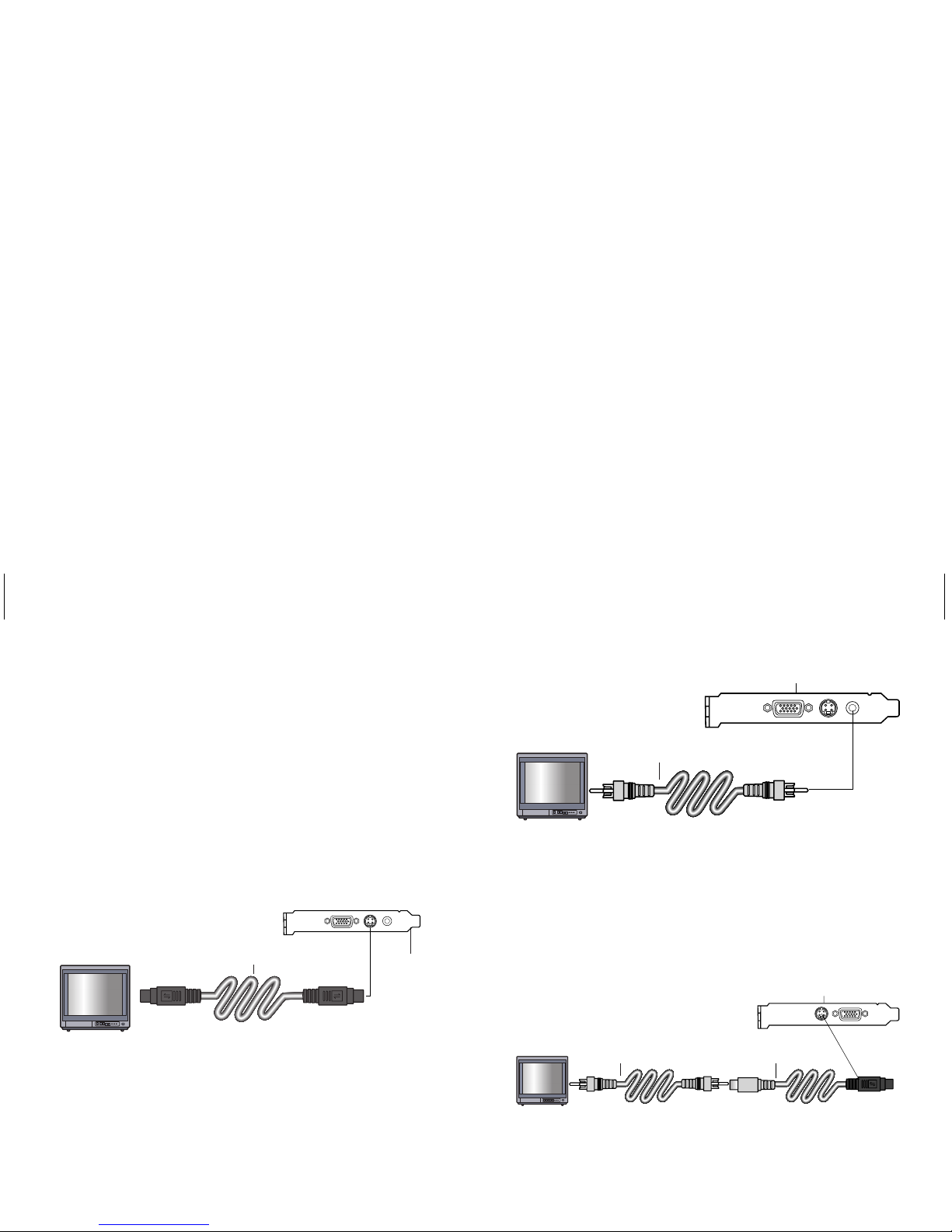

■ If your TV has an S-Video jack, connect an S-Video

cable from the S-Video In jack on the TV to the

S-Video jack on the back of the computer.

S-Video Cable Back of PC

■ If your TV has a composite video jack and your

computer has a composite video jack, connect a

composite video cable to the Video In jack on the

TV to the composite video jack on the back of the

computer.

Composite Video Cable

Back of PC

■ If your TV has a composite video jack and your

computer has only an S-Video jack, connect a

composite video cable to the Video In jack on the

TV and to an S-Video adapter cable. Connect the

S-Video adapter cable to the S-Video jack on the

back of the computer.

Composite Video

Cable

S-Video Adapter

Cable

Back of PC

Note: The S-Video adapter cable is only needed if there is no

composite video jack on the back of the computer.

Connecting the Computer to a Television 3

Filename: S3adtv2K.doc Title: Addendum [3-column 3 + pages]

Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: JimL

Revision #: 30 Page: 3 of 4 Printed: 10/24/02 12:07 PM

3 Connect audio cable: To have sound come from your

TV and not from your computer, plug an audio cable

into the Audio input jack (Line In) on the TV and then

plug the other end into the Line Out jack (lime green

connector) on the back of the computer.

Viewing the Computer Image on TV

Important: The type of video card on your computer

determines how the computer selects the TV-out option.

Some options and menus in this procedure may be

different for your computer.

To view your computer image on the TV:

1 Make sure the video and audio cables are connected

before you turn on the TV and the computer.

2 Turn on the TV. Press the Video/TV button on your

remote control to select the Video setting, not the TV

setting.

3 Turn on the computer.

4 When the Windows desktop appears, right-click

an empty area of the desktop.

5 Click Properties.

6 Click the Settings tab.

7 Click the Advanced button.

8 Click the nView tab, if available, and under

nView Modes select Clone to view the computer

image on your monitor and your TV simultaneously.

Important: You can view the computer image on just

the TV. Under nView Modes select Standard

[nView disabled], click the Device Settings

button, choose Select Output Device, and then

select the TV option.

9 Click the OK button, and then click OK again.

10 When the computer image appears on the TV

screen, click Yes to keep the setting. You have

15 seconds to accept this new setting before it

reverts to the previous setting.

4Connecting the Computer to a Television

Filename: S3adtv2K.doc Title: Addendum [3-column 3 + pages]

Template: HP-Print2K.dot Author: WASSER, Inc. Last Saved By: JimL

Revision #: 30 Page: 4 of 4 Printed: 10/24/02 12:07 PM

Disabling the TV Option

When you want to disconnect the TV from the

computer, you may need to disable the TV option to

return your computer display to its original resolution.

To disable the TV option:

1 Right-click an empty area of the screen.

2 Click Properties.

3 Click the Settings tab.

4 Click the Advanced button.

5 Click the nView tab, and then select the Standard

[nView disabled] option.

Important: If you viewed the computer image on just the TV,

do the following: With Standard [nView disabled]

selected under nView Modes, click the Device

Settings button, choose Select Output Device, and

then select the Analog Display option.

6 Click the OK button, and then click OK again.

7 When the computer image appears on the

computer screen, click Yes to keep the setting.

You have 15 seconds to accept this new setting

before it reverts to the previous setting.

Disconnecting the TV

1 Disable the TV option. See the previous procedure.

2 Turn off the TV and the computer.

3 Remove the video cable at the TV and the PC.

4 Remove the audio cable at the TV and the PC.

5 Reconnect your computer speaker cable to the

Line Out jack (lime green connector) on the back

of the computer.
