QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

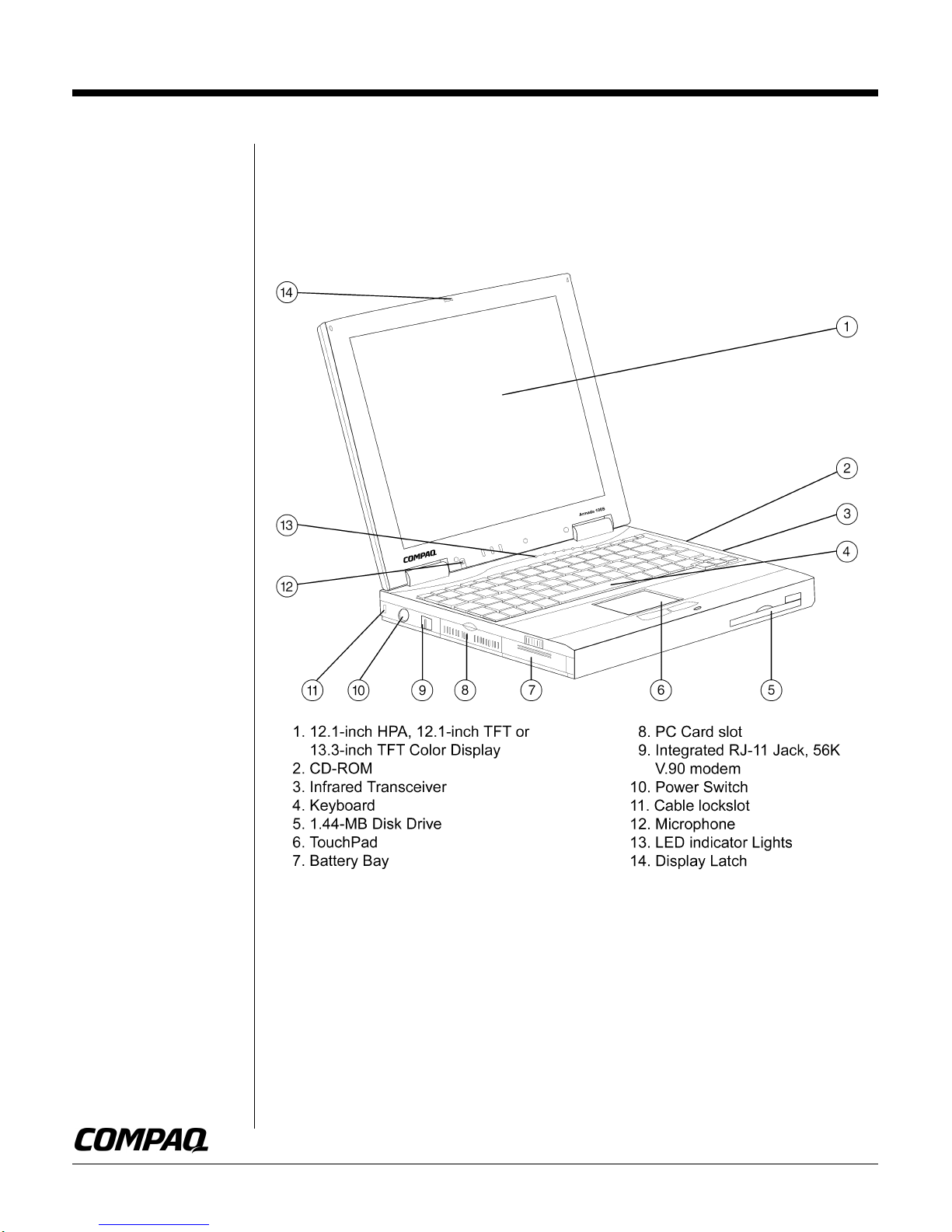

Overview

What's New

• AMD K6



-2+ 550MHz Global

Processor

• AMD PowerNow!™Technology

• 13.3˝XGA DisplayPanels

At A Glance

• AMD K6



-2+ 550MHz Global

Processor

• Choice of either 12.1˝High

Performance Addressing (HPA)

SVGA, 12.1˝TFT SVGA, or 13.3˝

TFT XGA displays

• Full set of system ports

• Microsoft Windows98SE

• Integrated 56Kmodem available

• Upgradable to 160/192MB

memory (depending upon

standard configuration)

• Full-size keyboard user

• One Type I, Type II or Type III

CardBus PC Card slot

• Between 6.7 and 6.8 lbs., or 3 to

3.1 kg

• USB port expansion options

available

• Lightweight/ExtendedCapacity

Lithium Ion batteryavailable

• Protected by a one-year Warranty

— Certain restrictions and

exclusions apply. Consult the

CompaqCustomerSupport

Center for details.

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Processor

Mobile AMD K6



-2+ 550MHz Global Processor

• Leading-edge Super7™ platform features, including 100MHz front side bus

• 3DNow!™ technology with new DSP Instructions

• AMD PowerNow!Technology

• 2X AGP Graphics

• High speed 128K on-chip L2 cache

• Compatible with Windows 2000 and Windows 98

Cache Memory 192KB total internal cache

• Internal split, two-way set associative, 64KB L1 Cache

•

32KB instruction cache with additional 20KB of predecode cache

•

32KB writeback dual-ported data cache

•

MESI protocol support

• Internal full-speed, four-way set associative, 128KB, L2 Cache

Memory

One of the following required Standard

Maximum

32MB (HPA) (4MB allocated to frame buffer)

160MB

Standard

Maximum 64MB (TFT) (8MB allocated to frame buffer)

192MB

Communications 56K AC97 Link

Note: Designed only to allow faster downloads from v.90 compliant sources. Maximum achievable download

transmission rates currently do not reach 56KB/s, and will vary with line conditions.

PC Card Slots One Type I, II or III PC Card Slot which supports both 32-bit CardBus (Full support in Windows 9.x) and 16-bit PC

Cards

Storage Diskette Drives 1.44MB

Hard Drives 5GB (9.5 mm height)

Multimedia Integrated 16-bit Sound Blaster Pro-compatible stereo audio

Integrated speakers and microphone

Software and hardware volume controls

Headphone-out Jack

Microphone-in Jack

Hardware assisted MPEG2 support

Interfaces PC Card Slot One Type I, II or Type III

Enhanced Parallel Port 1

PS/2 1

Serial Port 1

External Monitor Port 1

Speaker Out (Headphone) Jack 1

Microphone In Jack 1

AC Power Connector 1

RJ-11 Jack 1 (with modem only)

Infrared Port 1 (”Fast IR” compliant, IR performance will vary depending on performance

of IR peripherals and application used)

USB Port 1

Graphics Trident CyberBlade 7 with AGP 2X support

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Display (Internal) 12.1-inch color HPA with 800 x 600 SVGA resolution

One of the following 12.1-inch color TFT with 800 x 600 SVGA resolution

13.3-inch color TFT with 1024 x 768 XGA resolution

Display (External) 16 Million colors supported

640x480, 800x600, 1024x768 or 1280x1024 up to 60,75,85 Hz refresh rate

Operating System Windows 98SE

Software Microsoft Word 2000 available on select models

Microsoft Office Small Business available on select models

Online Safety and Comfort Guide

Online Reference Guide

Norton AntiVirus 2000 available on select models

Security Cable lock support

Power-on password

Setup passwords

Ability to disable serial port, parallel port, diskette drive, diskette drive boot capability

Power Supply External AC Adapter; 6-foot power cord included

Battery A 9-cell NiMH battery ships standard and provides over two hours of battery life using ZD BattMark 3.0. An optional

8-cell Li-ION battery is also available.

Note: Actual results may vary with individual usage. When tested in standard configuration, using the Ziff-Davis

BatteryMark Test version 3.0, the battery life of the Armada 100S will exceed 2.0 hours using “max

performance” mode in PowerNow!. Standard configuration at time of announce is considered to be one

battery, a 800x600 (High color – 16-bit color) panel set at 50percent brightness, 32MB or 64MB RAM, and no

drives other than the hard drive active.

Power Conservation Hibernation

Instant-On via Standby

Five power consumption levels available through AMD PowerNow!™ Technology

Pop-ups with three presets

One custom level of power conservation

Service and Support Compaq Services includes a one-year limited warranty, whole-unit replacement via second business day, pick-up

and delivery. (Eligibility depends on geographic location.) Optional services include a one-year warranty extension

CarePaq (FM-AMMAI-36 or 400514-002).

Note: Certain restrictions and exclusions apply. See the Limited Warranty Statement for details.

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Models

A2+/550/64/13T/5/M/WD Display 13.3-inch color TFT/XGA

219677-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, MS Word 2000

A2+/550/64/13T/5/M/SB Display 13.3-inch color TFT/XGA

219678-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, Office 2000 Small Business

A2+/550/64/13T/5/M/2 Display 13.3-inch color TFT/XGA

219679-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

A2+/550/64/13T/5/M/PS Display 13.3-inch color TFT/XGA

219680-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, Office 2000 Personal Edition

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Models (continued)

A2+/550/64/12T/5/M/WD Display 12.1-inch color TFT/SVGA

219675-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem N/A

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, MS Word 2000

A2+/550/64/12T/5/M/2 Display 12.1-inch color TFT/SVGA

219674-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

A2+/550/64/12T/5/M/NA Display 12.1-inch color TFT/SVGA

219674-xx5 Processor AMD K6-2+ 550MHz

(NAFTA) Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

A2+/550/64/12T/5/M/WD Display 12.1-inch color TFT/SVGA

219673-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, MS Word 2000

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Models (continued)

A2+/550/64/12T/5/M/SB Display 12.1-inch color TFT/SVGA

219676-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, Office 2000 Small Business

A2+/550/64/12H/5/M/WD Display 12.1-inch color HPA/SVGA

219669-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, MS Word 2000

A2+/550/64/12H/5/M/2 Display 12.1-inch color HPA/SVGA

219670-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

A2+/550/64/12H/5/M/NA Display 12.1-inch color HPA/SVGA

219670-xx5 Processor AMD K6-2+ 550MHz

(NAFTA) Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Standard Features

Models (continued)

A2+/550/64/12H/5/M/PS Display 12.1-inch color HPA/SVGA

219671-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE, Office 2000 Personal Edition

A2+/550/64/12H/5/M/2 Display 12.1-inch color HPA/SVGA

219672-xx4 Processor AMD K6-2+ 550MHz

Cache Memory Internal 64KB L1 Cache Internal 128KB, L2 Cache

Memory Standard 64MB SDRAM

Maximum 192MB SDRAM

Optical Drive 24X CD-ROM

Hard Drive 5GB

Modem 56K

Graphics Trident CBI7 4MB UMA RAM(Shared RAM)

Audio 16-bit SoundBlaster Pro compatible

Software Windows 98SE

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Options

Memory 32MB Memory Upgrade 179863-B21

64MB Memory Upgrade 179864-B21

128MB Memory Upgrade 179865-B21

Monitors TFTs

Compaq TFT8020 Monitor (18-inch, Carbon) 159244-xxx

Compaq TFT5010 Monitor (15-inch, Carbon) 154486-xxx

CRTs

Standard Series

Compaq S710 CRT Monitor (17-inch, Carbon) 154499-xx2

Compaq S510 CRT Monitor (15-inch, Carbon) 168636-xx2

Docking Solutions Ultra3 (Ultra 160) SCSI Controller 144387-B21

Xircom PortStation USB Port Expansion Solution w/NIC 180947-xx1

Connectivity Compaq Microcom 420 56K

Global Modem

(Designed only to allow faster downloads from v.90 compliant sources. Maximum

achievable download transmission rates currently do not reach 56KB/s, and will vary

with line conditions.)

317900-001

10/100 TX PC Card UTP Controller 335506-B21

100BaseTX Ethernet Upgrade 225435-001

Wireless Connectivity Compaq WL100 11MB/s Wireless LAN PC Card (Industry-Standard Wireless

Technology) 146927-001

Compaq WL400 11MB/s Wireless LAN Hardware Access Point 158603-001

Compaq WL Software Access Point 11Mb/s 157209-B21

For more information on Compaq WLAN Wireless LAN solutions visit:

http://www.compaq.com/products/wlan/wl100-specifications.html

Note: This Web site is available in English only.

Power Li-Ion (8-cell) 175103-B25

AC Adapter (50W) 175101-xx1

Auto Adapter 188200-B21

Input Devices External Enhanced III Keyboard (carbon) 118003-xx8

Compaq 2-Button Mouse (carbon) 103180-B21

USB 2-Button Mouse (carbon) 195255-B25

10 Key Numeric Keypad 294317-B21

Useful Accessories Security Cable Lock 294316-B21

Biometric PC Card 146805-B25

Compaq Smart Card PC Card Read 135646-B25

Armada Headset with Microphone 220460-001

MP1800 Microportable Projector 180226-xx1

MP1600 Microportable Projector 386202-xx1

MP1400 Microportable Projector 174626-xx4

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Options

Carrying Cases Compaq Ultralight Case 167336-B21

Compaq Value Case 294266-B21

Compaq Workstation Case 294267-B21

Compaq Global Case 294268-B21

Compaq Executive Case 294269-B21

Compaq Professional N Case 401366-B21

Compaq Professional L Case 401367-B21

For additional Compaq Brand cases, call 1-800-888-5903.

QuickSpecs

Compaq Armada 100S

DA-10695 World Wide — Version 7 — July 16,2001

Memory

Compaq Armada 100S

TANDARD

EMORY

(AMD K6-2+ 550MHz Models)

32MB onboard (1 slot available)

Memory Onboard Slot 1

Standard 32MB 32MB Em

64MB 32MB 32MB

96MB 32MB 64MB

160MB 32MB 128MB

64MB onboard (1 slot available)

Memory Onboard Slot 1

Standard 64MB 64MB Em

96MB 64MB 32MB

128MB 64MB 64MB

192MB 64MB 128MB

Following are memory options available from Compaq:

•

32MB Memory Upgrade 179863-B21

•

64MB Memory Upgrade 179864-B21

•

128MB Memory Upgrade 179865-B21

Altri manuali per Armada 100S Series

Indice

Altri manuali Compaq Computer portatile

Compaq

Compaq Armada 1100 Manuale di riferimento

Compaq

Compaq Presario 1900 - Notebook PC Manuale

Compaq

Compaq Armada 1500C series Manuale operativo e di manutenzione

Compaq

Compaq Presario V3200 - Notebook PC Manuale utente

Compaq

Compaq 370698-002 Manuale utente

Compaq

Compaq XL240 Manuale

Compaq

Compaq Presario 1660 Manuale utente

Compaq

Compaq 1200US - Presario - Celeron 800 MHz Manuale

Compaq

Compaq Evo N620c Manuale utente

Compaq

Compaq 1600R - ProLiant - 128 MB RAM Manuale

Compaq

Compaq Armada E500 Series Guida all'installazione

Compaq

Compaq 6530b - Notebook PC Manuale

Compaq

Compaq 800 Series Manuale utente

Compaq

Compaq Presario X1000 - Notebook PC Manuale utente

Compaq

Compaq SLT 386s/20 Manuale

Compaq

Compaq 2230s - Notebook PC Istruzioni per l'installazione

Compaq

Compaq Evo D500 - Convertible Minitower Guida rapida

Compaq

Compaq Evo N800w Manuale utente

Compaq

Compaq Presario 1600 - Notebook PC Manuale

Compaq

Compaq Evo Notebook N800c Istruzioni per il montaggio

Compaq

Compaq Armada E500 Series Istruzioni per l'uso e l'installazione

Compaq

Compaq Presario 700 Series Manuale utente

Compaq

Compaq Presario CQ62-300 - Notebook PC Manuale d'uso e manutenzione

Compaq

Compaq Presario 305 Manuale utente

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
