Compaq Armada 1700 Manuale utente

QUICKSPECS

Overview

2-13 DA-10011-01-001

Compaq Armada 1700

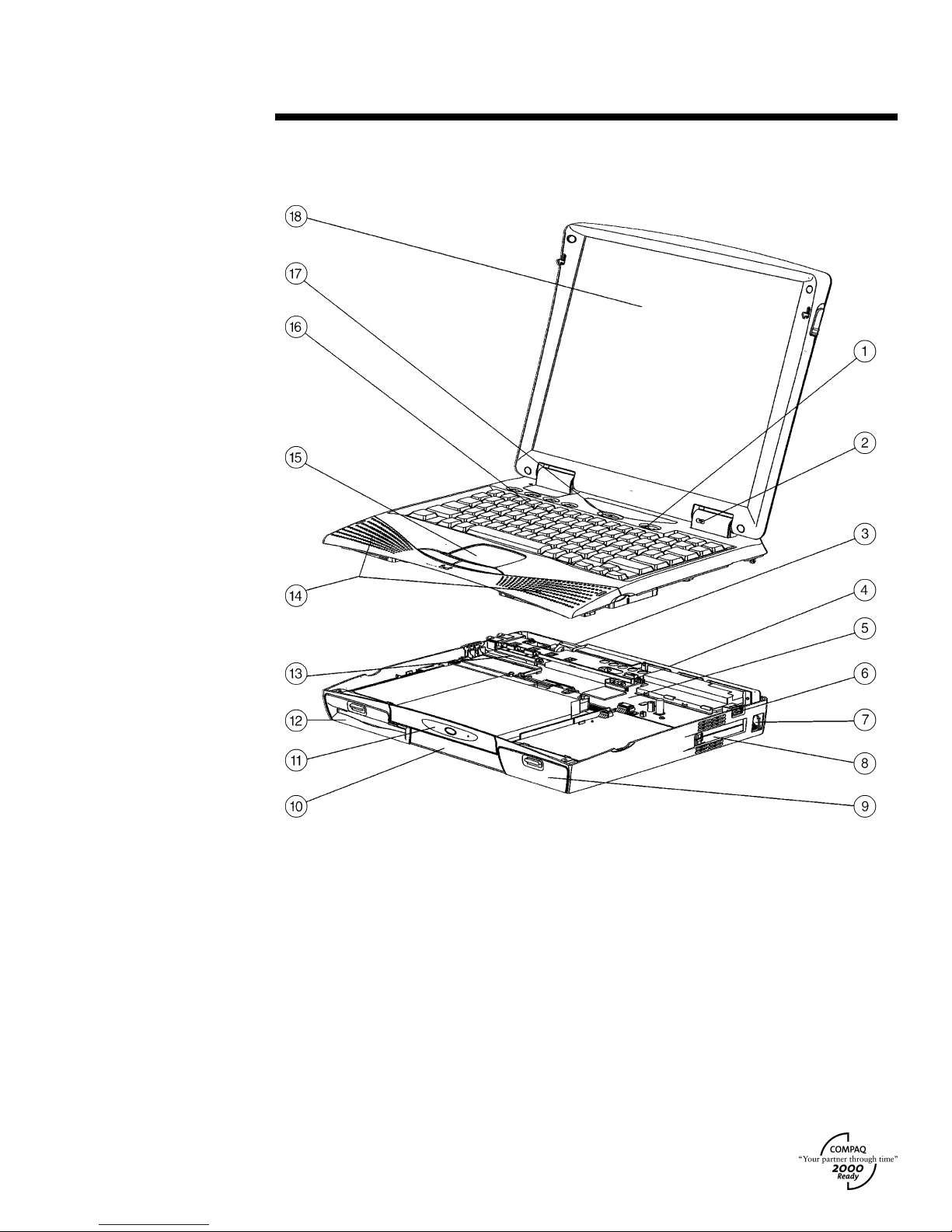

1. Power Button

2. Microphone

3. 4 MB/s6Infrared Communication Port

4. Integrated AC Adapter

5. Processor Board

6. USB Port (model dependent)

7. Integrated 56Kflex3Data/14.4 Kb/s Fax Modem

(upgradable to V.90)

8. Two Type II/One Type III PC Card Slots; Card Bus-

capable7

9. Li-Ion Battery Pack

10. Upgradable SMART Hard Drive

11. 24 Max2CD-ROM Drive upgradable to

DVD-ROM Drive

12. MultiBay (supports additional battery, Second

Hard Drive, Zip Drive, SuperDisk LS-120 Drive)

13. Memory Slot

14. Stereo Speakers

15. Touchpad Pointing Device

16. Full-size Keyboard with Four

User-programmable Keys

17. Standby Button

18. Display

AT A

LANCE

•All-in-one form factor with three

spindle support

•Choice of Intel Pentium

processor up to300 MHz

•12.1-inch CSTN/CTFTdisplay

with resolutions up to800 x 600 or

13.3/14.1-inchCTFT display with

resolutions up to 1024 x 768

•32-MB standard SDRAM,

expandable up to160 MB

•MultiBaysupportsadditional

battery, second Hard Drive, floppy

diskette drive (standard),

SuperDiskLS-120.

•Up to 5-GB1Upgradable SMART

Hard Drives

•24X Max2CD-ROMDrive

upgradable to DVD-ROM

•Integrated K56flex3 data/14.4 Kb/s

fax modem (upgradable to V.90)

•Sound Blaster Pro-compatible

with 16-bit stereo Compaq

PremierSound™, integrated

speakers and microphone

•Intelligent Manageability for lower

total cost of ownership

•CompaqServices, including a one

year, Worldwide Limited

Warranty4with second business

day5expedited pick-up and repair

in North America.

QUICKSPECS

Standard Features

2-14 DA-10011-01-001

Compaq Armada 1700

All-in-one Design

All-in-one design includes integrated Diskette Drive, Hard Drive, CD-ROM Drive, modem and AC Adapter, providing

full functionality in the office or on the road. MultiBay supports diskette drive, second hard drive, second battery,

SuperDisk LS-120 Drive or Zip Drive for additional flexibility.

Processor

Intel Mobile Pentium II processor 300 MHz

6300/14T/5GB/D/M/3

6300/14T/5GB/D/M/1

Intel Mobile Pentium II processor 266 MHz

6266/13T/4GB/D/M/1

Cache Memory

Integrated 16 KB; 512-KB level 2

Memory

Standard 32 MB

Maximum 160 MB

Communications

K56flex3data/14.4 Kb/s fax modem, upgradable to V.90

Keyboard

101/102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, four user-

programmable keys, special feature hotkeys for instant access to power conservation, QuickLock/QuickBlank,

toggle between internal and external, or simultaneous displays, battery gauge, speaker volume control, brightness

and contrast

Pointing Device

Touchpad pointing device for intuitive use

PC Card Slots

Two Type II/One Type III PC Card Slot(s) which support both 32-bit CardBus7 and 16-bit PC Cards; zoomed video

support in bottom slot only

Storage

Removable Diskette

Drive 1.44 MB

CD-ROM 24X Max2

Hard Drives Up to 10 GB1

Multimedia

Compaq PremierSound for enhanced stereo audio, including integrated 16-bit Sound Blaster Pro-compatible

stereo audio, integrated acoustic bass reflex stereo speakers with 2 Watt/channel amplifier and 4 stage EQ,

software/hardware volume control, headphone out, microphone in jacks support, software MPEG1 support;

internal 24X Max2CD-ROM Drive

MODELS

Armada 1700

(12.1 CSTN)

Model

6233/S/3200/D/M/1

316200-002

Armada 1700

(12.1 CTFT)

Model

6233/T/4000/D/M/1

316300-002

Armada 1700

(13.3 CTFT)

Model

6266/T/4000/D/M/1

316400-002

Armada 1700

(14.1 CSTN)

Model

6300/T/5000/D/M/1

316330-002

MODELS

Windows NT

6300/14T/5GB/D/M/3

316330-006

Windows 95

6300/14T/5GB/D/M/1

316330-002

6266/13T/4GB/D/M/1

316400-002

QUICKSPECS

Standard Features

2-15 DA-10011-01-001

Compaq Armada 1700

Interfaces

PC Card Two Type II/One Type III

Enhanced Parallel 1

Serial 1

External Monitor 1

External Keyboard/

Pointing Device 1

Convenience Base 1

Headphone/Line out 1

Microphone in 1

AC Power 1

RJ-11 1

Infrared 1 (4 Mb/s6support)

USB 1

Graphics

64-bit video graphics with 2-MB EDO DRAM for increased color depth and graphics performance

Display

14.1-inch color TFT with 1024 x 768 resolution (up to 64K colors internal)

6300/14T/5GB/D/M/3

6300/14T/5GB/D/M/1

13.3-inch color TFT with 1024 x 768 resolution (up to 64K colors internal)

6266/13T/4GB/D/M/1

Software

Windows 95

Compaq Intelligent Manageability

Microsoft Internet Explorer 4.01

CompuServe and AOL

Microsoft NetMeeting

Microsoft PC Card Manager

6300/14T/5GB/D/M/1

6266/13T/4GB/D/M/1

Windows NT Workstation 4.0

Insight Management Agents

Compaq Intelligent Manageability

Security 32

Diagnostics for Windows NT

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

6300/14T/5GB/D/M/3

OS Support

Windows NT Workstation 4.0

Windows 98

Windows 95

Intelligent Manageability

Lowers total cost of ownership by providing enhanced security, asset management, fault prediction with

SMART drives; also provides SMART drive alert, battery fault alert, thermal alert and memory alert for

investment and data protection

QUICKSPECS

Standard Features

2-16 DA-10011-01-001

Compaq Armada 1700

Security

Cable lock support

Power-on password

Set-up passwords

Ability to disable serial port, parallel port, diskette drive, diskette drive boot sequence

Drive Lock for advanced data protection

Power Supply

Integrated AC Adapter for less bulky transportation and 10-foot power cord

Battery

Li-Ion providing up to two-and-a-half hours of battery life8supported with one battery; a second battery can be

supported in the MultiBay for additional battery life

Power Conservation

Hibernation, Instant-On via Standby; pop-ups with three presets and one custom level of power conservation,

ACPI hardware ready

Service and Support

Compaq Services provides a range of services for the Armada 1700, including a one-year, Limited Warranty4,

with 7 x 24 service line at 1-800-OK-Compaq (1-800-652-6672) and a free, one-year, second business day5pick-up

and delivery service from Compaq. All shipping and handling materials are supplied by Compaq.

QUICKSPECS

Options

2-17 DA-10011-01-001

Compaq Armada 1700

Memory

128-MB Memory Upgrade 315177-B21

64-MB Memory Upgrade 314891-B21

32-MB Memory Upgrade 314890-B21

Monitors9

TFT8000 Flat Panel 307906-001

TFT5000 Flat Panel 325700-001

P110 Color10 325600-001

P75 Color 307806-001

V1000 Color10 351757-001

V900 Color10 303500-001

V700 Color (opal) 325800-001

V75 Color (carbon) 307710-002

V500 Color 325900-001

S900 Color10 360562-001

S700 Color 360512-001

Hard Drives

5-GB1 SMART Hard Drive 316248-B21

4-GB1SMART Hard Drive 316247-B21

MultiBay Options

Zip Drive 316311-B21

SuperDisk LS-120 Drive 316257-B21

DVD-ROM Drive Kit 316258-B21

PC Cards/Communications

Compaq Microcom Global 420 56K v.903

PC Card Fax Modem 317900-001

Compaq Microcom 550 56K v.903+

10/100 Ethernet Combo Card 321550-001

10/100 TX PC Card UTP Controller 335506-B21

10 T PC Card UTP Controller 292806-B21

100BaseTX Ethernet Upgrade 225435-001

16/4 TR PC Card IBM UTP/STP

Controller 301208-B21

USB CardBus7Card 296501-B21

For additional compatible PC Cards, view the Compaq

PC Card Solutions List on the Compaq website at

http://www.compaq.com/support/techpubs/pcmcia/

pccardlist.html.

Convenience Bases

Armada Convenience Base II with USB

(Ethernet)11 316239-001

Convenience Base II with USB

(Pass-Through)11 316238-001

Monitor Stand-Conversion Kit12 316246-B21

Power

Li-Ion Battery 254936-B21

External Battery Charger 254938-B21

Auto/Aircraft Adapter 296537-B21

AC Line Cord (10-ft) 217932-002

Input Devices

External Infrared Transceiver 220687-002

External Enhanced III Keyboard

(carbon) 118003-008

External Enhanced III Keyboard (opal) 294343-001

Compaq Mouse (carbon) 103180-B21

Compaq Mouse (opal) 143315-B21

Other

Security Lock 294316-B21

Portable Video Conferencing Kit 296954-001

Armada Headset with microphone 220460-001

Universal Monitor Stand 294315-B21

Carrying Cases

Compaq Value Case 294266-B21

Compaq Workstation Case 294267-B21

Compaq Global Case 294268-B21

Compaq Executive Case 294269-B21

For additional Compaq Brand cases, call

1-800-888-5903.

QUICKSPECS

Memory

2-18 DA-10011-01-001

Compaq Armada 1700

STANDARD MEMORY

32 MB Standard on System Board (1 slot available)

Standard Slot

32 MB Empty

STANDARD MEMORY PLUS

OPTIONAL MEMORY

Support for up to 160 MB of 60 ns SDRAM is available with the installation of optional

SDRAM Memory Upgrade.

Up To Slot

64 MB

96 MB

160 MB

Following are memory options available from Compaq:

•128-MB Memory Upgrade 315177-B21

•64-MB Memory Upgrade 314891-B21

•32-MB Memory Upgrade 314890-B21

QUICKSPECS

Storage

2-19 DA-10011-01-001

Compaq Armada 1700

DRIVE SUPPORT Quantity

Supported Position

Supported

Removable Media

1.44-MB Diskette Drive Up to 1 Dual Bay

24X Max2 CD-ROM Drive (optional DVD) Up to 1 CD-ROMDrive Bay

Hard Drives

5-GB1SMART Hard Drive Up to 1 UpgradableHard Drive

4-GB1SMART Hard Drive Up to 1 UpgradableHard Drive

1MultiBay

2 CD-ROM Drive Bay

3 Upgradable Hard Drive

QUICKSPECS

Technical Specifications

2-20 DA-10011-01-001

Compaq Armada 1700

System Unit Dimensions (HxWxD) 2.3 x 12.5 x 9.6 in/5.84 x 31.75 x 24.5 cm

Weight

Armada 1700 6266/13T/4GB/D/M/1 8.3 lbs/3.76 kg

Armada 1700 6300/14T/5GB/D/M/3 8.32 lbs/3.78 kg

Armada 1700 6300/14T/5GB/D/M/1 8.32 lbs/3.78 kg

Stand-Alone Power Requirements

Nominal Operating Voltage (Li-Ion) 14.2 VDC

Maximum Operating Power 45W

Peak Operating Power 50W

Temperature

Operating 50° to 95°F/10° to 35°C

Non-operating –4° to 140°F/–20° to 60°C

Relative Humidity (non-condensing)

Operating 10% to 90%

Non-operating 5% to 95%

Shock

Operating 10 G, 11 ms, half-sine

Non-operating 60 G, 11 ms, half-sine

Vibration

Operating 0.25 G, 1 Oct/Min sweep rate

Non-operating 1 G, 1 Oct/Min sweep rate

Maximum Altitude (unpressurized)

Operating 10,000 ft/3,048 m

Non-operating 30,000 ft/9,144 m

Dimensions (HxW) 8.92 x 11.75 in/22.66 x 29.84 cm

14.1-Inch Color TFT

1024 x 768 Display Diagonal Size 14.1 in/35.8 cm

Mounting Internal

Number of Colors 64K

Contrast Ratio Minimum 100:1

Brightness Over 120 cd/m2

Pixel Resolution

Pitch 0.279 x 0.279 mm

Format 1024 x 768

Configuration RGB Stripe

Backlight Edge Lit

Character Display 80 x 25

Total Power Consumption (maximum) 7W

QUICKSPECS

Technical Specifications

2-21 DA-10011-01-001

Compaq Armada 1700

Dimensions (HxW) 7.9 x 10.6 in/20.1 x 26.9 cm

13.3-Inch Color TFT

1024 x 768 Display Diagonal Size 13.3 in/33.8 cm

Mounting Internal

Number of Colors 64K

Contrast Ratio Minimum 100:1

Brightness Over 120 cd/m2

Pixel Resolution

Pitch 0.264 x 0.264 mm

Format 1024 x 768

Configuration RGB Stripe

Backlight Edge Lit

Character Display 80 x 25

Total Power Consumption (maximum) 4W

5 GB1Capacity 5 GB1Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 4 ms

Size 2.5 in/63.5 mm Average 12 ms (read)

Interface ATA Full-Stroke 23 ms

Transfer Rate Rotational Speed 4,902 rpm

33.3 MB Physical ConfigurationSynchronous

(Maximum) Bytes/sector 512

Hard Drives

Operating Temperature 41° to 131°F/5° to 55°C

4 GB1Capacity 4 GB1Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 4 ms

Size 2.5 in/63.5 mm Average 12 ms (read)

Interface ATA Full-Stroke 23 ms

Transfer Rate Rotational Speed 4,009 rpm

33.3 MB Physical ConfigurationSynchronous

(Maximum) Bytes/sector 512

Operating Temperature 41° to 131°F/5° to 55°C

QUICKSPECS

Technical Specifications

2-22 DA-10011-01-001

Compaq Armada 1700

Diskette Drive Diskette Size 3.5 in

Light None

Height 0.82 in/2.08 cm

Bytes per Sector 512

Sectors per track

High density 18 (1.44 MB)/15 (1.2 MB)

Low density 9

Tracks per side

High density 80 (1.44 MB)/80 (1.2 MB)

Low density 80

Read/Write heads 2

Access Times

Track-to track (high/low) 3 ms/6 ms

Average (high/low) 94 ms/174 ms

Settling time 15 ms

Latency average 100 ms

Integrated AC Adapter Weight 0.66 lb/0.3 kg

Power Supply (input)

Operating Voltage 90 to 260 VAC RMS

Operating Current 1.1 A RMS

Operating Frequency Range 47 to 63 Hz AC

Maximum Transient 4/50 kV

Li-Ion Battery Pack Dimensions (HxWxL) 0.82 x 3.2 x 5.8 in/2.08 x 8.13 x 14.73 cm

Weight 0.85 lb/0.39 kg

Energy

Voltage 14.4V

Amp-hour capacity 3.1 Ah

Watt-hour capacity 43Wh

Temperature

Operating 50° to 104° F/10° to 40° C

Non-operating –12° to 140°F/–25° to 60°C

Convenience Base Dimensions (HxWxD) 4.9 x 14.2 x 14.7 in/12.46 x 36.07 x 37.34 cm

Weight 4.25 lbs/1.93 kg

Power Supply (input)

Operating Voltage 100 to 240 VAC

Operating Current 1.1 Amp Maximum

Rated Voltage 100 to 240 VAC

Rated Current 1 Amp Maximum

Line Frequency 47 to 63 Hz

Temperature

Operating 50° to 95°F/10° to 35°C

Non-operating –4° to 140°F/20° to 60°C

Relative Humidity

Operating 10% to 90%

Non-operating 5% to 95%

Altri manuali per Armada 1700

Indice

Altri manuali Compaq Computer portatile

Compaq

Compaq Compaq Presario Manuale

Compaq

Compaq presario V6000 Manuale

Compaq

Compaq Compaq Presario Manuale utente

Compaq

Compaq Evo N800w Manuale utente

Compaq

Compaq Presario M2000 Istruzioni per il montaggio

Compaq

Compaq 12XL125 - Presario - K6-2 533 MHz Manuale utente

Compaq

Compaq Presario 1700 Series Scheda informativa del prodotto

Compaq

Compaq 1700 - Armada - PII 266 MHz Manuale di istruzioni

Compaq

Compaq AMC20493-KT5 Manuale utente

Compaq

Compaq Presario 1600 - Notebook PC Manuale

Compaq

Compaq Armada M300 Series Manuale

Compaq

Compaq Evo N610c Series Manuale utente

Compaq

Compaq Armada E500 Series Istruzioni per l'uso e l'installazione

Compaq

Compaq ARMADA 6500 SM Manuale utente

Compaq

Compaq Presario B1000 - Notebook PC Manuale utente

Compaq

Compaq 6530s - Notebook PC Manuale utente

Compaq

Compaq Armada 7800 Manuale utente

Compaq

Compaq Armada 1500C series Istruzioni per l'uso e l'installazione

Compaq

Compaq Armada 1500C series Istruzioni utente

Compaq

Compaq Compaq Presario Istruzioni di installazione e manutenzione

Compaq

Compaq Armada 110 Manuale

Compaq

Compaq 7400 - Armada - PII 366 MHz Manuale utente

Compaq

Compaq Presario 305 Manuale utente

Compaq

Compaq Presario 1900 - Notebook PC Manuale

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
