QUICKSPECS

Overview

17/26/99 Division – Portables

Compaq Armada E700

BENEFITS AT

A GLANCE

•Intel Mobile Pentium®II processor

400 MHz

•128 MB SDRAM

•14GB1SMART Hard Drive

•14.1-in TFT 1024 x 768 display

•AGP (Accelerated Graphics Port)

Implementation

- 8 MB Video SDRAM

- 66-MHz graphics bus

•Tri-view display support (TV-out

NTSC &PAL)

•Choice of Windows NT or 95

•Integrated Mini PCI modem

•Full-size keyboard

•User removable hard drive

•Dual-stacked Multibay providing

integral 3-spindle support

•Dual battery support

•Integrated stereo-speakers

•Protected by a three-year,

Worldwide Limited Warranty1,

Pick-up anywhere within Australia

with a 48-hour service workshop

turnaround repair time.

1. 14.1-in Color TFT Display

2. EasyPoint IV Pointing Stick

3. PC Card Slots (2)

4. RJ-11 Jack

5. Acoustic Ports (2)

6. Stereo Speakers (2)

7. Dual-stacked MultiBay (hold: 12.7 mm diskette

drive, CD-ROM, SuperDisk LS-120, second battery,

or MultiBay HDD. Also can hold: one 12-cell battery,

or one 17 mm HDD (w/HDD adapter)

8. Microphone jack, Stereo Speaker/Headphone jack,

Stereo Line-in jack

9. 8-cell Battery

10. Battery light, Power/Suspend light, HDD light,

MultiBay light

11. Integrated Microphone (on left-side)

12. Primary HDD

13. Left, Right, and Scroll Pointing-Stick Buttons

14. Video-out Port (on left-side)

15. Power, Volume (2), Suspend Buttons

16. Num Lock, Scroll Lock, Caps Lock lights

17. Display Switch

QUICKSPECS

Standard Features

27/14/99 Division – Portables

Compaq Armada E700

Processor

Intel Mobile Pentium II processor 400 MHz with MMX™ technology

Cache Memory

Integrated 256-KB level 2

Memory

Standard 128 MB

Maximum 320 MB

Communications

Integrated industry-standard Mini-PCI v.90, 56/33.6/14.4 Kb/s controllerless modem with protection from power

surges and digital phone lines

6400/T14/14.0/V/M/1

6400/T14/14.0/V/M/3

Keyboard

101-key compatible keyboard with isolated, inverted-T cursor control keys and right-control key; special feature

hotkeys for instant access to power conservation QuickLock/QuickBlank , battery charge status, brightness, mute and

toggle between internal, external or simultaneous displays

Pointing Device

Keyboard-integrated, textured, EasyPoint IV™ with 3 button support for easy selection, scrolling and magnification

PC Card Slots

Two Type II/One Type III PC Card Slot(s) support both 32-bit CardBus2and 16-bit PC Cards; Zoomed Video support

in both slots.

Storage

Diskette Drives 1.44 MB

DVD-ROM Drive 6400/T14/14.0/V/M/1

6400/T14/14.0/V/M/3

Hard Drives 14 GB3

Multimedia

Integrated PCI audio controller based on ESS Maestro-3E with ES1920 AC’97 Rev 2.0 codec and selectable 2 MB/4

MB wavetable with WDM drivers for Win 98. Compaq Premier•Sound™ for enhanced stereo audio (16-bit Sound

Blaster Pro compatible), integrated stereo speakers and microphone, software volume control, stereo line-in,

headphone out, microphone in jacks, standard DVD-ROM Drive and software MPEG1. Software MPEG2 is available.

MODELS

Windows NT Workstation 4.0

with integrated modem

6400/T14/14.0/V/M/3

113364-011

Windows 95 with integrated

modem

6400/T14/14.0/V/M/1

113367-011

QUICKSPECS

Standard Features

37/14/99 Division – Portables

Compaq Armada E700

Interfaces

PC Card Two Type II/One Type III Slot(s)

Enhanced Parallel 1

Serial 1

External Monitor 1

External Keyboard/

Pointing Device 1

Convenience Base 1

Headphone/Line out 1

Microphone in 1

TV-out 1

AC Power 1

DC Power 1

RJ-11 1

Infrared 1 (4 Mb/s4support)

USB 1

Graphics

2X AGP implementation with dedicated 66-MHz AGP graphics bus. ATI Mobility-P™ graphics controller with 8 MB of

125 MHz SDRAM. Up to 100 Hz external refresh at SVGA resolution up to 16.8 M colors. Supports Tri-view display

with TV-out, with 2 different images on 2 different displays at different refresh rates. NTSC & PAL TV-out support via

optional dongle up to 1024 x 768 resolution

Display

14.1-inch color TFT with 1024 x 768 resolution (up to 16.8 M colors)

Software

Microsoft Windows NT Workstation 4.0 SP4

Compaq Intelligent Manageability

Security 32

Diagnostics for Windows NT

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

Carbon Copy

Microsoft Windows 95 OSR 2.5

Compaq Intelligent Manageability

Security 32

Diagnostics for Windows 95

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

Carbon Copy

OS Support

Windows NT Workstation 4.0 SP4

Windows NT Workstation 4.0 SP3

Windows 98

Windows 95 OSR 2.5

Intelligent Manageability

Lowers cost of ownership by providing enhanced security, asset management and fault prediction. Also provides

system alerts such as SMART Drive alert, battery fault alert, thermal alert, and memory alert for investment and data

protection

QUICKSPECS

Standard Features

47/14/99 Division – Portables

Compaq Armada E700

Security

Cable lock support

Power-on and setup passwords

QuickLock/QuickBlank

Ability to disable serial port, parallel port, PC Card slots, diskette drive, diskette drive boot sequence, infrared port

Memory door security screw (tool included)

DriveLock Security for advanced data protection

Password protection resides on the drive

Power Supply

Integrated AC Adapter for less bulky transportation; 8-foot power cord included

Battery5

Li-Ion Battery Pack provides up to 3.7 hours of battery life6; a second battery can be supported in the MultiBay for

increased battery life: Battery QuickCheck button on battery pack provides instant visual indication of charge status

Power Conservation

Hibernation, Instant-On via Suspend; pop-ups with three presets and one custom level of power conservation

Service and Support

Compaq Services provides a range of services for the Armada E700, including a three-year, Worldwide Limited

Warranty. In Australia warranty includes Pick-up anywhere in Australia with 48-hour service workshop turnaround

repair time.

QUICKSPECS

Options

57/14/99 Division – Portables

Compaq Armada E700

Memory

128-MB Memory Upgrade 400313-B21

64-MB Memory Upgrade 400312-B21

32-MB Memory Upgrade 400311-B21

Monitors

TFT8000 Flat Panel - 18" 307906-011

TFT5000 Flat Panel - 15" Pivot 325700-011

TFT5000S Flat Panel – 15” 122729-011

P110 Colour - 21" 325600-011

P75 Colour - 17" 307806-011

S900 Colour - 19" 360562-011

S700 Colour - 17" 360512-011

V500 Colour - 15" 325900-011

Hard Drives

10- GB SMART Hard Drive (Multibay) 134107-B21

14-GB SMART Hard Drive (Dual Bay) 354231-B25

PC Cards/Communications

Compaq Microcom 420 56K Global

Modem 317900-011

Compaq Microcom 520 56K Modem +

10/100 Ethernet PC Card 321550-011

10/100 TX PC Card UTP Controller 335506-B21

Nettelligent 16/4 IBM TR PC Card 301208-B21

Compaq Speedpaq GSM Radio PC Card 294650-021

Multimedia

DVD-to-Go (PCMCIA DVD MPEG-2) 202861-B21

Expansion Bases

ArmadaStation II (Opal) 203100-012

ArmadaStation II (Carbon) 112162-012

MiniStationE 327137-012

MiniStationEX 327138-012

Opal Tower Stand 267863-001

Opal Monitor Stand 319660-001

ArmadaStation EM with Intel NIC TBA

ArmadaStation EM with 3Com NIC TBA

Armada Convenience Base EM with Intel

NIC TBA

Armada Convenience Base EM with

3Com NIC TBA

Armada Port Replicator EM 382300-011

Convenience Base EM Monitor Stand 122296-B25

ArmadaStation Tower Stand 122599-B25

Power

Primary Battery (8-cells) 109095-B21

DualBay Battery (12-cells) 109094-B21

MultiBay Battery (6 cell ) 387937-B25

AC Adapter 120765-B21

External Battery Charger 135555-B21

Auto Charger 401043-B25

AircraftAdapter 386504-B21

AC Line Cord (10-ft) 217932-012

Input Devices

External Enhanced III Keyboard

(carbon) 118003-018

Compaq Mouse (opal) 143315-B21

Compaq Mouse (carbon) 103180-B21

Useful Accessories

Security Lock 294316-B21

Armada Headset with microphone 220460-001

UniversalMonitorStand 294315-B21

Carrying Cases

Compaq Value Case, Nylon 318370-001

Compaq Global Case 255818-001

Compaq Leather Case 318151-001

MultiBay Devices

4x DVD-ROM Drive 118103-B25

SuperDisk LS 120 Drive 296502-B25

10- GB SMART Hard Drive (Multibay) 134107-B21

14-GB SMART Hard Drive (Dual Bay) 354231-B25

MultiBay Battery (6 cell ) 387937-B25

DualBay Battery (12-cells) 109094-B21

QUICKSPECS

Memory

67/14/99 Division – Portables

Compaq Armada E700

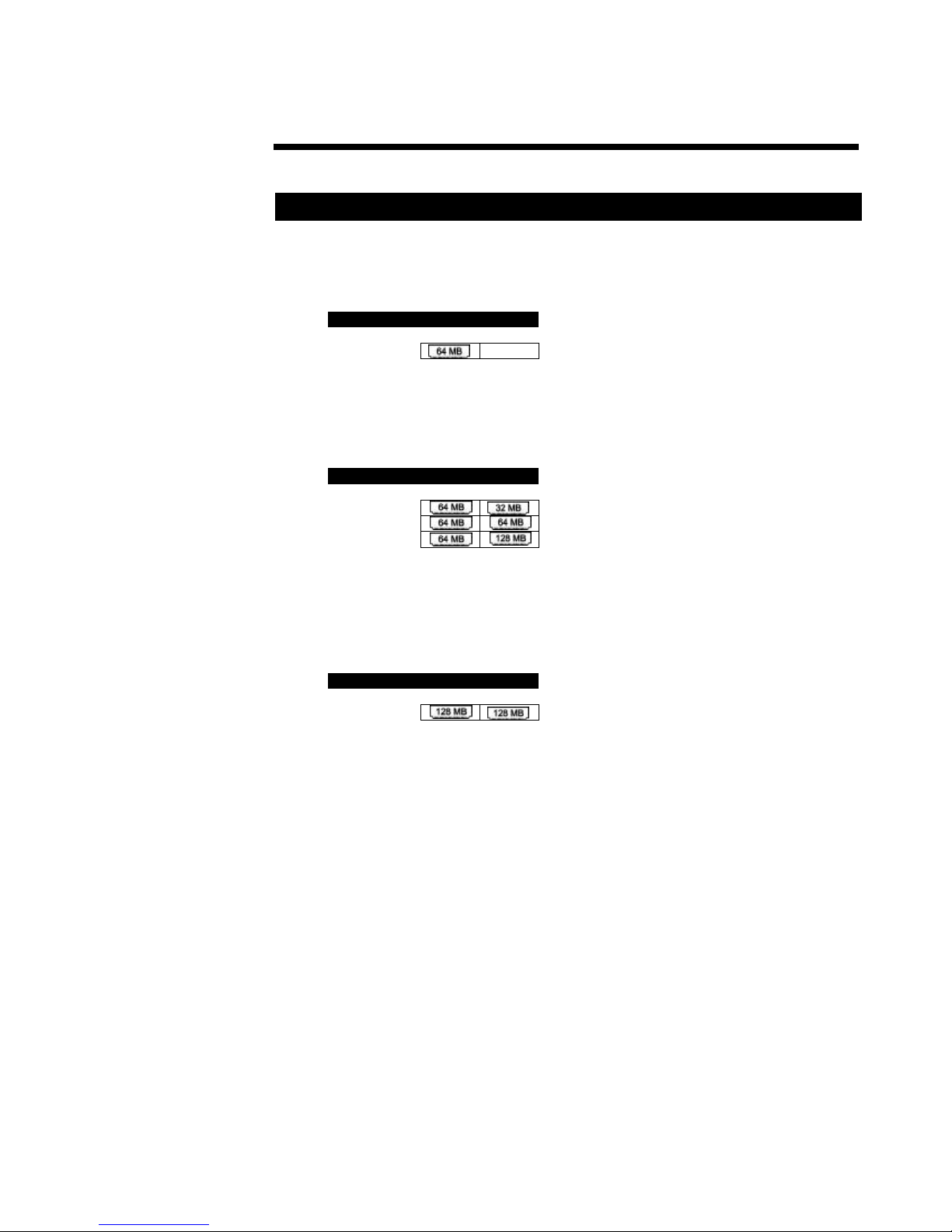

STANDARD MEMORY

128 MB installed – 64 MB SDRAM installed on the System Board and 64 MB installed in 1 slot (1

slot available)

Standard Slot Slot

1 2

128 MB Empty

STANDARD MEMORY PLUS

OPTIONAL MEMORY

Support for up to 256 MB of SDRAM is available with the installation of an optional Memory

Upgrade.

Up To Slot Slot

1 2

160 MB

192 MB

256 MB

STANDARD MEMORY REPLACED

WITH OPTIONAL MEMORY

Support for up to 320 MB of SDRAM memory is available with the removal of the standard 64 MB

SDRAM Memory Upgrade and the installation of optional SDRAM Memory Kits in addition to the

64 MB SDRAM on the System Board.

Up To Slot Slot

1 2

320 MB

Note: Because on memory slot is occupied in these products, the 64 MB SDRAM Memory Upgrade

(which ships standard) must be removed to reach the maximum memory of 320 MB. This chart

does not represent all possible configurations.

Following are memory options available from Compaq:

•128-MB Memory Upgrade 400313-B21

•64-MB Memory Upgrade 400312-B21

•32-MB Memory Upgrade 400311-B21

QUICKSPECS

Storage

77/14/99 Division – Portables

Compaq Armada E700

DRIVE SUPPORT Quantity

Supported Drive Bay

Supported

Removable Media

1.44-MB Diskette Drive 1MultiBay (Bottom Bay Only)

24X Max7CD-ROM Drive 1MultiBay

4x DVD-ROM 1MultiBay

SuperDisk LS-120 1MultiBay

Hard Drives

14-GB3SMART Hard Drive 2Dedicated hard drive bay and

MultiBay

QUICKSPECS

Technical Specification

87/14/99 Division – Portables

Compaq Armada E700

System Unit Dimensions (HxWxD) 2 x 12.6 x 10.2 in/5.08 x 32 x 25.9 cm

Weight (with modem installed)

DVD-ROM/FDD configured (14.1-in)

Without Power Cord 8.8 lbx/4.0 kg

With Power Cord (total carrying weight) 9.2 lbs/4.2 kg

DVD-ROM/Weight Saver configured (14.1-in)

Without Power Cord 8.4 lbs/3.8 kg

With Power Cord (total carrying weight) 8.8 lbs/4.0 kg

12-cell Battery configured (14.1-in)

Without Power Cord 9 lbs/4.1 kg

With Power Cord (total carrying weight) 9.4 lbs/4.3 kg

Stand-Alone Power Requirements

Average Operating Power 15W

Peak Operating Power 30W

Power Supply

Rated Input Voltage 100 to 120/220 to 240 VAC

Rated Input Current 1.2/0.6A

Rated Frequency 50 to 60 Hz

Temperature

Operating 5° to 104°F/10° to 40°C

Non-operating –4° to 140°F/–20° to 60°C

Relative Humidity (non-condensing)

Operating 10% to 90% relative humidity, non-condensing

Non-operating 5% to 95% relative humidity, 101.6°F/38.7°C Maximum

webulb temperature

Shock

Operating 10 G, 11 ms, half sine

Non-operating 60 G, 11 ms, half sine

Vibration

Operating 0.25 G, 50 to 500 Hz sine, 1/2 octave/minute sweep

Non-operating 1 G, 50 to 500 Hz sine, 1/2 octave/ minute sweep

Maximum Altitude (unpressurized)

Operating 0 to 10,000 ft/3,048 m (14.7 to 10.1 psia)

Non-operating 0 to 30,000 ft/9,144 m (14.7 to 4.4 psia)

QUICKSPECS

Technical Specifications

97/14/99 Division – Portables

Compaq Armada E700

Dimensions (HxW) 8.5 x 11.27 in/21.59 x 28.63 cm14.1-Inch Color TFT XGA

Display Diagonal Size 14.1 in/35.81 cm

Mounting Internal Panel Supports

Number of Colors Up to 16.8 M with dithering

Contrast Ratio 150:1

Brightness 150 cd/m2

Pixel Resolution

Pitch 0.279 x 0.279 mm

Format 1024 x 768

Configuration RGB stripe

Backlight CCFT (Cold Cathode Fluorescent Tube)

Character Display 80 x 25

Total Power Consumption 4.5W

14 GB3Capacity 14.13GB Seek Time (typical reads, including settling)

Height Single Track 4 ms

Width Average 12 ms

Interface Full-Stroke 23 ms

Transfer Rate RotationalSpeed 4,900 rpm

Synchronous Physical Configuration

(Max) Bytes/sector 512 KB

Hard Drives

Operating Temperature

Diskette Drive Diskette Size 3.5 in

Light On system

Height 0.5 in/12.7 mm

Bytes per Sector 512

Sectors per track

High density 18 (1.44 MB)/15 (1.2 MB)

Low density 9

Tracks per side

High density 80 (1.44 MB)/80 (1.2 MB)

Low density 80

Read/Write heads 2

Access Times

Track-to track (high/low) 3 ms/6 ms

Average (high/low) 94 ms/174 ms

Settling time 15 ms

Latency average 100 ms

QUICKSPECS

Technical Specification

10 7/14/99 Division – Portables

Compaq Armada E700

Li-Ion Battery Pack Dimensions (HxWxL) 0.92 x 3.46 x 5.44 in/2.34 x 8.8 x 13.82 cm

Weight 0.89 lbs/0.4 kg

Energy (Primary 8-cell Battery)

Voltage 14.4 V

Amp-hour capacity 3.2 Ah

Watt-hour capacity 46Wh (w/calibration)

Energy (Optional 12-cell Battery)

Voltage 14.4 V

Amp-hour capacity 4.9 Ah

Watt-hour capacity 69Wh (w/calibration)

Energy (Optional 6-cell Battery)

Voltage 10.8 V

Amp-hour capacity 2.8 Ah

Watt-hour capacity 30Wh (w/calibration)

Performance

Single primary battery life 3.5 hours

Dual battery life (8-cell and 12-cell) 8.8 hours

Dual battery life (8-cell and 6-cell) 5.8 hours

Temperature

Operating 50° to 104°F/10° to 40°C

Non-operating –12° to 140°F/–30° to 60°C

DVD-ROM Drive Center Hole Diameter 0.59 in/1.49 cm

Disc Diameter 12 cm, 8 cm

Disk Thickness 1.2 mm

Track Pitch 0.74 ìm

Access Times (typical reads, including settling)

Random < 150 ms

Full-Stroke < 225 ms

Audio Output Level

Line out 0.7 Vrms (typical)

Cache Buffer 128 Kb/s (minimum)

Data Transfer Rate

Sustained (1X) 150 Kb/s

Sustained DVD 2,760 Kb/s

Normal PIO Mode 4 (single burst) 16.6 Mb/s

Start-up Time < 15 sec (typical)

Stop Time < 6 sec

1Certain restrictions and exclusions apply. Consult the Compaq Care Centre for details: 1300 368 369.

2Full support in Windows 9.x

3For Hard Drives, GB = Billion Bytes

4IrDA 4 MB compliant. IR performance will vary depending on performance of IR peripherals and applications used.

5When tested in the standard configuration using Ziff-Davis BatteryMark test version 2.0, the battery life of the Armada E700 family will

range from 3 hours 0 minutes to 3.5 hours and 0 minutes depending on individual usage.

6Actual results may vary with individual usage. When tested in a standard configuration, using the Ziff-Davis BatteryMark test version

2.0, the Battery life of the Armada E700 will range up to 3.7 hours. Standard configuration is considered to one battery, a 1024 X 768

(64k colors) 14.1" panel set at 50 percent brightness, 128-MB RAM and no drives other than the hard drive active.

7Standard 24X Max CD-ROM data transfer rates currently vary from 150Kbps to 3600Kbps.

Altri manuali per Armada E700 Series

Indice

Altri manuali Compaq Computer portatile

Compaq

Compaq 6720t - Mobile Thin Client Manuale di riferimento

Compaq

Compaq 1600XL Manuale utente

Compaq

Compaq nc2400 - Notebook PC Manuale utente

Compaq

Compaq 1700 - Armada - PII 266 MHz Manuale utente

Compaq

Compaq Presario X1000 - Notebook PC Manuale di istruzioni

Compaq

Compaq Armada 1100 Manuale utente

Compaq

Compaq Compaq Presario Scheda tecnica

Compaq

Compaq Armada 1700 Guida di riferimento rapido

Compaq

Compaq Presario,Presario 1234 Manuale utente

Compaq

Compaq nc6140 - Notebook PC Manuale utente

Compaq

Compaq Evo Notebook N800v Guida rapida

Compaq

Compaq Presario 1400 - Notebook PC Scheda informativa del prodotto

Compaq

Compaq Evo N200 Istruzioni per l'installazione

Compaq

Compaq Presario 1625 Manuale

Compaq

Compaq Presario 1800 - Notebook PC Manuale

Compaq

Compaq Armada 1700 Manuale utente

Compaq

Compaq Armada 1500C series Manuale operativo e di manutenzione

Compaq

Compaq Presario X1100 - Notebook PC Manuale di istruzioni e di sicurezza

Compaq

Compaq Armada E700 Series Manuale

Compaq

Compaq TC1000 - Tablet PC - Crusoe TM5800 1 GHz Manuale elenco delle parti

Compaq

Compaq Presario 1200XL series Manuale utente

Compaq

Compaq PRESARIO 250029-001 Manuale utente

Compaq

Compaq Evo n1005v - Notebook PC Manuale operativo e di manutenzione

Compaq

Compaq Presario V2000 - Notebook PC Manuale utente

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
