QUICKSPECS

Overview

17/26/99 Division – Portables

Compaq Armada M300

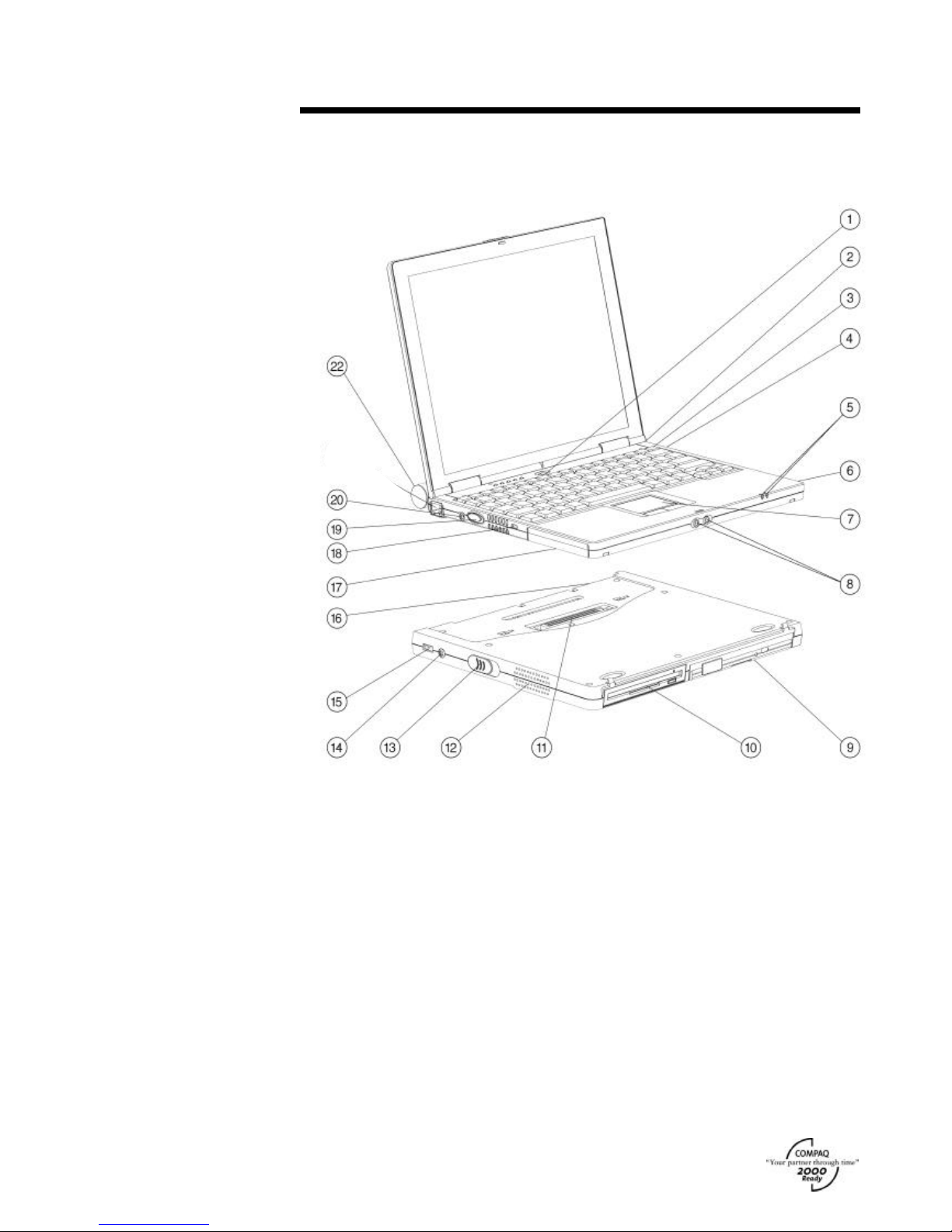

1. Suspend/ResumeButton

2. System ports (USB, Serial, Parallel, IR, VGA)

3. Keyboard (95% of fullsize)

4. RJ-11 Jack (Internal modem models only)

5. Power/Batterylight

6. PC Card Slot

7. Touchpad Pointing Device

8. Audio In/Out Jacks

9. Common Armada MultiBay (supports second Hard

Drive, SuperDisk LS-120, Battery, CD-ROM or

DVD-ROM)

10. Diskette Drive Bay

11. System Connector

12. Stereo Speakers

13. Diskette Drive Release Latch

14. AC Power Connector

15. USBPort

16. MEU Ports (Serial, Parallel, Docking, VGA ,

PS/2)

17. Hard Drive Bay

18. Security Cable Slot

19. On/Off Button

20. AC Power Connector

22. Li-Ion Battery

AT A GLANCE

•Ultralight weight (1.4 to 1.5 kg

depending on configuration)

•Less than 2.3 cm thin

•Full set of system ports

•Choice of Intel Mobile Pentium®II

or Mobile Celeron™333-MHz

processor

•Optional Mobile Expansion Unit

•Choice of Windows NT or 95;

Support for Windows 98.

•Integrated Mini PCI modem

•Keyboard 95% of full size

•User removable hard drive

•Full magnesium enclosure

•Protected by a one-year,

Worldwide Limited Warranty1,

Pick-Up anywhere in Australia

with 48-hour service workshop

turnaround repair time.

QUICKSPECS

Standard Features

27/26/99 Division – Portables

Compaq Armada M300

Processor

Intel Pentium processor 333 MHz

6333/T/6400/0/M/3

6333/T/6400/0/M/1

Intel Celeron processor 333 MHz

C333/T/4300/0/M/3

C333/T/4300/0/M/1

Cache Memory

Integrated 256 KB (Pentium II models)

6333/T/6400/0/M/3

6333/T/6400/0/M/1

Integrated 128 KB (Celeron models)

C333/T/4300/0/M/3

C333/T/4300/0/M/1

Memory

Standard 64 MB

Maximum 128 MB

Communications

Mini-PCI v.902modem 56K

6333/T/6400/0/M/3

6333/T/6400/0/M/1

C333/T/4300/0/M/3

C333/T/4300/0/M/1

Keyboard

102 keys compatible keyboard 95 percent of full size, with special hotkey features for instant access to battery

conservation, toggle between internal, and external or simultaneous displays, system volume mute/restore and

adjust, screen brightness, battery charge status, embedded numeric keypad, and Quick Controls

Pointing Device

Synaptics TouchPad w/2 selection buttons

MODELS

Windows NT with integrated

modem

6333/T/6400/0/M/3

107052-016

C333/T/4300/0/M/3

124790-016

Windows 95 with integrated

modem

6333/T/6400/0/M/1

107009-012

C333/T/4300/0/M/1

124788-012

QUICKSPECS

Standard Features

37/26/99 Division – Portables

Compaq Armada M300

PC Card Slots

One Type II PC Card Slot which support both 32-bit CardBus3 and 16-bit PC Cards

Storage

Diskette Drives 1.44 MB

Hard Drives

6.4 GB4

6333/T/6400/0/M/3

6333/T/6400/0/M/1

4.3 GB4

C333/T/4300/0/M/3

C333/T/4300/0/M/1

Multimedia

Compaq PremierSound for enhanced stereo audio (with optional MEU)

Integrated 16-bit Sound Blaster Pro-compatible stereo audio

Integrated speaker and microphone

Software/hardware volume control

Headphone Out Jack

Microphone In Jacks

SoftwareMPEG1support

DVD movie playback software (provided with DVD-MEU option)

Interfaces

PC Card Slot One Type II

Enhanced Parallel Port 1

Serial Port 1

External Monitor Port 1

Expansion Base Connector 1

Speaker Out (Headphone) Jack

Microphone In Jack 1

AC Power Connector 1

RJ-11 Jack 1

Infrared Port 1 (4 Mb/s5support)

USBPort 1

Graphics

ATI RAGE LT Pro, 4MB of SGRAM

Display

11.3-inch color TFT with 800 x 600 resolution (16M color)

QUICKSPECS

Standard Features

47/26/99 Division – Portables

Compaq Armada M300

Software

Microsoft Windows NT Workstation 4.0

Compaq Insight Management Agents

Compaq Security 32

Compaq Diagnostics

Compaq Power Management

Online Safety and Comfort Guide

Online Reference Guide

Carbon Copy 32 Host

QuickRestore CD Kit

CardWare for Windows NT

Fax Central for Windows 98 and NT

6333/T/6400/0/M/3

C333/T/4300/0/M/3

Microsoft Windows 95

Compaq Insight Management Agents

Compaq Security 32

Compaq Power Management

Online Safety and Comfort Guide

Online Reference Guide

Carbon Copy 32 Host

QuickRestore CD Kit

6333/T/6400/0/M/1

C333/T/4300/0/M/1

OS Support

Windows NT Workstation 4.0

Windows 98

Windows 95

Intelligent Manageability

Lowers total cost of ownership by providing enhanced security, asset management, fault prediction with

SMART drives

QUICKSPECS

Standard Features

57/26/99 Division – Portables

Compaq Armada M300

Security

Cable lock support

Power-on password

Setup passwords

Ability to disable serial port, parallel port, diskette drive, diskette drive boot capability

Power Supply

External AC Adapter; 6-foot power cord included

Battery

Li-Ion batteries are supported, with up to hours of battery life6supported with the standard 4 cell main battery;

up to four hours when using a MultiBay battery in the Mobile Expansion Unit. An optional High-Capacity Travel

Battery available7.

Power Conservation

Hibernation

Instant-On via Standby

Pop-ups with three presets

One custom level of power conservation

Service and Support

Compaq Services provides a range of services for the Armada M300, including a one-year, Worldwide Limited

Warranty1. In Australia warranty includes Pick-up anywhere in Australia with 48-hour service workshop

turnaround repair time.

QUICKSPECS

Options

67/26/99 Division – Portables

Compaq Armada M300

Memory

128-MB Memory Upgrade 100MHz 400313-B21

Monitors8

TFT8000 Flat Panel - 18" 307906-011

TFT5000 Flat Panel - 15" Pivot 325700-011

TFT5000S Flat Panel – 15” 122729-011

P1109Colour - 21" 325600-011

P75 Colour - 17" 307806-011

S900 Colour - 19" 360562-011

S700 Colour - 17" 360512-011

V500 Colour - 15" 325900-011

Storage Drive

SuperDisk LS-120 296502-B25

6.4-GB4SMART Hard Drive (MultiBay)

& HDD adapter 134095-B21

Mobile Expansion Unit (MEU)

24X Max CD-ROM 134097-B21

DVD Drive 134098-B21

Docking Solutions

ArmadaStation EM with Intel NIC TBA

ArmadaStation EM with 3Com NIC TBA

Armada Convenience Base EM with

Intel NIC TBA

Armada Convenience Base EM with

3Com NIC TBA

Armada Port Replicator EM 382300-011

Convenience Base EM Monitor Stand 122296-B25

ArmadaStation Tower Stand 122599-B25

Convenience Base EM Monitor Stand TBA

PC Cards/Communications

Compaq Microcom 520 56K2Modem +

10/100 Ethernet PC Card 321550-011

10/100 TX PC Card UTP Controller 335506-B21

Compaq Microcom 420 56K2Global

Modem 317900-011

Compaq Speedpaq GSM Radio PC

Card 294650-021

Power

MultiBay Battery (6 Cell) 387937-B25

Main Battery – 4 cell Standard 134096-B21

AC Adapter 120765-B21

External Battery Charger 135555-B21

Auto Charger 401043-B25

AircraftAdapter 386504-B21

AC Line Cord (10-ft) 217932-012

Input Devices

External Enhanced III

Keyboard (carbon) 118003-018

Compaq Mouse (opal) 143315-B21

Compaq Mouse (carbon) 103180-B21

Scroll Mouse (Opal) 294306-B21

Other

Security Lock 294316-B21

Armada Headset with Microphone 220460-001

UniversalMonitorStand 294315-B21

Carrying Cases

Compaq Value Case 318370-001

Compaq Global Case 255818-001

Compaq Leather Case 318151-001

MultiBay Devices

4x DVD-ROM Drive 118103-B25

SuperDisk LS 120 Drive 296502-B25

6.4-GB

SMART Hard Drive (MultiBay)

134095-B21

MultiBay Battery (6 Cell) 387937-B25

QUICKSPECS

Memory

77/26/99 Division – Portables

Compaq Armada M300

STANDARD MEMORY

64 MB installed in slot (1 slot available)

Standard Slot

64 MB

STANDARD MEMORY REPLACED

WITH OPTIONAL MEMORY

Support for up to 128 MB of SDRAM is available with the removal of the standard 64-MB

Memory Module and the installation of optional SDRAM Memory Upgrade.

Up To Slot

128 MB

Following are memory options available from Compaq:

•128-MB Memory Upgrade 400313-B21

QUICKSPECS

Storage

87/26/99 Division – Portables

Compaq Armada M300

DRIVE SUPPORT

System Drive Support Quantity

Supported Drive Bay

Supported

Removable Media

1.44-MB Diskette Drive Up to 1 External connects via parallel port

Hard Drives

6.4-GB4SMART Hard Drive Up to 1 Hard Drive Bay

4.3-GB4SMART Hard Drive Up to 1 Hard Drive Bay

MEU Drive Support Quantity

Supported Drive Bay

Supported

Removable Media

1.44-MB Diskette Drive Up to 1 Diskette Drive Bay

CD-ROM Drive Up to 1 MultiBay

DVD-ROM Drive Up to 1 MultiBay

SuperDisk LS-120 Up to 1 MultiBay

Hard Drives

6.4-GB4SMART Hard Drive Up to 1 MultiBay

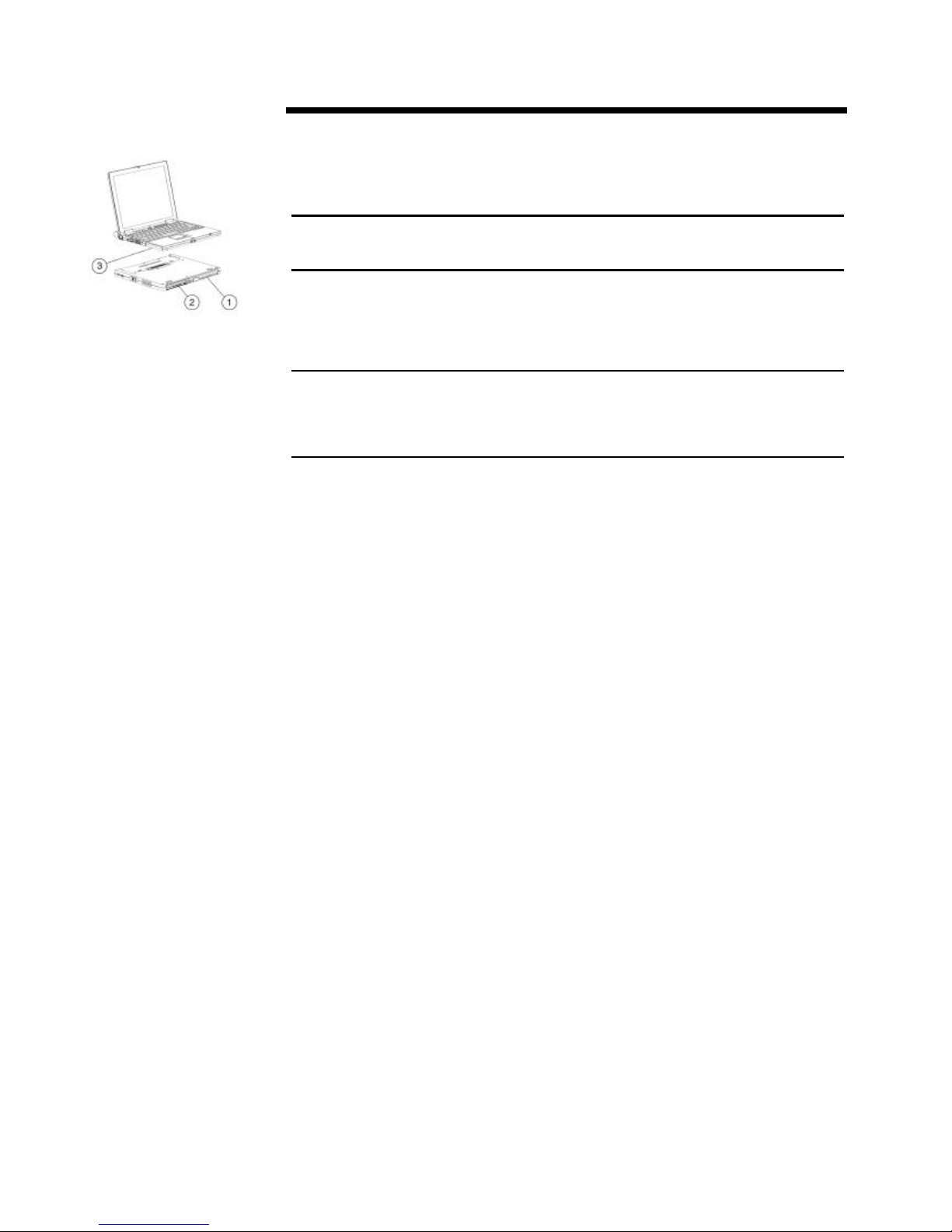

1MultiBay

2Diskette Drive Bay

3Hard Drive Bay

QUICKSPECS

Technical Specifications

97/26/99 Division – Portables

Compaq Armada M300

System Unit Dimensions (HxWxD) 0.89 x 10.4 x 9 in/2.3 x 26.4 x 22.9 cm

Weight

333-MHz processor 3.06 lbs to 3.26 lbs/1.39 kg to 1.48 kg

Stand-Alone Power Requirements

Nominal Operating Voltage (Li-Ion) 14.2 VDC

Nominal Operating Voltage (NiMH) 9.6

Maximum Operating Power 35W

Peak Operating Power 40W

Temperature

Operating 41° to 95°F/5° to 35°C

Non-operating –22° to 140°F/–30° to 60°C

Relative Humidity (non-condensing)

Operating 10% to 90% relative humidity, non-condensing

Non-operating 5% to 90% relative humidity, 101.6°F/38.7°C Maximum

wet bulb temperature

Shock

Operating –10 G, 11 ms, half-sine

Non-operating 60 G, 11 ms, half-sine

Vibration

Operating 0.25 G, 50 to 500 Hz sine, 1/2 Oct/Min sweep rate

Non-operating 1 G, 50 to 500 Hz sine, 1/2 Oct/Min sweep rate

Maximum Altitude (unpressurized)

Operating 10,000 ft/3,048 m (14.7 to 10.1 psia)

Non-operating 30,000 ft/9,144 m (14.7 to 4.4 psia)

Dimensions (HxW) 7.5 x 10.1 in/19 x 25.6 cm

11.3-Inch Color TFT

SVGA Display Diagonal Size 11.3 in/28.7 cm

Mounting Internal

Number of Colors 16M

Contrast Ratio 125:1

Brightness 120 to 150 nit AC only/80 on battery

Pixel Resolution

Pitch 0.264 x 0.264 mm

Format 800 x 600

Configuration RGB Stripe

Backlight CCFT

Character Display 80 x 25

Total Power Consumption 4W

Refresh 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x

1200

QUICKSPECS

Technical Specification

10 7/26/99 Division – Portables

Compaq Armada M300

6.4 GB1Capacity 6.4 GB1Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 4 ms

Width 2.5 in/63.5 mm Average 13 ms (read)

Interface ATA Full-Stroke 23 ms

Transfer Rate RotationalSpeed 4009 rpm

Synchronous 33.3 MB/s Physical Configuration

(Maximum) Bytes/sector 512

Hard Drives

Operating Temperature

41° to 131°F/5° to 55°C

4.3 GB1Capacity 4.3 GB1Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 4 ms

Width 2.5 in/63.5 mm Average 13 ms (read)

Interface ATA Full-Stroke 23 ms

Transfer Rate RotationalSpeed 4009 rpm

Synchronous 33.3 MB/s Physical Configuration

(Maximum) Bytes/sector 512

Operating Temperature

41° to 131°F/5° to 55°C

Diskette Drive Diskette Size 3.5 in

Weight 0.47 lb/0.21 kg

Light On drive

Height 0.55in/1.4cm

Bytes per Sector 512

Sectors per track

High density 18 (1.44 MB)/15 (1.2 MB)

Low density 9

Tracks per side

High density 80 (1.44 MB)/80 (1.2 MB)

Low density 80

Read/Write heads 2

Access Times

Track-to track (high/low) 3 ms/6 ms

Average (high/low) 94 ms/174 ms

Settling time 15 ms

Latency average 100 ms

External AC Adapter Weight 0.55 lb/0.25 kg

Power Supply (Input)

Operating Voltage 90 to 260 VAC RMS

Operating Current 1.1 A RMS

Operating Frequency Range 47 to 63 Hz AC

Maximum Transient 4/50 kV

Altri manuali per Armada M300 Series

Indice

Altri manuali Compaq Computer portatile

Compaq

Compaq Prosignia 150 Series Manuale utente

Compaq

Compaq Presario 1900 XL1 Manuale utente

Compaq

Compaq Compaq Presario Scheda tecnica

Compaq

Compaq Armada e500s - Notebook PC Manuale utente

Compaq

Compaq XL280 Manuale utente

Compaq

Compaq Presario CQ71-100 - Notebook PC Manuale utente

Compaq

Compaq Armada 4200 Manuale utente

Compaq

Compaq Armada E500 Series Guida rapida

Compaq

Compaq Armada 1100 Manuale di riferimento

Compaq

Compaq Presario V6700 - Notebook PC Manuale utente

Compaq

Compaq 800 Series Istruzioni per l'installazione e il funzionamento

Compaq

Compaq Presario 1905 Manuale utente

Compaq

Compaq 2230s - Notebook PC Istruzioni per l'installazione

Compaq

Compaq Presario Notebook PC Istruzioni per il montaggio

Compaq

Compaq Armada 7700 Guida di riferimento rapido

Compaq

Compaq Armada 1700 Manuale utente

Compaq

Compaq Armada M300 Series Istruzioni utente

Compaq

Compaq Armada 110 Guida di riferimento rapido

Compaq

Compaq Armada 6500 Manuale utente

Compaq

Compaq 2710p - Notebook PC Manuale utente

Compaq

Compaq Compaq Presario Istruzioni di installazione e manutenzione

Compaq

Compaq 6720t - Mobile Thin Client Manuale di riferimento

Compaq

Compaq Compaq Presario,Presario 1255 Manuale

Compaq

Compaq Presario 1800T Manuale

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
