Compaq Evo Notebook N200 Series Manuale utente

Reference Guide

Mobile Expansion Unit

Document Part Number: 233052-001

August 2001

This guide provides information on installing and operating the

Mobile Expansion Unit with your computer, as well as tips on

solving common problems.

233052-001.book Page i Tuesday, July 10, 2001 9:49 AM

Compaq, the Compaq logo Registered in U.S. Patent and Trademark Office.

All other product names mentioned herein may be trademarks of their respective

companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information in this document is provided “as is” without

warranty of any kind and is subject to change without notice. The warranties for

Compaq products are set forth in the express limited warranty statements

accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

Reference Guide

First Edition August 2001

Document Part Number: 233052-001

233052-001.book Page ii Tuesday, July 10, 2001 9:49 AM

Reference Guide iii

Contents

1 Getting Started

Identifying the MEU Components . . . . . . . . . . . . . . . . . . 1–1

Getting More Information . . . . . . . . . . . . . . . . . . . . . . . . 1–5

2 Connecting and Disconnecting

Connecting the Computer to the MEU. . . . . . . . . . . . . . . 2–1

Disconnecting the Computer from the MEU . . . . . . . . . . 2–5

Connecting the AC Adapter . . . . . . . . . . . . . . . . . . . . . . . 2–7

Connecting External Devices. . . . . . . . . . . . . . . . . . . . . . 2–9

3 Using the MEU

Turning the System On and Off . . . . . . . . . . . . . . . . . . . . 3–1

Operating External Devices . . . . . . . . . . . . . . . . . . . . . . . 3–2

Inserting and Removing MultiBay Devices. . . . . . . . . . . 3–2

Inserting a MultiBay Device . . . . . . . . . . . . . . . . . . . 3–3

Removing a MultiBay Device . . . . . . . . . . . . . . . . . . 3–4

Following MultiBay Guidelines . . . . . . . . . . . . . . . . 3–5

Inserting and Removing Optical Discs . . . . . . . . . . . . . . 3–6

Inserting Optical Discs . . . . . . . . . . . . . . . . . . . . . . . 3–6

Removing Optical Discs . . . . . . . . . . . . . . . . . . . . . . 3–6

Using the Stereo Speakers . . . . . . . . . . . . . . . . . . . . . . . . 3–8

233052-001.book Page iii Tuesday, July 10, 2001 9:49 AM

iv Reference Guide

Contents

A Troubleshooting

Using the World Wide Web. . . . . . . . . . . . . . . . . . . . . . . A–1

Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–1

Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–2

B Specifications

Regulatory Agency Series Numbers . . . . . . . . . . . . . . . . B–1

Index

233052-001.book Page iv Tuesday, July 10, 2001 9:49 AM

Reference Guide 1–1

Getting Started

Identifying the MEU Components

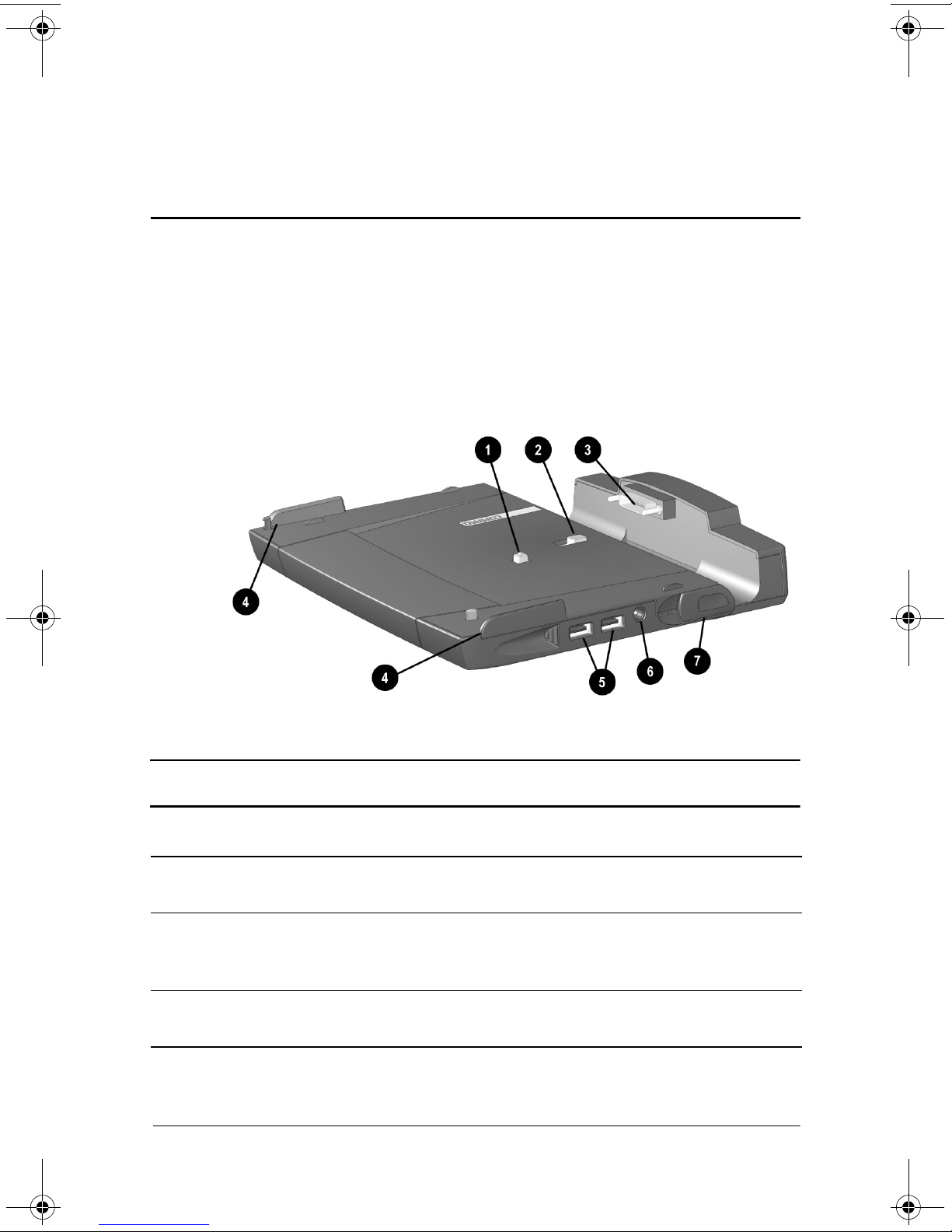

Front and Right Side Components

Component Description

1Lock pin Locks the computer in place when

it is docked in the MEU.

2Release plunger Releases the computer from the

MEU when the release lever is

pulled.

3Expansion connector Connects the computer to

the MEU.

233052-001.book Page 1 Tuesday, July 10, 2001 9:49 AM

1–2 Reference Guide

Getting Started

4Guide rails Align the computer for docking in

the MEU.

5USB connectors Connect USB devices.

6AC power connector Connects an external AC adapter.

7Release lever Releases the computer from

the MEU.

Front and Right Side Components (Continued)

Component Description

233052-001.book Page 2 Tuesday, July 10, 2001 9:49 AM

Getting Started

Reference Guide 1–3

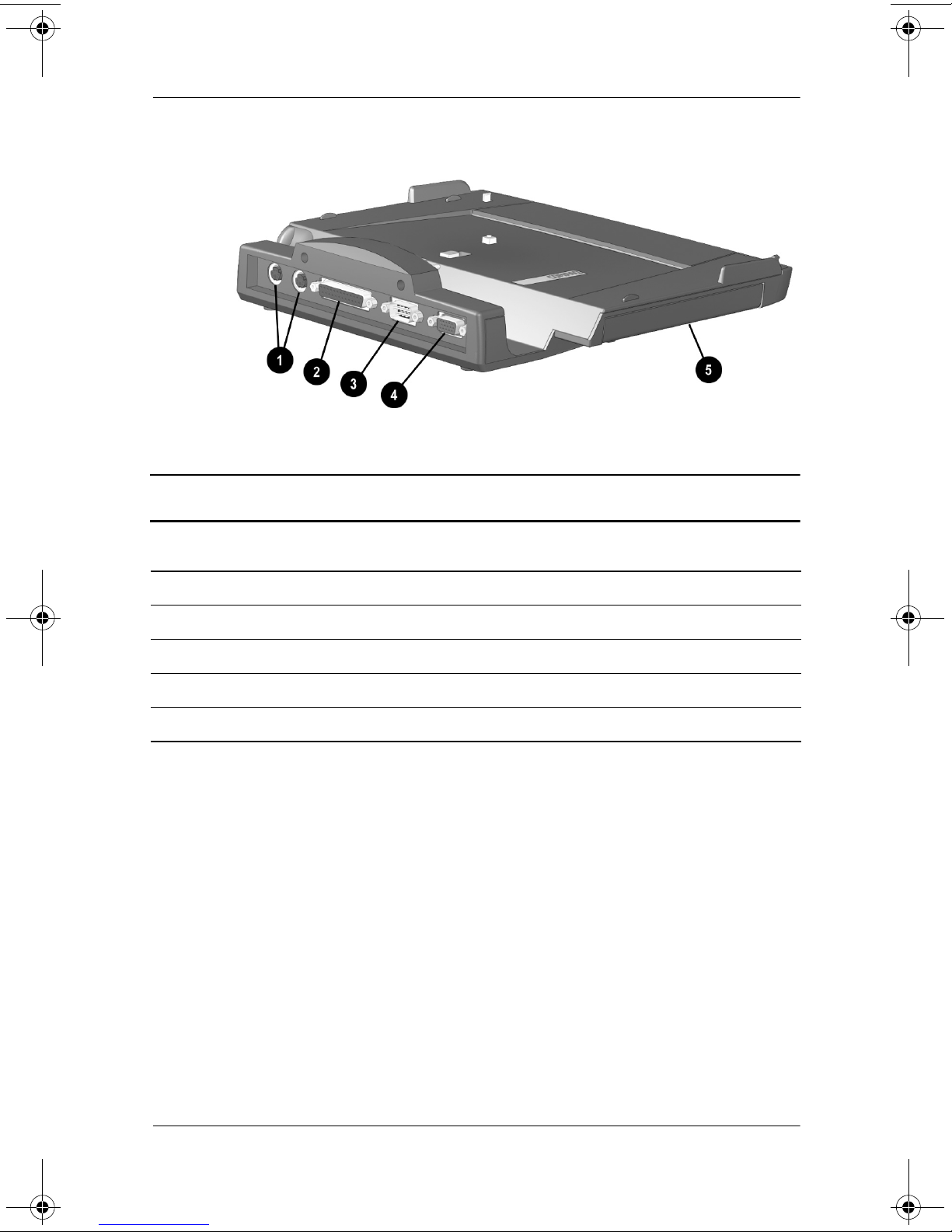

Rear and Left Side Components

Component Description

1PS/2 connectors Connects PS/2 devices.

2Parallel connector Connects a parallel device.

3Serial connector Connects a serial device.

4VGA connector Connects a VGA monitor.

5MultiBay (with device installed) Holds one MultiBay device.

233052-001.book Page 3 Tuesday, July 10, 2001 9:49 AM

1–4 Reference Guide

Getting Started

Bottom Components

Component Description

1MultiBay release latch Releases a device from the

MultiBay when the latch is pushed.

2MultiBay device grip Provides area to grasp and

remove a device from the MultiBay.

233052-001.book Page 4 Tuesday, July 10, 2001 9:49 AM

Getting Started

Reference Guide 1–5

Getting More Information

The Notebook Products Reference Library Guide CD, included

with your computer, contains the following additional

information:

■Hardware Guide, which provides comprehensive information

about your computer.

■Regulatory and Safety Notices, which provides governmental

agency and safety information about the use of your

computer and this product.

Visit the Compaq Web site at http://www.compaq.com for product

news and software updates.

ÅWARNING: Misuse of your personal computer or failure to establish a

safe and comfortable workstation may result in discomfort or serious

injury. Refer to the Safety & Comfort Guide on the Notebook Products

Reference Library CD for information on choosing a workspace and

creating a safe and comfortable work environment.

233052-001.book Page 5 Tuesday, July 10, 2001 9:49 AM

Reference Guide 2–1

Connecting and Disconnecting

Connecting the Computer to the MEU

ÄCAUTION: To prevent a possible loss of data, save all files, close

all applications, and turn off power to the computer before

connecting to the MEU.

To connect the computer to the MEU:

1. Close the computer display.

2. Align the computer between the MEU guide rails.

233052-001.book Page 1 Tuesday, July 10, 2001 9:49 AM
