COMPOUND PLATINUM Series Manuale utente

SKU: CPL-CHP-1092

ASSEMBLY INSTRUCTIONS

CHEST PRESS PIN LOADED MACHINE

PLATINUM SERIES

COMPOUND.

FITNESS EQUIPMENT

CAUTION: Read all precautions and instructions before

using this equipment. Save this manual for future reference.

OWNER’S MANUAL

CAUTION: Read all precautions and instructions before using

this equipment. Save this manual for future reference.

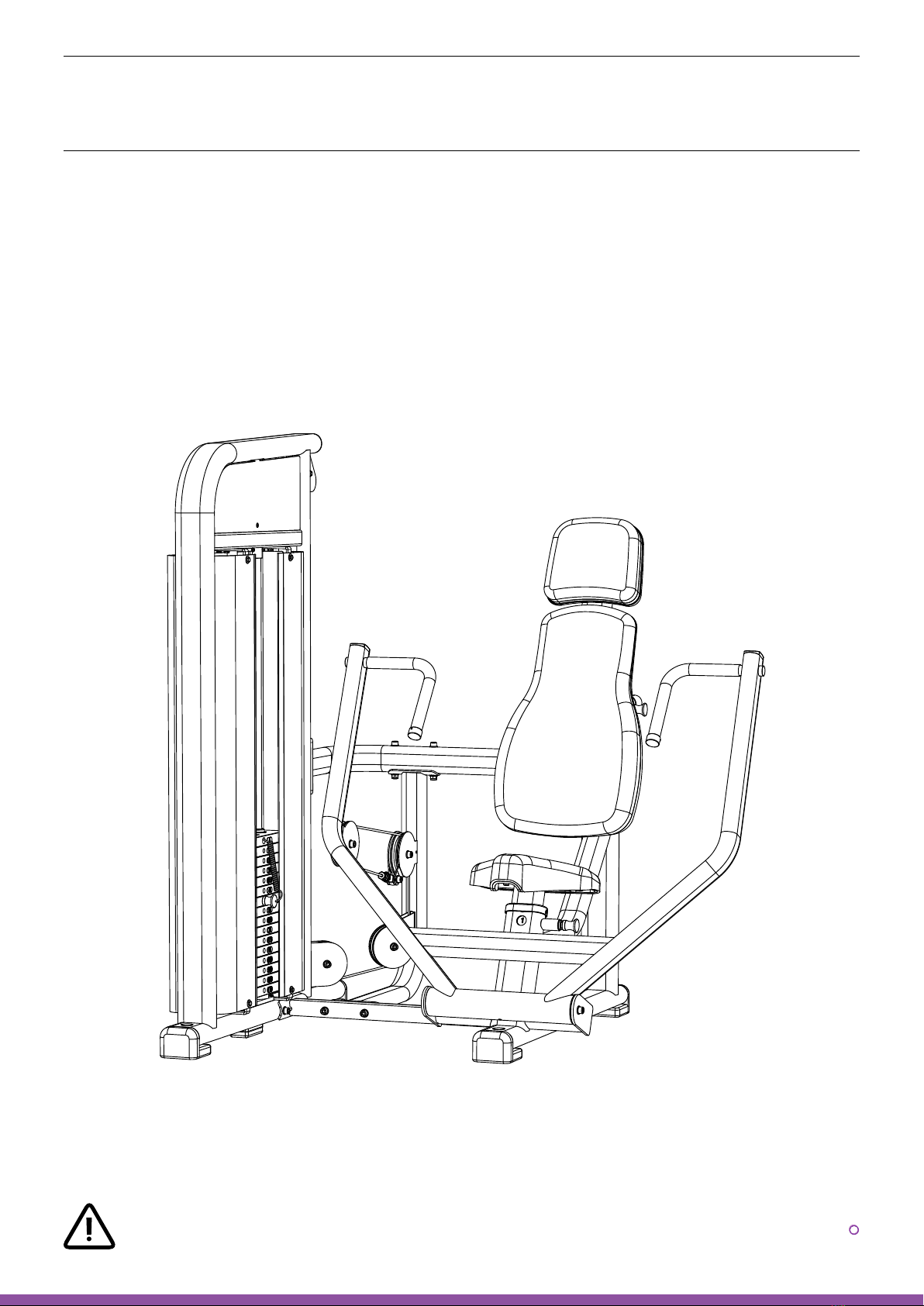

CPL-CHP-1092

CHEST PRESS PIN LOADED

CONTENTS

02 General warnings and maintenance advice

10 snoitcurtsnIylbmessA03-

Explained as a series of steps,with each step containing:

Pictures,descriptions and quantities of the parts required

Notes

Diagram showing how the parts fit together

tsiLtraP11

●

Assembly Instructions

This exercise equipment is built for optimum safety. Be sure to read the entire

manual before you assemble or operate your equipment. Please note the

following safety precautions:

1. Keep children and pets away from the equipment at all times. Do not leave

children unattended in the same room with the equipment.

2. Only one person at a time should use the equipment.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms STOP the workout at once CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the equipment on a clear, level surface. DO NOT use the equipment

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the equipment.

7. Use the equipment only for its intended use as described in this manual.

DO NOT use attachments not recommended by the manufacturer.

8. Before using the equipment, always do stretching exercises to properly

warm up.

9. Never operate the equipment if the equipment is not functioning properly.

Before Your Begin

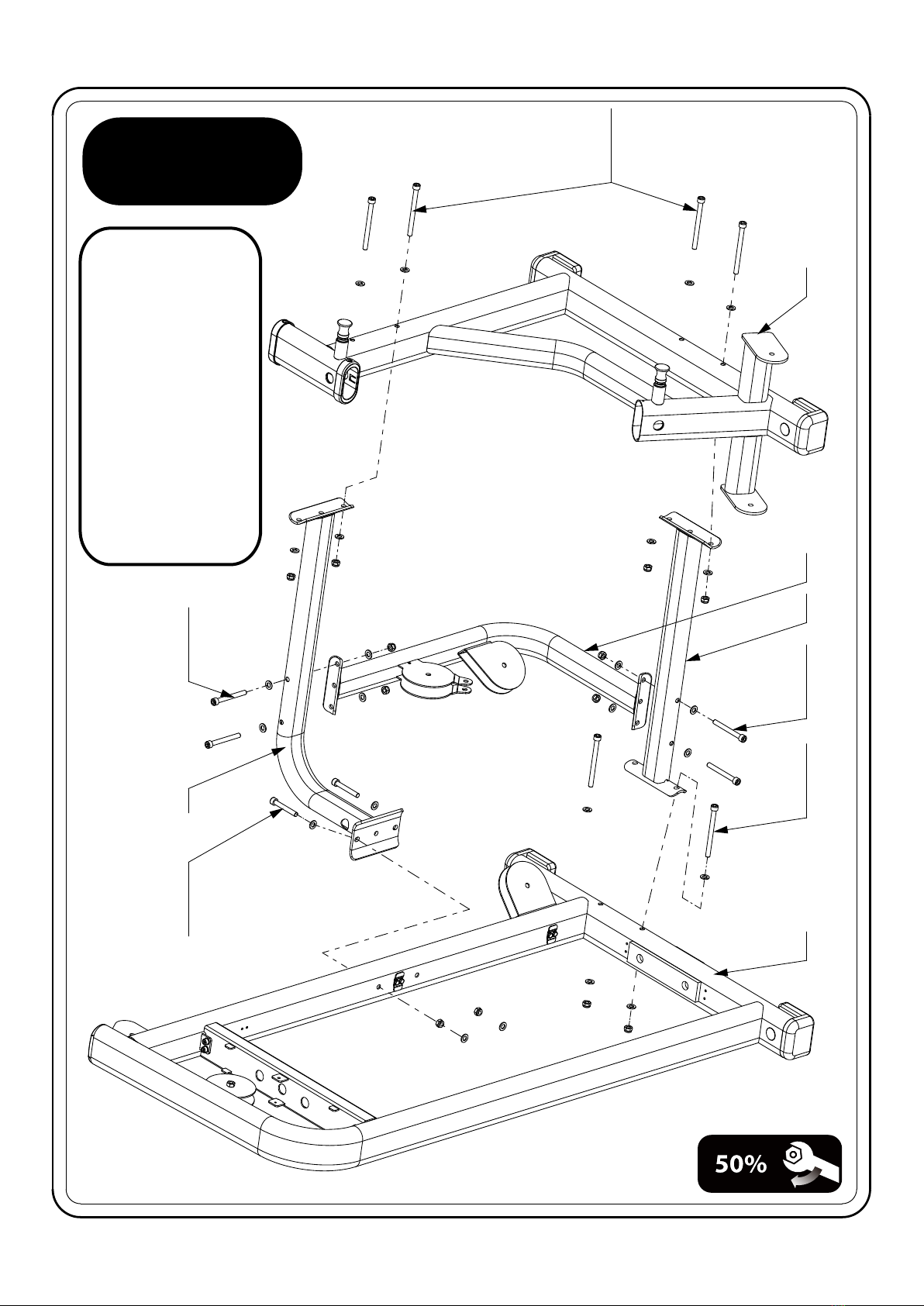

STEP 1

SC10-24

W10

1 42 3SC10-18

W10

SC10-18

W10

SC10-14

W10

SC10-24

W10

INFORMATION

We recommend you have someone

assist you in lifting and assembling

your gym.

Follow these steps carefully and it

will make it easier to assemble your

gym.

●

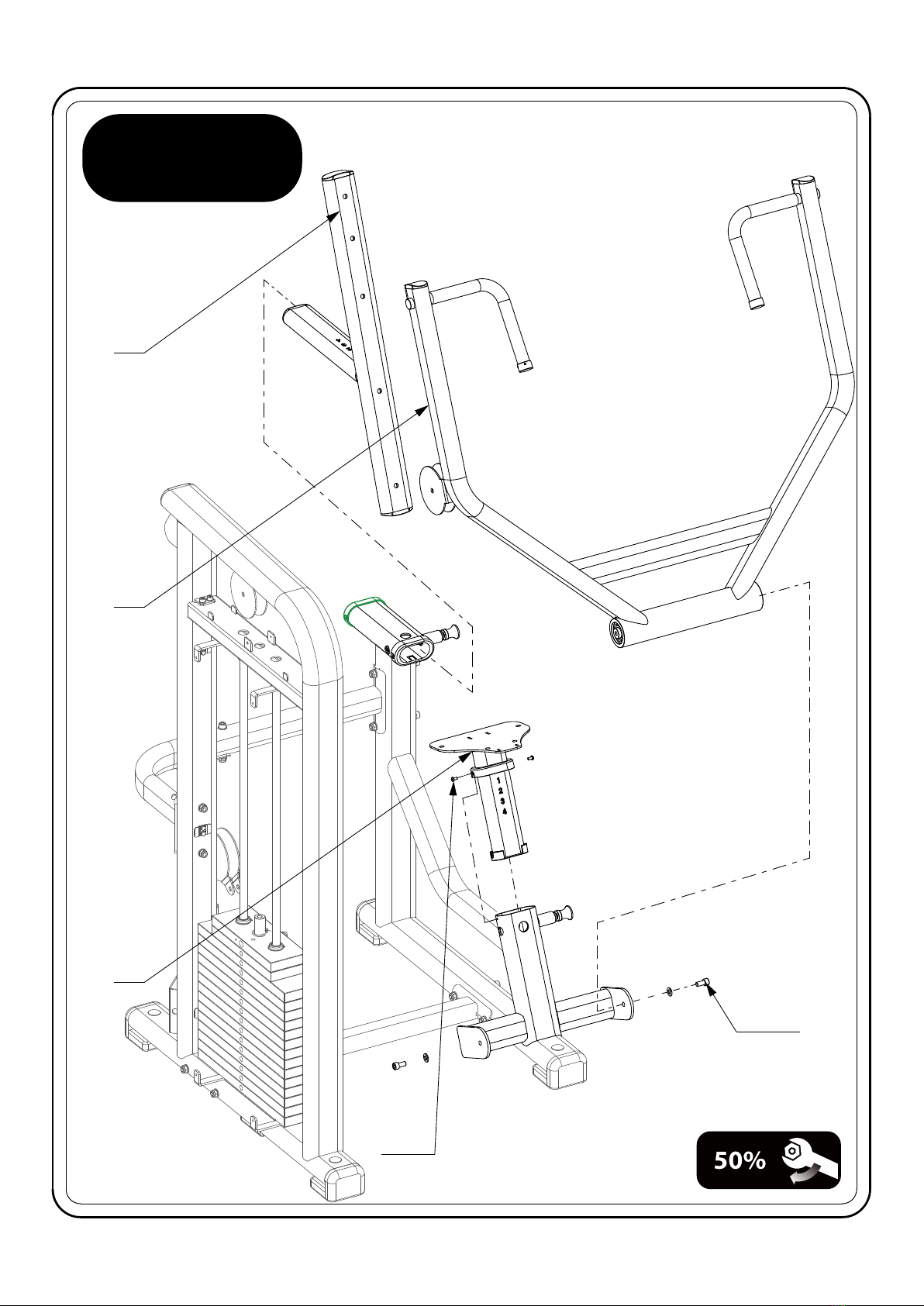

STEP 2

The Dimension B is longer

than the Dimension A.

SC6-4

SC8-6

14 15

NOTE 1:

NOTE 2: If the movement of the weight stack is not smooth during exercising,

please lubricate the guide rods.

please clean the weight plates Before sticking the weight labels , and

avoid touching the adhesive of the sticker.

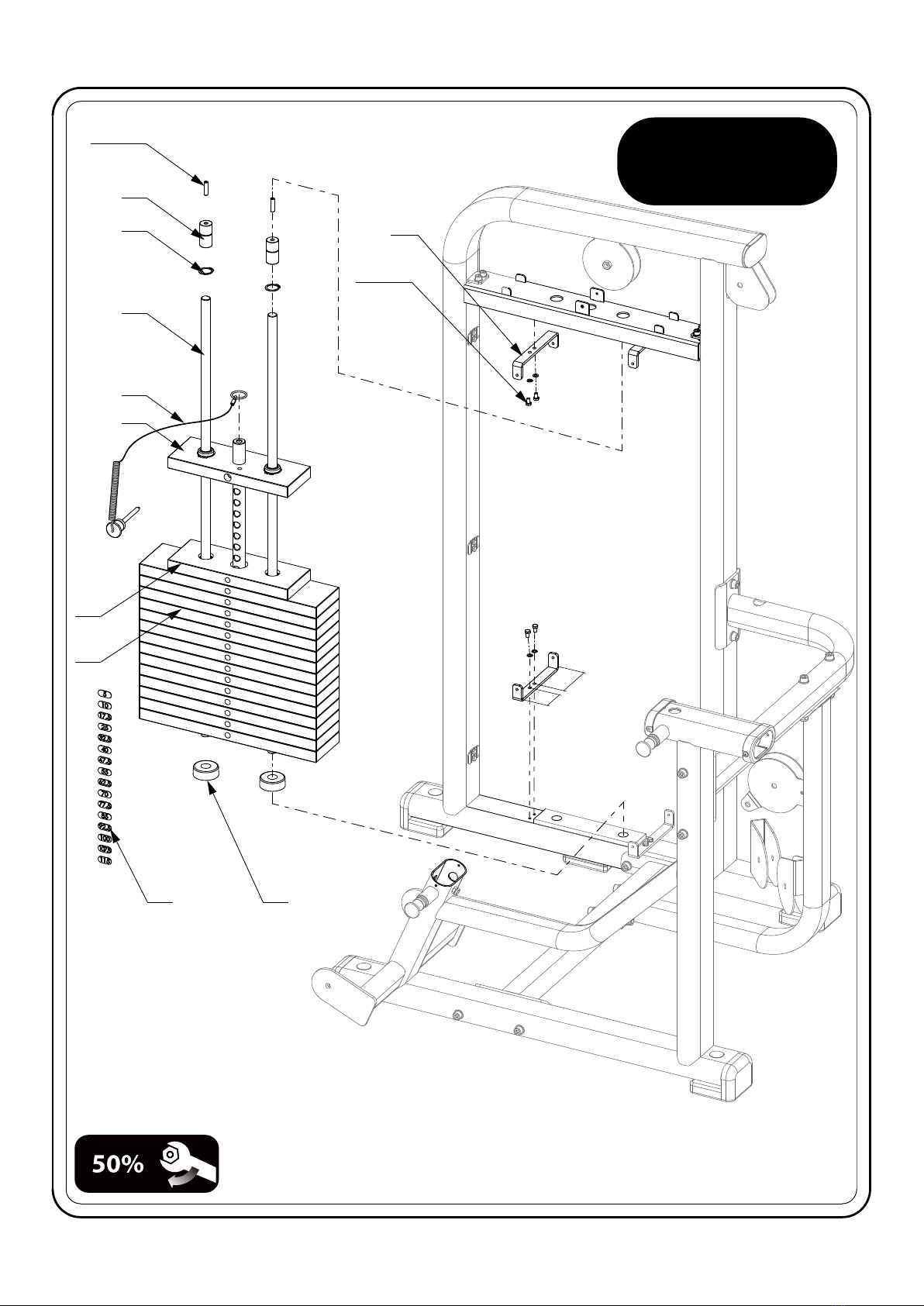

STEP 3

CH5-4

SC10-4

W10

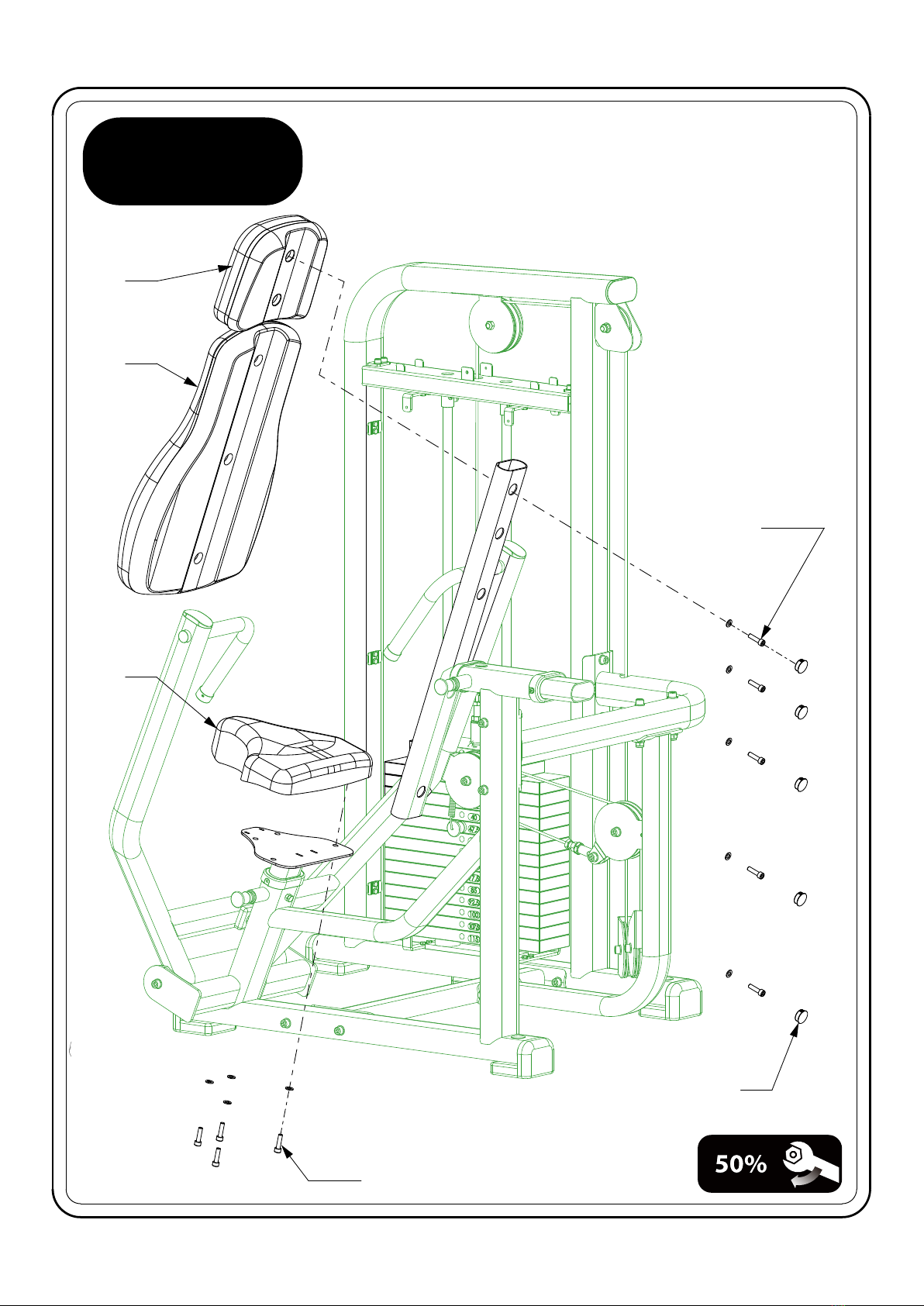

STEP 4

FN12

4050mm

FN12

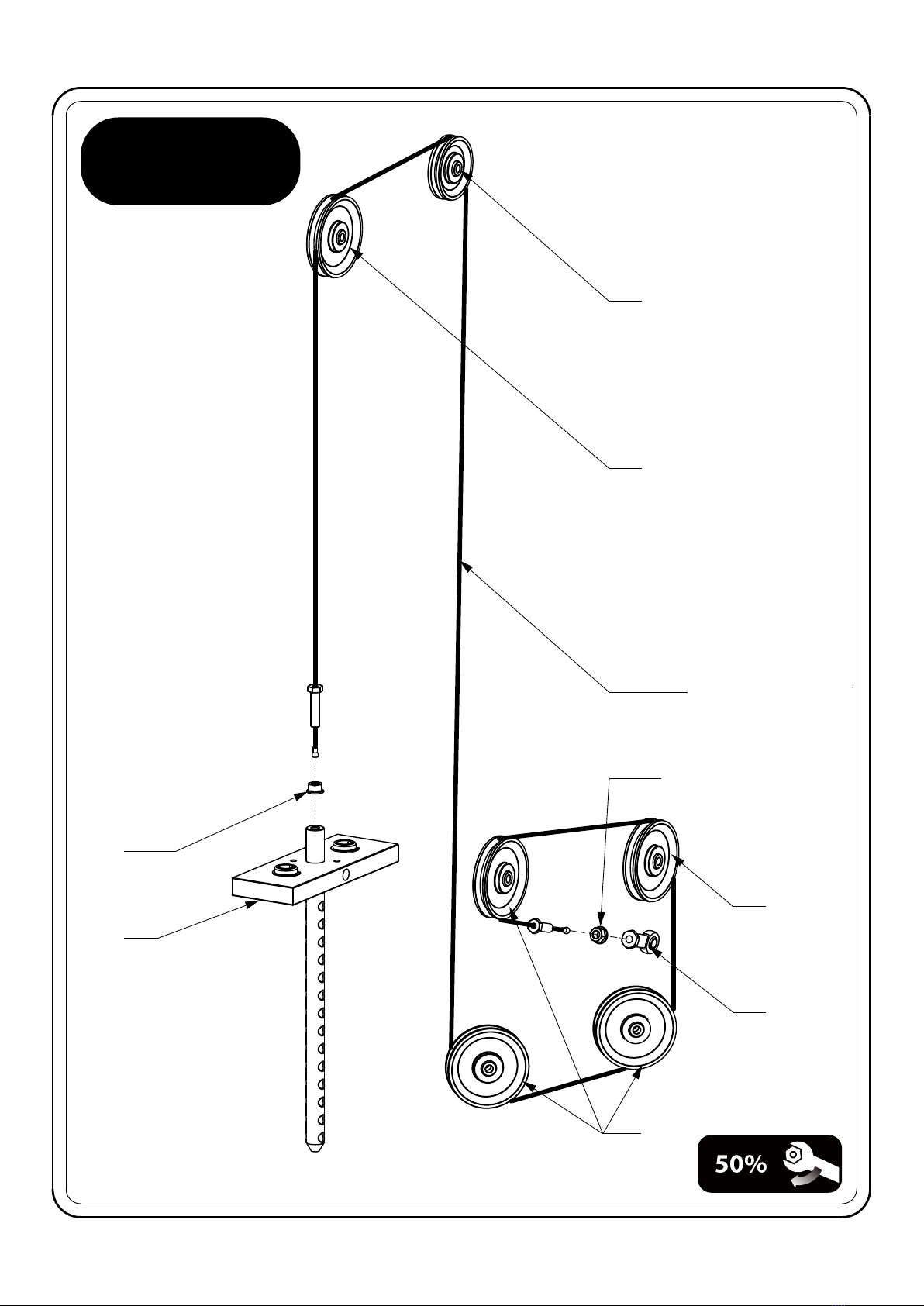

STEP 5

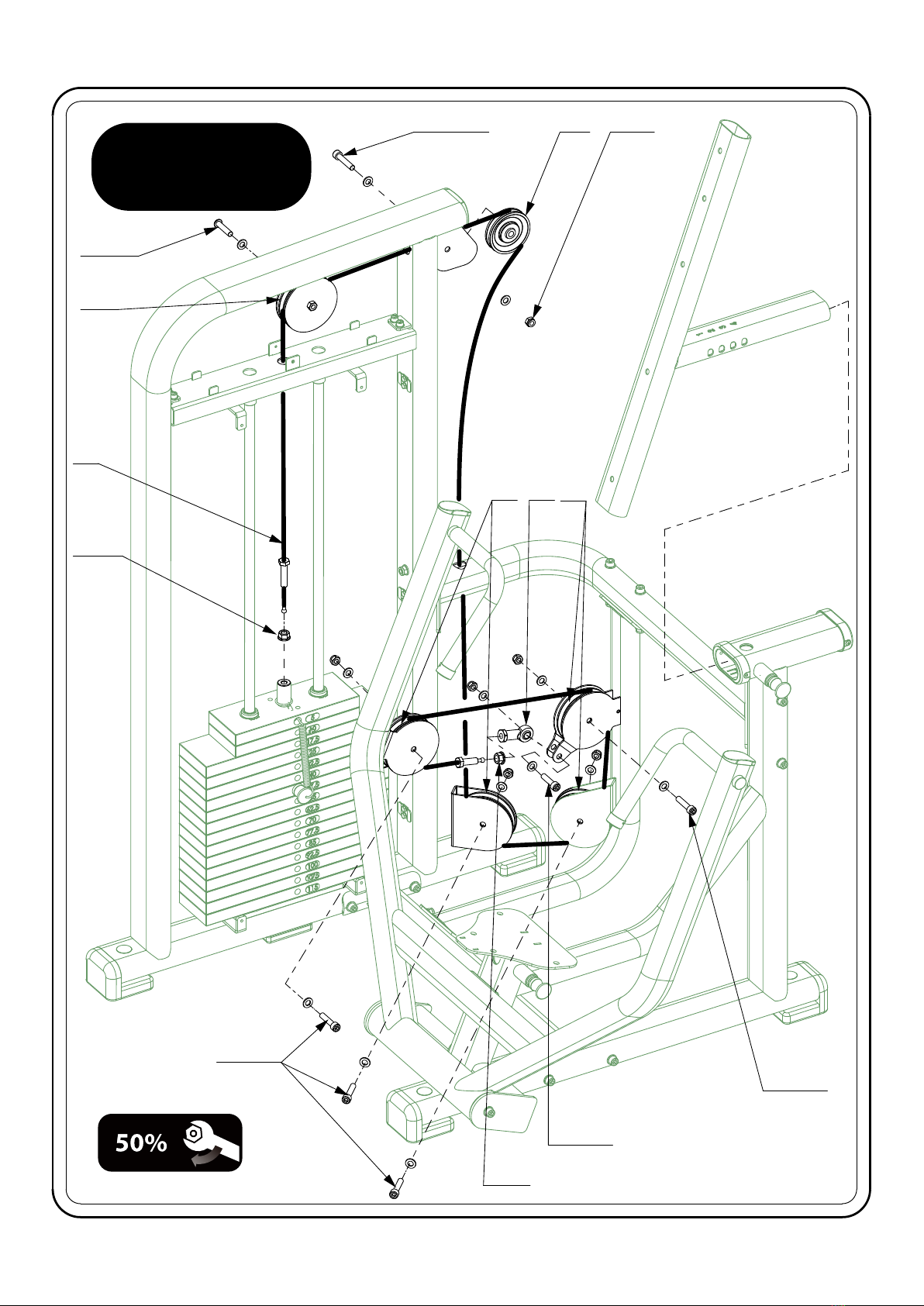

SC10-9

W10 SC10-9

W10

SC10-8

W10

19 19

FN12

SC10-10

W10

N10

W10

FN12

A10-9

W10

STEP 6

SC8-6

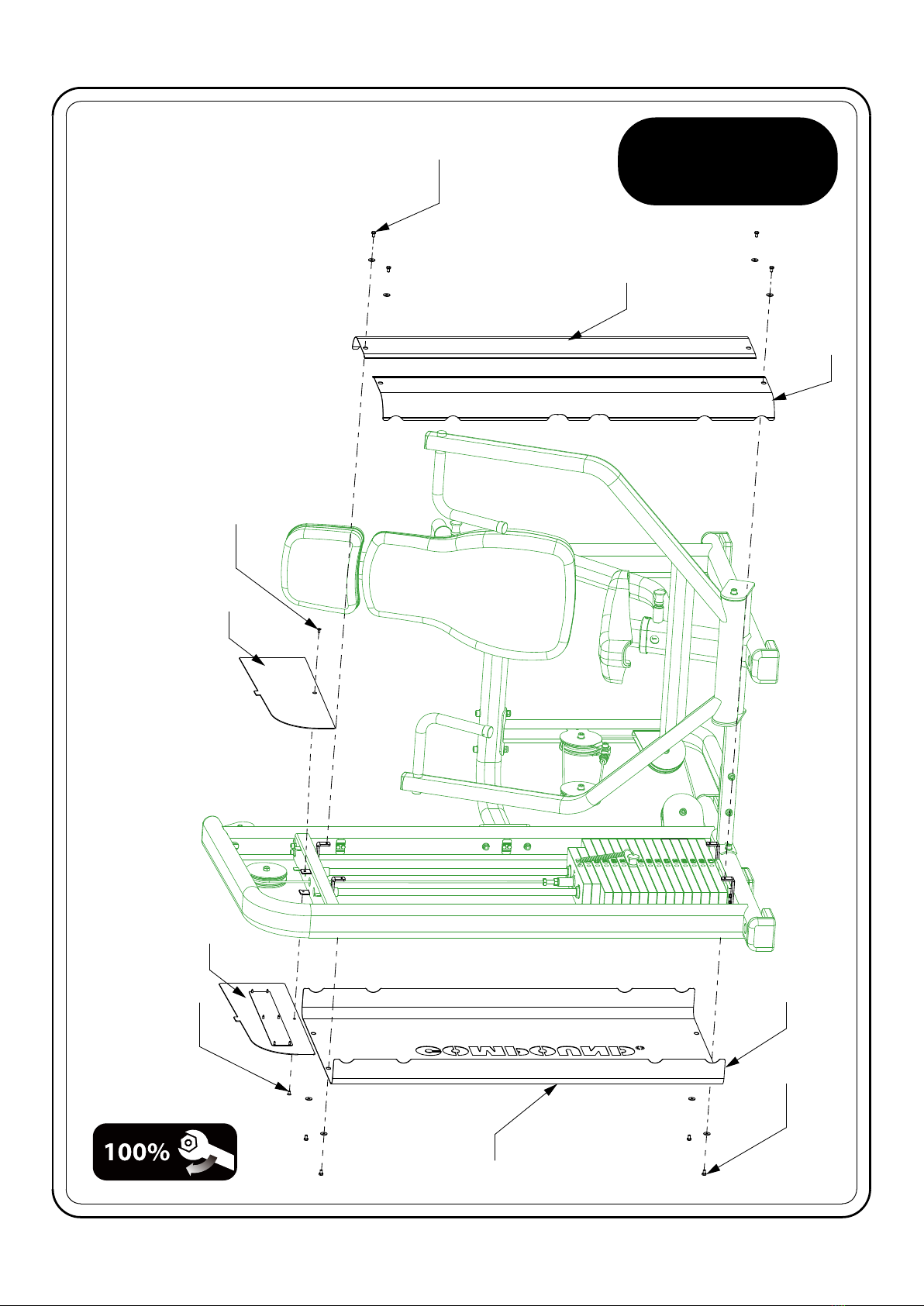

STEP 7

H6-4

C5-4

H6-4

NOTE: After assembling the equipment, please check and

tighten all the fasteners including the screws on the handle.
