COMPRO E650F - START UP GUIDE Manuale utente

VideoMate Vista E650F

Hybrid D/A PCIe Tuner Card

Start Up Guide

Compro Technology, Inc.

www.comprousa.com

Table of Contents

VideoMate Vista E650F PCIe Tuner Card ................................... 3

VideoMate Vista E650F Package Contents ................................. 5

VideoMate Vista E650F Connectors ............................................6

Hardware Installation ................................................................... 7

Software Installation................................................................... 10

Windows Media Center Remote for Vista E650F....................... 11

Remote Power On/Off................................................................13

ComproDTV Vista Gadget Tool for Vista ................................... 15

ComproDTV Windows Media Center Add-In .............................17

HID (Human Interface Device) for Compro Remote .............................. 18

Open and close the ComproDTV 4 control panel ......................19

ComproDTV 4 ............................................................................ 20

ComproFM 2 .............................................................................. 27

Troubleshooting ......................................................................... 28

document may be copied or reproduced in any form or by any means

without the prior written consent of Compro Technology, Inc.

Compro, VideoMate, Poladyne, Play with Power, and the Compro

logo are trademarks of Compro Technology, Inc. Other names and

marks are trademarks of their respective owners.

Compro makes no warranties with respect to this documentation and

disclaims any implied warranties of merchantability, quality, or fitness

for any particular purpose. The information in this document is subject

to change without notice. COMPRO reserves the right to make

revisions to this publication without obligation to notify any person or

entity of any such changes.

Compro Technology, Inc.

Tel. +886 2 2918 0169, Fax +886 2 2915 2389

4/F, No.12, Alley 6, Lane 45, Pao Shin Road

Hsintein City, Taipei, Taiwan.

www.comprousa.com

VideoMate Vista E650F PCIe Tuner Card

Compro VideoMate E650F is a hybrid PCI Express DVB-T and analog TV/FM

capture card, which brings high quality digital terrestrial TV and universal

analog TV/FM broadcasts to your desktop PC with Microsoft certified Windows

Media Center remote. It turns your computer into a home entertainment center

by bringing you digital/analog TV viewing, video/audio capturing, and high

quality 480i/576i component video input. It also certified for Windows Vista

32/64 bit system.

MINIMUM SYSTEM REQUIREMENTS

Your PC must meet or exceed the following system requirements to watch TV

on your PC.

z1.7 GHz Pentium IV or equivalent CPU for DVD-Quality recording or

timeshifting

z512 MB System Memory

zSound card.

zOpen PCI Express x1 slot.

zCD-ROM drive for software installation.

zWindows XP SP2 or Vista x86/x64

z50 MB free disk space for basic software installation.

RECOMMENDED SYSTEM REQUIREMENTS

To use all the features of VideoMate Vista E650F PCIe card, your PC should

meet the following requirements.

z2.6 GHz CPU (with SSE 2) for HDTV watching and recording

z3.0 GHz (with SSE 2) for PIP mode with five windows.

z1.0 GB System Memory

zSound card

zOpen PCI Express x1 slot.

zCD-ROM for software installation

zWindows XP SP2 or Vista x86/x64

zUpdate the latest drivers of VGA, motherboard, and soundcard from

vendors.

z50 MB free space for software installation

zATX power supply and a computer case with a separate power switch

cable from power on button.

Note

In order to receive digital terrestrial TV broadcast, you needs to have your

own antenna which is crucial. Digital terrestrial TV broadcast uses about the

same wave (UHF) as analog TV. It’s recommended to have a fishbone-like

antenna on the roof for receiving. More details can be found in the

troubleshooting chapter of this manual.

Digital TV broadcast is different than normal analog TV. You will see no

picture instead of noisy or blurred picture when the signal is too weak. Make

sure you have a good antenna and strong digital TV signal in your location.

Or you will have no TV picture at all.

VideoMate Vista E650F Package Contents

Vista E650F

TV card

IR cable

Installation CD

Start Up Guide

Windows Media

Center remote

Power switch

patch cable

FM antenna

Low-Profile

Bracket

Ulead Software

Batteries I-type to F-type

converter

6 in 1 Audio/video

cable

VideoMate Vista E650F Connectors

Item Function Description

1 TV Tuner-In Analog TV or digital TV cable/antenna input

2 FM Tuner-In Connect to an FM antenna feed.

3 IR Connect the IR receiver here.

Audio-In

(Blue)

Use an audio patch cable to connect to an audio source,

such as a VCR, DVD or VCD. (Option for audio patch

cable, not included in the package )

S-Video-In

(Black)

Use an S-Video patch cable to connect to a video source,

such as a VCR, DVD or VCD. (Option for S-video patch

cable, not included in the package )

Composite-In

(Yellow)

Use a Composite video patch cable to connect to a video

source, such as a VCR, DVD or VCD. (Option for

composite video patch cable, not included in the package )

Component Video

Input (Green)

Connect to the video device with component video output

(Component video cable not included in the package)

Component Video

Input (Red)

Connect to the video device with component video output

(Component video cable not included in the package)

9-pin

connector

for (6 in 1

converter

cable)

Component Video

Input (Blue)

Connect to the video device with component video output

(Component video cable not included in the package)

5 To Case Po w e r

Switch

Connect the ATX Power Switch cable of your computer

case here.

6 To Mainboard Power

Switch Connector

Use the supplied power switch patch cable to connect to

the ATX Power Switch pins on the mainboard.

5 6

Hardware Installation

Warning

Unplug your PC’s main power cord before installing VideoMate Vista

E650F PCIe card. Failure to do so may cause damage to your VideoMate

Vista E650F PCIe card and void your warranty.

1. Shut down your computer and unplug main power cord.

2. Remove the computer case cover.

Power Up Connections

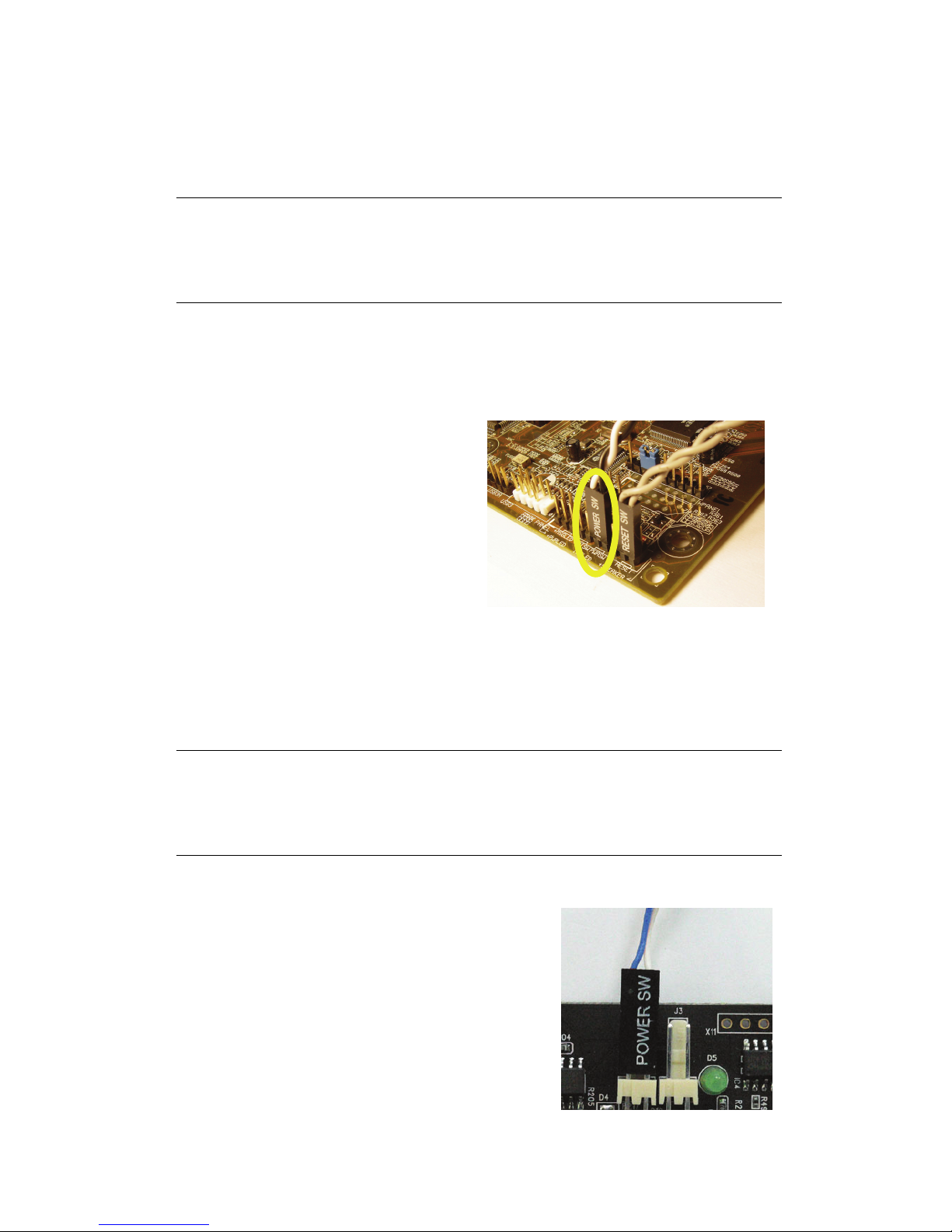

3. Locate the ATX power switch pins on your computer case and trace the

wires to the power switch connector on your mainboard. The ATX power

switch cable is normally a twisted pair cable with a two-pin connector as

shown above.

Note

On the mainboard, the ATX power switch pins are usually labeled “POWER

SW” or similar. It is vital to remember the position of these pins for a later step

in the installation process.

4. Unplug the ATX power switch cable from the

mainboard and connect it to the white

connector named “JS1” on the VideoMate

Vista E650F PCIe card, as shown on the

right.

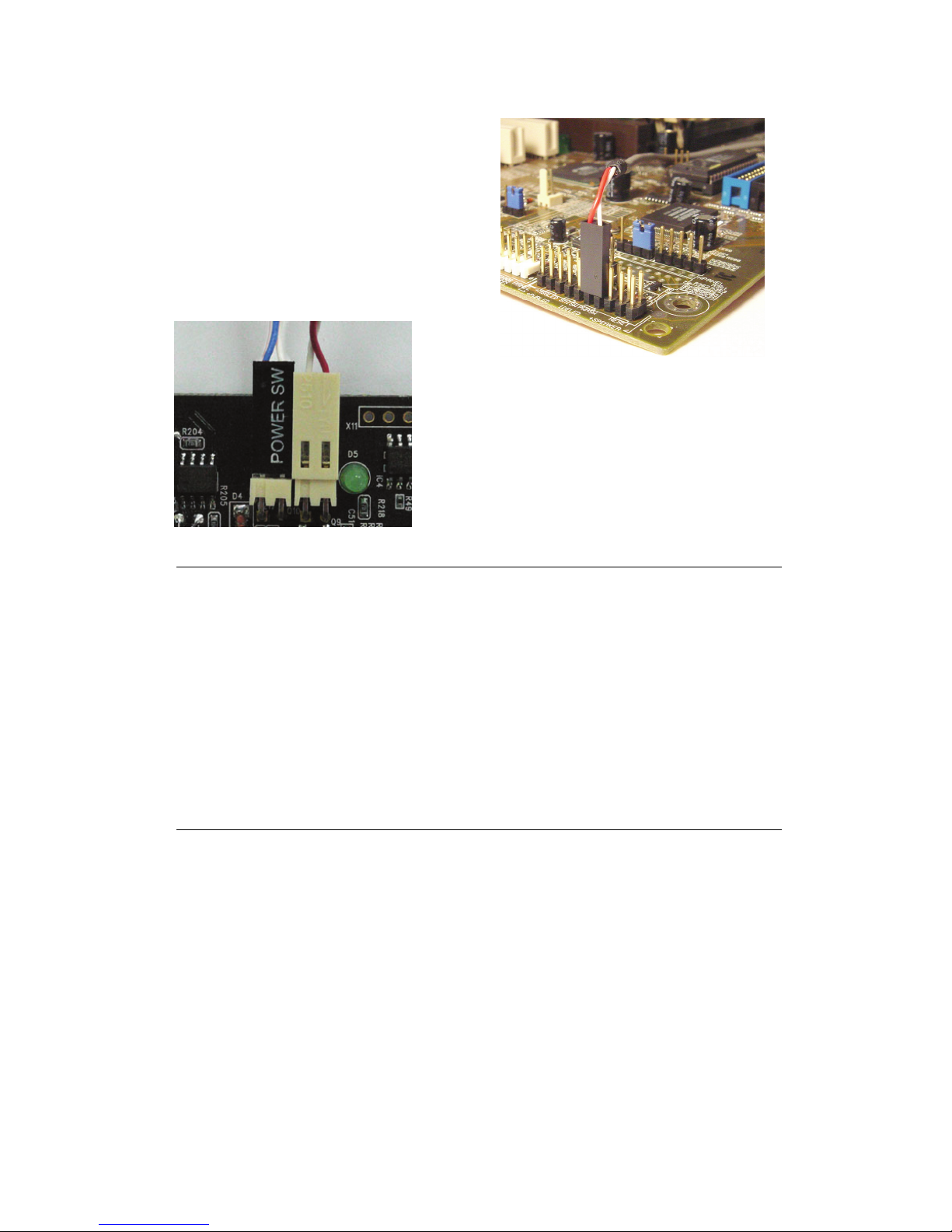

5. Connect the black socket of Power

Up patch cable to the power switch

connector on the mainboard.

6. Connect the white socket of Power Up

patch cable to the connector named “JS2”

on the VideoMate Vista E650F PCIe

Tuner card.

Note

Double check your work. If you plug the cables into the incorrect pins, your

PC may not start or otherwise function improperly.

Connect the white end of the Power Up patch cable to the TV tuner card and

the black end to the mainboard.

Power Up Scheduling is not required for using VideoMate Vista E650F PCIe

card. If you don’t want to use Power Up Scheduling from the Windows Shut

down state, you can skip the power switch circuit connections, in other words,

you can skip Power Up Connections in steps 3 through 6. You can still use

scheduled recording from Standby mode or powered on state.

7. Insert VideoMate Vista E650F PCIe card in an open PCIe slot.

This completes the hardware installation. Please read the following notes and

proceed to install the software.

Note

For best performance, the VideoMate Vista E650F PCIe card should not share

its IRQ. For more information, please see the Troubleshooting section.

If the computer cannot be turned on, verify the position of the power patch

cable on the mainboard. Consult the mainboard documentation to determine

the position of the ATX power switch connector.

Power Up will start your computer 5 minutes in advance of the scheduled

recording time, for example, if you have set ComproDTV 4 to record a program

at 4 o’clock, it will start your computer at 3:55. Therefore, you need to shut

down the computer before 3:54 in order to let Power Up start the computer.

Power Up from Windows Shutdown mode, i.e., ACPI S5

state, requires:

zAn ATX power supply in your PC.

zMotherboard support for PCI Express x1 in order to

have 3.3V standby power.

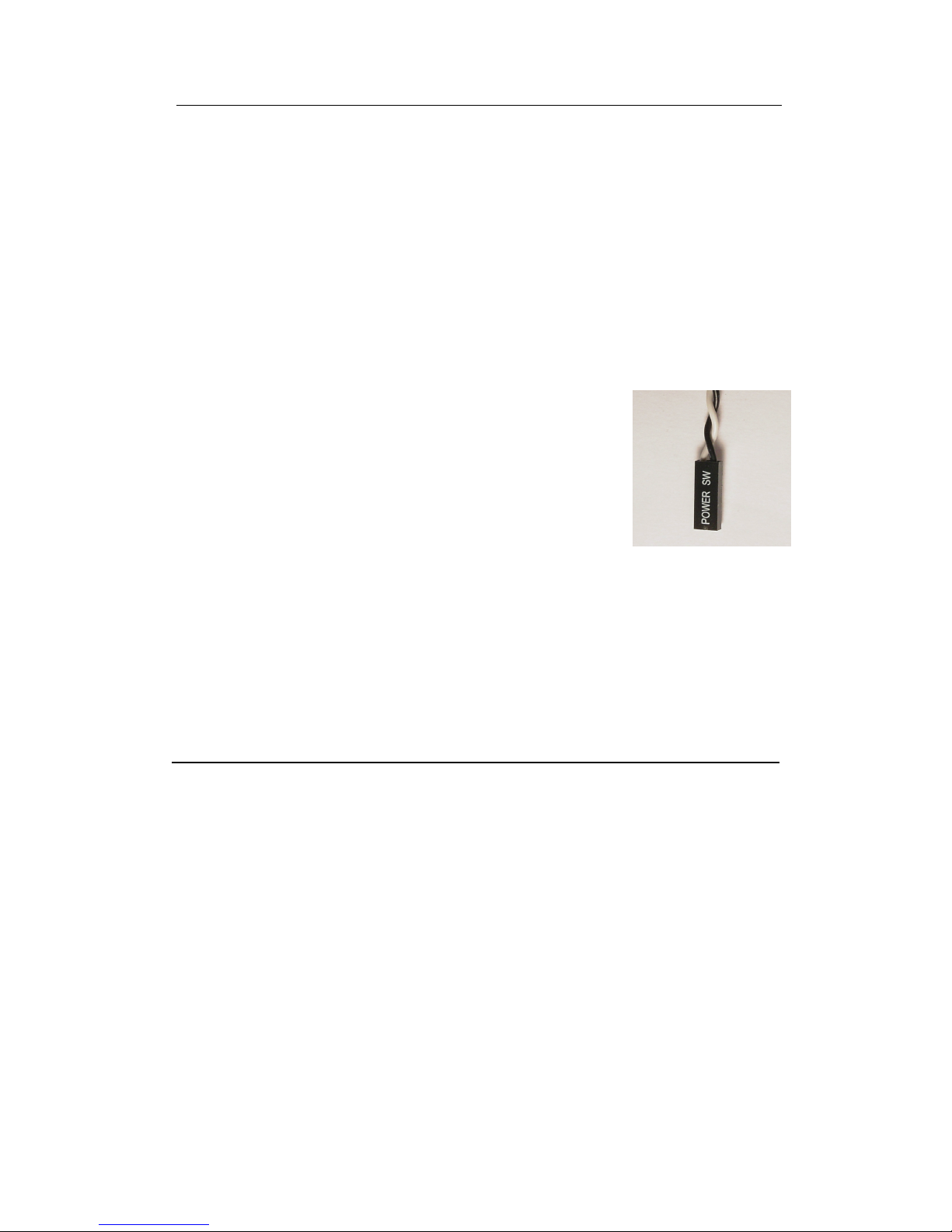

zATX powers switch cable, which is a pair of twisted

wires with a two-wire connector, as shown to the

right.

If you don't have the above items, you can still use Power-Up Scheduling with

Windows Stand by mode, i.e., ACPI S3 state, if your system supports it.

You can use VideoMate Vista E650F PCIe card without using Power Up

Scheduling. If you don’t want to use Power Up Scheduling from the Windows

Shut down state, you can skip the power switch circuit connections.

The ATX power switch cable is not polarized. You can plug it in either direction.

Software Installation

After installing the PCIe card and cables in your computer, you should restart it

and follow these steps to install the software.

Step 1. After restarting, Windows will detect your VideoMate Vista E650F

PCIe card and start the Add/Remove Hardware Wizard, prompting

you to install the VideoMate Vista E650F PCIe card drivers. Please

press Cancel and go to the next step.

Step 2. Insert the installation CD into your CD drive. If you have Autorun

enabled, the installer will start automatically. (If Autorun is disabled,

double-click on “setup.exe” on the installation CD.) Compro

recommends you choose Complete to install all necessary software

(VideoMate Vista E650F drivers, ComproDTV 4, and ComproFM 2) or

choose Custom to install selected item by item. (We also provide the

DirectX 9 and Acrobat Reader 6.0 software on the installation CD, you

can explorer the CD folder and install them by your need.

Step 3. If you see the Windows Logo testing message, below, please press

“Continue Anyway” to proceed.

Press Next to install ComproDTV 4,

Windows Media Format 9 Series

Runtime.

Step 4. After each program is

successfully installed, press

Finish to proceed.

Step 5. When installation completes,

press Finish to restart

computer.

Step 6. When computer is restarted,

please start up ComproDTV

4. Select “VideoMate CX2388x AVS Video Capture” for Video

Device. Also choose your country for the country selection and then

press OK.

Step 7. It will ask you if you want to scan channels. Please select OK to start

scanning. After channel scan is finished, please press OK and you are

ready to enjoy.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali COMPRO Sintonizzatore

COMPRO

COMPRO E850F - STARTUP Manuale utente

Manuali Sintonizzatore popolari di altre marche

Tunersys

Tunersys WS16 1 Manuale utente

Arcam

Arcam DT91 Manuale utente

Magnum

Magnum MD 102T Manuale utente

HDHomeRun

HDHomeRun 20121008 Manuale utente

Crestron

Crestron C2N-TXM Manuale utente

Eico

Eico HFT-92 Manuale utente

MFJ

MFJ MFJ-928 Manuale utente

NAD

NAD C 445 Manuale utente

Sony

Sony ST-SA5ES Manuale utente

Sirius Satellite Radio

Sirius Satellite Radio SC-FM1 Manuale utente

Antique Automobile Radio

Antique Automobile Radio 283501B Manuale utente

Monacor

Monacor PA-1200R Manuale utente

Technics

Technics ST-X301L Manuale utente

Manhattan

Manhattan 176156 Manuale utente

Marantz

Marantz ST-15S1 Manuale utente

Korg

Korg HA-40 Manuale utente

Harman Kardon

Harman Kardon TU915 Manuale utente

Teac

Teac T-1D Manuale utente
