COMPX TYPE310 Guida
CB-31X
03/24/03

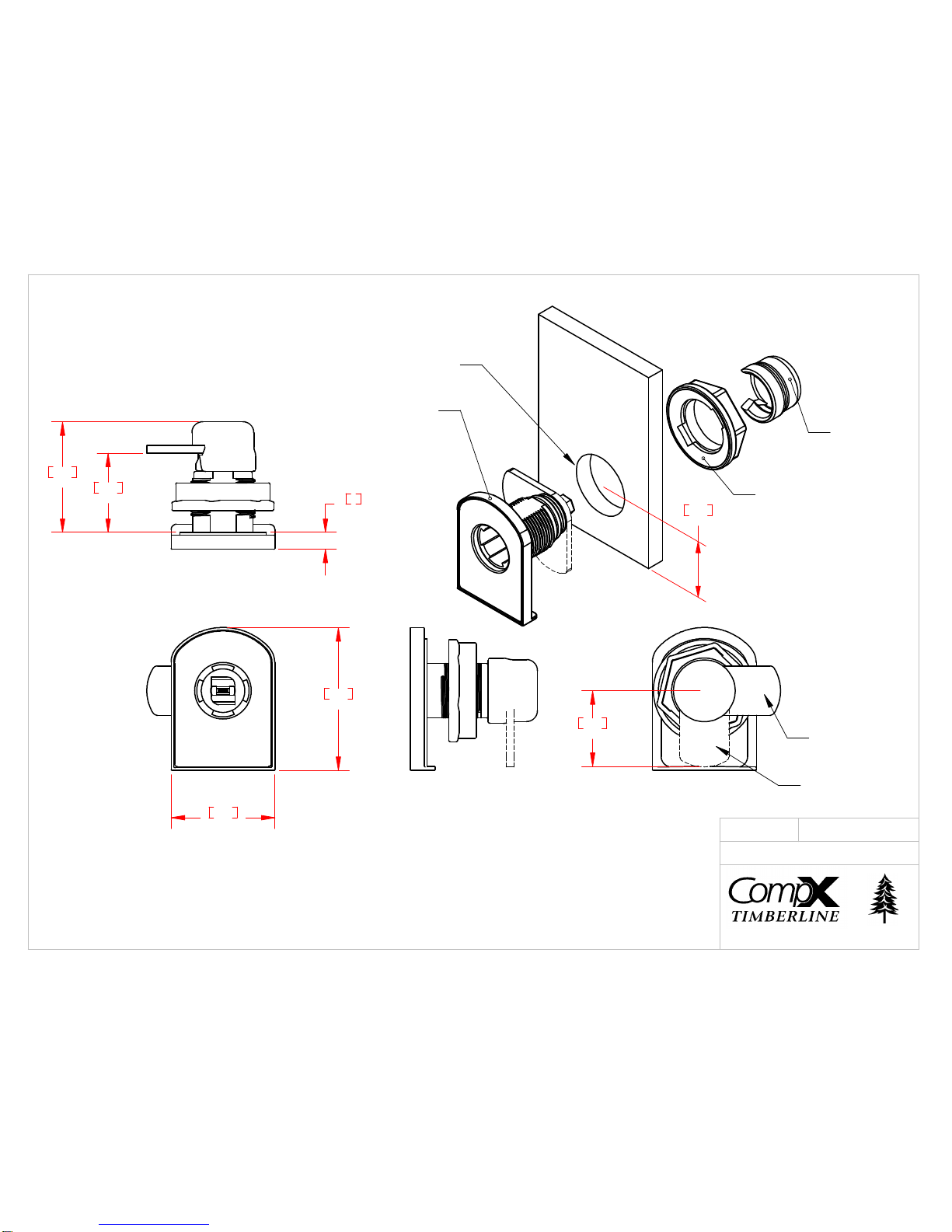

TYPE 310 GLASS DOOR CAM LOCK
915 Sherwood Drive
Lake Bluff, IL 60044
DESCRIPTION
DRAWING#
DATE
Phone: 847-234-1864
Fax: 847-234-7922
1.20
30.5
1.65
41.9
PART NUMBERS:
CB-311 NICKEL FINISH
CB-315 BRASS FINISH
CB-317 SATIN NICKEL FINISH
COMPONENTS ARE BAGGED TOGETHER IN POLYBAG
.92
23.2
1.28
32.4
.20
5
.88
22.2
CAM IN LOCKED
POSITION
CAM IN UNLOCKED
POSITION
.88
22.2
CYLINDER BODY ROTATES
THROUGH HOLE IN GLASS
7/8" DIAMETER HOLE
BORED IN GLASS
CENTERED 7/8" FROM EDGE
NUT WASHER IS
HAND TIGHTENED
TO FASTEN CYLINDER BODY
TO GLASS
FINISH CAP IS
ATTACHED TO
GIVE FINISHED
APPEARANCE
