Comtrend Corporation PowerGrid 902 Manuale di istruzioni

Introduction

The PG902 Powerline Ethernet adapter you have just acquired is part

of Comtrend’s Powerline family:

• PG902 – The Current Model

• DH10PF – The Original Powerline Product

• PG922 Power Strip – For Multiple Powerline Connections

This quick user guide will provide you with the basic knowledge to start

using your new PG902 in just minutes. For more advanced options

we recommend you visit our website and download the user manual at

www.comtrend.com

Table of Contents

Introduction 1

The perfect complement for a Wi-Fi connection 2

Package content 2

How to install the PowerGrid 902 5

How to use a power strip with the PG902 6

How to add a new Powerline to your existing network 7

How to understand the STATUS LED colours 9

Frequently Asked Questions 9

Product disposal instructions 13

EC declaration of conformity 14

The perfect complement for a Wi-Fi connection

Powerline adapters are the ideal way of creating a home network or

complementing an existing Wi-Fi connection.

By providing a secure high speed connection and great service quality,

Powerlines allow you to watch Standard and High Denition (HD)

movies as well as play online games without interruption or pixilation;

share photos, music and other media stored on a PC or compatible

storage device anywhere in your home.

Powerline Adapters will help you reach those areas of your home where

Wi-Fi signal is either too weak or cannot reach.

Other usages of Powerline adapters include IP-CCtv surveillance

cameras, setting up an ofce network without the need to add more

wires or rewire if you change your ofce conguration.

Package content

The following items are included in your PG902 package:

• A pair of PG902 adapters

• One Ethernet cable

• One copy of this user guide

LEDs and Buttons:

The PG902 has been designed to be as user friendly as possible.

There are just three LED lights and two buttons on the unit. They are

described on this page and the next.

LEDs

1. AP/STBY

2. ETHERNET

3. STATUS

LED Colour

STATUS

Red: the connection speed is between

1 and 4 Megabits per second

Orange: the connection speed is between

4 and 10 Megabits per second

Green: the connection speed is more

than 10 Megabits per second

ETHERNET

Green constant: Local area network

(LAN) connection is established

Green blinking: LAN activity

AP/STBY

Red: Powerline is in Standby Mode

Green constant: Powerline is connected

as the Access Point (AP)

Green blinking: Powerline is attempting

to establish a connection.

3 Flashes: the Powerline network has established

a connection and nished its conguration

Buttons

1. CONFIG/RESET:

This button is used to “Extend

your current Powerline network” a

“Factory Reset” or to turn the LEDs

lights off.

2. ON/STBY:

This button is used to set the

Powerline into Standby mode to

save energy when you are not

planning to use the device. Turning the adapter to standby mode

will also turn off the “Status” and “Ethernet” LEDs

AP/STB

ETHERNE

CONFI

RESE

STB

Powerline Ethernet

Adapter with Filte r

AP/STB

ETHERNE

CONFI

RESE

STB

Powerline Ethernet

Adapter with Filter

Functions

Button Action Result

CONFIG/

RESET

Press for one (1) second.

First time: LEDs

are turned OFF

Second time: LEDs

are turned ON

All LEDs will turn off, but the

Powerline will still be working.

Great if you are watching

movies in a dark room

Press for ve (5) seconds

Access Conguration

mode

See page 7 for more

information on how

to add extra Powerline

adapters to your network

Press for ten (10) seconds

Performs a Factory setting

This will return the adapter to

its original factory settings.

ON/STBY

Press once to set the

adapter to Standby Mode.

(Press it again to turn

the adapter back on.)

Status and Ethernet LEDs

are switched off and the

adapter stops working.

Ethernet Port:

Powerlines use an Ethernet port to connect

through an Ethernet cable to the device you

wish to add to your network. One end of the

Ethernet cable is connected to the Powerline

adapter, while the other end is connected to

your device.

Front and rear plugs

Comtrend Powerline adapters are the rst ones in the UK market to

bring a fully BS1363 certied female plug; so choosing a Comtrend

Powerline PG902 means you can still safely use your electrical outlet.

How to install the PowerGrid 902

Comtrend’s PG902 starter kit, supplied in pairs, comes ready to use;

the Powerline adapters are paired in our factory so they will recognize

each other, which makes setup this easy:

1. Plug both PG902 adapters into an electrical socket

a. One next your router (or modem)

b. One next to the device you will connect to your network

2. The Status LEDs on both PG902 adapters will light up RED

3. When the Status LEDs are both GREEN the adapters are ready

to use

Pick the PG902 adapter with a serial number ending with the letter “A”.

The serial number can be found on the label at the back of the adapter.

This is the Access Point (AP). Connect the AP to your router with an

Ethernet cable, as shown here.

Connect the other PG902 to your computer, V-box or other network

device using an Ethernet cable. This is the End Point (EP).

AP/STBY

ETHERNET

STATUS

CONFIG

RESET

STBY

PowerlineEthernet

AdapterwithFilter

LAN

1X 2X 3X 4X

Power

Off

LINE

AP/STBY

ETHERNET

STATUS

CONFIG

RESET

STBY

PowerlineEthernet

AdapterwithFilter

Shortly, you will see the Ethernet LED blinking; this indicates that there

is data trafc going through the PG902. You are now ready to start

using your network.

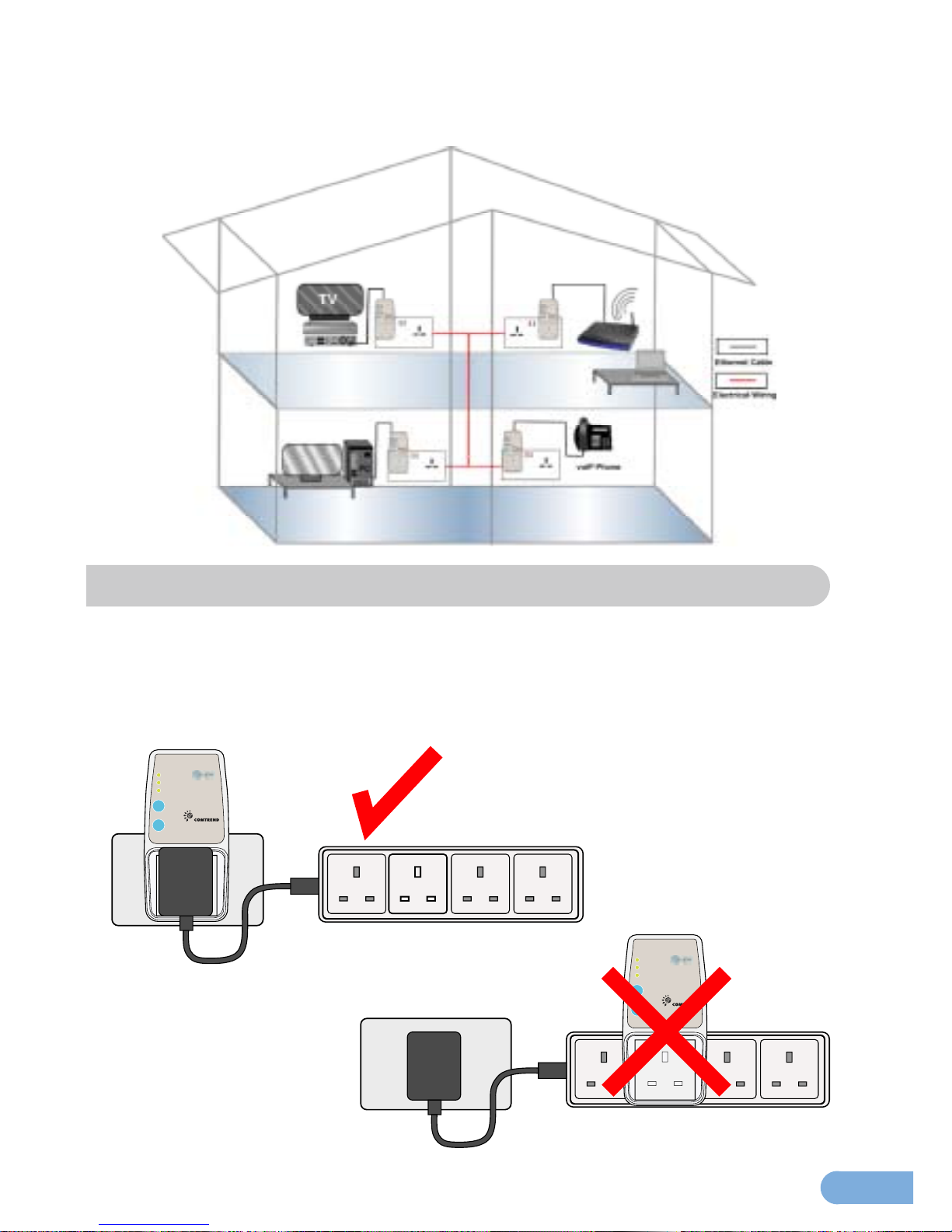

How to use a power strip with the PG902

If you are planning to use a power strip we recommend that you plug

the power strip in to the Powerline and not the Powerline into the power

strip. If you must plug your adapter into a power strip, we suggest you

use a basic power strip as the more advanced ones have a lter that

can interfere with the Powerline signal.

AP/STB

ETHERNE

TAT

CONFIG

RESE

STBY

Powerline Ethernet

Adapter with Filter

AP/STBY

ETHERNET

STATUS

CONFIG

RESET

STBY

Powerline Ethernet

Adapter with Filter

How to add a new Powerline to your existing network

Comtrend Powerline pairs are paired in the factory for your convenience

and security. However if you need to add more adapters to your existing

network you will need to follow some easy steps in order to keep your

network secure. The following procedure applies to both Powerline

DH10PF and PG902 adapters.

MAKE SURE THAT ALL OF YOUR POWERLINES ARE CONNECTED

TO THE MAINS.

Step 1: Identify the current AP

(access point) adapter. From your

current adapters the one with the

AP LED in green will be the AP

adapter.

NOTE: If you performed a factory reset on the AP adapter (see step 2), it

is now an EP adapter. In this case, you will need to assign it as an

AP (see FAQ on pg. 9).

Step 2: Reset the new Adapter to its

factory settings: this is to make sure your

new adapter is set as an EP (end point).

Press the CONFIG/RESET button for

10 seconds. All LEDs will turn OFF and

the STATUS LED will be RED.

AP/STBY

ETHERNET

STATUS

CONFIG

RESE T

STBY

Powerline Ethernet

Adapter with Filter

AP/STBY

ETHERNET

STATUS

CONFIG

RESET

STBY

Powerline Ethernet

Adapter with Filter

Step 3: On your AP adapter (Step 1),

press the CONFIG/RESET button until

the AP LED starts blinking.

Step 4: On the NEW EP adapter you

are adding to your network (step 2),

press the CONFIG/RESET button

until the AP LED starts ashing. The

NEW EP adapter AP LED will ash 3

times and the STATUS LED will turn

ON.

Wait until the AP LED on the AP

adapter (step 1) stops blinking.

You have now added your NEW EP adapter to your network.

Repeat the same steps for each new adapter you want to add to your

network.

AP/STBY

ETHERNET

STATUS

CONFIG

RESE T

STBY

Powerline Ethernet

Adapter with Filter

AP/STBY

ETHERNET

STATUS

CONFIG

RESE T

STBY

Powerline Ethernet

Adapter with Filter

How to understand the STATUS LED colours

The STATUS LED provides important information that will provide

solutions to common questions, such as why a High Denition (HD)

movie is not showing or shows with pixels. The STATUS LED indicator

will vary its colour depending on the estimated speed of the Powerline

connection. The speed is measured in Megabits Per Second (Mbps).

Colour Information

RED

The current connection is less than 4Mbps, normal internet

activities are possible but the Powerline is unable to transmit

either Standard Movies or High Denition (HD) Movies

ORANGE

The current connection is greater than 4Mbps and less than

10Mbps, normal internet activities are possible and the

network is able to transmit a single Standard Movie but not

an HD Movie.

GREEN

The current connection is greater than 10Mbps; the

Powerline is capable of transmitting Standard and HD

Movies as well as normal internet activities.

NOTE: If the HDTV video bandwidth is lower than 10Mbps, it may be pos-

sible to stream the video with an ORANGE STATUS LED in some

cases.

Frequently Asked Questions

This Powerline adapter has been designed to be a reliable and easy to

use to create or extend an existing home network. However, should

you experience any problems, please refer to the list below to aid in

troubleshooting.

1. How do I convert an AP into an EP?

• Make sure the Powerline adapter is plugged directly into the

electrical outlet and that it is powered on.

• Do a factory reset (see Step 2 on pg. 7 for the Factory Reset

procedure).

2. How do I convert an EP into an AP?

• Make sure the Powerline adapter is plugged directly into the

electrical outlet and that it is powered on.

• Press CONFIG/RESET button until its AP/STBY LED starts

blinking.

• Wait until conguration period nishes (30 seconds). At that

Altri manuali per PowerGrid 902

Indice

Altri manuali Comtrend Corporation Adattatore

Comtrend Corporation

Comtrend Corporation PG-9182PT Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid-9172 Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9172PT Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9172 Manuale utente

Comtrend Corporation

Comtrend Corporation GCA-6000 Manuale utente

Comtrend Corporation

Comtrend Corporation WD-1030 Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid 9141s-PoE Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9182A Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9172PoE Manuale utente

Comtrend Corporation

Comtrend Corporation Powerline PowerGrid DH-10P Manuale utente

Comtrend Corporation

Comtrend Corporation GCA-6000 Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9182PoE Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid 9141s-PoE Manuale utente

Comtrend Corporation

Comtrend Corporation Movistar Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid 9142s Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid 9020 Manuale di istruzioni

Comtrend Corporation

Comtrend Corporation PG-9172AC Manuale utente

Comtrend Corporation

Comtrend Corporation GCA-7000 Manuale utente

Comtrend Corporation

Comtrend Corporation GCA-7000 Manuale utente

Comtrend Corporation

Comtrend Corporation GCA-6000 Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid-9141(s) Manuale utente

Comtrend Corporation

Comtrend Corporation WD-1030 Manuale utente

Comtrend Corporation

Comtrend Corporation PG-9171n Manuale utente

Comtrend Corporation

Comtrend Corporation PowerGrid 9141S Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
