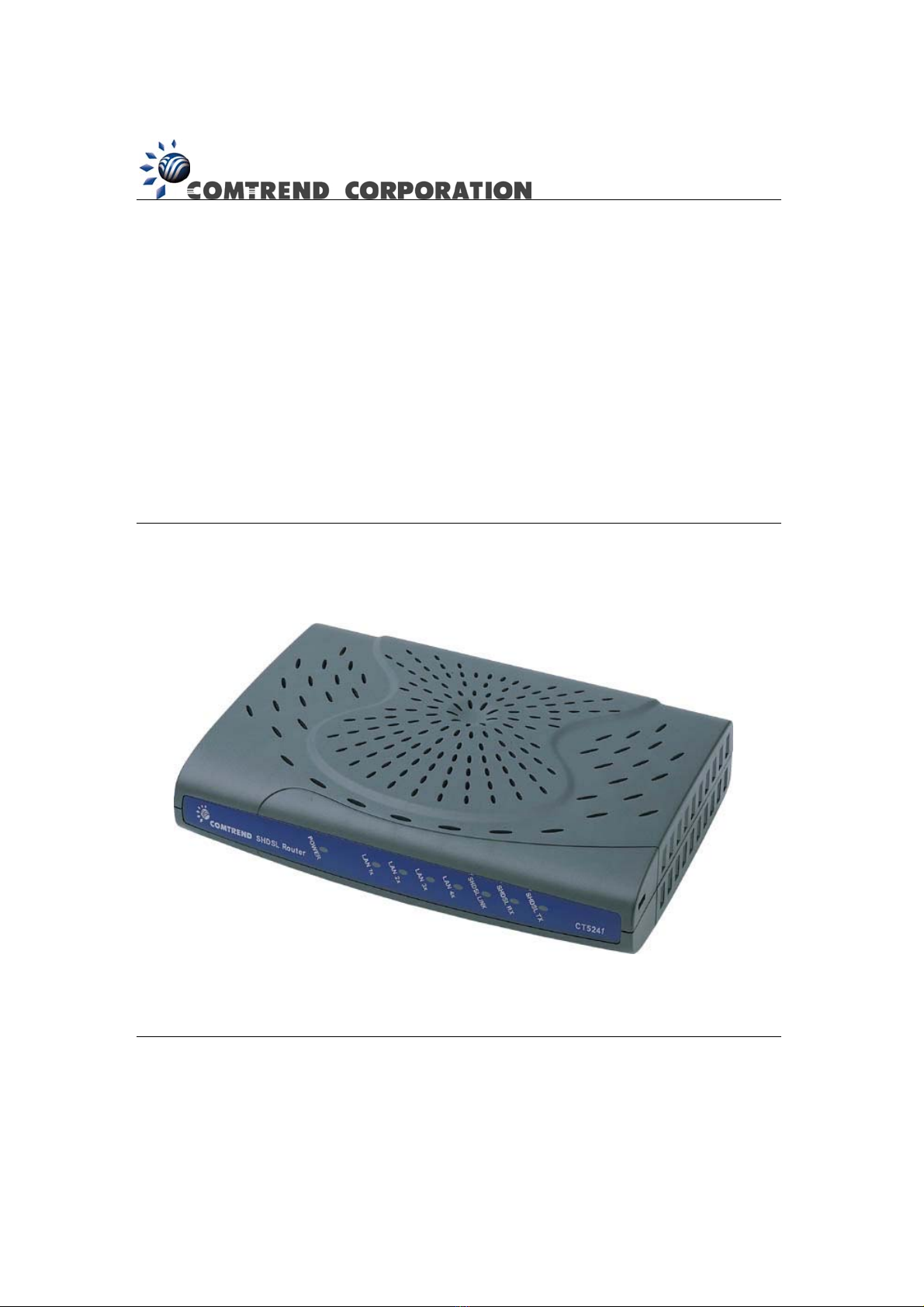

Comtrend Corporation CT-5241 Manuale utente

CT-5241

SHDSL Router

User’s Manual

Version A1.0, January 16, 2007

261039-013

Warning

Before servicing or disassembling this equipment, always disconnect all

power and telephone lines from the device.



 Use an appropriate power supply and a UL Listed telephone line cord.

Specification of the power supply is clearly stated in Appendix A -

Specifications.

Preface

This manual is designed to provide information to network administrators. It

covers the installation, operation and applications of the CT-5241 SHDSL router.

The reader reading this manual is presumed to have a basic understanding of

telecommunications. For product update, new product release, manual revision,

software upgrade, technical support, etc., visit Comtrend Corporation at

http://www.comtrend.com

This document is subject to change without notice.

and messages contained herein are proprietary to Comtrend Corporation. No

part of this document may be translated, transcribed, reproduced, in any form, or

by any means without prior written permission by Comtrend Corporation.

Technical support

When you find the product out of service, or that it doesn’t work properly, please

contact technical support engineer for immediate servicing or email to

[email protected]

CHAPTER 1 OVERVIEW............................................................................................................6

1.1 APPLICATION ..........................................................................................................................6

1.2 FEATURES ...............................................................................................................................7

1.3 LED INDICATORS ...................................................................................................................8

CHAPTER 2 INSTALLATION.........................................................................................................9

2.1 HARDWARE INSTALLATION .......................................................................................................9

2.2 REAR-PANEL CONNECTIONS ...................................................................................................10

CHAPTER 3 QUICK INSTALLATION.................................................................................... 11

3.1 LOGIN.....................................................................................................................................11

3.1.1 Web Page Layout ..........................................................................................................13

3.1.2 Monitoring the SHDSL Line .........................................................................................14

3.2 WAN INTERFACE CONFIGURATION ......................................................................................15

3.2.1 Bridge mode: Service for one fixed IP address.............................................................16

3.2.2 Router Mode: Service for Five Static IP Addresses ......................................................18

3.2.3 PPPoE ..........................................................................................................................22

3.2.4 PPPoA ..........................................................................................................................24

3.2.5 Password Setup.............................................................................................................25

3.2.6 Setting the Bridge .........................................................................................................27

3.3 SPANNING TREE PROTOCOL..................................................................................................27

3.4 STATIC BRIDGING .................................................................................................................28

3.4.1 Write System Configurations ........................................................................................29

3.4.2 Load Factory Default Values ........................................................................................30

CHAPTER 4 SETTING UP WAN AND LAN INTERFACES.................................................31

4.1 LAN INTERFACE ..................................................................................................................31

4.2 CONFIGURING THE WAN I NTERFACE ...................................................................................32

4.2.1 VC Data Flow Control..................................................................................................32

4.2.2 Setting up an ISP ..........................................................................................................34

CHAPTER 5 SNMP ......................................................................................................................35

5.1 ENABLE SNMP ....................................................................................................................35

5.2 DISABLE SNMP ...................................................................................................................36

CHAPTER 6 PACKET FILTER ................................................................................................37

6.1 ADD A PACKET FILTER ENTRY...............................................................................................37

6.2 DELETE A PACKET FILTER ENTRY..........................................................................................39

6.3 ENABLE/DISABLE PACKET FILTER ........................................................................................39

CHAPTER 7 ROUTING.............................................................................................................40

7.1 STATIC ROUTE ......................................................................................................................40

7.2 SET-UP THE RIP FUNCTION ...................................................................................................42

7.3 DISPLAYING THE ROUTING TABLE ........................................................................................44

CHAPTER 8 NAT .......................................................................................................................45

8.1 MULTIPLE TO ONE ................................................................................................................46

8.2 ONE TO ONE NAT.................................................................................................................47

8.3 MULTI-NAT .........................................................................................................................48

8.4 VIRTUAL SERVER..................................................................................................................50

CHAPTER 9 DHCP ....................................................................................................................51

9.1 DHCP SERVER .....................................................................................................................51

9.2 DHCP RELAY.......................................................................................................................52

CHAPTER 10 DNS PROXY ......................................................................................................53

CHAPTER 11 IGMP...................................................................................................................54

CHAPTER 12 VLAN ..................................................................................................................56

CHAPTER 13 MAINTENANCE AND DIAGNOSTICS.........................................................57

13.1 SOFTWARE UPGRADE AND CONFIGURATION BACKUP /RESTORATION.................................57

13.2 OAM LOOPBACK ...............................................................................................................61

13.3 PING ...................................................................................................................................62

13.4 PERFORMANCE MONITORING .............................................................................................63

CHAPTER 14 APPLICATION EXAMPLE .............................................................................66

14.1 ADDING THE STATIC ROUTE (WEB) ....................................................................................66

CHAPTER 15 PIN ASSIGNMENTS .........................................................................................68

CHAPTER 16 CONSOLE ACCESS..........................................................................................69

16.1 LOGIN.................................................................................................................................69

16.2 KEYBOARD OPERATIONS ....................................................................................................71

16.3 MONITORING THE SHDSL LINE STATUS ............................................................................74

16.4 PASSWORD SETUP...............................................................................................................74

16.5 RETRIEVE THE FACTORY DEFAULT SETTINGS .....................................................................75

16.6 DISABLE THE WEB BROWSER .............................................................................................75

16.7 SAVE THE CONFIGURATIONS ...............................................................................................76

CHAPTER 17 TELNET ACCESS ...............................................................................................77

APPENDIX A: SPECIFICATIONS................................................................................................79

Chapter 1 Overview

The SHDSL router satisfies the needs of multiple users in small/home offices and

remote/branch offices. It provides symmetrical transmission speeds of up to 4.6

Mbps through a SHDSL connection, over a four-wire line. In addition, it supports

up to 16 virtual concurrent connections to multiple destinations. The integrated

four-port switch enables up to four devices to be connected to the LAN.

The SHDSL router can be used for a variety of applications, including video

conferencing, remote training, e-commerce, and other multimedia applications.

Easy configuration and monitoring can be accomplished using the Web browser.

The SHDSL router has full routing capabilities to segment/route IP protocol and is

capable of bridging other protocols. It can be also configured in either server or

client mode enabling point-to-point connectivity between two sites.

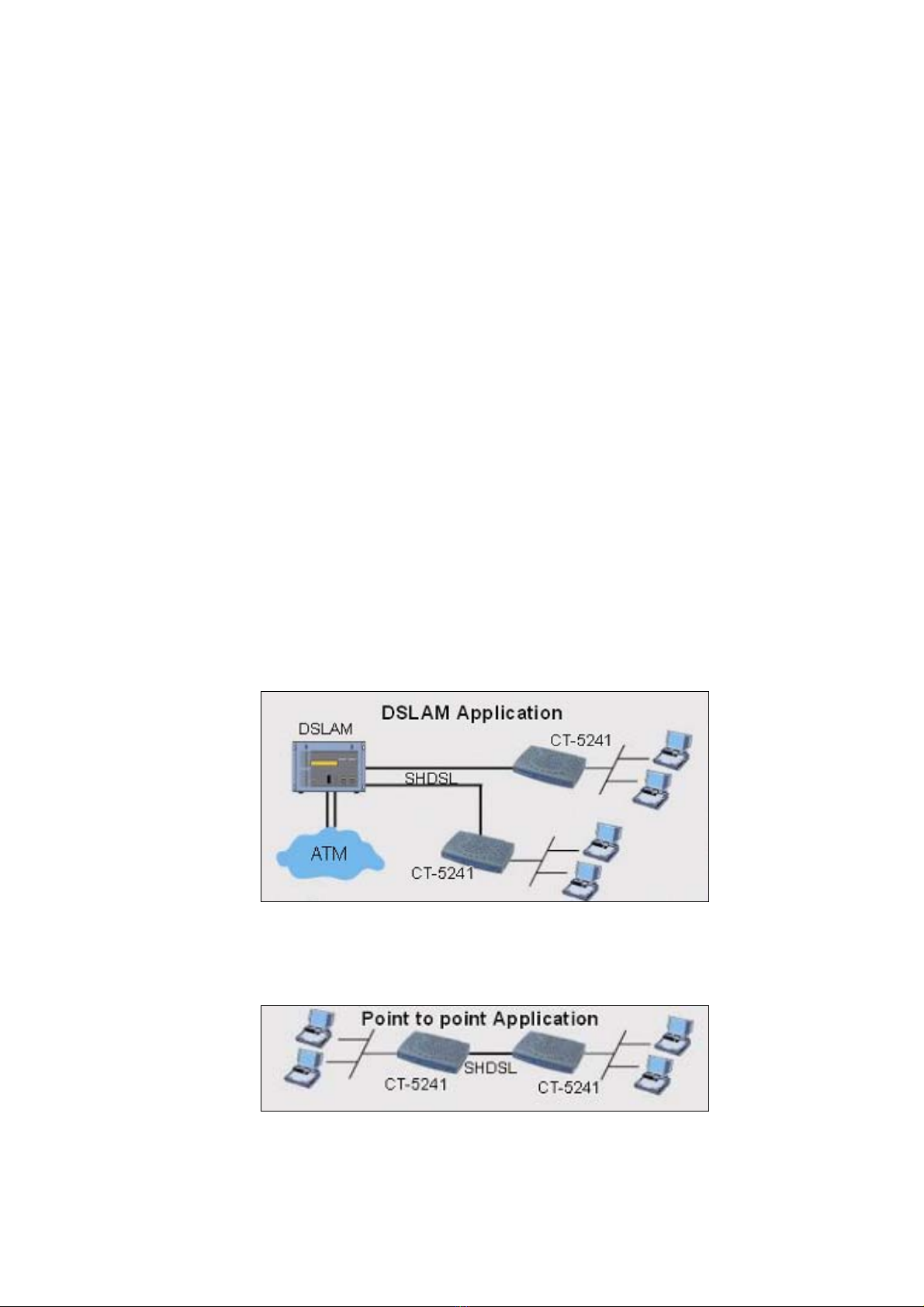

1.1 Application

The router can be used for DSLAM and point-to-point applications.

DSLAM Application

Point-to-Point Application

1.2 Features

Compliant with ITU-T G.991.2 (G.SHDSL) and G.994.1 (G.hs)



2-wire operation with auto-detection or manual setting

4-port 10/100 Base-T Ethernet switch with MDI/MDIX

Operates as a Bridge & Router

RFC 2684 (1483) Bridging

RFC 2684 (1483) Routing

RFC 2364 PPPoA

RFC 2516 PPPoE

OAM F4/F5

Supports up to 16 VCs

Supports UBR/CBR/VBR ATM services

Supports VLAN

Source MAC filter by VC

Supports NAT and PAT

Supports DHCP server, DHCP relay, and DNS proxy

MAC Filtering and Packet Filter Function

Virtual server with single port mapping

Virtual server with IP protocol mapping

Built-in SNMP for remote control

Supports remote upgrades

Supports DHCP client

VPN Pass Through

Virtual server with IP protocol mapping and Port range mapping

Supports RIPv.1, RIPv.2, and Static routing protocol

Web browser configuration and management tool

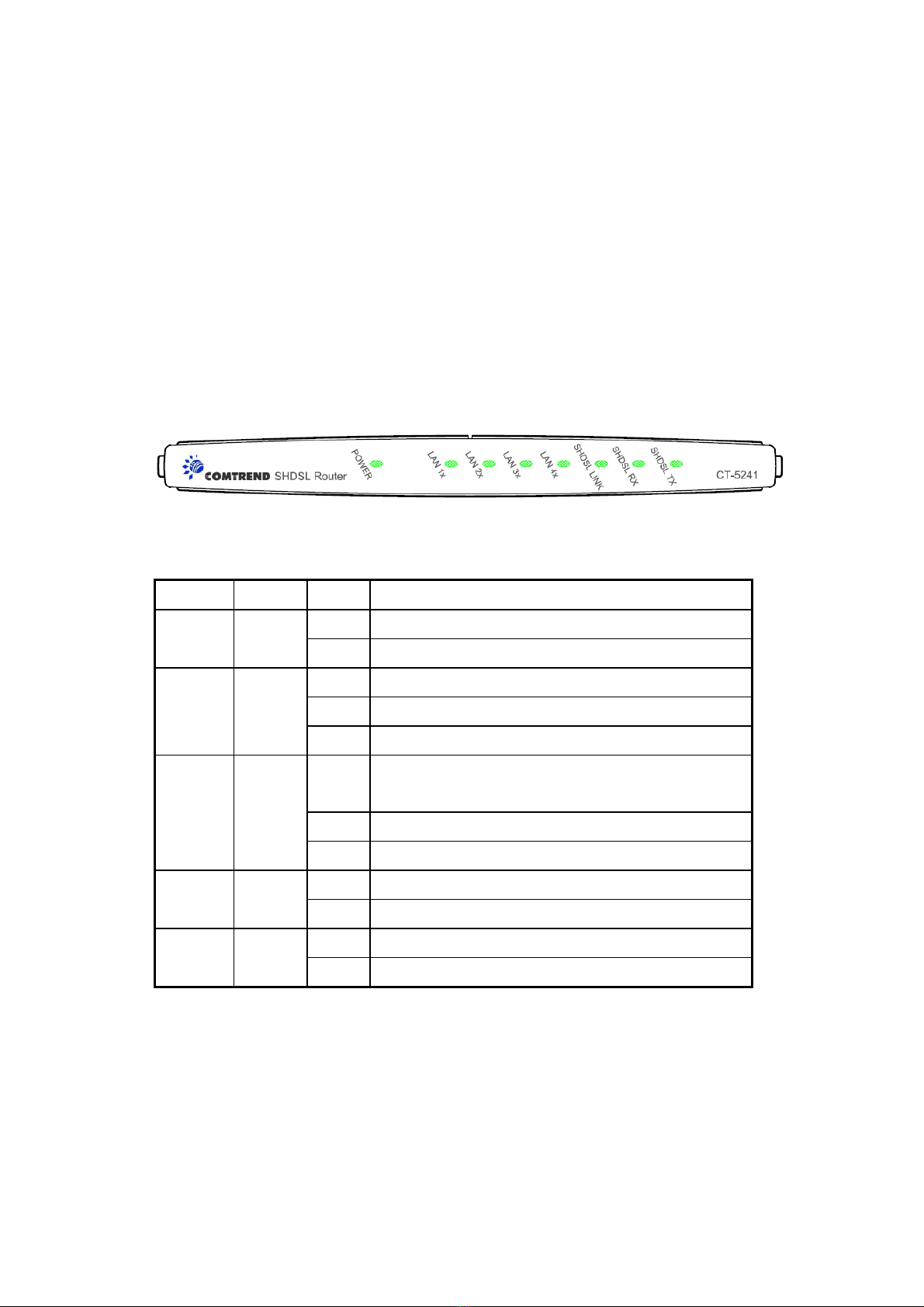

1.3 LED Indicators

There are eight LEDs on the front panel of the router; the functions of the LEDs are

described in the table below.

LED Color Mode Function

On Power is supplied.POWER Green

Off Power is not supplied.

On An Ethernet link is established.

Off An Ethernet Link is not established.

LAN 1~4 Green

Blink Data transmitting or receiving over LAN.

On The physical link through the RJ45 connection

cable is established.

Off A SHDSL connection is not established.

SHDSL

LINK

Green

Blink The SHDSL line is training.

On Receiving data over the SHDSL link.SHDSL

Green

Off No data receiving over the SHDSL link.

On Transmitting data over the SHDSL link.SHDSL

Green

Off No data transmitting over the SHDSL link.

Figure 1 Front Panel LED Indicators

Chapter 2 Installation

2.1 Hardware Installation

The following equipment may be necessary to install the router:

 AC power adapter

A power adapter is shipped with the router.

 LAN connection cable

To connect to the hub, use a straight-through RJ45 cable. To connect to a PC, use

a crossover RJ45 cable.

 Four-wire (8P8C) straight through RJ45 cable

A four-wire (8P8C) straight through RJ45 cable is needed to connect to the LINE

port to the wall outlet.

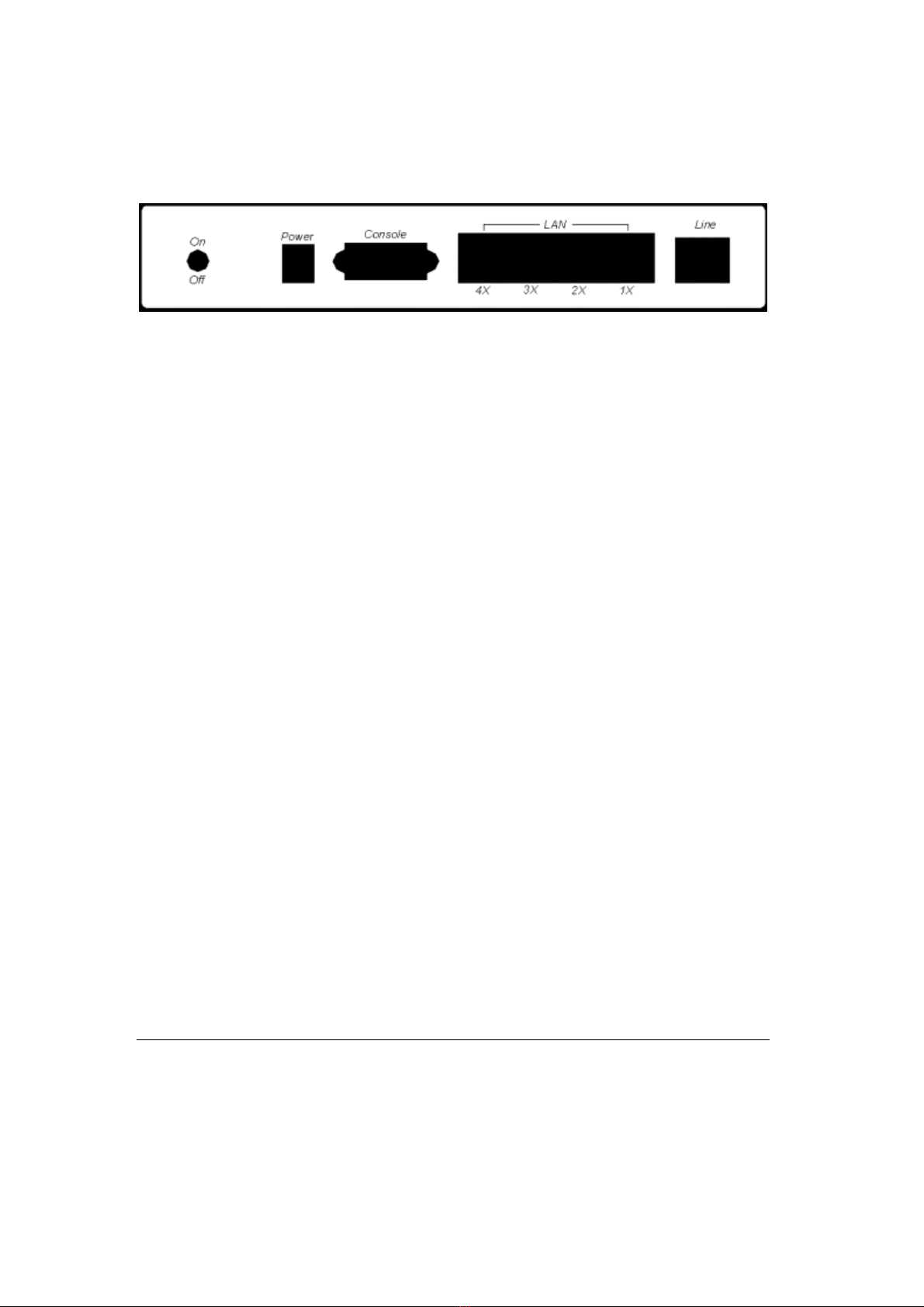

2.2 Rear-panel Connections

Step 1

Step 2

Step 3

DSL connection

Connect the supplied RJ-45 cable to the port marked LINE at the back of the

SHDSL router. Connect the other end of the cable to your telephone-line wall

outlet. Ensure your computer is turned on before you connect the DSL line to the

router. A green LED on the front of the device labeled LINK will illuminate. If the

SHDSL LINK LED does not illuminate within one minute of it being connected,

check your cable connections to ensure they are correct and securely installed.

Ethernet connection

Insert one end of the RJ45 Ethernet cable into one of the LAN ports marked LAN

on the back of the SHDSL router. Connect the other end of the cable into your

Ethernet Network Interface Card (NIC) installed in your computer. When the

Ethernet connection is established, the correspondent green LED on the front

panel labeled LAN will illuminate. You can connect up to four PCs, by repeating

this process.

Power connection

Connect the supplied external AC adapter into the DC power outlet on the back of

the router. Connect the power supply into your wall outlet or surge protector.

Turn on the power switch. After powering on, the router performs a self-test.

Wait for a few seconds until the test is finished, then the router will be ready to

operate. The POWER indicator on the front of the router will illuminate green to

indicate that power is being supplied to the router.

Caution 1: If the router fails to power up, or it malfunctions, first verify that the

power supply is connected correctly. Then power it on again. If the

problem persists, contact our technical support engineers.

Caution 2: Before servicing or disassembling this equipment always disconnect all

power cords and telephone lines from the wall outlet.

Indice

Altri manuali Comtrend Corporation Router di rete

Comtrend Corporation

Comtrend Corporation AR-5312u Manuale utente

Comtrend Corporation

Comtrend Corporation CT-500S Manuale utente

Comtrend Corporation

Comtrend Corporation ES-721 1PoE Manuale utente

Comtrend Corporation

Comtrend Corporation GS-7505 Manuale utente

Comtrend Corporation

Comtrend Corporation AR-5381u Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5611TC Manuale utente

Comtrend Corporation

Comtrend Corporation AR-5381u Manuale utente

Comtrend Corporation

Comtrend Corporation CT-6382D Manuale utente

Comtrend Corporation

Comtrend Corporation AR-5381u Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5364A Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5072T Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5364A Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5611E Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5372 Manuale utente

Comtrend Corporation

Comtrend Corporation NexusLink 5631 Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5071E Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5624S Manuale utente

Comtrend Corporation

Comtrend Corporation NEXUSLINK 3111u Manuale utente

Comtrend Corporation

Comtrend Corporation CT-510 Manuale utente

Comtrend Corporation

Comtrend Corporation AR-5382u Manuale utente

Comtrend Corporation

Comtrend Corporation ES-7201PoE Manuale utente

Comtrend Corporation

Comtrend Corporation CT-520 Manuale utente

Comtrend Corporation

Comtrend Corporation VR-3033 Manuale utente

Comtrend Corporation

Comtrend Corporation CT-5367 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
