ASSEMBLY INSTRUCTION
Whiteboard wings for display moutns
Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com
CONEN/02/2020
S(L)WBW-...
2
3
2
3
2
ABC
1
1
2 x
4
2 x
4
A.1

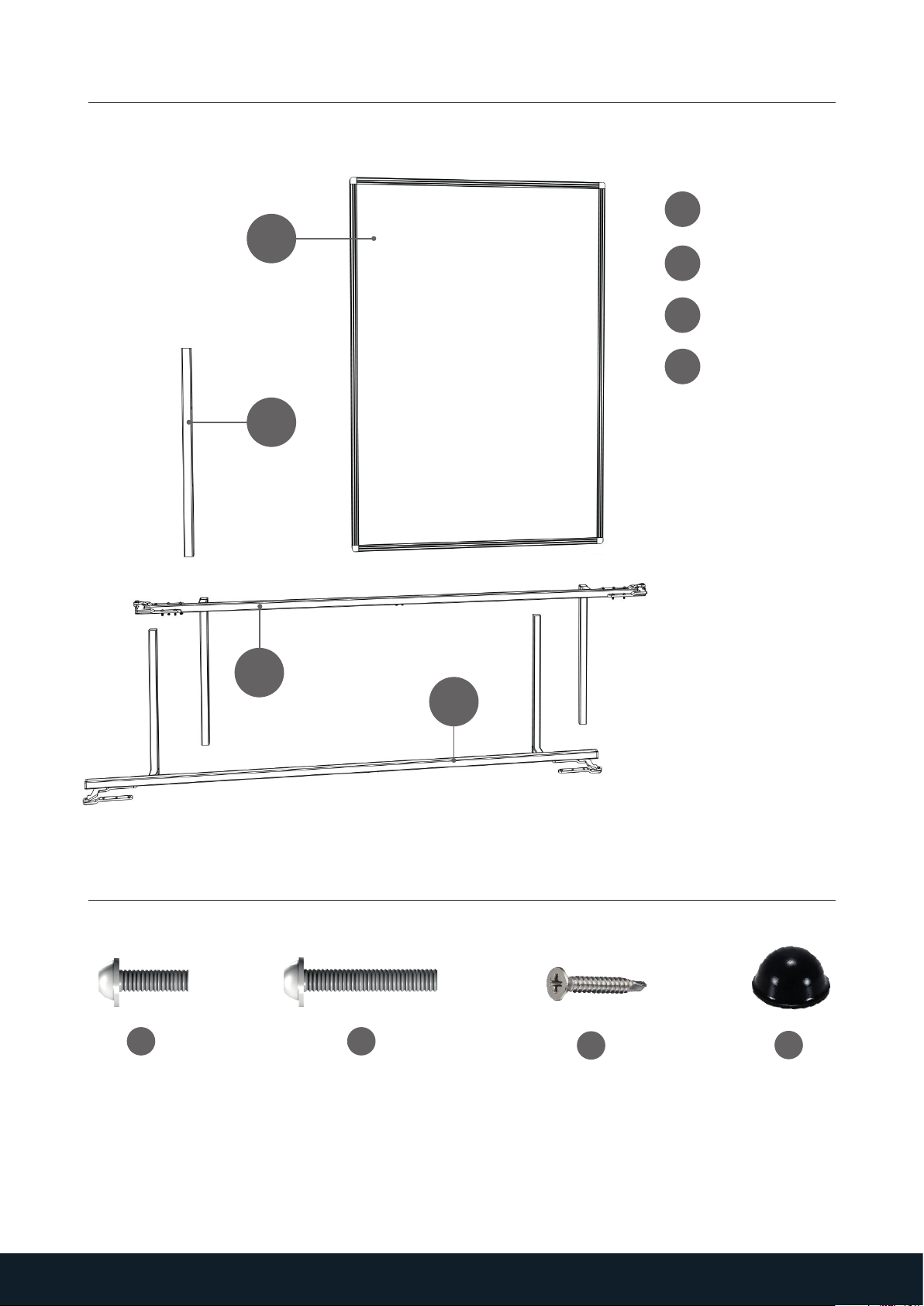

PACKAGE CONTENTS
4 x M8 x 16
Lenshead Allen
screw with flange
Upper bar
Lower bar
12 x 4,2 x 25
Self-tapping screw
4 x
Buffer
2 x Mounting bar
2 x Side wings
4 x M8 x 40
Lenshead Allen
screw with flange
Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com
3
MOUNTING INSTRUCTIONS
Mounting on AF-SCETAR Mounting on AF-SCETAN12, AF-PY-N12
Mounting on AF-SCETAN, AF-PY-N
Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com
4
2
2
3
3
1
1
1
1
A
1
A.1
1
2
3
1
1
1.1 1.2
MOUNTING INSTRUCTIONS
Mounting on AF-SCETAN, AF-PY-N
AF-SCETAN12, AF-PY-N12
Mounting on AF-SCETAR
Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com
5
6
4B
4
4
4
4
2& 3
4
C
MOUNTING INSTRUCTIONS
Hinge
For adjustment of the wings, release
screws connected to the upper or lower
bridge, readjust the wing and tighten
screws again.
Please check the sliding path
on an manually height-
adjustable pylon systems.
If necessary, move the upper
limit stoppers up or down,
so that the display does not hit the
ceiling or the counterweights do not
touch the floor.
