ConServ CD 4040 W Manuale utente
High Efficiency Dryer
(Condensing)
Model - CD 4040 W/B/T

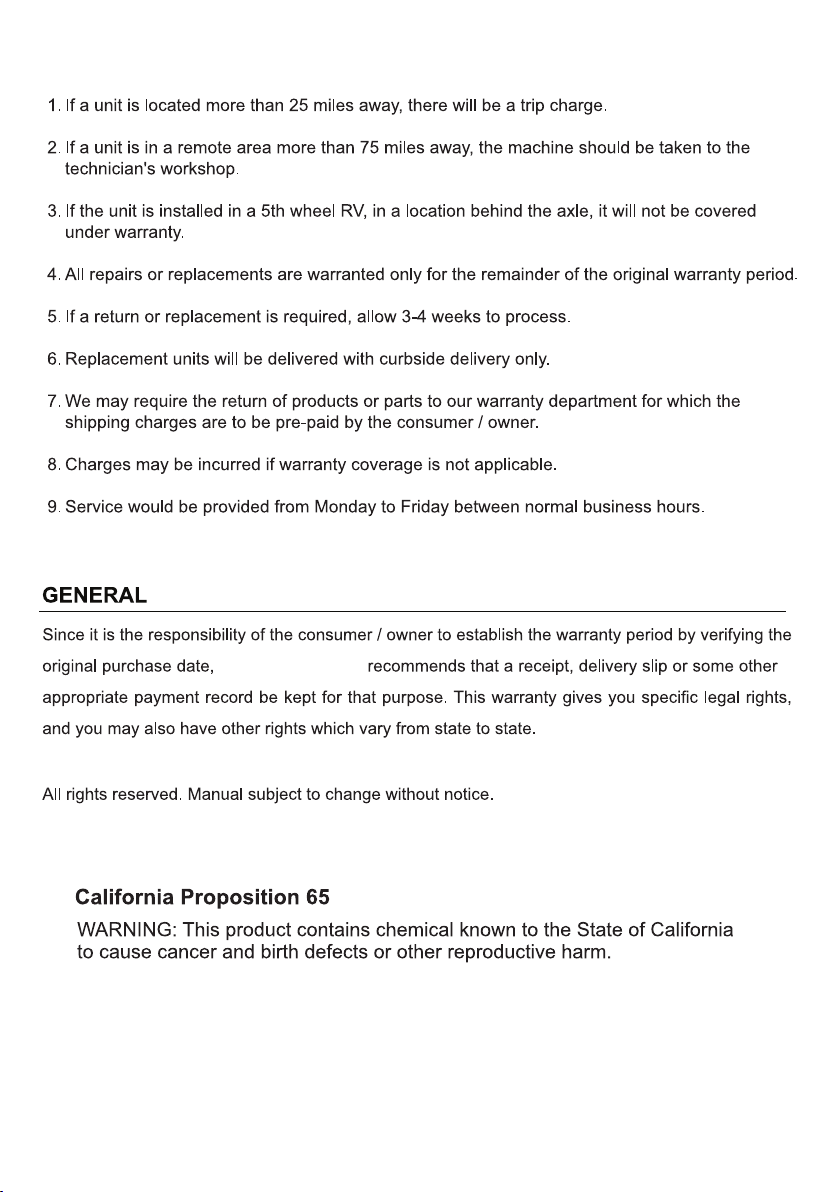

Your appliance is protected by this warranty under
normal, personal, family or household use for 2 Year Parts & Labor
and limited commercial use (90 days) in USA and Canada.
two
Conserv Appliances
Conserv Appliances
Conserv Appliances
1. Non-cleaning of lint filters and condenser.
1. Non-removal of shipping bolts, causing vibration, resulting in internal damage.
2. Non-adjusment of feet to level machine, causing vibration, resulting in internal damage.
In no event shall Conserv Appliances be liable for incidental or consequential damages or for
damages resulting from external causes such as abuse, operation misuse, neglect,
alterations, normal wear and tear, incorrect voltage or acts of God. This warranty does not
cover service calls which involve defective workmanship, damage due to other products while
combined use with this product or materials covered by this warranty. Accordingly, diagnosis
and repair costs for a service call which involves defective workmanship or materials will be
the responsibility of the consumer-owner.
Most work is covered. The defining factor is has the appliance malfunctioned (Conserv
Appliances is responsible) or has the customer omitted or done something to cause malfunction
(customer is responsible).
Exclusions
Conserv Appliances
Warranty Limitations
Table of Contents
Safety
Installation
Electrical Connection
Connection to Water Outlet
Connecting the Water Discharge Hose
Operations
Control Panel
Program Dial
Dry Programs Table
Display Panel
Maintenance
Troubleshooting
Technical Specifications
Error Codes
1
4
5
8
8
9
9
10
11
12
14
16
17
18
SAFETY
Your safety and the safety of others are very important.
Please read and follow the important safety warnings in this manual and on
your appliance.
Danger indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
Warning indicates a hazardous situation that if not avoided, ,
could result in death or serious injury.
, Caution indicates a hazardous situation that if not avoided,
could result in minor or moderate injury.
DANGER
WARNING
CAUTION
• Do not wash items that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances, as they give off vapors that could ignite or explode.
• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive
substances to the wash water. These substances give off vapors that could
ignite or explode.
• Do not store flammable liquids near the appliance.
• The sulfur content of paint removers may cause corrosion. Never use paint
removing materials in the appliance.
• Never use products that contain solvents in the appliance.
• Please ensure that items loaded into your appliance do not have plastic, metallic,
or sharp objects such as pins, keys, or coins.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the manual or in published user-repair instructions
that you understand and have the skills to carry out.
• To reduce the risk of electric shock, disconnect this appliance from the power
supply before attempting any maintenance. Turning the controls to the OFF
position does not disconnect this appliance from the power supply.
Risk of Fire
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, always follow basic precautions.
1
Do not touch the drain hose or any discharged water while your appliance is
running. The high temperatures pose a burn risk.
Risk of Injury or Death from Electrical Current
• Do not connect your appliance to the mains electricity supply using an
extension cord.
• Do not insert a damaged plug into a socket.
• Never remove the plug from the socket by pulling the cord. Always hold the plug.
• Never touch the power cord/plug with wet hands as this could cause a short circuit
or electric shock.
• Do not touch your appliance if your hands or feet are wet.
• A damaged power cord/plug can cause fire or give you an electric shock.
A damaged cord or plug must be replaced by a qualified technician.
• Connect to a dedicated circuit.
Risk of Burns
WARNING
2
Risk of Falling and Injury
• Do not climb on your appliance.
• Do not reach into the appliance if the drum is rotating.
• Ensure hoses and cables are secured and do not present a tripping hazard.
• Do not turn your appliance upside down or on its side.
• Do not lift your appliance using the door.
• The appliance must be carried by at least 2 people.
Child Safety
• The appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not leave children unattended near the . Children might lockappliance
themselves in the appliance resulting in risk of death.
• Children should not play with the appliance.
• Cleaning and maintenance should not be done by children.
• Do not allow children to touch the glass door during operation. The surface
becomes extremely hot and may cause damage to skin.
• Poisoning and irritation may occur if detergent and cleaning materials are
consumed or come into contact with the skin and eyes. Keep cleaning materials
out of the reach of children.
• Keep packaging material away from children. The packaging of the appliance
could be hazardous to children. Do not allow children to play with the packaging or
small parts from the appliance.
• Keep the packaging materials in a place where children cannot reach them or
dispose of them appropriately.
• Before the appliance is removed from service or discarded, remove the door to
prevent child entrapment.
Safe disposal
Dispose off this appliance in accordance with local regulations.
3
Installation
Please check the packaging of the washer and the outer surface of the washer once
the packaging has been removed. Do not operate the washer if it appears damaged
or if the packaging has been opened.
Your dryer must only be installed by an authorized service agent.
• o o
The operating temperature of the dryer is 41 F to 95 F.
• Do not install or store this where it will be exposed to the weather or outdoors.dryer
• Install your dryer in a location that can be fully ventilated and preferably has
constant air circulation.
• Do not install the dryer on a carpet or surfaces that would prevent the ventilation of
its base.
• Ensure that the door of your dryer is not restricted and can be opened fully.
dryer place the dryer on a flat, • To ensure silent and vibration-free operation of the
smooth and firm surface. Ensure the back of the dryer is against a wall.
Leveling
• Level your using the adjustable feet. Never insert cardboard, wood or other dryer
similar materials under the to level it.washer
• To increase the height of the , turn the feet clockwise. To decrease the height dryer
of the , turn the feet counterclockwise.washer
• Once the is level, tighten the locking nuts by turning them clockwise.dryer
Under Counter Installation
• Leave at least 1 inch (3 cm) of space between the side and rear walls of the
product and the underside of the counter top when installing your dryer under
a counter.
• Assembly / disassembly under the counter must be done by an
authorized technician.
Stacking kit
If you are going to place the dryer above the washer, you must obtain a stacking kit
that is specific for this model of dryer from Customer Service.
Do not place the washer above the dryer.
4
The mains cable of the dryer is equipped with a special plug. This plug must be
connected to a grounded socket protected by a fuse of 16 Amperes as indicated
on the type plate. The fuse current rating of the power line where the outlet is
connected must also be 16 amperes. Consult a qualified electrician if you do not
have such an outlet or fuse.
Our company cannot be held responsible for damages resulting from usage
without grounding.
5
dryer
Before you start, determine which receptacle you have.
