CICP2800PMBD Base Processor PC Board

CICP18MEM8MB SRAM 8MB Memory Module

Installation Instructions

OVERVIEW

The CICP2800PMBD Base Processor PC Board is in-

stalled into four metal standoffs located at the top of the Ac-

celaterm enclosure, and is connected to the Accelaterm Inter-

face PC board with a ribbon cable. Optionally, up to two

model CICP18MEM8MB 8MB SRAM Memory Module(s)

can be installed into the CICP2800PMBD Base Processor.

See installation instructions WI1989 for more information re-

garding the installation of the Accelaterm control panel.

CICP2800PMBD REMOVAL AND INSTALLATION

Prior to opening the CICP2800PMBD Base Proces-

sor package or touching anything inside the control

panel enclosure, discharge any static electricity from

your body or clothing. Use a grounded wrist strap or

touch an unpainted, grounded metal object such as

the metal frame of the panel enclosure.

1. Remove power from the system, and disconnect the bat-

teries.

2. Unplug the ribbon cable from the existing

CICP2800PMBD PC board.

3. Pinch each of the four (4) metal standoffs one at a time until

the PC board is free. Carefully remove the

CICP2800PMBD from the enclosure.

4. Align the four (4) mounting holes in the new

CICP2800PMBD PC board with the four (4) metal stand-

offs, and push the PC board into the standoffs to secure.

Connect the ribbon cable.

5. Activate the Memory Backup Lithium Cell by removing the

small paper from the cell holder. The voltage provided will

ensure memory data is retained should power by lost from

the Accelaterm Interface PC board.

6. Restore power to the system, and reconnect the batteries.

Note: If desired, up to two model CICP18MEM8MB 8MB

SRAM Memory Module(s) can be installed into the

CICP2800PMBD Base Processor PC board before the

CICP2800PMBD board is installed into the Accelaterm panel

enclosure. NEVER use standard PC-type 72 pin Dynamic

RAM SIMM devices in place of the CICP18MEM8MB Mem-

ory Modules.

CICP18MEM8MB SRAM INSTALLATION

Prior to opening the Memory Module package or

touching anything inside the control panel enclosure,

discharge any static electricity from your body or

clothing. Use a grounded wrist strap or touch an

unpainted, grounded metal object such as the metal

frame of the panel enclosure.

1. Before installation, verify that the Accelaterm panel is working

correctly. Verify that the OK lamp (LED) on the Accelerator

board blinks once per second.

2. Inside the panel housing, remove power from the main control

panel PCB and disconnect the battery wires to remove all

power from the system.

3. Move the MEMORY BACKUP CELL

jumper J4 to the IN position to remove

power from the static RAM, thus mak-

ing installation safer for the memory

components (see Fig. 2).

4. Note: Do not bend the Memory Module(s). Touch only the

edges.

The motherboard sockets and the Memory Modules are both

keyed to ensure foolproof installation (each socket in the

CICP2800PMBD Base Processor PC Board contains a small

bridge that aligns with a notch in the bottom edge of each mod-

ule). The bridge and the notch allow the Memory Module to be

installed only in the correct direction.

•If installing only one Memory Module, insert the module

into the bank labeled "MemExp1".

•If installing two Memory Modules, insert the first module

into the bank labeled "MemExp2", then insert the second

module into the bank labeled "MemExp1".

5. Align the Memory Module: With the module angled to the

rear of the enclosure, align the module with the socket, then

completely insert the module into the socket as shown in Fig. 3,

below. If you encounter any problems inserting the module,

stop and verify the notch and the plastic bridge are properly

aligned. NEVER force the Memory Module into the socket; if

excess force is used, damage to both the module and the moth-

erboard socket could result.

CONTINENTAL ACCESS LLC

A NAPCO SECURITY GROUP COMPANY

355 Bayview Avenue, Amityville, NY 11701

Phone: 631-842-9400 Fax: 631-842-9135

www.cicaccess.com

Publicly traded on NASDAQ Symbol: NSSC

CLR

OUT

Fig. 2: "IN" Position

Fig 1.: CICP2800PMBD Base Processor PC Board with two CICP18MEM8MB

SRAM Memory Module(s) installed

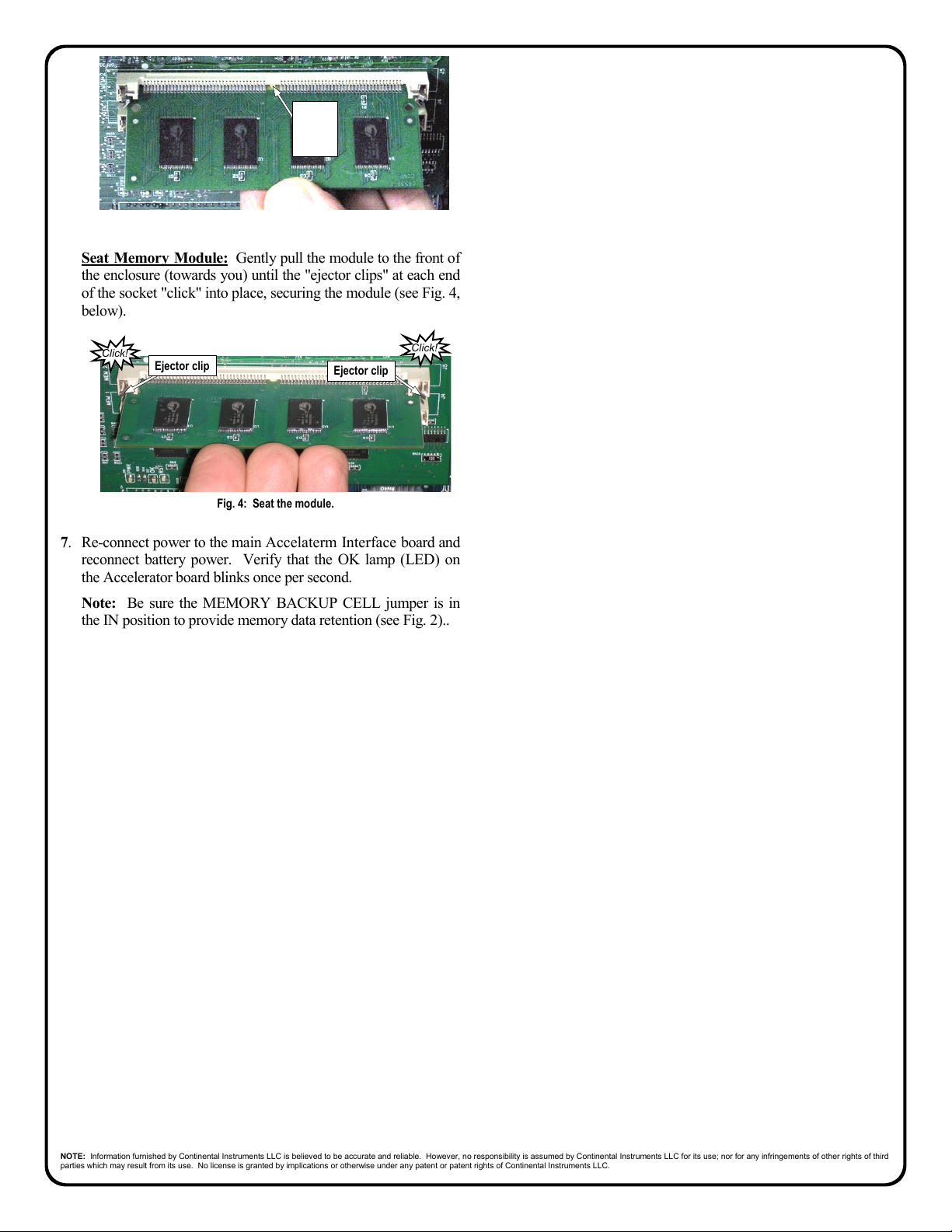

Seat Memory Module: Gently pull the module to the front of

the enclosure (towards you) until the "ejector clips" at each end

of the socket "click" into place, securing the module (see Fig. 4,

below).

7. Re-connect power to the main Accelaterm Interface board and

reconnect battery power. Verify that the OK lamp (LED) on

the Accelerator board blinks once per second.

Note: Be sure the MEMORY BACKUP CELL jumper is in

the IN position to provide memory data retention (see Fig. 2)..
