CORE 1 and CORE 3 Wall-Mount Bracket
Installation Guide
Box contents
• C4-CORE1-WM Control4 CORE 1 Wall-Mount Bracket
OR
• C4-CORE3-WM Control4 CORE 3 Wall-Mount Bracket
Description
These wall-mount brackets are designed specifically for use with the Control4 CORE 1 Hub and Controller (C4-CORE1) or Control4 CORE 3 Hub and
Controller (C4-CORE3). The brackets provide several mounting options, such as on-wall or behind a TV in various orientations. The brackets have
VESA-standard hole sizes of 75 mm, 100 mm, and 200 mm (CORE 3 bracket only) for use on the back of a TV or monitor when the VESA mounts are
not in use. Several wall-mounting options are available as well, including standard US single-gang and double-gang box mounting.
Important! Do not mount over 6 ft high (2 m).
Important: Ne pas monter à plus de 6 pi de haut (2 m).
Important! Mount the bracket with the tabs on the bottom (opening to the top) so the controller will not fall out of the bracket.
Important! Montez le support avec les languettes en bas (ouverture vers le haut) afin que le contrôleur ne tombe pas du support.
Installing the bracket
To mount the bracket behind the TV
For most TVs, the VESA mounts are unused when the
original TV stand is in use. The bracket can be installed
behind the TV and hold the controller for a clean
installation.
Note: Use the mounting screws that came
with the TV. Using a longer screw may
damage the TV.
VESA hole patterns shown in the images:
• 75 mm
• 100 mm
• 200 mm (CORE 3 bracket only)
To mount the bracket to a wall box
A standard US single-gang or double-gang wall box
can be used to install the wall-mount bracket. This
option is for convenience only, and high-voltage wiring
should not be located in the gang box when using this
option.
Wall box hole patterns shown in the images:
• 1 gang wall box
• 2 gang wall box
75 mm 75 mm
75 mm 75 mm
100 mm 100 mm
100 mm 100 mm
200 mm 200 mm
75 mm 75 mm
75 mm 75 mm
100 mm 100 mm
100 mm 100 mm

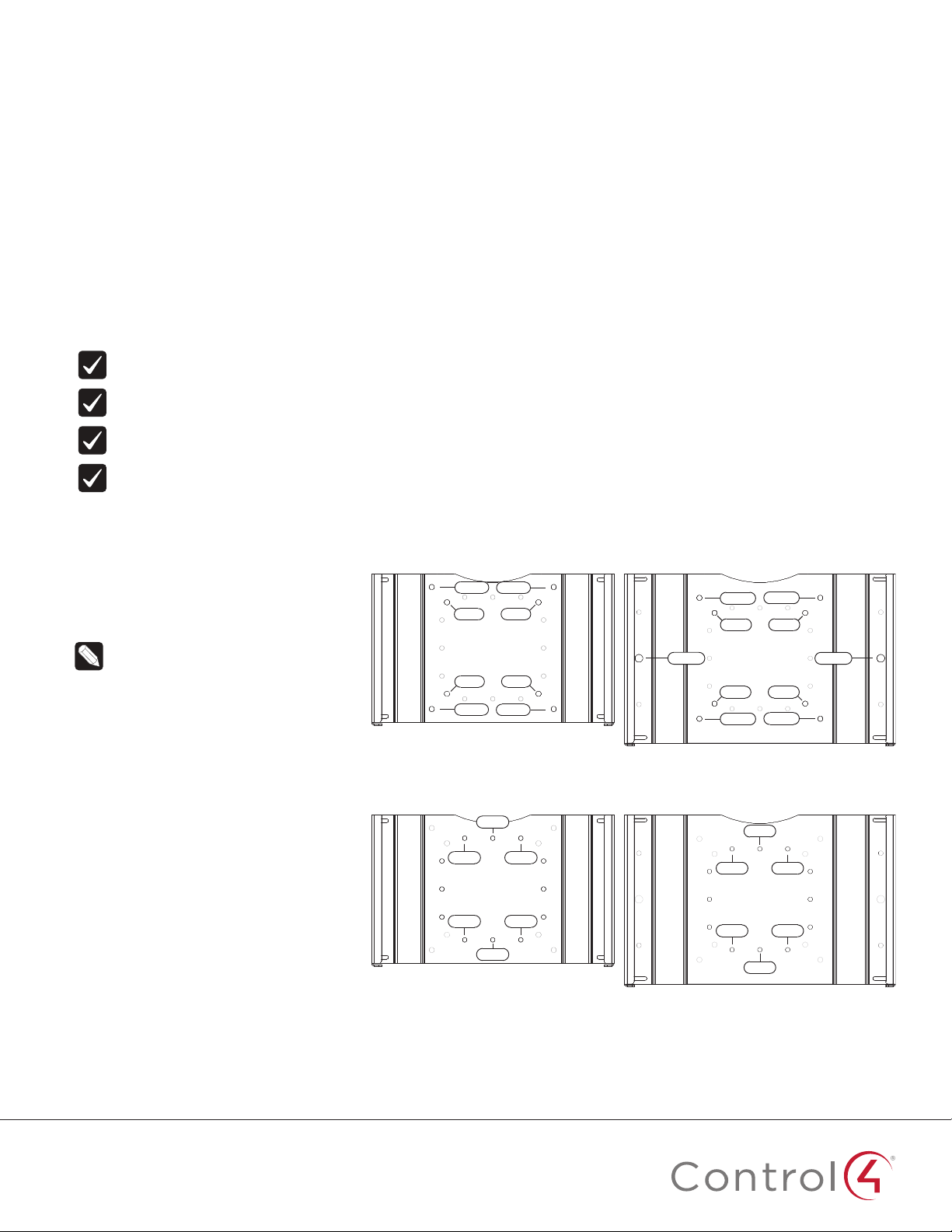

VESA patterns on the CORE 1 bracket VESA patterns on the CORE 3 bracket
2 gang 2 gang
1 gang
2 gang 2 gang
1 gang
2 gang 2 gang
1 gang
2 gang 2 gang
1 gang
Wall-box patterns on the CORE 1 bracket Wall-box patterns on the CORE 3 bracket
control4.com | 888.400.4070
To mount the bracket directly to the wall or other flat surface
Proper hardware (not included) should be used,
depending on the material that the wall-mount
bracket will be installed on. Mounting into a stud is
recommended.
Direct wall installation hole pattern shown in the
image:
• Wall-mount installation
Adding and removing the controller from the bracket
To add the controller to the bracket:
1 Orient the front or back of the controller toward the top of the bracket (the bottom has tabs to keep the controller from sliding out.) The
controller can be mounted either frontside-up or backside-up depending on the installation needs.
2 Slide the controller fully into the bracket.
3 Connect cables and then power on the controller.
To remove the controller from the bracket:
1 Power o the controller and then remove cables.
2 Slide controller up out of the mount.
Legal, Warranty, and Regulatory/Safety information
Visit snapone.com/legal for details.
More help
For the latest version of this document and to view additional materials, open the URL below or scan the QR code on a device that can view PDFs.
MORE INFO ON CORE CONTROLLERS
ctrl4.co/core
MOST RECENT VERSION
ctrl4.co/core-wm
A
200-00760-A
2022-05-31 DH
Wall mount
Wall mount
Wall mount
Wall mount
Wall mount
Wall mount
Wall mount
Wall mount

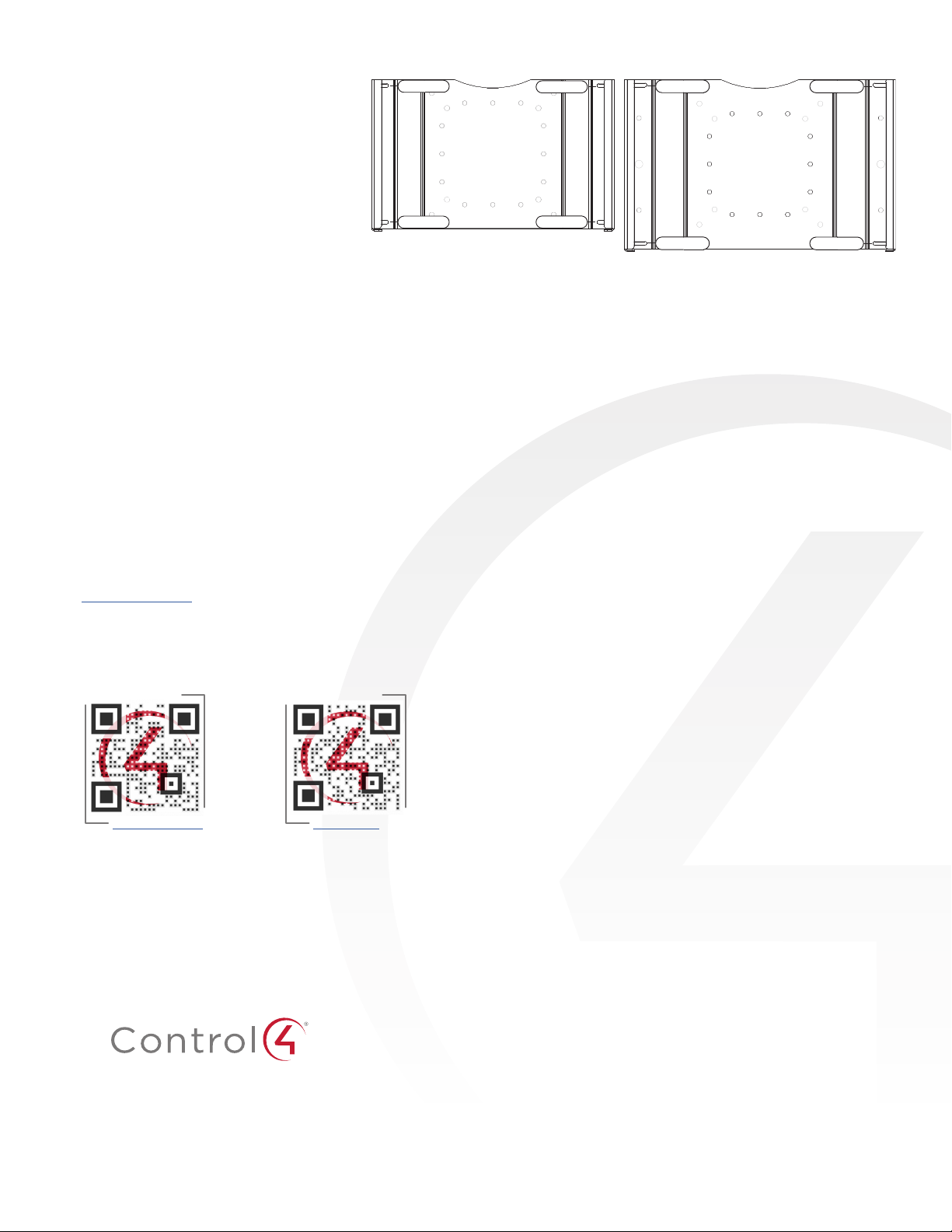

Wall-mount patterns on the CORE 1 bracket Wall-mount patterns on the CORE 3 bracket
Copyright 2022, Snap One, LLC. All rights reserved. Snap One and its respective logos are
registered trademarks or trademarks of Snap One, LLC (formerly known as Wirepath Home
Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My
Home, SnapAV, Mockupancy, NEEO, OvrC, Wirepath, and Wirepath ONE are also registered
trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the
property of their respective owners. Snap One makes no claim that the information contained
herein covers all installation scenarios and contingencies, or product use risks. Information
within this specification subject to change without notice.
