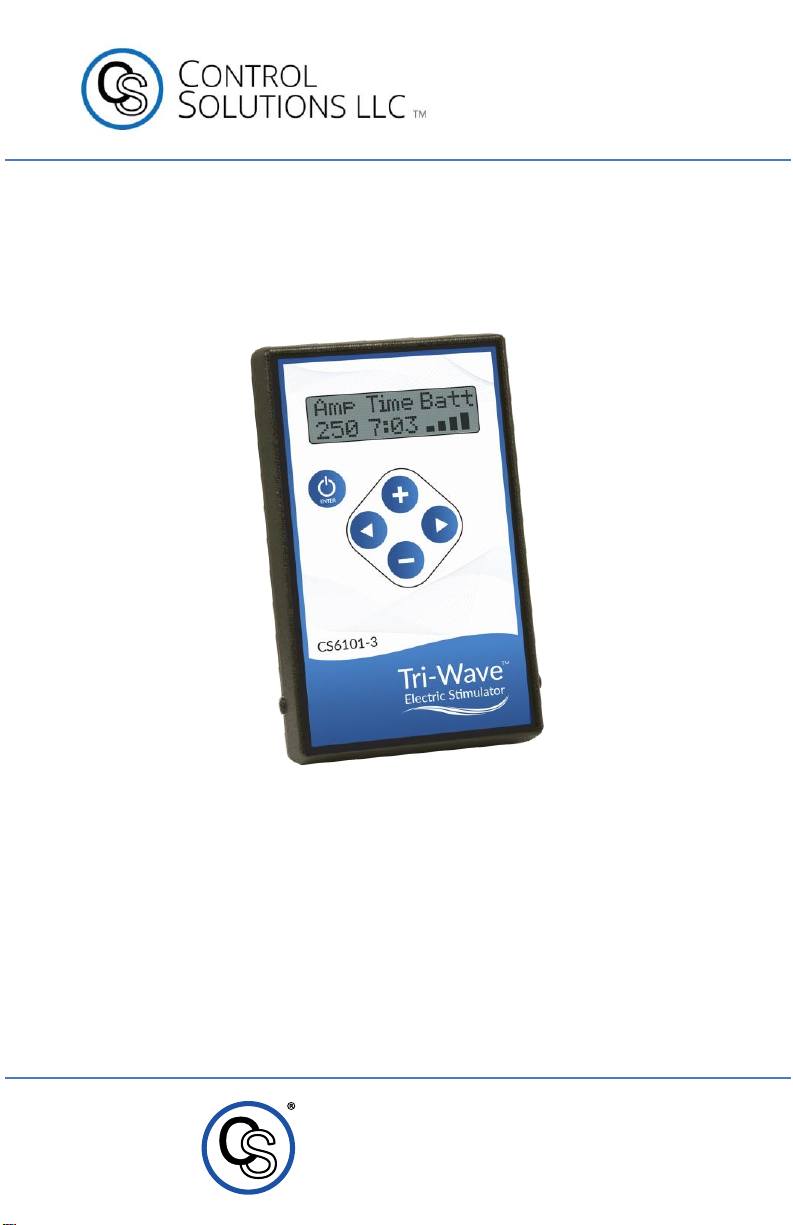

CONTROL SOLUTIONS CS6101-3 Manuale utente

8-31-23

Document Number: DOC0004332

Revision: A

Interferential Stimulator

Patient Instruction Manual

CS6101-3

Control Solutions LLC

2520 Diehl Road • Aurora, IL

60502

www.controls.com

CS6101-3 Interferential Stimulator Patient Instruction Manual

Control Solutions LLC Page 2 of 36

Warranty

For warranty information and limitation of liability please refer to the following website:

http://www.controls.com/index.php/support/warranty

Disclaimer

Control Solutions LLC reserves the right to update this manual at any time without notice. This manual supersedes all

previous issues, which must no longer be used. Control Solutions LLC reserves the right to change this product without

any notification.

Control Solution LLC and the Control Solutions logo are trademarks of Control Solutions LLC.

All other brand and product names, company names, and logos are trademarks or registered trademarks of their

respective companies.

All materials contained within this manual, in printed or electronic format, are protected by copyright laws and other

intellectual property laws.

Manufactured by

Control Solutions LLC

2520 Diehl Road

Aurora, Illinois 60502

Tel: (630) 806-7062

Fax: (630) 806-7065

Web: www.controls.com

Patient Instruction Manual CS6101-3-3 Interferential Stimulator

Page 3 of 36 Control Solutions LLC

Table of Contents
Page
Warranty..................................................................................... 2
Disclaimer................................................................................... 2
Introduction................................................................................ 7
Purpose.......................................................................................................7
Scope ..........................................................................................................7
Revision Summary ......................................................................................7
Precautions..................................................................................................7
Terms ..........................................................................................................8
Definitions....................................................................................................8
References..................................................................................................8
Related Products.........................................................................................8
Audience......................................................................................................8
Interferential Stimulation.......................................................... 9
How it Works ...............................................................................................9
How it Feels.................................................................................................9
Benefits........................................................................................................9
Neuromuscular Stimulation (Including Russian) ................ 10
How it Works .............................................................................................10
How it Feels...............................................................................................10
Benefits......................................................................................................10
TENS Stimulation .................................................................... 10
Safety Precautions and Warnings......................................... 11
Interferential Stimulation............................................................................11
Indications............................................................................................11
Contraindications.................................................................................12
Warnings..............................................................................................12
Precautions..........................................................................................12
Adverse Effects....................................................................................13
Neuromuscular Stimulation .......................................................................13
Indications............................................................................................13
Contraindications.................................................................................13
Warnings..............................................................................................13

CS6101-3 Interferential Stimulator Patient Instruction Manual

Control Solutions LLC Page 4 of 36
Precautions..........................................................................................14
Adverse Effects....................................................................................15
Product Description................................................................ 17
Overview....................................................................................................17
Features ....................................................................................................18
Specifications ............................................................................................19
Kit Content.................................................................................................20
Unit Layout............................................................................... 21
Display.......................................................................................................21
Input and Navigation..................................................................................22
Electrode and DC-IN Jacks .................................................................23
Operating Instructions............................................................ 24
Preparing Electrodes.................................................................................24
Attaching Electrodes..................................................................................25
Treatment Using Standard Built-In or Memory Modes..............................26
Patient Modes of Operation.......................................................................28
After Treatment Care.................................................................................29
Reusable Electrode Care.....................................................................29
CS6101-3 Unit Care ............................................................................29
Additional Features................................................................. 31
Auto Shut-off..............................................................................................31
Multiple Treatments...................................................................................31
Care and Maintenance............................................................ 32
Troubleshooting the CS6101-3.............................................. 33
Error Codes...............................................................................................34
Contacting Customer Service................................................ 35



Patient Instruction Manual CS6101-3-3 Interferential Stimulator

Page 5 of 36 Control Solutions LLC

List of Tables

Page

Table 1 - Abbreviations and Acronyms.............................................................8

Table 2 - CS6101-3 Product Specifications....................................................19

Table 3 - Kit Contents .....................................................................................20

Table 4 - Interferential Stimulator Navigation..................................................22

Table 5 - Interferential Stimulator Jacks..........................................................23

Table 6 - Attaching Electrodes........................................................................25

Table 7 - Treatment Setup..............................................................................26

Table 8 - Treatment Button Functions.............................................................27

Table 9 - Mode Details....................................................................................28

Table 10 - Patient Modes of Operation Descriptions ......................................29

Table 11 - Troubleshooting Hints....................................................................34

List of Figures

Page

Figure 1 - Precaution Blocks.............................................................................7

Figure 2 - CS6101-3 Interferential Stimulator .................................................17

Figure 3 - Interferential Stimulator Front.........................................................21

Figure 4 - Interferential Stimulator Left and Right Sides.................................23

Figure 5 - Electrode Placement.......................................................................25

Figure 6 - Treatment Display...........................................................................26

Figure 7 - Battery Capacity .............................................................................30

CS6101-3 Interferential Stimulator Patient Instruction Manual

Control Solutions LLC Page 6 of 36

This page intentionally left blank

Patient Instruction Manual CS6101-3-3 Interferential Stimulator

Page 7 of 36 Control Solutions LLC

Introduction

Before using the CS6101-3 Interferential Stimulator please read this entire manual carefully

to become familiar with the features, benefits, and operation.

Purpose

This manual is intended to provide the Patient with information required to set-up,

connect, and successfully use the CS6101-3 Interferential Stimulator.

Scope

This manual describes the CS6101-3 Interferential Stimulator and its layout, buttons,

and usage. It also provides general care and maintenance as well as basic

troubleshooting tips.

Revision Summary

Revision

Update

Converted document to new format and updated the information

to support the latest version of the Interferential Stimulator.

Precautions

This document contains hazard statements for your safety. Hazard statements are

provided where safety consequences to personnel, equipment, and operation may exist.

Failure to follow these statements may result in serious consequences.

A standard set of icons and notes are used to draw your attention to precaution or note

statements. Figure 1 provides some sample icons and statements.

A warning statement indicates the presence of a hazard that can

cause severe injury or death.

Warning

A caution statement indicates the presence of a hazard that can or

will cause minor injury or property damage.

Caution

This symbol is used whenever there is relevant supplemental

information.

Figure 1 - Precaution Blocks

CS6101-3 Interferential Stimulator Patient Instruction Manual

Control Solutions LLC Page 8 of 36

Terms

Table 1defines the abbreviations and acronyms used in this document.

Abbreviation –Acronym

Definition

Alternating Current

CSLLC

Control Solutions Limited Liability Corporation

Direct Current

ECG

Electrocardiogram

ESD

Electrostatic Discharge

HVGS

High-Voltage Galvanic Stimulation

Hertz

Interferential Stimulation

LCD

Liquid Crystal Display

LED

Light Emitting Diode

NiMH

Nickel-Metal Hydride

NMS

Neuromuscular Stimulation

TENS

Transcutaneous Electrical Nerve Stimulation

Table 1 - Abbreviations and Acronyms

Definitions

None

References

None

Related Products

Below are supported accessories:

•CS1210A AC wall adapter

•CS2110X (1) pair of Touch Proof®electrode wire leads

•CS4101 7.2 V NiMH battery pack

Audience

This document was prepared for Patients use. It is intended to provide the necessary

information to understand and safely use the CS6101-3 Interferential Stimulator.

Patient Instruction Manual CS6101-3-3 Interferential Stimulator

Page 9 of 36 Control Solutions LLC

Interferential Stimulation

This section describes how Interferential Stimulation works, how it feels and benefits of

therapy.

How it Works

Interferential Stimulation uses two medium frequency currents which are applied to the

patient simultaneously using two pairs of electrodes. The electrodes are placed on the

patient diagonally around the area to be treated. One pair of electrodes is at a fixed

frequency of 4000Hz while the other pair of electrodes is variable, between 4001Hz and

4150Hz. At the point where the two currents cross, a beat, or interference frequency

results which is the difference of the two currents (1-150Hz). Since medium frequencies

encounter little skin resistance they penetrate deep into the soft tissue and bone to the

affected area. This causes the body to secrete endorphins and other natural pain killers

to help relieve pain. This type of therapy may be used to provide symptomatic relief and

management of chronic pain, and/or as an adjunctive treatment for the management of

post-surgical and post-traumatic pain. Interferential Stimulation should not be confused

with other forms of neuro-stimulators such as Transcutaneous Electrical Nerve

Stimulation (TENS), Neuromuscular Stimulation (NMS), or High-Voltage Galvanic

Stimulation (HVGS).

How it Feels

Most patients find Interferential Therapy to be extremely beneficial and describe the

treatment as a faint "pins and needles" sensation.

Benefits

Interferential Therapy provides:

•Symptomatic relief and management of chronic pain and/or

•An adjunctive treatment for the management of post-surgical and post-traumatic pain

CS6101-3 Interferential Stimulator Patient Instruction Manual

Control Solutions LLC Page 10 of 36

Neuromuscular Stimulation (Including Russian)

This section describes how Neuromuscular Stimulations work, how it feels and benefits of

therapy.

How it Works

Neuromuscular Stimulation uses two medium frequency currents which are applied to

the patient simultaneously using two pairs of electrodes. The electrodes are placed on

the patient diagonally around the area to be treated. One pair of electrodes is at a fixed

frequency of 4000Hz. The other pair of electrodes is at a fixed frequency between 4001

and 4150Hz as programmed by the clinician. A sweep of amplitude then causes the

treated muscle to contract and relax during the course of treatment.

How it Feels

Most patients find Neuromuscular Stimulation to be extremely beneficial and describe

the treatment as a faint "pins and needles" sensation with the added sensation of

muscle contraction and relaxation.

Benefits

Neuromuscular Stimulation:

•Re-educates muscle

•Promotes muscle tone (prevents disuse atrophy)

•Maintains or increases range of motion

•Relaxes muscle spasms

•Increases local blood circulation

•Provides immediate post-surgical stimulation of calf muscles to prevent venous

thrombosis

TENS Stimulation

TENS waveforms are the equivalent of single pulses of IF or NMS waveforms with

programmable rest periods in between.

Indice

Altri manuali CONTROL SOLUTIONS Attrezzature per il fitness

CONTROL SOLUTIONS

CONTROL SOLUTIONS CS Medical Systems CS6103 Manuale utente

Manuali Attrezzature per il fitness popolari di altre marche

NSD

NSD PB-188P Manuale utente

Performance

Performance HyperVibe Manuale utente

Scalamobil

Scalamobil S27 Manuale utente

Precor

Precor Experience Series Manuale utente

FYTTER

FYTTER RedMIUM BENCH BE-T6R Manuale utente

Taurus

Taurus TF-RK1312 Manuale utente

Nustep

Nustep T5 Manuale utente

Precor

Precor CW-507 Manuale utente

Movement

Movement BICEPS Idea Manuale utente

Kegel8

Kegel8 V For Men Manuale utente

Skandika

Skandika Styrke II Manuale utente

BLK BOX

BLK BOX 21-0122-0B Manuale utente

Stamina

Stamina aeropilates premier 299 Manuale utente

SPORTSTECH

SPORTSTECH PBX300 Manuale utente

ParaBody

ParaBody Serious Steel 877102 Manuale utente

Weslo

Weslo Gym 650 Manuale utente

Rebel

Rebel ACTIVE RBA-1011 Manuale utente

4iiii

4iiii FLiiiight Manuale utente
