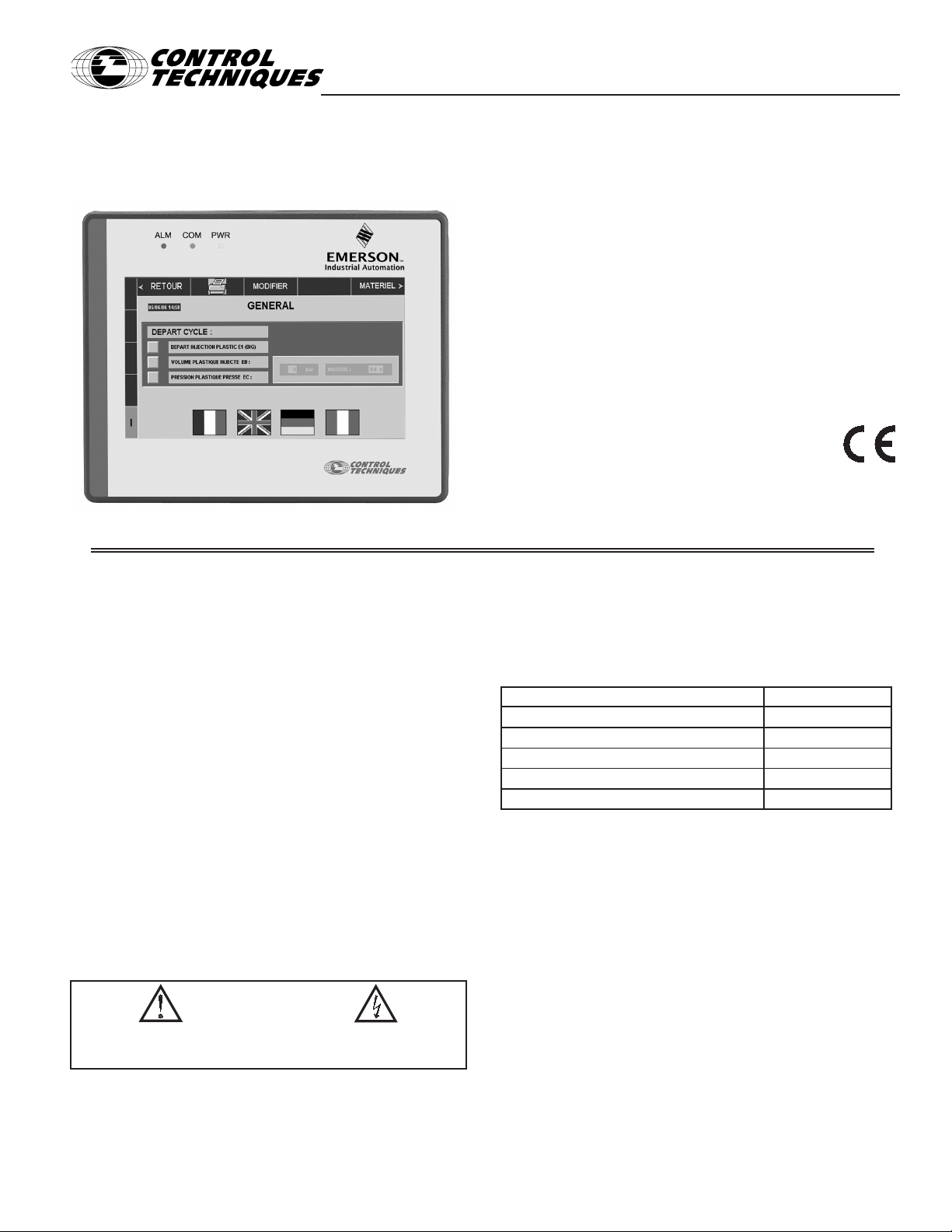

GENERAL DESCRIPTION
The 4.3-inch CTVUE-304K was designed for applications in which available
mounting space is at a premium. Though diminutive in size, the 304K boasts a
bright TFT display with full 256-color support. With a resolution of 480 x 272,
the 4.3-inch display has a higher resolution and better image clarity than most
6-inch HMIs.
The 304K offers two high-speed serial ports in the form of one RS-232 and
one RS-232/422/485 ports. This allows the operator interface to simultaneously
communicate with devices from different manufacturers, as well as to perform
protocol conversion.
The 304K is programmed with CTVue Configurator Software. The software
offers easy to use drag and drop communications configuration, while the
embedded image library allows the programmer to create intuitive screens and
prompts for the operator.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the unit.
CONTENTS OF PACKAGE
- 304K Operator Interface.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
- Spare fuse.
ORDERING INFORMATION
DESCRIPTION PART NUMBER
4.3"TFT Operator Interface CTVUE-304K
CTVUE Programming Software CD CTVUE-CONFIG-CD
USB to RS-232 Adaptor, includes “y” cable CTVUE-USB-232
Female DB9 to RS-485 Adaptor, 2-wire CTVUE-ADK-485
“Y” Cable CTVUE-SK0-000
MODEL 304K - OPERATOR INTERFACE WITH TFT DISPLAY
CONFIGURED USING CTVue CONFIGURATOR SOFTWARE
TWO SERIAL COMMUNICATIONS PORTS
(1 RS-232 AND 1 RS-232/422/485)
UNIT’S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
BRIGHT 4.3-INCH TFT ACTIVE MATRIX 256 COLOR 480 x 272
PIXEL DISPLAY
THREE FRONT PANEL LED INDICATORS
NEMA 4/IP65 FRONT PANEL
POWER UNIT FROM 12-28 VDC
RESISTIVE ANALOG TOUCHSCREEN
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
Bulletin No. CTVUE-304K-X
Drawing No. LP0798
Effective 05/09
Tel +1 952 995 8000
Fax +1 952 995 8099
www.emersonct.com
400370-09, Rev: X
2
1. POWER REQUIREMENTS:
Must use Class 2 or SELV rated power supply.
Power connection via removable three position terminal block.
Supply Voltage: 12-28 VDC, Class 2
Maximum Power: 3.6 W; Start up current may be as high as 700 mA
Fused: Fast-blow 800mA, 5x20mm
2. LCD DISPLAY:
3. TOUCHSCREEN: Four-wire resistive analog
4. MEMORY: 2MB of non-volatile flash memory
5. COMMUNICATIONS: Two Serial Ports - One RS-232 port, one
RS-232/422/485
Serial Ports: Format and Baud Rates for each port are individually software
programmable up to 115,200 baud.
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 45 °C
Operating and Storage Humidity: 10-90% relative humidity (non-
condensing) from 0 to 45°C.
Vibration: Operational 10 to 25 Hz in X, Y, Z direction for 30 minutes, 2 g’s.
7. CERTIFICATIONS AND COMPLIANCES:
ELECTROMAGNETIC COMPATIBILITY
Consult factory for EMC specifications
8. CONNECTIONS: Compression cage-clamp terminal block.
Wire Gage: 12-28 AWG copper wire
Communications: DB9M connection
9. CONSTRUCTION: Plastic enclosure with NEMA 4/IP65 front panel when
properly installed.
10. WEIGHT: 9.4 oz (270 g)
4.661 (118.4)
4.016
(102)
5.039 (128) 1.262 (32)
1.498 (38)
3.638
(92.4)
DIMENSIONS In inches (mm)
InstallIng and PowerIng the 304K
sPecIfIcatIons
R.08 (R2)
4.685 (119)
3.661 (93)
SIZE 4.3-inch
TYPE TFT
COLORS 256
PIXELS 480 X 272
BRIGHTNESS 300 cd/m2
BACKLIGHT LIFE
BACKLIGHT TYPE
50,000 HR TYP.
LED
MOUNTING INSTRUCTIONS
The unit can be mounted into enclosures with a depth of 4". It is
recommended that the unit be mounted on the front panel of a steel enclosure.
Allow clearance of 1" around the sides of the unit for the mounting hardware.
Place the unit in the panel cutout. Slide clamps into the four holes provided
at the top and bottom of the case. Tighten the clamping screws in an even
pattern until the unit is secured in the panel. Caution: Do not over tighten the
clamps. To seal to NEMA4 specifications, all supplied mounting clamps must
be used. The panel must not flex more than 0.010".
GND
3
communIcatIng wIth the 304K
+-
The 304K has two serial ports combined into a single DB9-M connector.
1
59
6
PC (RS-232)
PIN SYMBOL PLC (RS-232) PC (RS-232)
PLC (RS-485)
4 wire
PLC (RS-485)
2 wire
1 Rx- Data-Rx-
2 Rx+ Data+Rx+
3 Tx- Tx-
4 Tx+ Tx+
5 GND Signal Ground
6 TxD Transmit
7 TxD Transmit
8 RxD Receive
9 RxD Receive
DB9-M
PC CONNECTION
Configuration files are downloaded to the unit via the PC port, which can be
connected to a computer via various cables.
USB to Serial
PT# CTVUE-USB-232 (includes CTVUE-SK0-000)
Cable
PT# CTVUE-SK0-000
PLC
POWER SUPPLY REQUIREMENTS
The 304K requires a 12-28 VDC power supply. Please take care to observe
the following points:
- The wire used to connect the operator interface’s power supply should be
at least 22-gage wire. If a longer cable run is used, a heavier gage wire
should be used. The routing of the cable should be kept away from large
contactors, inverters, and other devices which may generate significant
electrical noise.
- A power supply with a Class 2 or SELV rating is to be used. A Class 2 or
SELV power supply provides isolation to accessible circuits from
hazardous voltage levels generated by a mains power supply due to
single faults. SELV is an acronym for “safety extra-low voltage.” Safety
extra-low voltage circuits shall exhibit voltages safe to touch both under
normal operating conditions and after a single fault, such as a
breakdown of a layer of basic insulation or after the failure of a single
component has occurred.
4
settIng the swItches
Normal mode.
Cycle power or press reset button with the
switches as shown in order to display the Clear
Database prompt. Touch the left side of the display
to clear the database; touch the right side to
continue in normal mode.
Lowers the intensity of the backlight.
2
1
ON
43
2
1
ON
3 4
2
1
ON
3 4
software/unIt oPeratIon
CTVue CONFIGURATOR SOFTWARE
CTVue Configurator Software is available as a free download from Control
Techniques’s website or it can be purchased on a CD, see “Ordering
Information” for part number. The latest version of the software is always
available from the website, and updating your copy is free.
FRONT PANEL LEDS
There are three front panel LEDs. Shown below is the default status of
the LEDs.
TOUCHSCREEN
This operator interface utilizes a resistive analog touchscreen for user input.
The unit will only produce an audible tone (beep) when a touch on an active
touchscreen cell is sensed. The touchscreen is fully functional as soon as the
operator interface is initialized, and can be operated with gloved hands.
TROUBLESHOOTING YOUR 304K
If for any reason you have trouble operating, connecting, or simply have
questions concerning your new 304K, contact Control Techniques’s technical
support. For contact information, refer to the front page of this bulletin for
phone and fax numbers.
EMAIL: [email protected]
Web Site: http://www.emersonct.com
Power is applied.
STEADY
ORANGE (PWR)
No communication errors are presentSTEADY
GREEN (COM)
In conjunction with green com LED while unit is in bootloader
Acknowledged alarm exists.
Tag is in an alarm condition and not acknowledged
LED INDICATION
RED (ALM)
In conjunction with the red ALM LED while the unit is in
bootloader.
Communications not established
FLICKERING
FLASHING
RAPIDLY
OFF
STEADY
FLASHING
Communication error exists
FLASHING
RAPIDLY
CAUTION: The circuit board contains static sensitive
components. Before handling the operator interface without
the rear cover attached, discharge static charges from your
body by touching a grounded bare metal object. Ideally,
handle the operator interface at a static controlled clean
workstation. Also, do not touch the surface areas of the
circuit board. Dirt, oil, or other contaminants may adversely
affect circuit operation.
