Cooper & Hunter CH-PT09HPGF Manuale utente

PACKAGED TERMINAL

AIR CONDITIONER

WITH HEAT PUMP

SERVICE MANUAL

Model: CH-PT09HPGF

www.cooperandhunter.com

For proper operation,please read and keep this manual carefully.

CONTENTS

1. Precaution

1.1 Safety Precaution

1.2 Warning

2. Functions and control panel.

3. Dimension

4. Refrigerant Cycle Diagram

5. Electronic function

5.1 Terms and definitions

5.2 Electric Control working environment

5.3 Protection function

5.4 Operation of fan motor

5.5 Operation of compressor

5.6 Dip switches and Jumper selection

5.7 Functions for Front desk switch panel and Wire Controller

6. Unit components

7. Installation details

7.1 How to install the unit

7.2 Care and cleaning

8 Operation characteristics

8.1 Cooling operation

8.2 Heating operation

9 Power connection options

10 Troubleshooting

P1-4

P5-7

P10-16

P10

P10-12

P12

P13-14

P15

P16

P17-20

P17-19

P19-20

P21

P22-23

P24-29

1. Precaution

1.1 Safety Precaution.

● To prevent injury to the user or other people and property damage, the following instructions must be

followed.

Incorrect operation due to ignoring instruction will cause harm or damage.

Before service unit, be sure to read this service manual at first.

1.2 Warning

INSTALLATION

● Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.

There is risk of fire or electric shock.

● For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized service center.

Do not disassemble or repair the product, there is risk of fire or electric shock.

● Always ground the product.

There is risk of fire or electric shock.

● Install the panel and the cover of control box securely.

There is risk of fire of electric shock.

● Always install a dedicated circuit and breaker.

Improper wiring or installation may cause fore or electric shock.

● Use the correctly rated breaker of fuse.

There is risk of fire or electric shock.

● Do not modify or extend the power cab

There is risk of fire or electric shock.

● Do not install, remove, or reinstall the unit by yourself(customer).

There is risk of fire, electric shock, explosion, or injury.

● Be caution when unpacking and installing the product.

Sharp edges could cause injury, be especially careful of the case edges and the fins on the condenser and

evaporator.

● For installation, always contact the dealer or an Authorized service center.

There is risk of fire, electric shock, explosion, or injury.

● Do not install the product on a defective installation stand.

It may cause injury, accident, or damage to the product.

● Be sure the installation area does not deteriorate with age.

If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal

injury.

● Do not let the air conditioner run for a long time when the humidity is very high and a door

or a window is left open.

Moisture may condense and wet or damage furniture.

● Take care to ensure that power cable could not be pulled out or damaged during operation.

There is risk of fire or electric shock.

● Do not place anything on the power cable.

There is risk of fire or electric shock.

● Do not plug or unplug the power supply plug during operation.

There is risk of fire or electric shock.

● Do not touch (operation) the product with wet hands.

There is risk of fire or electric shock.

● Do not place a heater or other appliance near the power cable.

There is risk of fire and electric shock.

● Do not allow water to run into electric parts.

It may cause fire, failure of the product, or electric shock.

● Do not store or use flammable gas or combustible near the product.

There is risk of fire or failure of product.

● Do not use the product in a tightlyclosed space for a long time.

Oxygen deficiency could occur.

● When flammable gas leaks, turn off the gas and open a window for ventilation before turn

the product on.

Do not use the telephone or turn switches on or off. There is risk of explosion or fire.

● If strange sounds, or small or smoke comes from product. Turn the breaker off or

disconnect the power supply cable.

There is risk of electric shock or fire.

● Stop operation and close the window in storm or hurricane. If possible, remove the product

from the window before the hurricane arrives.

There is risk of property damage, failure of product, or electric shock.

● Do not open the inlet grill of the product during operation.

(Do not touch the electrostatic filter, if the unit is so equipped.)

There is risk of physical injury, electric shock, or product failure.

● When the product is soaked (flooded or submerged), contact an Authorized service center.

There is risk of fire or electric shock.

● Be caution that water could not enter the product.

There is risk of fire, electric shock, or product damage.

● Ventilate the product from time to time when operating it together with a stove, etc.

There is risk of fire or electric shock.

● Turn the main power off when cleaning or maintaining the product.

There is risk of electric shock.

● When the product is not be used for a long time, disconnect the power supply plug or turn

off the breaker.

There is risk of product damage or failure, or unintended operation.

● Take care to ensure that nobody could step on or fall onto the outdoor unit.

This could result in personal injury and product damage.

CAUTION

● Always check for gas (refrigerant) leakage after installation or repair of product.

Low refrigerant levels may cause failure of product.

● Install the drain hose to ensure that water is drained away properly.

A bad connection may cause water leakage.

● Keep level even when installing the product.

To avoid vibration of water leakage.

● Do not install the product where thenoise or hot air from the outdoor unit could damage

the neighborhoods.

It may cause a problem for your neighbors.

● Use two or more people to lift and transport the product.

Avoid personal injury.

● Do not install the product where it will be exposed to sea wind (salt spray) directly.

It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause

product malfunction or inefficient operation.

OPERATIONAL

● Do not expose the skin directly to cool air for long periods of time.

(Do not sit in the draft).

This could harm to your health.

● Do not use the product for special purposes, such as preserving foods, works of art, etc. It

is a consumer air conditioner, not a precision refrigerant system

There is risk of damage or loss of property.

● Do not block the inlet or outlet of air flow.

It may cause product failure.

● Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.

There is risk of fire, electric shock, or damage to the plastic parts of the product.

● Do not touch the metal parts of the product when removing the air filter. They are very

sharp.

There is risk of personal injury.

● Always insert the filter securely. Clean the filter every two weeks or more often if

necessary.

A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.

● Do not insert hands or other object through air inlet or outlet while the product is operated.

There are sharp and moving parts that could cause personal injury.

● Do not drink the water drained from the product.

It is not sanitary could cause serious healthissues.

● Use a firm stool or ladder when cleaning or maintaining the product.

Be careful and avoid personal injury.

● Replace the all batteries in the remote control with new ones of the same type. Do not mix

old and new batteries or different types of batteries.

There is risk of fire or explosion.

● Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.

They may burn of explode.

● If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water.

Do not use the remote of the batteries have leaked.

The chemical in batteries could cause burns or other health hazards.

2. Functions and control panel.

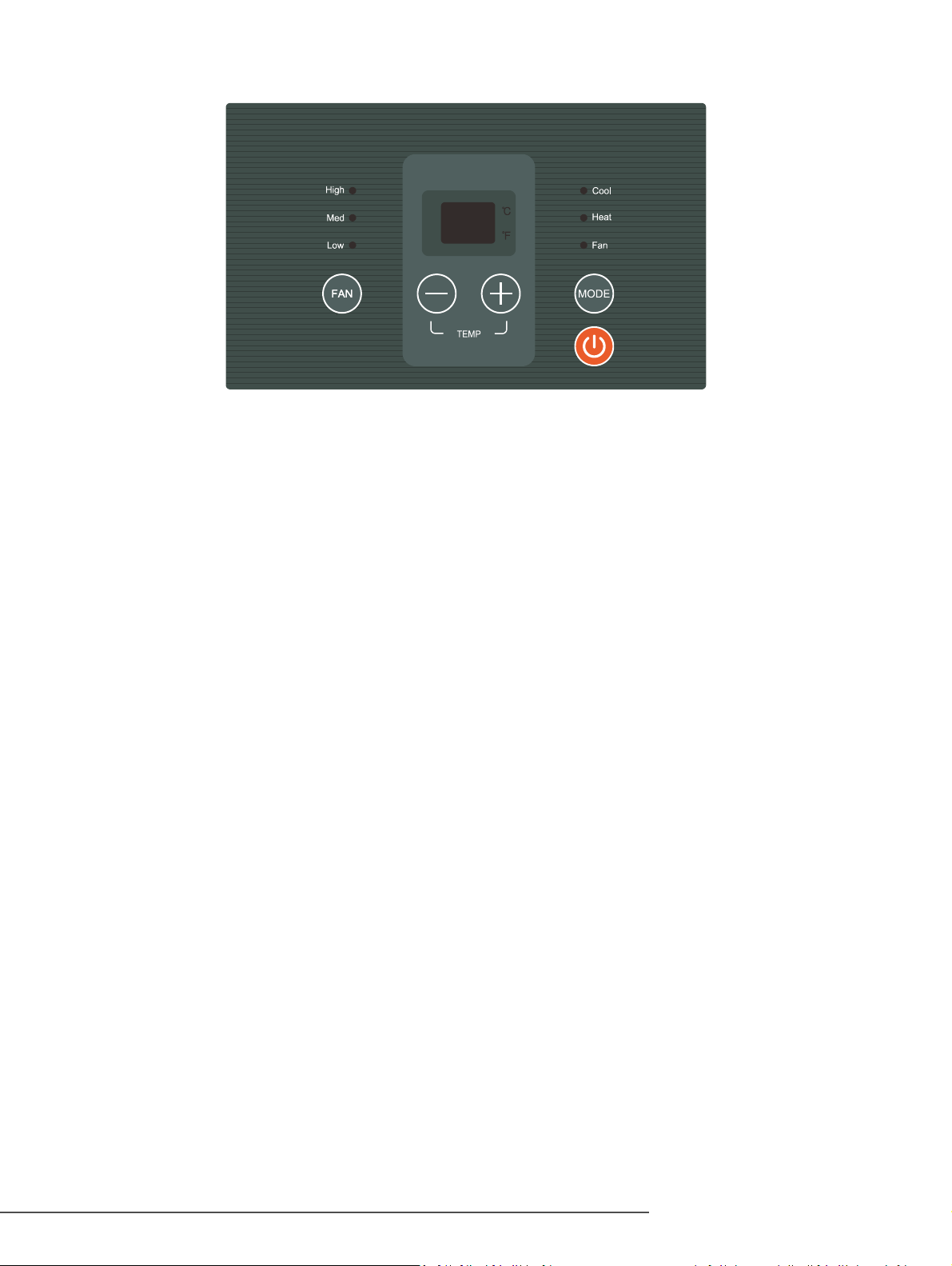

The controls featured in this manual are representative of many available models. Your model

may offer slightly different features.

POWER

- Press the POWER button to turn the unit on or off.

When the unit is on,the power indicator light will be green.When the unit is off,the light will go out.

MODE

- Push this button to cycle through the modes from COOL-HEAT-FAN-COOL.The green indicator light beside the "MODE"

option will illuminate, identifying the mode selected.

- COOL:The range of set temperature is 17

℃

/62

℉

~30

℃

/86

℉

.Cooling begins automatically when the room temperature is

above the set point,and stops when the room temperature is 2

℃

℉

) below the set point.But the compressor will run 5

minutes at least in COOL mode before stoping. The fan runs in continuous mode.

- HEAT:The range of set temperature is 17

℃

/62

℉

~29

℃

/84

℉

.For heat pump models,the unit can alternate to run between in

reverse cycle heat mode and electric heater mode according to the difference between the setting temperature and the room

temperature.The fan motor cycles on and off with the compressor and electric heater.

NOTE: The reverse cycle and electric heater can not be run at the same time.

In following cases, it is normal that the reverse

cycle does not operate.

1.When the outdoor temperatrue is lower than 4

℃

/40

℉

or the room temperature falls to 4.5

℃

℉

below the set point

temperature.

2.There is a 3-minute minimum compressor run time at any setting to prevent short cycling. The indoor fan motors starts before

the compressor and stops after the compressor cycles off.

3.When frost builds up to the evaporator coils, the unit will defrost automatically and the compressor will cycle off.

- FAN:Fan operation only without heating and cooling.

UP/DOWN BUTTONS ( ▲ / ▼ )

- Push the UP (or DOWN) button to increase (or decrease) the set temperature of the unit in cooling

or heating mode.The temperature can be set by increments of 1

℃

℉

).The setting temperature

appears in the display.

NOTE:Press and hold ▲ and ▼ buttons together for 3 seconds will alternate the temperature display between

℃

℉

scale.

FAN (FAN SPEED)

- Every time you push this button, the fan speed cycles through the settings as follows: HIGH-MED- LOW-HIGH.

DISPLAYS:

- Shows the set temperature in

℃

℉

. While on Fan only mode, it shows the room temperature.

Control code:

LC-Pads on the control panel is not available. The unit can be set by using wire controller only.

Note:

Whenreceiving the wired remote control signal display LC. Or when wired remote control signal is not

received within the panel key operation for 5 seconds to display LC

FC-

Front desk control

Turn the switch to of f

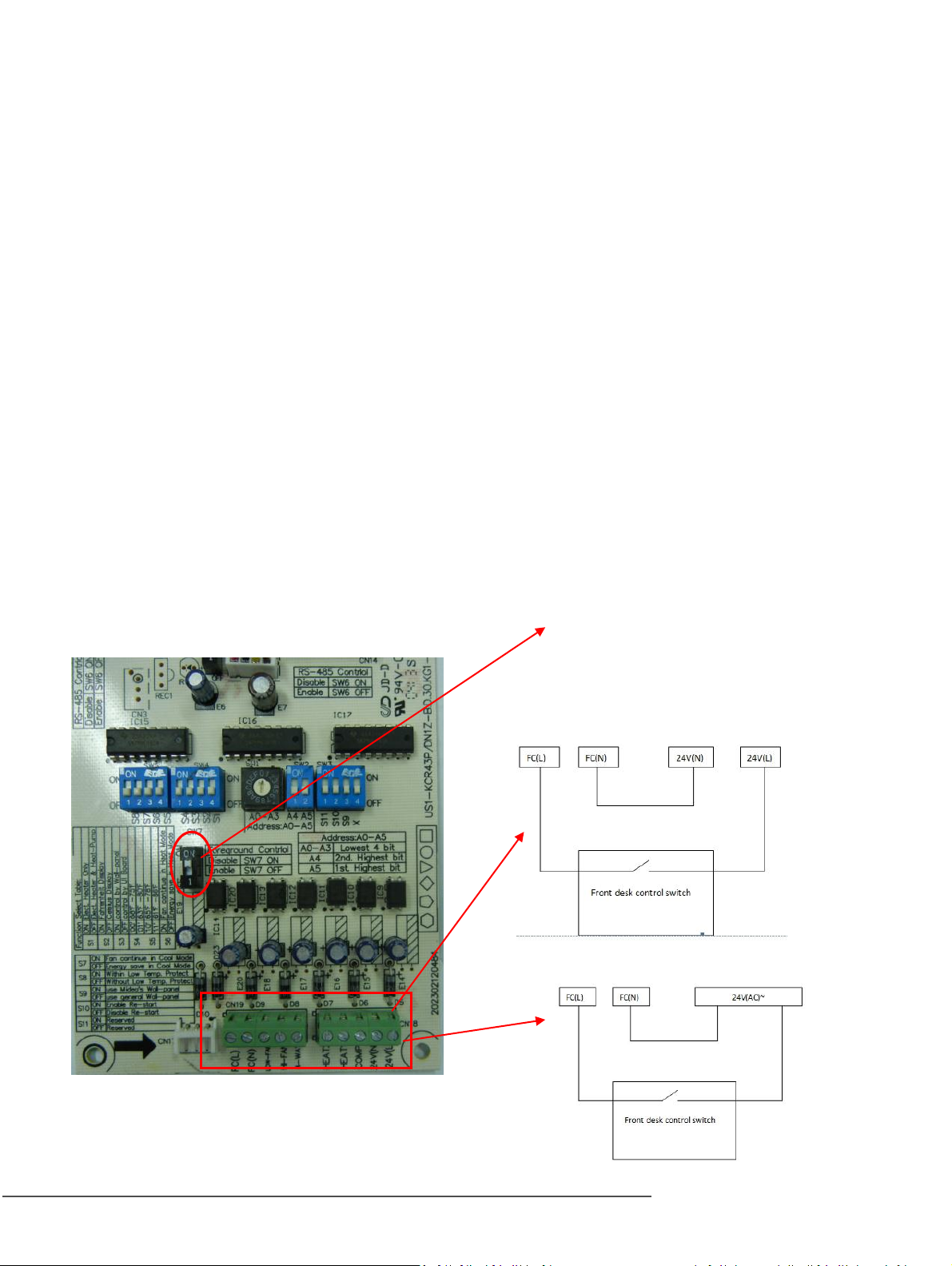

You can connect the front desk

switch for two ways.

Error codes:

AS- Open or short circuit of room temperature sensor (T1);

ES- Open or short circuit of evaporator temperature sensor( T2 );

CS-Open or short circuit of condenser temperature sensor (T3);

oS-Open or short circuit of outside temperature sensor(T4);

HS- Open or short circuit of exhaust temperature sensor( T5 or T6);

Other codes:

LO-Room temperature is lower than 0

℃

/32

℉

;

HI-Room temperature is higher than 37

℃

/99

℉

E4- Communication malfunction between main control board and display board

LE- Drive-by-wire controller failure

3. Dimension

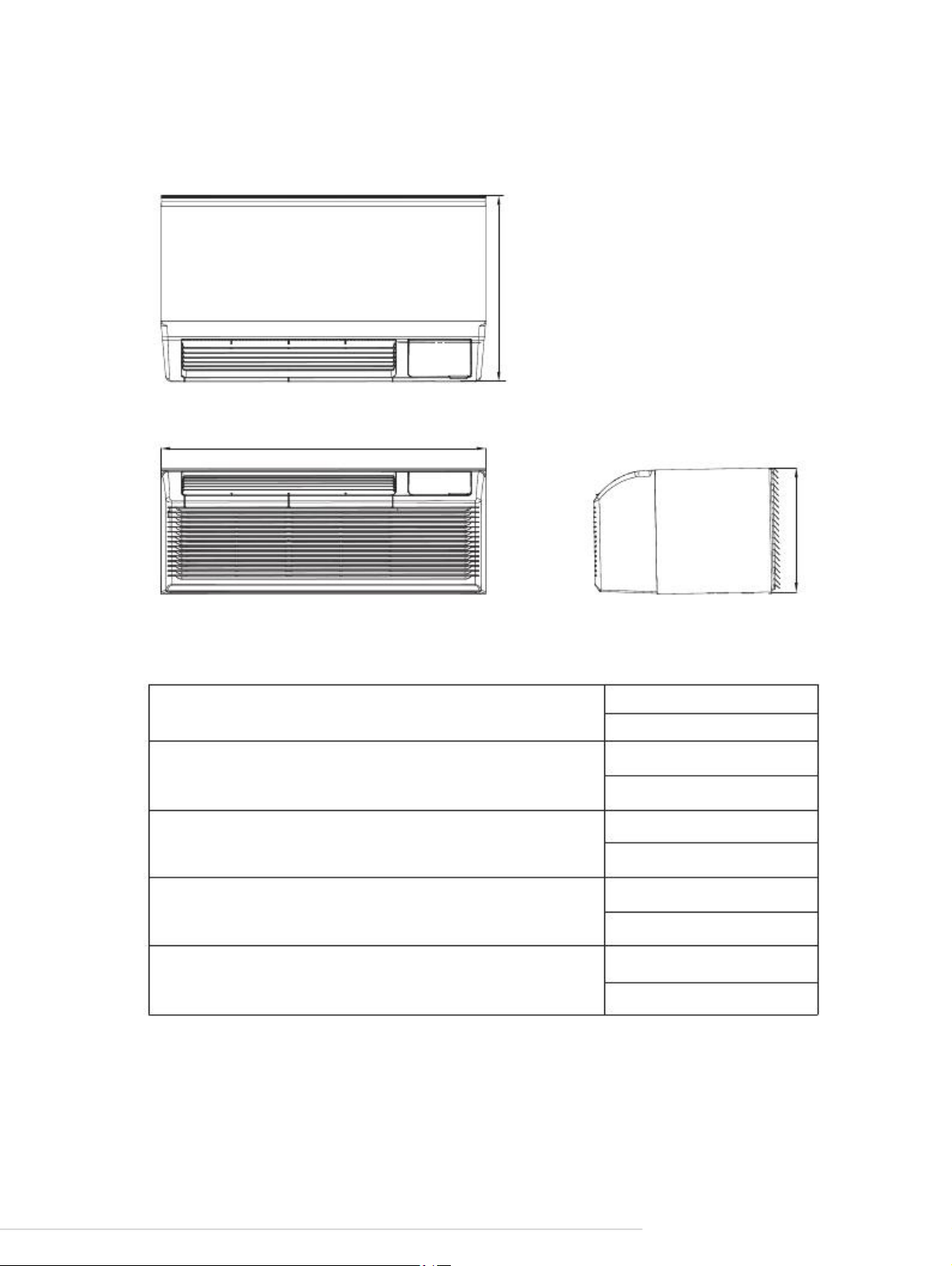

Top View D

Front View

Dimension :

Dimension 1

（no sleeve,rear grille,and rear net)

Dimension 2

（no rear grille and rear net, but include sleeve)

Dimension 3

（include sleeve and rear net)

Dimension 4

（include sleeve, rear net and rear grille)

WxHxD（mm)

WxHxD（inch)

1067x406x532

42.0x15.9x20.9

1067x408x578

42.0x16.0x22.8

1067x408x588

42.0x16.0x23.1

1067x408x606

42.0x16.0x23.9

Altri manuali per CH-PT09HPGF

Indice

Altri manuali Cooper & Hunter Condizionatore d'aria

Cooper & Hunter

Cooper & Hunter VITAL INVERTER Series Manuale utente

Cooper & Hunter

Cooper & Hunter EVOLUTION CH-S07XP4 Manuale utente

Cooper & Hunter

Cooper & Hunter CH-S12FHCP Manuale utente

Cooper & Hunter

Cooper & Hunter E Series Istruzioni per l'installazione

Cooper & Hunter

Cooper & Hunter UNIVERSAL Series Manuale utente

Cooper & Hunter

Cooper & Hunter CH-IF035RK Manuale utente

Cooper & Hunter

Cooper & Hunter CH-STLS-14AC Manuale di riparazione

Cooper & Hunter

Cooper & Hunter AIR MASTER INVERTER Series Manuale utente

Cooper & Hunter

Cooper & Hunter NORDIC MULTI LIGHT Series Manuale utente

Cooper & Hunter

Cooper & Hunter UNIVERSAL PRO Series Manuale utente

Cooper & Hunter

Cooper & Hunter SOPHIA series Manuale utente

Cooper & Hunter

Cooper & Hunter SOPHIA CH-12MSPHDT-230VI Manuale utente

Cooper & Hunter

Cooper & Hunter SOPHIA Manuale utente

Cooper & Hunter

Cooper & Hunter CH-IC035RK Manuale utente

Cooper & Hunter

Cooper & Hunter V Series Manuale utente

Cooper & Hunter

Cooper & Hunter MIA NG Series Manuale utente

Cooper & Hunter

Cooper & Hunter TERRA CH-S09FHCP Manuale utente

Cooper & Hunter

Cooper & Hunter Nordic Evo NG Series Manuale utente

Cooper & Hunter

Cooper & Hunter CH-M09K6S Manuale utente

Cooper & Hunter

Cooper & Hunter Multi VRF CHV5 HOME Manuale utente

Cooper & Hunter

Cooper & Hunter CH-S09FTXG Manuale utente

Cooper & Hunter

Cooper & Hunter CHV-09SCC4W Manuale di istruzioni

Cooper & Hunter

Cooper & Hunter CHML-ID09NK Manuale utente

Cooper & Hunter

Cooper & Hunter CH-S12FTXQ (WI-FI) Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
