IRIS®

3" ELEMENTS

926 COOPER LIGHTING

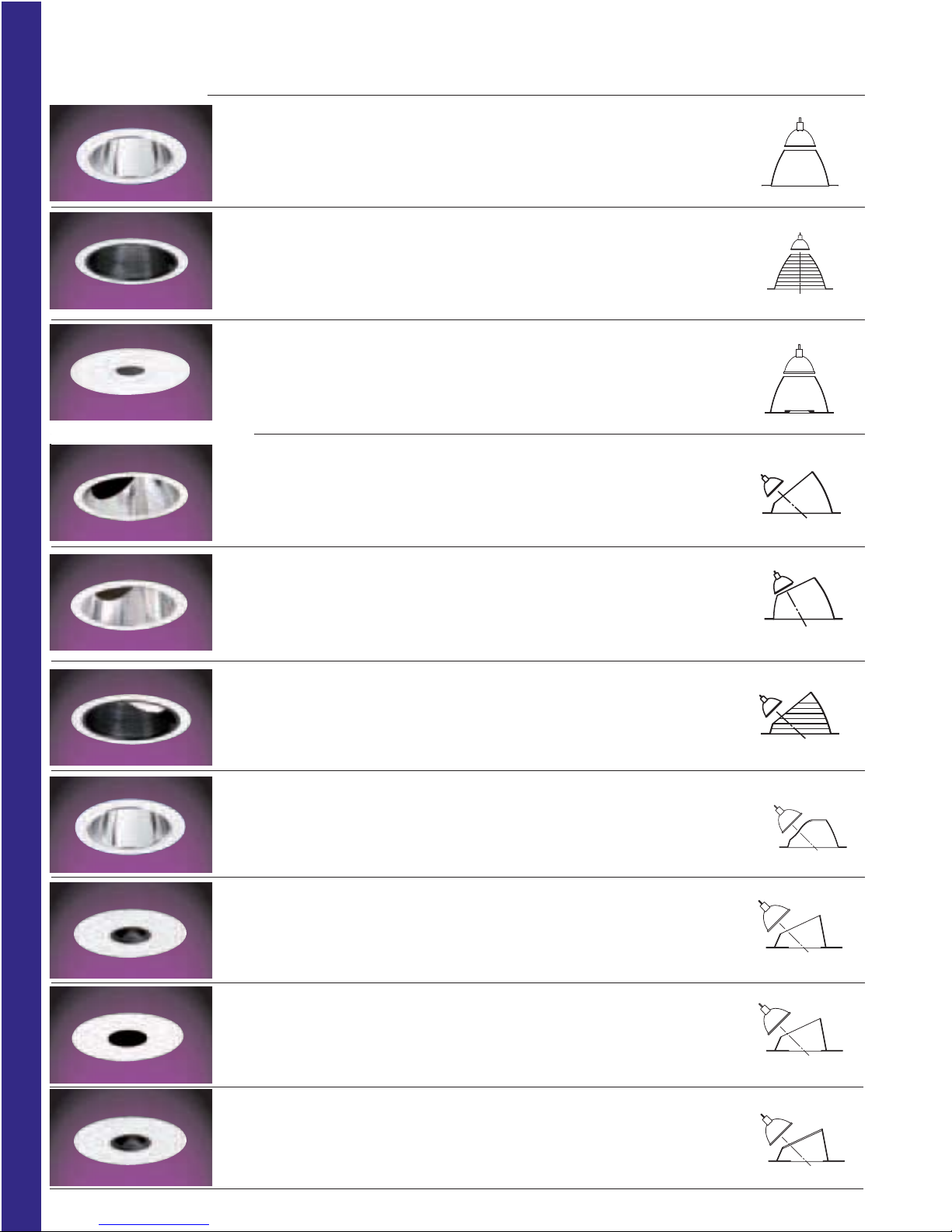

E3MR 50° Cutoff Reflector

Add Cone Color and Flange style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3MRBB 50° Cutoff Baffle

Add Baffle Finish

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3DNPIN 1 1/4" Downlight Pinhole

Add Flange Style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 1 1/4" (32mm)

E3AA Angle Cut Reflector - Adjusts To 45°

Add Cone Color and Flange style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AA20 Angle Cut Reflector - Adjusts To 20°

Add Cone Color and Flange style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3MRAABB Angle Cut Baffle - Adjusts To 45°

Add Baffle Finish

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3SLOT Slot Cut Reflector - Adjusts To 45°

Add Cone Color and Flange style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3PIN 1 1/4" Adjustable Pinhole - Adjusts To 45°

Add Flange Style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 1 1/4" (32mm)

E3PINLARGE 1 3/4" Adjustable Pinhole - Adjusts To 45°

Add Flange Style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (32mm)

E3PINCLOSET 1 1/4" Adjustable Pinhole w/Lens - Adjusts To 45°

Add Flange Style

Lamp: P3MR REMOTE, P3MR, RPN3MR: 50W MR16

PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (32mm)

Shown with white oculus

3" DOWNLIGHT ELEMENTS

3" ADJUSTABLE ACCENT ELEMENTS

3" ELEMENTS

927

COOPER LIGHTING

IRIS®

COOPER LIGHTING

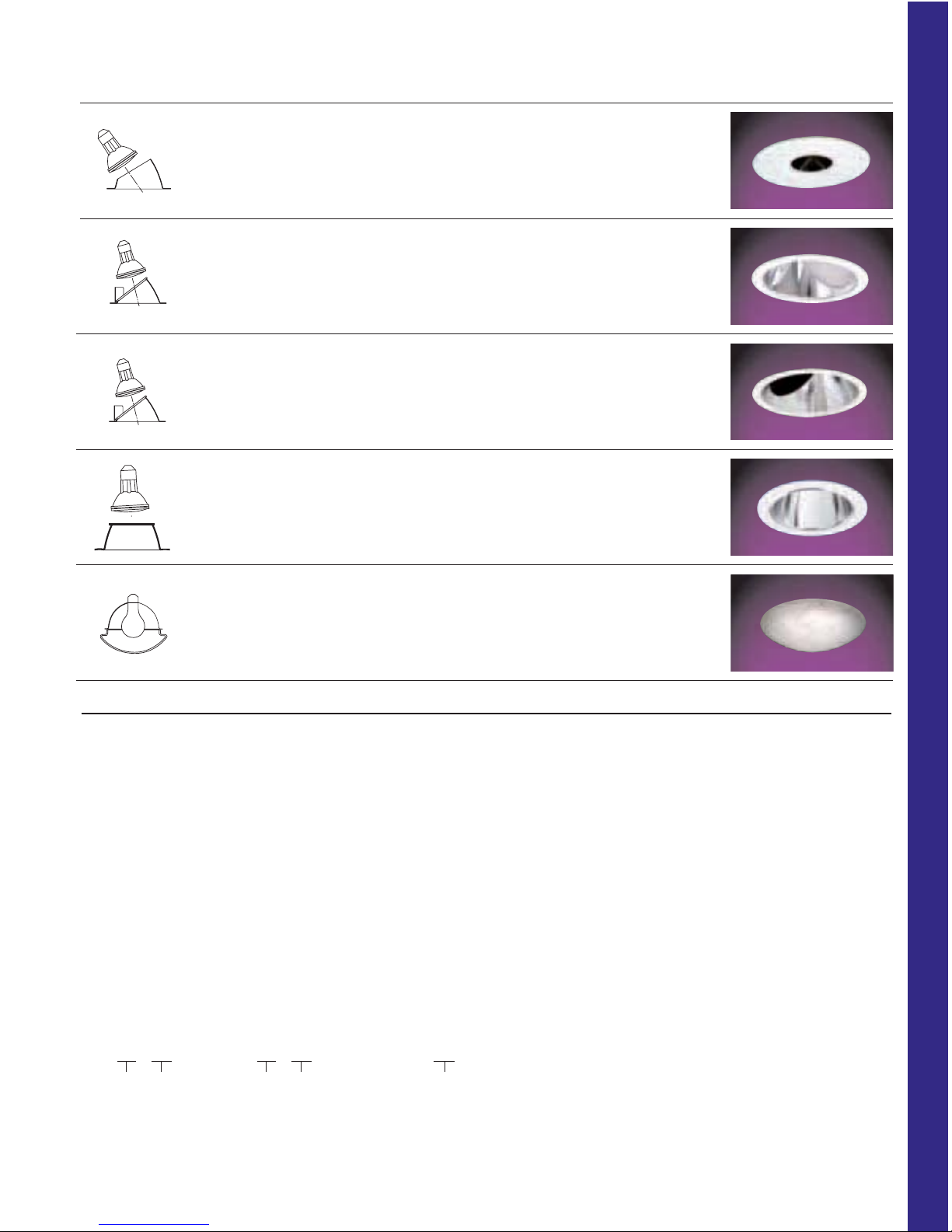

E3OVAL 2" Oval - Adjusts To 45°

Add Flange style

Lamp: P3MR, RPN3MR, P3MR REMOTE: 50W MR16

PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm)

E3PINRD 1 3/4" Adjustable Pinhole with Radius Edges -

Adjusts To 45°

Add Flange Style

Lamp: P3MR, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 2" (51mm)

E3SA Super Adjustable 15° - 75° Tilt

(Includes Hex cell Louver)

Lamp: P3MR, RPN3MRSA: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm)

E3LWW Lensed Wall Wash

Add Cone Color and Flange style

Lamp: P3MR, RPN3MR, P3MR REMOTE: 50W MR16

PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AASR Wet Location Angle Cut Reflector - Adjusts To 45°

Add Cone Color and Flange style

Lamp: P3MR, P3MR REMOTE, RPN3MR: 50W MR16

PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AASRPIN Wet Location 2" Adjustable Pinhole - Adjusts To 45°

Add Flange Style

Lamp: P3MR, P3MR REMOTE, RPN3MR: 42W MR16

PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 2 (51mm)

E3SR Wet Location 50° Cutoff Reflector

Add Cone Color and Flange style

Lamp: P3MR, P3MR REMOTE, RPN3MR: 50W MR16

P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

Cone Finishes:

C=Clear Specular Alzak

H=Haze Clear Semi-Specular Alzak

G=Champagne Gold Specular Alzak

B= Specular Black Alzak

WMH =Warm Haze Semi-specular Alzak with a

hint of gold to add visual warmth

GP = Graphite Gunmetal grey, specular Alzak

GPH = Graphite Haze Graphite, semi-specular Alzak

W= Gloss White Paint

MW = Matte White

K= Cognac Warm copper color, specular Alzak

KH = Cognac Haze, semi-specular Alzak

Baffle Options

BB=Black Baffle

WB = White Baffle

Flanges

Blank = Matte white die-cast flange ring, removable

for field painting

RAW = Die cast trim ring, mill finish

SF = Self Flange (4 7/8" OD) (flange color matches

reflector cone) Not recommended for use with

RPN3MR.

SFWF = Self Flange painted Matte White (4 7/8" OD)

E3PIN and E3OVAL

Blank = Matte White painted die-cast trim ring with

black oculus (when present)

W= Matte White painted die-cast trim ring with white

oculus (when present)

POL = Polished Aluminum with Black Oculus

SAL = Satin Aluminum with Black Oculus

ELEMENT OPTIONS

Example:

E3MR

Cone

Finish

Flange

Type and

Finish

Example:

E3MR

Baffle

Finish

Flange Type and

Finish (self flange

not available)

Example:

E3PIN

Flange Type and

Finish (self flange

not available)

3" WALL WASH ELEMENTS

IRIS®

3" ELEMENTS - Line Voltage

930 COOPER LIGHTING

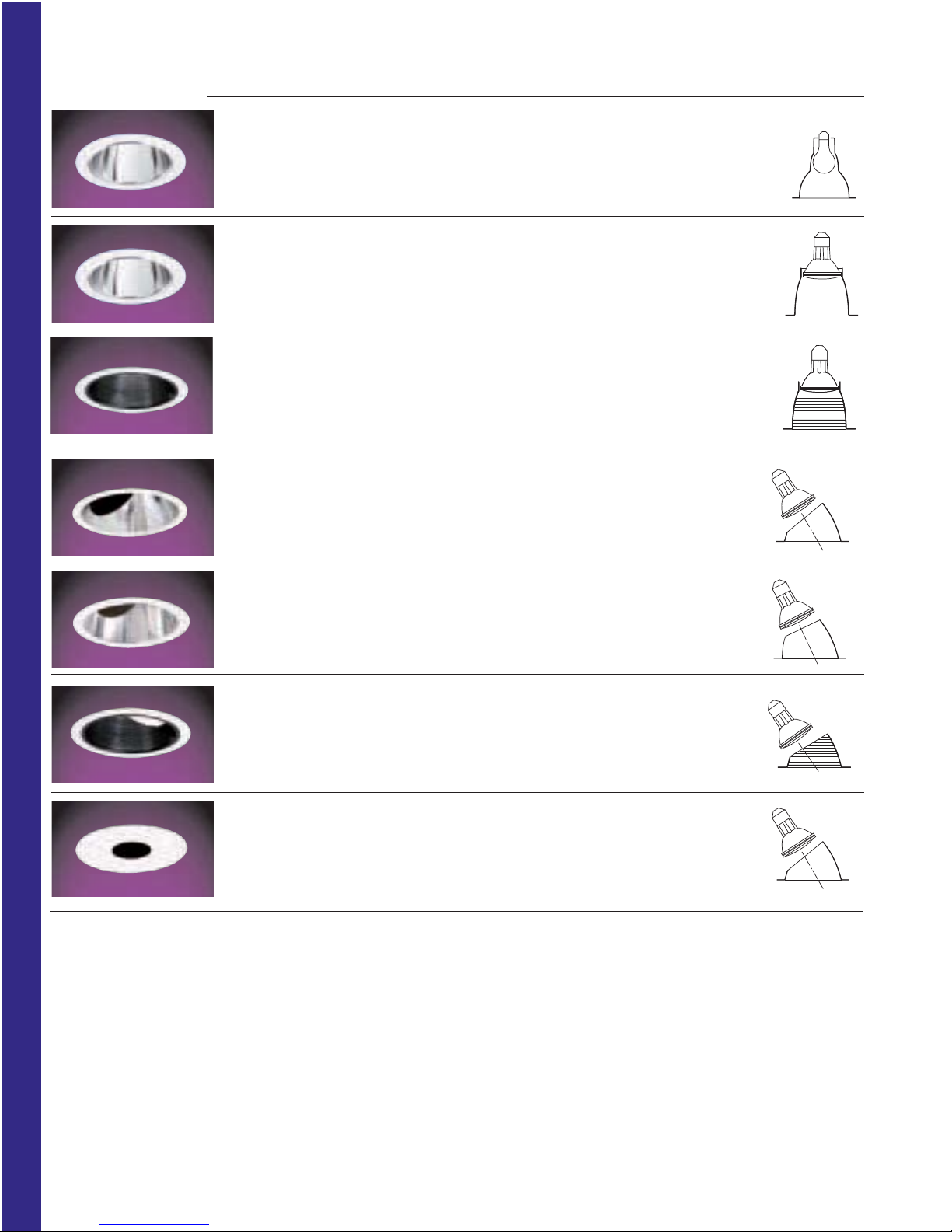

E3A19 50° Cutoff Reflector

Add Cone Color and Flange style

Lamp: P3120: 60W A19, 60W MB19, 60W BT15, 60W BT19

PN3120: 100W A19, 100W MB19, 100W BT15, 90W BT19

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3P20 50° Cutoff Reflector

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16

PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3P20BB 50° Cutoff Baffle

Add Baffle Finish

Lamp: P3120: 50W R20, 50W PAR20, 60W PAR16

PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AA Angle Cut Reflector

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16

PN3120: 50W PAR20, 50W R20, 75W PAR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AA20 Angle Cut Reflector - Adjusts to 20°

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16

PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3P20AABB Angle Cut Baffle - Adjusts to 35°

Add Baffle Finish

Lamp: P3120: 50W PAR20, 60W PAR16, 50W R20

PN3120: 50W PAR20, 75W PAR16, 50W R20

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3PINLARGE 1 3/4" Adjustable Pinhole - Adjusts to 35°

Add Flange Style

Lamp: P3120: 50W PAR20

PN3120: 75W PAR20

Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (44mm)

3" DOWNLIGHT ELEMENTS

3" ADJUSTABLE ACCENT ELEMENTS

3" ELEMENTS - Line Voltage

931

COOPER LIGHTING

IRIS®

E3PINRD 1 3/4" Adjustable Pinhole with Radius Edges -

Adjusts to 35°

Add Flange Style

Lamp: P3120: 50W PAR20

PN3120: 75W PAR16

Dimensions: OD: 5 1/8" (130mm) Aperture 1 3/4" (44mm)

E3LWW Lensed Wall Wash

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20

PN3120: 50W PAR20, 75W PAR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3AASR Wet Location Angle Cut Reflector - Adjusts to 35°

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20

PN3120: 50W PAR20, 75W PAR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3SR Wet Location 50° Cutoff Reflector

Add Cone Color and Flange style

Lamp: P3120: 50W PAR20, 50W R20

PN3120: 50W PAR20, 50W R20, 60W PAR16

Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)

E3A19LUNA Wet Location Blown Veined Glass

Lamp: P3120: 60W A19, 60W MB19, 60W BT15, 50W TB19

PN3120: 100W A19, 100W MB19, 100W BT15, 90W TB19

Dimensions: OD: 5 1/2" (138mm)

Cone Finishes:

C= Clear Specular Alzak

H= Haze Clear Semi-Specular Alzak

G= Champagne Gold Specular Alzak

B= Specular Black Alzak

WMH = Warm Haze Semi-specular Alzak with a

hint of gold to add visual warmth

W= Gloss White Paint

MW = Matte White

K(Cognac) = Warm copper color, specular Alzak

KH (Cognac Haze) = Cognac, semi-specular Alzak

GP Graphite = Gunmetal grey, specular Alzak

GPH Graphite Haze = Graphite, semi-specular Alzak

Baffle Options

BB = Black Baffle

WB = White Baffle

Flanges

Blank = Matte white die-cast flange ring, removable

for field painting

RAW = Die cast trim ring, mill finish

SF = Self Flange (flange color matches reflector cone)

SFWF = Self Flange painted Matte White

E3PIN and E3OVAL

Blank = Matte White painted die-cast trim ring with

black oculus (when present)

W= Matte White painted die-cast trim ring with white

oculus (when present)

POL = Polished Aluminum with Black Oculus

SAL = Satin Aluminum with Black Oculus

ELEMENT OPTIONS

Example:

E3P20

Cone

Finish

Flange

Type and

Finish

Example:

E3P20

Baffle

Finish

Flange Type and

Finish (self flange

not available)

Example:

E3PIN

Flange Type and

Finish (self flange

not available)
