Cooper Lighting OVH50SR22D4 Manuale utente

116 STREETWORKS Outdoor Lighting Solutions

ACCESSORIES (order separately)

OA/RA1013=Photocontrol Shorting Cap

OA/RA1014=120V Photocontrol

OA/RA1016=105V-285V Photocontrol

OA/RA1027=480V Photocontrol

OA1028=Field Installed PCR Kit

OA1213=TufGuard Vandal Shield

OVH FLAT GLASS 50-250W

MH/HPS/MERCURY

HOUSING

Die-cast aluminum housing and

latch. Standard grey polyester

powder coat finish. Other finish

colors available. Consult your

Streetworks Representative.

Optional NEMA twistlock

photocontrol receptacle also

available.

SOCKET

Adjustable mogul-base porcelain

socket.

DOOR

Die-cast aluminum door frame with

integral hinges for toolless

relamping and maintenance. ANSI

wattage/source label.

LENS

Removable tempered flat glass

for use with High Pressure Sodium,

Metal Halide and Mercury lamp

sources.

REFLECTOR

The optical system is a

hydroformed anodized aluminum

reflector with a Dacron polyester

filter.

BALLAST ASSEMBLY

Hard mounted ballast with

encapsulated starter for protection

from environmental abuse.

Standard two position tunnel type

compression terminal block. Three

position available. Consult your

Streetworks Representative.

MOUNTING

Two-bolt/one bracket slipfitter with

cast-in pipe stop and leveling steps.

Fixed-in-place birdguard seals

around 1 1/4" or 2" mounting arms.

NOTE: 1 150W units are for S55 lamp. 2Refer to technical section for lamp/ballast/voltage compatibility. 3Available in 120/240V dual voltage or single voltage only for 50-150W. 4MOV option is not available for any system

requiring a three position terminal block (Example—240V with PCR wired 120V). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.

ROADWAY LUMINAIRE

EPA:

Effective Projective Area: .80

SHIPPING DATA

Approximate Net Weight:

28 lbs. (13 kgs.)

OPTIONS (add as suffix)

1=Single Fuse, Internally Mounted (120 or 277V)

2=Double Fuse, Internally Mounted (208, 240, or 480V)

4=Photocontrol Receptacle

WH=White

BK=Black

BZ=Bronze

E=150W/100V/HPS Ballast

M=MOV Lightning Surge Protector 4

H=Plug-in Starter Receptacle

K=Level Indicator

U=UL/CSA Listed

OPTIONS + ACCESSORIES [Must be listed in the order shown and separated by a dash]

STREETWORKS™

ORDERING INFORMATION

SAMPLE NUMBER: OVH50SR22D4

Cooper Lighting

ROADWAY

OPTIONS +

ACCESSORIES

(See Below)

PRODUCT

FAMILY

OVH

LAMP

WATTAGE

50=50W

70=70W

10=100W

15=150W 1

17=175W

20=200W

25=250W

LAMP TYPE 2

S=High Pressure

Sodium

V=Mercury

M=Metal Halide

BALLAST TYPE 2

C=CWI

H=Reac./HPF

K=10KV CWA 3

M=Mag. Reg.

N=Hi. Reac./NPF

P=Hi. Reac./HPF

R=Reac./NPF

W=CWA

VOLTAGE2

2=120V

0=208V

4=240V

7=277V

8=480V

9=347V

F=120/240 wired 120V

P=240 w/PCR wired 120V

W=Multi-Tap wired 120V

N=Multi-Tap wired 277V

V=Multi-Tap wired 240V

DISTRIBUTION

2=Type II

3=Type III

CUTOFF

D=MCO

27 3/32" [688mm]

6 17/32"

[166mm]

12 5/8" [321mm]

OPTIONAL COLORS [Standard color is grey, other finish colors available. Consult your Cooper Lighting representative]

White BK

Black BZ

Bronze

STREETWORKS Outdoor Lighting Solutions 117Cooper Lighting

OVH FLAT GLASS ROADWAY

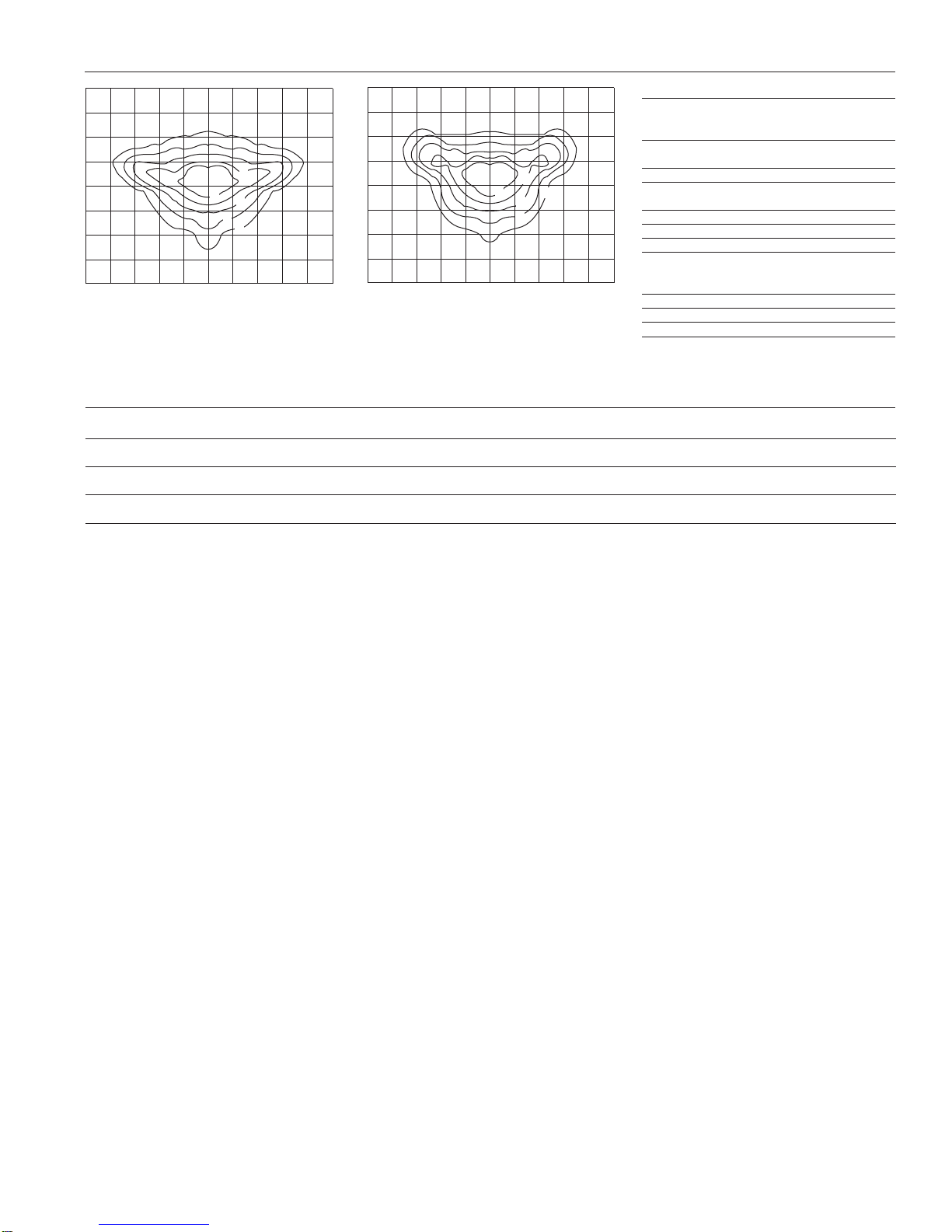

PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]

OVH15S2D.IES

150-Watt HPS

16,000-Lumen Clear Lamp

Type II-Medium Cutoff

5 4 3 2 1 0 1 2 3 4 5

OVH15S3D.IES

150-Watt HPS

16,000-Lumen Clear Lamp

Type III-Medium Cutoff

5 4 3 2 1 0 1 2 3 4 5

FOOTCANDLE TABLE

Select mounting height and read across for footcandle

values of each isofootcandle line. Distance in units of

mounting height.

Mounting Footcandle Values for

Height Isofootcandle Lines

ABC D E

OVH15S2D.IES

20' 3.12 1.56 0.78 0.39 0.16

25' 2.00 1.00 0.50 0.25 0.10

30' 1.30 0.65 0.33 0.16 0.07

35' 1.02 0.51 0.26 0.13 0.05

OVH15S3D.IES

20' 3.12 1.56 0.78 0.39 0.16

25' 2.00 1.00 0.50 0.25 0.10

30' 1.30 0.65 0.33 0.16 0.07

35' 1.02 0.51 0.26 0.13 0.05

Light Lens

Wattage Source1Type II MCO III MCO

50-150 HPS Flat Glass OVH15S2D OVH15S3D

(150W) (150W)

175 MH Flat Glass OVH17M2D OVH17M3D

(175W) (175W)

200-250 HPS Flat Glass N/A OVH25S3D

(250W)

NOTE: 1 All light sources are clear unless noted otherwise.

PHOTOMETRIC DISTRIBUTION [Curve Number]
