DESCRIPTION

Corelite's Traverse Wall Mount is an asymmetric direct-indirect fluorescent

luminaire that features a rugged aluminum construction, sleek modern

styling and cross blade louver. Our Slide-N-Lock(TM) optics accessory

allows the designer to adjust the amount of uplight and downlight for a

particular application. The Traverse Wall may be mounted over standard

2"x4" J-Boxes for individual or continuous configuration using 4' and 8'

modular sections. The Traverse Wall is suited for open office perimeters,

private offices, conference rooms, corridors and public spaces.

A ... Construction

Housing is 6063 T5 aluminum

extrusion forming a 2-7/8"

rectangular profile. Standard 4'-0"

and 8'-0" fixture lengths combine

for continuous runs.

B ... End Caps

Standard end caps are precision

die-cast aluminum, mechanically

attached without exposed

fasteners.

C ... Louver

A continuous semi-specular

aluminum parabolic 1-1/4" blades

spaced 2-1/4" on-center with a

2-3/4" opening.

D ... Reflectors

Reflector pan is painted with a

highly reflectance white powder

coat finish. Optional die-formed

side reflector is a highly specular

anodized aluminum.

E ... Electrical

Fixtures are prewired with quick

wire connectors and use UL listed

Class P, T5HO program rapid start

universal voltage electronic

ballasts. Power factor of 97% with

less than 10% THD. Fixtures and

electrical components certified to

UL and CUL standards.

F ... Finish

Fixture housings are standard

white using electrostatically

applied polyester powder coat

paint.

Mounting

Fixture mounts directly to existing

structure over a 2" x 4" standard

electrical box mounted horizontally

into the wall. Refer to installation

section for details.

Traverse Wall

2T5HO

Wall Mount

Direct/Indirect

Light Distribution

Indirect - 68.1%

Direct - 31.9%

ORDERING INFORMATION

Sample Number: TW-WB-2T5-1C-UNV-SU-WA-8

Lamp Type

54W T5 HO (4' unit)

Voltage

120

120V

277

277V

347

347V

UNV

Universal

(120V-277V)

Wiring

Standard Circuit

Dimming

Emergency

Battery Pack

Nightlight

Daylight

Run Length

Individually Mounted

Luminaires may be 4' or 8' in length

Continuously Mounted

Standard row configurations over 8'

consist of 4' and 8' sections

Series

Traverse

Wall

Options

Slide-N-Lock™

DL1

DL2

DL3

DL4

DL5

DL6

DL7

DL8

Optics Down

Cross Blade Louver

Number of

Lamps

2 Lamps

Number of Circuits

1 Circuit

2 Circuit

Optics Up

Specular

White

Suspension

SU-WA

Surface/Wall Mount

Not all options available. Please consult your Cooper Lighting Representative for

availability. Specifications and dimensions subject to change without notice.

Notes:

48" [1219mm]

96" [2438mm]

MODULES AND DIMENSIONS*

*Dimensions do not include end caps.

2-7/8"

[73mm]

6-7/8" [174mm]

A DEC F

1-1/4" [31mm]

End Cap Side View

Cross Blade Louver

CORELITE

Corelite • 4675 A Holly Street • Denver, CO 80216 • 303.393.1522 • FAX 303.393.1477 07/20/2007 6:04:58 PM

Specifications and Dimensions subject to change without notice.

ADE071097

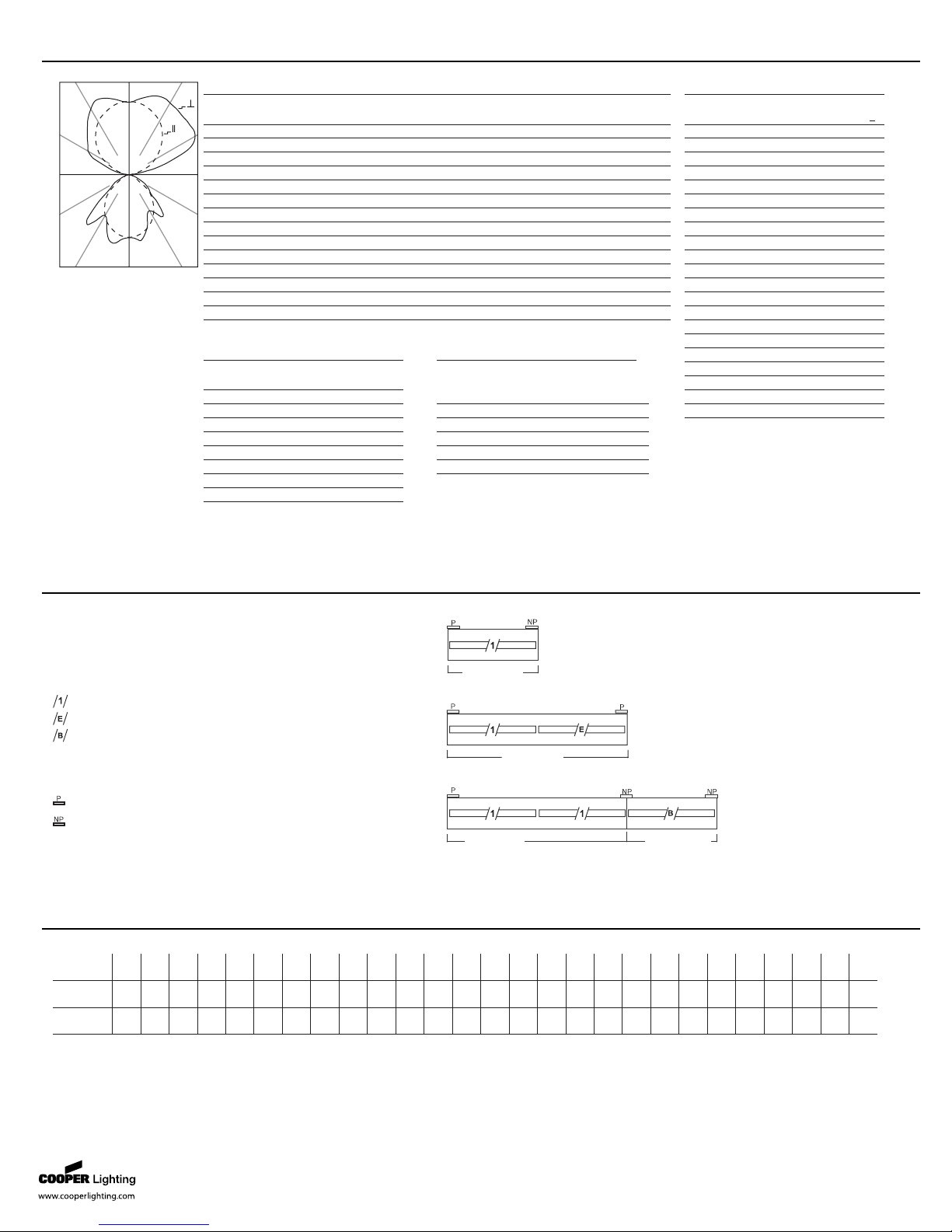

PHOTOMETRICS

COMMON CIRCUIT CONFIGURATIONS

STANDARD ROW CONFIGURATIONS

Corelite

TW-WB-2T5

(2) FP54/841/HO

4500 Lumens

Eﬃciency 89.2%

Test Report

#LSI17908

Coeﬃcients of Utilization

Eﬀective ﬂoor cavity reﬂectance 20%

rc 80% 70% 50% 30% 10% 0%

RCR

92 92 92 92

84 81 78 75

77 72 67 62

71 64 58 53

65 57 50 45

60 50 44 39

55 45 39 34

51 41 34 29

47 37 30 26

43 33 27 22

40 30 24 20

83 83 83 83

76 73 71 68

70 65 51 57

64 58 53 49

59 52 46 42

54 46 40 36

50 41 35 31

46 37 31 27

42 33 28 24

39 30 25 21

36 27 22 18

65 65 65

58 57 55

52 49 47

47 43 40

42 38 35

37 33 30

34 30 26

30 26 23

27 23 20

25 20 17

23 18 15

50 50 50

45 44 43

40 39 37

36 34 32

33 30 28

29 27 24

27 24 21

24 21 19

22 19 16

20 17 14

18 15 13

35 35 35

32 32 31

29 28 28

27 26 24

24 23 22

22 20 19

20 18 17

18 16 15

16 14 13

15 13 11

14 11 10

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

Candela

0 1203 1203 1203

5 1195 1200 1223

15 1118 1228 1182

25 999 972 849

35 837 675 898

45 627 664 803

55 317 374 446

65 67 87 167

75 22 26 36

85 6 6 10

90 0 0 0

95 40 106 103

105 216 728 636

115 445 1077 1354

125 685 1185 1502

135 903 1318 1518

145 1091 1459 1559

155 1242 1530 1623

165 1345 1495 1564

175 1398 1428 1436

180 1403 1403 1403

Zonal Lumen Summary

0-30 931 10.35 11.60

0-40 1473 16.37 18.35

0-60 2393 26.60 29.81

0-90 2561 28.46 31.90

40-90 1087 12.09 13.55

60-90 167 1.86 2.09

90-180 5468 60.76 68.10

0-180 8029 89.22 100.00

Zone Lumens %Lamp %Fixture

Luminance Data

45 12083 12797 15464

55 7537 8900 10609

65 2181 2835 5403

75 1184 1389 1941

85 953 953 1718

Angle 0-Deg 45-Deg 90-Deg

in Deg cd/sm cd/sm cd/sm

Angle Along II 45oAcross I

1C=Single circuit luminaire

1E=Single circuit luminaire with emergency circuit (generator)

1B=Single circuit luminaire with battery pack

48"(1219mm)

96"(2438mm) 48"(1219mm)

96"(2438mm)

=Circuit 1

=Emergency Circuit

=Battery Circuit

=Power Mount

=Non-Power Mount

FIXTURE

LENGTH

4' 8' 12' 16' 20' 24' 28' 32' 36' 40' 44' 48' 52' 56' 60' 64' 68' 72' 76' 80' 84' 88' 92' 96' 100' 104' 108'

11111111111111

8' 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13
