EMERGENCY LIGHTS Architectural

COOPER LIGHTING (1) Consult your Cooper Lighting Representative. (2) Provision for one meter only.

COOPER LIGHTING - SURE-LITES®

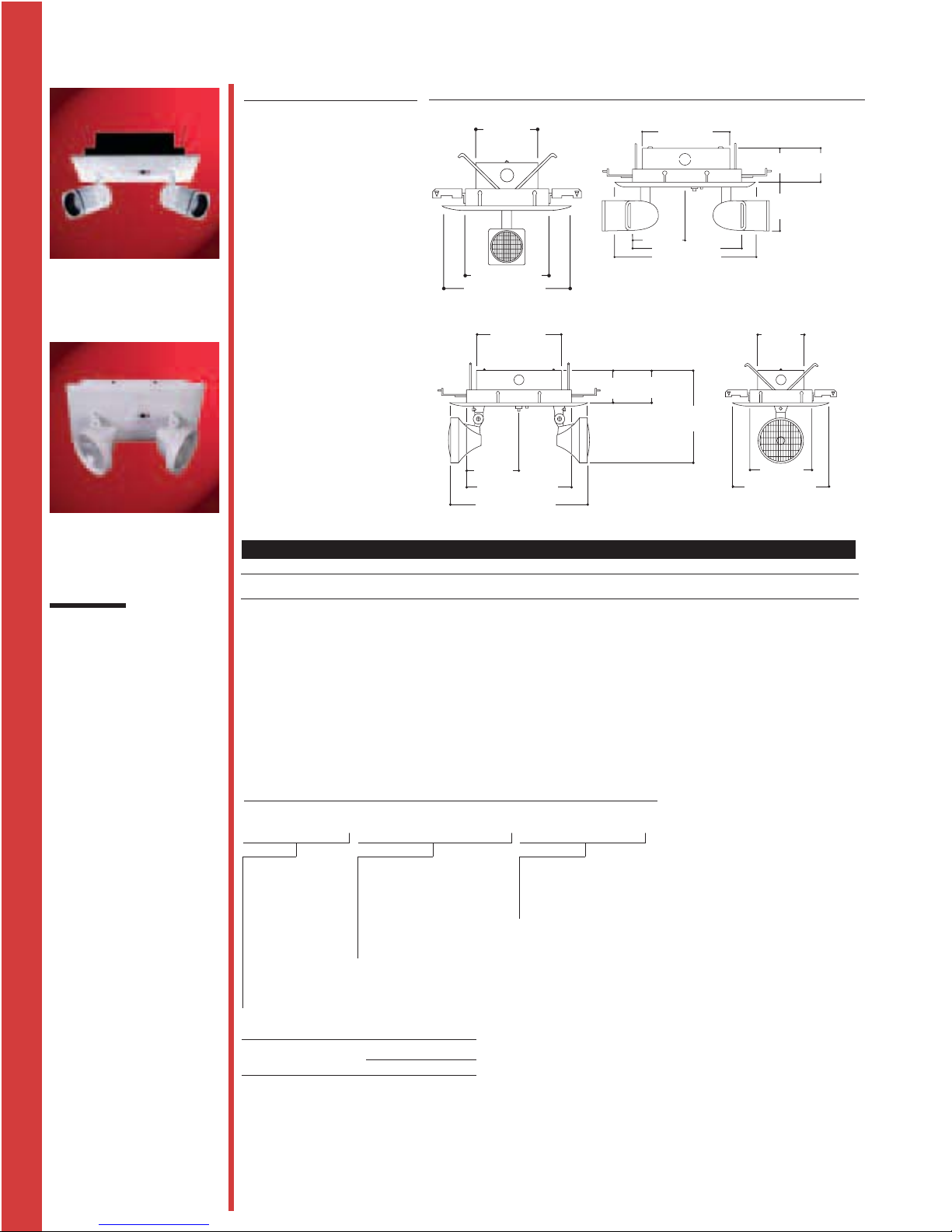

DIMENSIONS

• Dual-voltage input

120/277VAC, 60Hz

• 20 gauge die-formed steel

housing with white powder

coat ﬁnish

• Heads match housing

ﬁnish

• Knockout, conduit or cord

set

• Supplied with hanger bars,

T-Bar clips

• Single modular electrical

connector

• Remote capability

• Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low- voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test

switch/power indicator

light

• UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DESCRIPTION

The RD Series is a recessed

emergency lighting system

designed for locations where

aesthetics are of utmost

importance. The housing is

fully recessed in dry wall or

grid ceiling installations.

Designer pinchback heads

rotate 358° and swivel 90° to

0°. Ideal for commercial and

institutional environments

where easy recessed

installation and minimal

maintenance are desired.

The RLM Series is a recessed

system packaged in an

attractive ﬂame-resistant

metal housing. It is the unit

of choice for installations

where a recessed product is

desired and the size and cost

of emergency lighting must

be kept to a minimum

without sacriﬁcing

dependability or light output.

RD SERIES

Two Injection Molded

Thermoplastic Heads

RD1 SLC 6 18 15 10 8 Tungsten Halogen 6 29-12

RD3 SLC 6 27 24 18 14 Tungsten Halogen 12 29-66

RD4 SLC 12 54 - - - Incandescent 9 029-86

RD6 SNC 6 15 12 8 6 Tungsten Halogen 6 29-12

RD7 SNC 6 24 18 12 10 Tungsten Halogen 12 29-66

RLM1 SLC 6 10.8 7.2 - - Incandescent 5.4 29-121

RLM2 SLC 6 18 15 10 8 Incandescent 9 29-84

RLM3 SLC 6 27 24 18 14 Incandescent 9 29-84

RLM4 SLC 12 54 - - - Incandescent 9 029-86

RLM8 SNC 6 15 12 8 - Incandescent 7.2 29-88

RLM9 SNC 6 24 18 12 10 Incandescent 7.2 29-88

ORDERING INFORMATION

SAMPLE NUMBER: RD1V

5 1/8"

(130mm)

10 1/4" (260mm)

12 7/8" (327mm)

3 1/2"

(89mm)

7" max.

(178mm)

(152mm)

(RD4 Only)

8 1/4"

(210mm)

9 1/4" (235mm)

6 1/4" (159mm)

4 5/8"

(118mm)

Options

(Add as sufﬁx)

A=Ammeter(2)

SD=Self-Diagnostics

TDM=Time Delay Monitor

V=Voltmeter(2)

Alternate Lamps(1)

Other Options(1)

Model Number

RD1

RD3

RD4

RD6

RD7

RLM1

RLM2

RLM3

RLM4

RLM8

RLM9

Accessories

(Order separately)

WG2 =Wire Guard

WG7 =Wire Guard

VS=Choose polycarbonate

vandal shield desired

from accessories

sheet

Energy Data

Input Current (Max.):

Model No. 120V 277V

RD1, RD3 .12A .05A

RD4, RLM4 .30A .13A

RD6 .06A .03A

RD7 .07A .04A

RLM1, RLM2, RLM3 .12A .05A

RLM8 .06A .03A

RLM9 .07A .04A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

RLM SERIES

Two High-Impact

Thermoplastic Heads

Recessed Housing

EMERGENCY LIGHT

9 1/4" (235mm)

6 1/4"

(159mm)

12 7/8" (327mm)

10 1/4" (260mm)

9 1/4"

(235mm)

3 1/2"

(89mm)

5 1/8"

(130mm)

8 1/4"

(210mm)

(152mm)

(RLM4 Only)

4 5/8"

(118mm)
