Cooper Scantronic 750r Manuale utente
750r
Radio Siren Installation Guide
Zo installeert u draadloze sirene
Sirène radio manuel d’installation
D
Funksirene Installationsanleitung
I
Sirena Radio Manuale di Installazione
E
Radio Siren Guía de instalación
P
Sirene via Rádio Guia de Instalação
Radiostyret sirene Monterings-
vejledning
Radio Siren Installationshandbok
Radiostyrt alarm Installasjons-
veiledning
Radiosireeni Asennusohje
497291 Issue 2
For further detail and Declaration of Conformity please go to www.coopersecurity.co.uk.
This product complies with the requirements of European Directive: 1995/5/EC (Radio &Telecom-
munications Terminal Equipment Directive).
Ce produit est conforme aux exigences de la directive européenne : 1995/5/EC (Equipements
terminaux de radio et de télécommunication).
Dit product is conform de normen van de Europese Richtlijn 1995/5/EC (R&TTE Richtlijn)
Questo prodotto è conforme ai requisiti della Direttiva Europea: 1995/5/EC (Radio&Telecommunic
ations Terminal Equipment Directive).
Dette produkt er i overensstemmelse med kravene i EU-direktivet: 1995/5/EF (Direktiv om radio-
og teleterminaludstyr).
Dette produktet overholder kravene i EU-direktivet: 1995/5/EC (Radio &Telecommunications Ter-
minal Equipment Directive, R&TTE).
Den här produkten uppfyller kraven i EU-direktivet: 1995/5/EG (direktivet för radioutrustning och
teleterminalutrustning).
Dieses Produkt erfüllt die Anforderungen der europäischen Richtlinie 1995/5/EG (Richtlinie für
Funkanlagen und Telekommunikationsendeinrichtungen).
Este producto cumple con los requisitos de la Directiva Europea 1995/5/CE (Directiva de equipo
de terminal de radio y telecomunicaciones).
Este produto está conforme os requisitos da Directiva Europeia: 1995/5/CE (Directiva sobre Equi-
pamento de Radiocomunicações e Terminal de Telecomunicações).
Tämä tuote täyttää EU:n direktiivin 1995/5/EY (Radio- ja telepäätelaitedirektiivi) asettamat vaa-
timukset
750r
Radio Siren
Installation Guide
750r
Page ii 497291
Contents
Introduction............................................................................... 3
Overview ..................................................................................3
Technical Specification............................................................... 4
General.................................................................................................... 4
Security ................................................................................................... 4
Radio....................................................................................................... 4
Power Supply............................................................................................ 4
Electromagnetic Compatibility ..................................................................... 5
Electrical Safety ........................................................................................ 5
Compatible Equipment................................................................ 5
Installation ................................................................................ 6
Location ...................................................................................6
Teaching the Siren to the Control Unit ..........................................7
At the Siren:............................................................................................. 7
At the control unit: .................................................................................... 8
Physical Installation ...................................................................9
Safety Warning ....................................................................................... 10
At the Control Unit................................................................................... 10
750r
497291 Page 3
Introduction
Overview
The 750r is an external siren and strobe unit designed to
work with the Homelink 75 security system
Fitted within a Polycarbonate plastic enclosure are a 90dB
siren, radio transceiver operating on 868MHz, battery pack
and strobe light. The unit can be mounted on any vertical
surface up to 100m from a Homelink 75 control unit. (Note
that the range may vary depending on the site conditions.)
This Guide shows the procedure required to install the radio
siren and program the control unit to operate the siren in an
alarm.
To gain access to the battery compartment pull off the lower
cover.

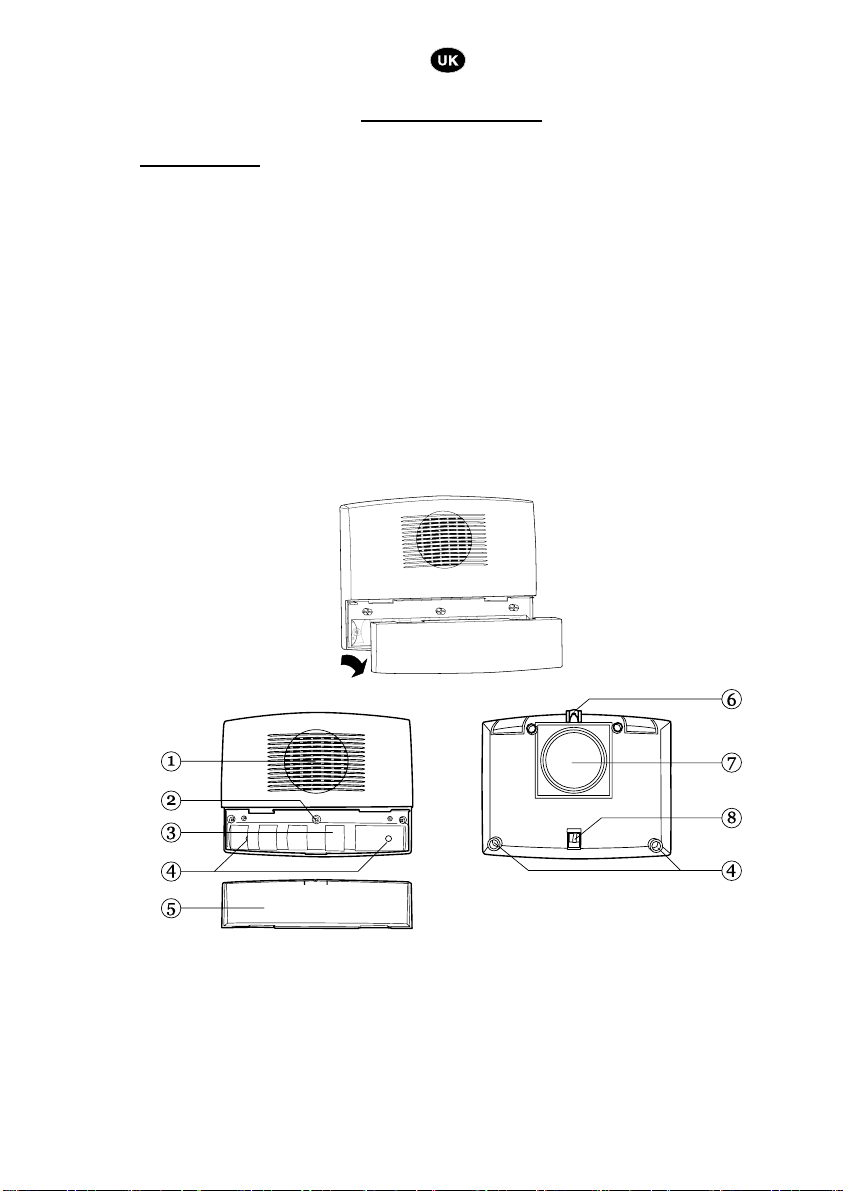

1. Sound aperture 5. Battery trim cover
2. Fixing screw for transparent battery cover. 6. Fixing bracket
3. Battery compartment and transparent cover 7. Siren
4. Fixing holes (front and back view) 8. Tamper arm
Figure 1. Main Features
750r
Page 4 497291
Technical Specification
General
Product name 750r
Manufacturer Cooper Security Ltd
Environmental This product is compliant with EN
50130-5 environmental class I
Operating temperature Tested -10 to +55°C
Humidity 93% RH
Dimensions 272mm W, 207mm H, 80mm D
Weight 1.71 kg (without batteries)
Case material Polycarbonate
Security
Security Grade This product is suitable for use in
systems designed to comply with
EN 50131-1 at grade 2
Radio Supervision Programmable at control unit.
Radio
Radio Section Operating frequency
868.6625MHz Narrowband.
I-ETS 300 220.
CE tested to I-ETS 300 339 (draft
standard).
Transmitter range The range of the control unit
compatible with this siren
depends on the environment in
which they are both installed. As
a guideline, most units will work
up 100m range in free space
conditions.
Power Supply
Batteries 4 x 1.5V LR20 Alkaline (not
supplied).
Monitoring includes Battery low voltage.
750r Technical Specification
497291 Page 5
Electromagnetic Compatibility
Immunity Conforms to EN50130-4.
Emissions Conforms to EN61000-6-3:2002
Electrical Safety
Conforms to EN60950-1:2002.
Compatible Equipment
7500rEUR-00 Homelink 75 control unit.
750r
Page 6 497291
Installation
Before installing the siren carry out a radio site survey. Use
the 790r signal strength meter and test transmitter to make
sure that radio reception is adequate at the proposed sites for
the control unit and siren.
Location
DO site the siren:
a) So that that there is a clear space around the case to allow
it to receive a good quality radio signal.
b) As high as possible to make sure an intruder cannot
interfere with it. Make sure the unit can be seen and heard
easily. Do not place the unit facing heavy traffic or a
railway line, which will drown the sound of the sounder.
Do NOT site the siren:
a) Outside the area covered by the alarm system.
b) Near ground level.
c) Close to or on large metal structures, for example: metal
doors or frames, water tanks, cars, fridges and freezers.
d) Closer than one metre to mains wiring and metal water or
gas pipes.
e) Inside steel enclosures.
f) Next to high voltage electrical equipment, or electronic
equipment, particularly computers, photocopiers or other
radios.
Exposure to Radio Frequency Radiation
The radiated output power of this device is below those levels
considered safe by European exposure limits. Nevertheless,
when fitting the product place it in such a manner as to
minimise the potential for human contact during normal
operation. To minimise exposure, users should be more than
200 mm from the device during normal operation.
750r Installation
497291 Page 7
Teaching the Siren to the Control Unit
You will need to “teach” the identity of the radio siren to the
Homelink 75 control unit. It is better to do this before
physically installing the siren in its final position.

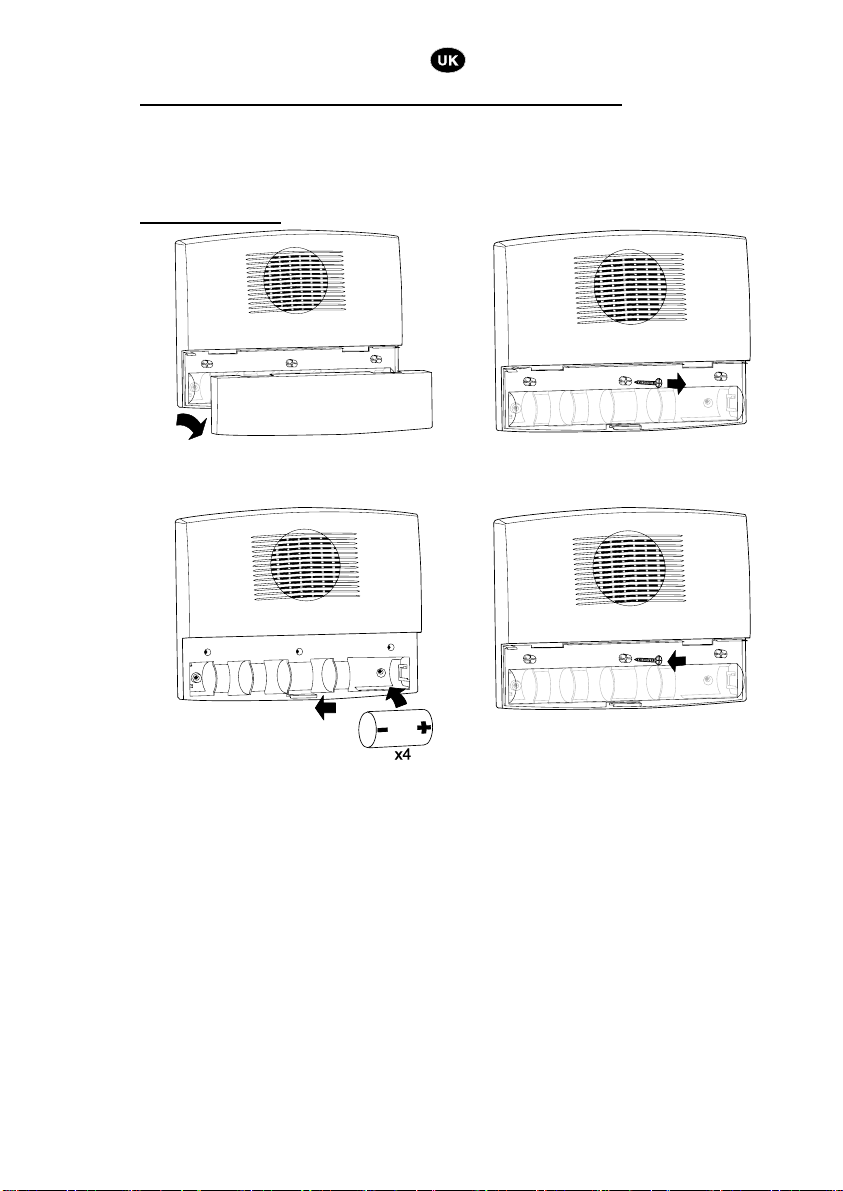

At the Siren:
1
2
Remove battery trim
cover.
Remove transparent
battery cover.
3
4
Insert batteries.
Note: The siren emits a
loud tone (“beep beep”) as
you apply power.
Replace transparent
battery cover.
Installation 750r
Page 8 497291
At the control unit:
1. Enter installer mode.
2. Select “Other Devices”.
3. Select “External Siren Menu”.
4. Select “Add/Del Ext Siren”.
The display shows a list of the positions available for
learning external sirens. If a “ ” icon appears at the end
of a line then that position is already assigned to an
external siren.
5. Use the scroll key to select the position you want to use,
and then press “Select”.
The display shows “Activate Ext Siren Tamper”.

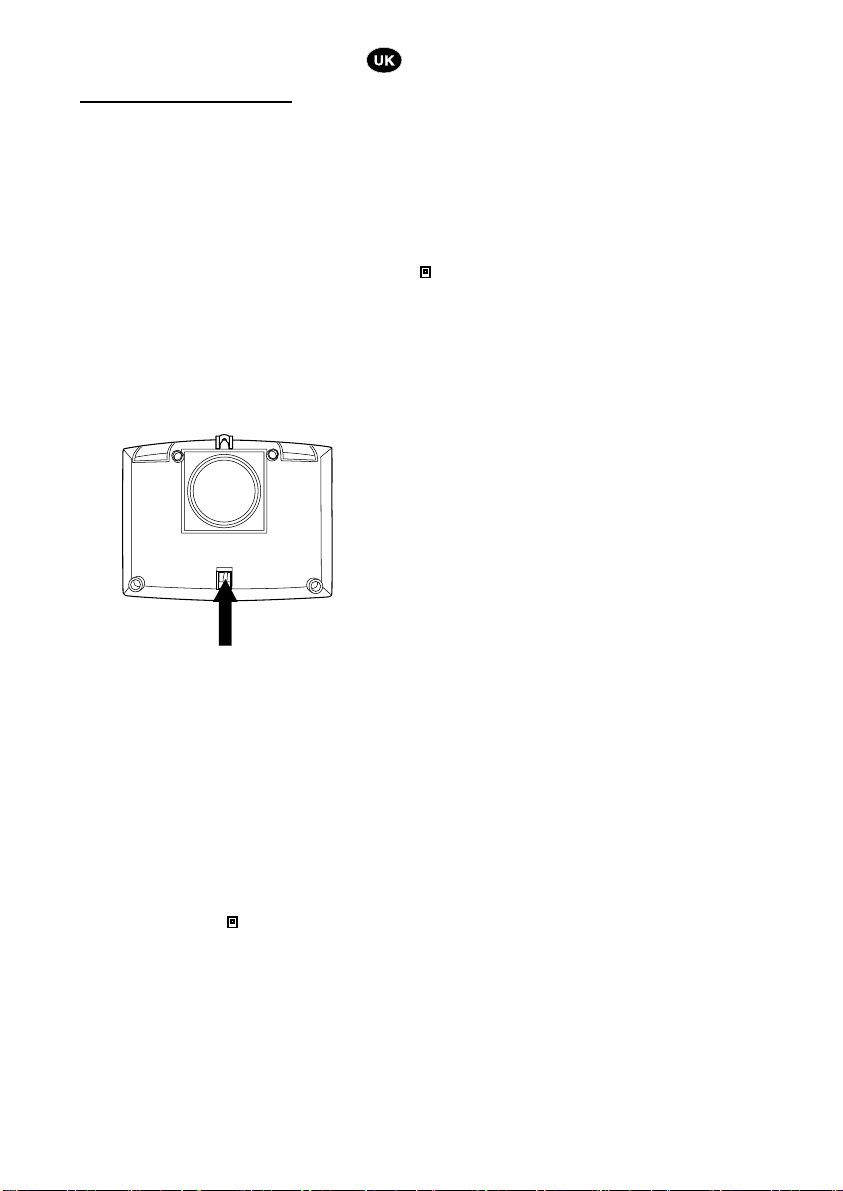

6.
Activate the tamper arm on
the siren.
The control unit display shows “Siren Added Signal
Strength” and a number.
The number represents the signal strength of the radio
transmission from the siren, measured by the control
unit. For successful operation the number should be
higher than 3 when the siren is mounted in its final
position (see page 10).
7. Press “Back”.
The display shows the list of external sirens. The siren
you have just made the control panel learn should now
show the “ ” icon.
Note: Do not leave installer mode until you have fitted the
siren in its final position.
