COP-USA CD55NV-DSP-09 Manuale utente
※ Please read the operation manual carefully before installing this unit
Installation/Operation Manual
for High Speed Dome Camera V1.2
SAFETY PRECAUTIONS
The lighting flash with a arrowhead symbol, in an equilateral triangle,
is intended to alert the user. There is uninsulated “dangerous volt-
age” presence near by the product’s enclosure which may be risk
of to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to reference of the important operating and mainte-
nance (servicing) instructions.
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO DOT
OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
THE PRODUCT CODE MARKED ON THE BOTTOM COVER.
PLEASE FILL THE CODE IN THE FOLLOWING BLANK. PLEASE
SAVING THIS SPECIFICATION CAREFULLY, SO THAT CHECKING
MODEL:
PRODUCT CODE:
A
SAFETY
PRECAUTIONS
Important Safeguards
I. The Installation of the System
1. The Style of the Installation
2. Steps of Installation
II. The outlines description
III. Appendix I Lightning Proof and Surge Signal Proof
Appendix II The Cleaning of Clear Down Cover
Appendix ⅢⅢ
ⅢⅢ
ⅢAC24V Wire diameter and transmission
distance comparison chart
Appendix ⅣⅣ
ⅣⅣ
ⅣWire Gauge Conversion Chart
INSTALLATION INDEX
1
2
2
3
7
9
9
10
11
Important Safeguards
I. Description of Functions
II. Setup of the Menu of the Dome Camera
III. Setup of the Dome Camera
1. Connection of the System
2. Setup of Coding Switch of Dome Camera
3. Setup of the Protocol and the Default Baud Rate
4. Setup of the Baud Rate of Communication
5. Selection of the Terminal Resistor of the Dome Camera
IV Technical data table
V Troubleshooting
VI Appendix
Ⅰ: RS485 Bus Basic Knowledge
OPERATION INDEX
12
13
16
27
27
28
29
30
30
31
33
34
34
B
INDEX
IMPORTANT SAFEGUARDS
1
IMPORTANT
SAFEGUARDS
1 All the safety and operating instruction should
be read before the units is operated.
2 The power supply for the dome：AC24V/1.
7A, Which is displayed on the bottom of the
pedestal or other place of the dome.
3 Do not attempt to disassemble the camera.
In order to prevent electric shock, do not re-
move screws or covers. There are no user-
serviceable parts inside.
4 The product should be indoor installed and
operated to avoid rain and moisture. Do not use
it in wet places. If outdoor installation is needed,
the closed protect cover should be used and it is
absolutely prohibited to use it in open air
independently.
5 Do not operate it in case temperature, humid-
ity and power supply are beyond the limited
stipulations.
6 Do not let the camera aim at the sun or the
object with extreme light whatsoever it is
switched on or not. Do not let the camera aim at
or monitor bright and standstill object for a long
time.
7 Do not use aggressive detergent to clean the
main body of the camera. Wipe dirt with dry
cloth. If needed, mild detergent can be used
suitably.
8 Operate the intelligent speed dome camera
with great care to avoid shock or vibration. It
operate incorrectly, the Speed Dome could be
damaged.
9 Please install the dome to the suitable place
for bearing enough capacity.
10
If necessary, use a commercial lens clean-
ing paper to clear the lens windows. Gently wipe
the lens window until clean.
※We offer three-year guarantees on all
products,excepting the CCDS for one-year
guarnntee.

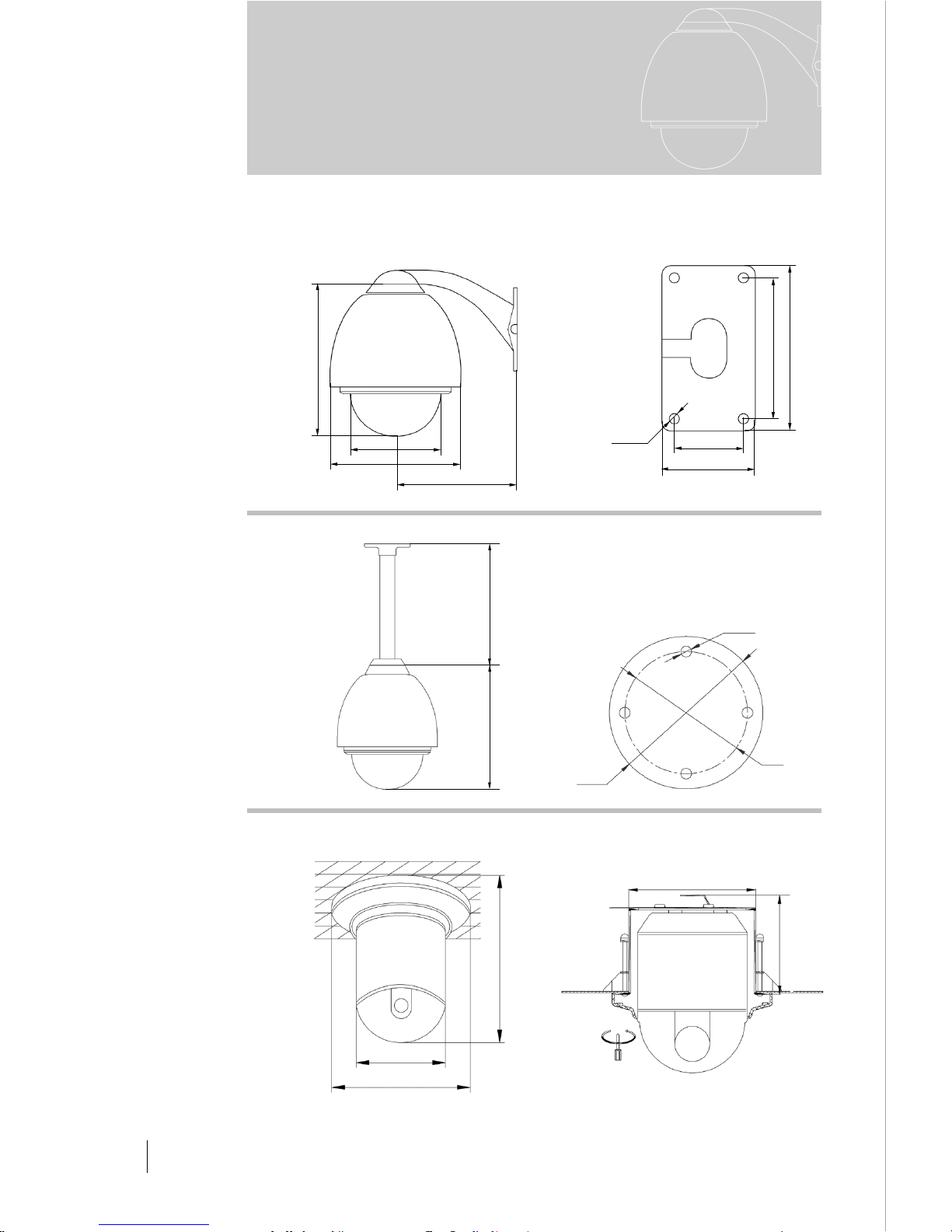

300
268
ø100
ø80
4-ø9
The Style of the Installation
a) Wall Installation
b) In-Ceiling Installation
c) Indoor Ceiling Installation d) Indoor Embedded Installation
2The Installation of
the System
120
142
80
58
4-ø9
ø152
ø219
262
202.5
Figure 1
1
Figure 2
210
ø135
ø197
ø156
131
Direct
Figure 3 Figure 4
I. The Installation of the System
Figure 8 Figure 9
PUSH
LOCK
MARK
OPEN LOCK

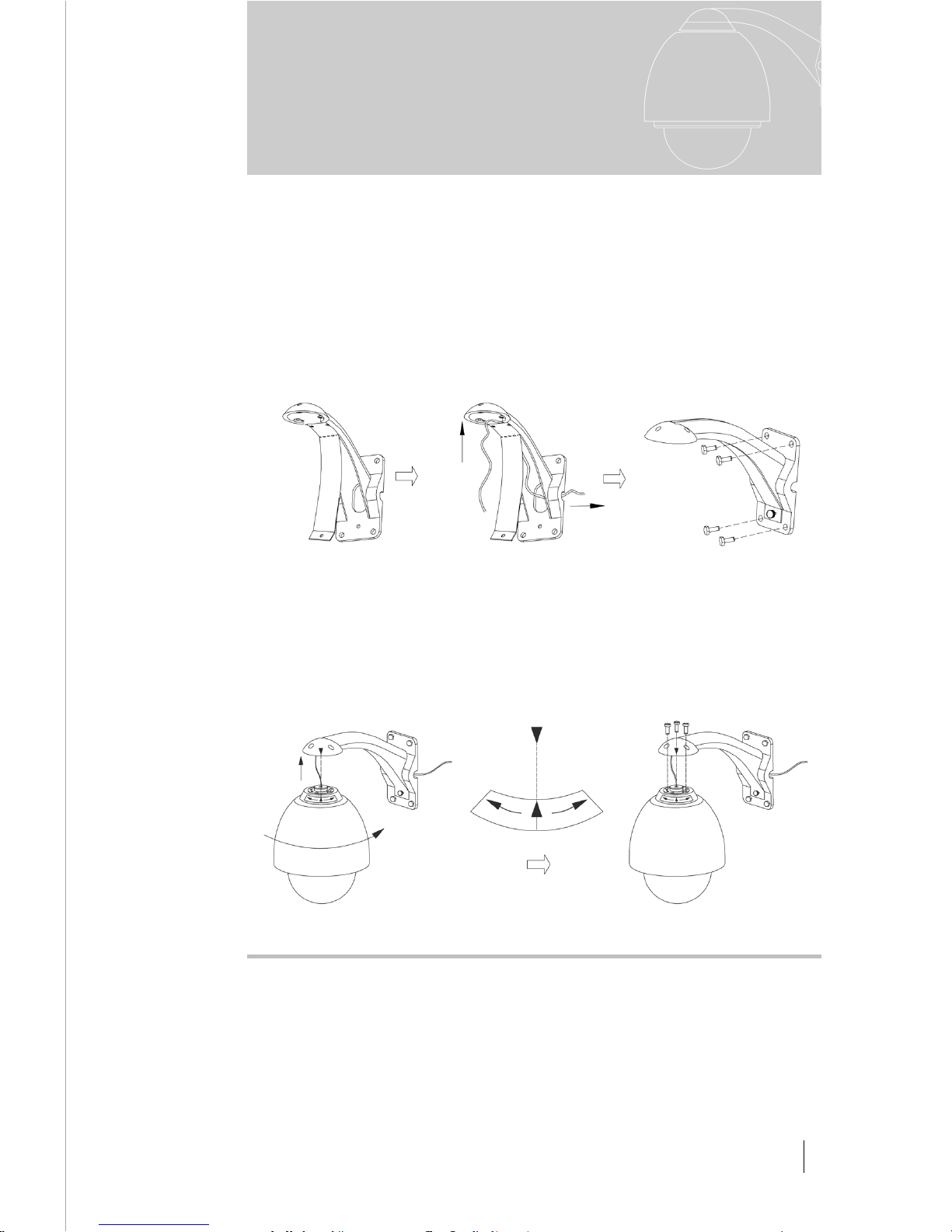

Steps of Installation
a) Wall Installation
1) Unpacking the carton and carefully take out the dome camera and its
attachments.
2) Take out the cover of the wall-installed bracket.（Figure5）.
3) Take out system control wires from the bracket（Figure 6）.
4) Fix the bracket on the wall（Figure7）.
5）Aiming the "MARK" of the bracket to the "MARK" of the flange, push the
dome upward to the end and rotate it with the direction of the arrow until it is
clicked and tightened.（Figure 8）.
6）It's ok to fix the dome to the bracket with hexagon socket head cap screw
（Figure 9）.
b) Steps of Installation for Indoor Ceiling Style
1) Unpacking the carton and carefully take out the dome camera and its
attachments .
2) Take out of the bracket, and fix the bracket on the wall.（Figure10）.
3) Please connect the system control wires, video wires, power wires with the
3
The Installation of
the System
2
Figure 5 Figure 6 Figure 7
