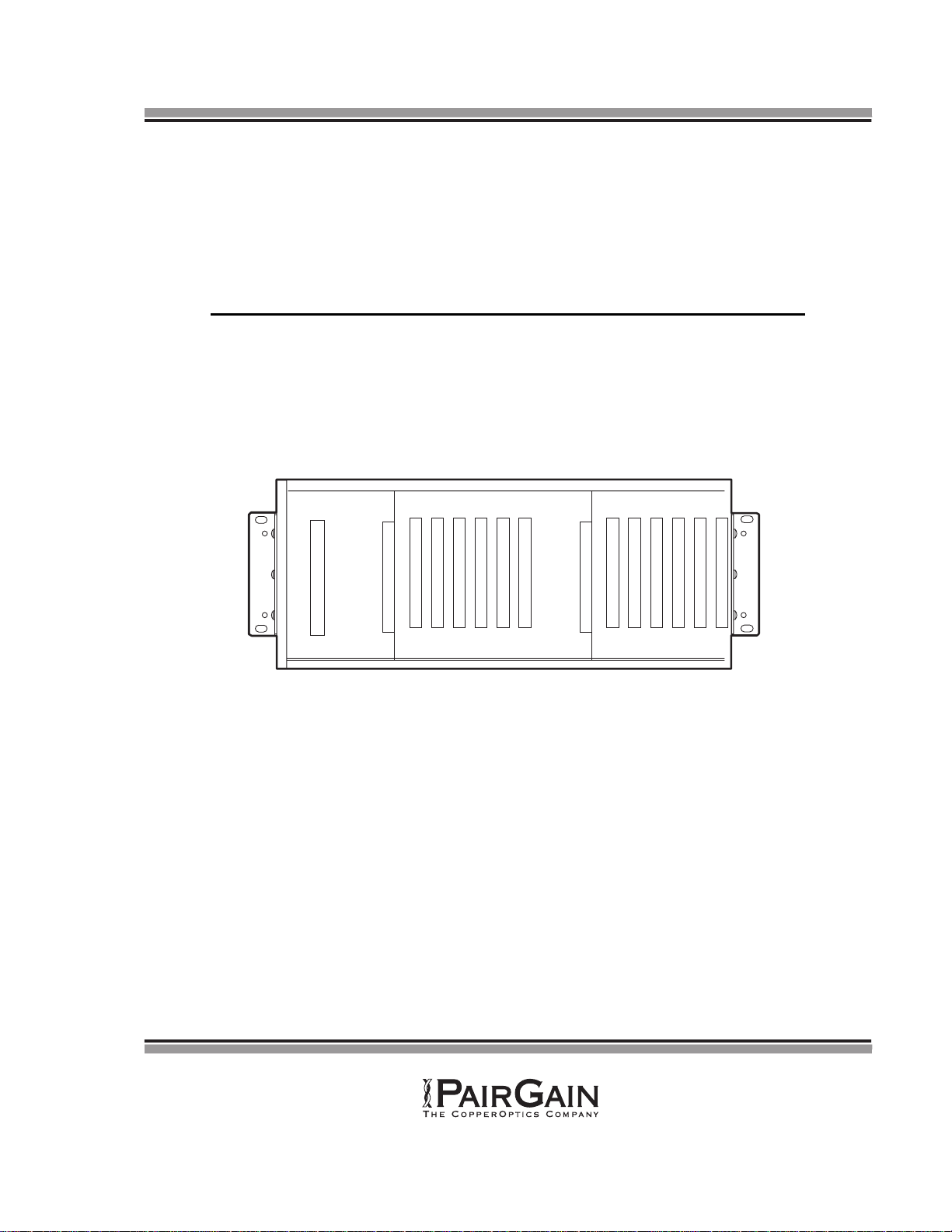

PG-FLEX 19" CENTRAL OFFICE

TERMINAL SHELF

Model List Number Part Number CLEI Code

FCS-718 4 150-1318-04 VAMCEC0ARA

PAIRGAIN TECHNOLOGIES, INC.

ENGINEERING PLANT SERIES TECHNICAL PRACTICE

SECTION 363-718-104-01

Revision History of this practice.

Revision 01—May 30, 1997

A) Initial Release.

Section 363-718-104 May 30, 1997 Revision 01

ii PairGain Engineering - Plant Series PG-Flex FCS-718

TABLE OF CONTENTS

A. PRODUCT OVERVIEW................................................................................................................1

1. Description and Features....................................................................................................1

2. Specifications....................................................................................................................2

B. FUNCTIONAL DESCRIPTION.....................................................................................................2

3. Operational Capabilities ....................................................................................................2

4. Backplane Connections......................................................................................................4

C. INSTALLATION AND TEST........................................................................................................18

5. Unpacking........................................................................................................................18

6. Pre-Provisioning—HDSL Lines........................................................................................19

7. Mounting..........................................................................................................................20

8. Wiring..............................................................................................................................20

9. Turn-Up and Testing.........................................................................................................25

10. Troubleshooting..............................................................................................................26

11. Technical Support...........................................................................................................26

D. WARRANTY AND CERTIFICATION.........................................................................................26

12. Warranty.........................................................................................................................26

13. Certification....................................................................................................................27

E. ABBREVIATIONS.........................................................................................................................27

14. Abbreviations .................................................................................................................27

USING THIS TECHNICAL PRACTICE

Three types of messages, identified by icons, appear in the text:

A note informs you of special circumstances.

A caution indicates the possibility of equipment damage.

A warning indicates the possibility of personal injury.

PairGain is a registered trademark, and PG-Flex is a trademark of PairGain Technologies, Inc.

Revision 01 May 30, 1997 Section 363-718-104

PG-Flex FCS-718 PairGain Engineering - Plant Series Page 1

A. PRODUCT OVERVIEW

1. Description and Features

1.1 The PairGain® PG-Flex™ FCS-718 List 4 19-inch Central Office Terminal (COT) Shelf

(Figure 1) supports:



one Alarm Unit or PGTC Interface Unit that is common to both systems



two PG-Flex subscriber carrier systems where each system comprises one Line Unit and from

one to six Channel Units (for a shelf maximum of two Line Units and 12 Channel Units)

Additionally, the shelf provides termination points for alarms, power, metallic bypass pairs, auxiliary

power pairs when using a doubler, and subscriber circuits (located on the backplane at the rear of the

shelf). The List 4 COT Shelf provides cable adapters with 25-pair Amphenol connector terminations

for the subscriber circuits.

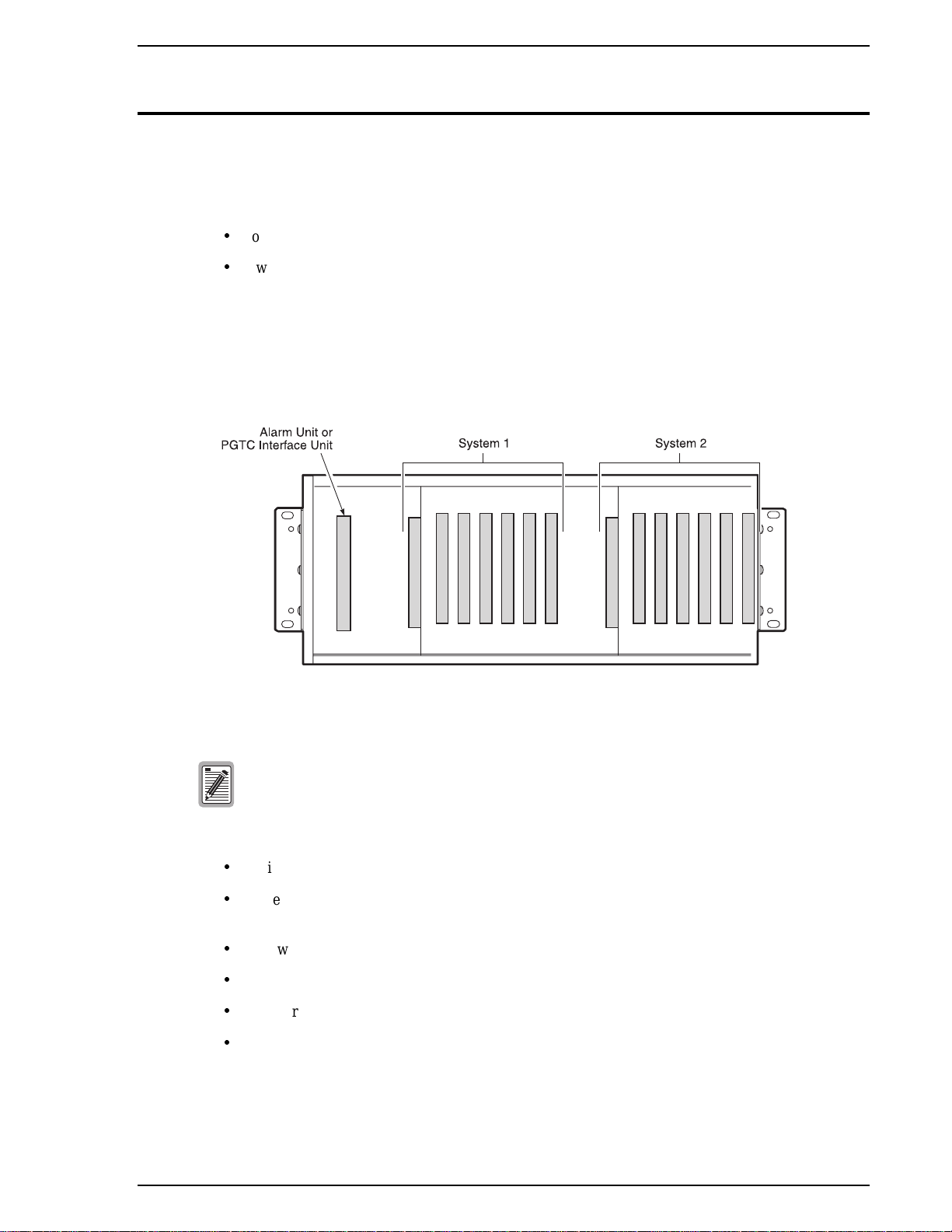

Figure 1. FCS-718 COT Shelf

Use the List 4 FCS-718 COT 19-inch Shelf only with a List 4x (or higher) FRE-765

Remote Terminal Enclosure.

1.2 Features of the PG-Flex FCS-718 COT Shelf are:



universal mounting brackets for installing in a 19- or 23-inch equipment bay



wire-wrap connections for HDSL, alarm, metallic bypass pairs, and auxiliary power pairs (when

using a doubler)



screw terminal connections for frame ground and dual Central Office (CO) battery



DB-25 connector for Network Management Analysis (NMA) communications



25-pair Amphenol cable adapters for connection to CO switch subscriber lines



25-pair Amphenol connector for PGTC test interface

Section 363-718-104 Mya 30, 1997 Revision 01

Page 2 PairGain Engineering - Plant Series PG-Flex FCS-718

2. Specifications

Electrical Characteristics

Power .......................................................................... –48Vdc CO battery

Environmental

Operating Temperature................................................ –40° F to +150° F (–40° C to +65° C)

Operating Humidity..................................................... 5% to 95% (non-condensing)

Operating Elevation..................................................... –200 feet to 13,000 feet (–60 m to 4,000 m)

Physical

Mounting.....................................................................19- or 23-inch equipment rack using universal

mounting brackets

Dimensions

Height................................................................... 07.00 in. (17.8 cm)

Width.................................................................... 17.25 in. (43.8 cm)

Depth.................................................................... 11.75 in. (29.9 cm)

Weight.................................................................. 11.10 lb (05.0 kg)

B. FUNCTIONAL DESCRIPTION

3. Operational Capabilities

3.1 Each system (one Line Unit and from one to four Channel Units) shown in Figure 1 can support up to

24 or 32 subscriber channels. Each Channel Unit can provide four (4) or eight (8) channels,

depending on the service offered. Services offered are:



Plain Old Telephone Service (POTS)



Integrated Services Digital Network (ISDN)

A label on the FCS-718 shelf indicates numbering for the Line and Channel

Units. When the Line Units are a List 1 or 2, black numbers indicate sequential

Channel Unit numbering 1 through 12. When the Line Units are List 3 or higher,

blue numbers indicate Channel Unit numbering 1 through 6 for each system.

3.2 Tables 1 and 2 show how to utilize channels, dependent on the Channel Unit (4 or 8 channels) and

the type of subscriber service (i.e., POTS, ISDN) selected.

Revision 01 May 30, 1997 Section 363-718-104

PG-Flex FCS-718 PairGain Engineering - Plant Series Page 3

Table 1. Channel Unit Circuit Utilization

Channel Unit Service Configurations

Channel Unit 4-Channel POTS 8-Channel POTS 4-Channel ISDN 4-Channel DDS

T/R 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Tx

T/R 2 Ckt 2 Ckt 2 Ckt 2 Ckt 1 Rcv

T/R 3 Ckt 3 Ckt 3 Ckt 3 Ckt 2 Tx

T/R 4 Ckt 4 Ckt 4 Ckt 4 Ckt 2 Rcv

T/R 5 Ckt 5 Ckt 3 Tx

T/R 6 Ckt 6 Ckt 3 Rcv

T/R 7 Ckt 7 Ckt 4 Tx

T/R 8 Ckt 8 Ckt 4 Rcv

Table 2. Systems 1 and 2 Circuit Assignments for COT Shelf

System 1* System 2*

Line

Unit CU 1

(CU 1) CU 2

(CU2) CU 3

(CU 3) CU 4

(CU 4) CU 5

(CU 5) CU 6

(CU 6) Line

Unit CU 7

(CU 1) CU 8

(CU 2) CU 9

(CU 3) CU 10

(CU 4) CU 11

(CU 5) CU 12

(CU 6)

Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1

Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2 Ckt 2

Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3 Ckt 3

1 Ckt 4 Ckt 4 Ckt 4 Ckt 4 Ckt 4 Ckt 4 2 Ckt 4 Ckt 4 Ckt 4 Ckt 4 Ckt 4 Ckt 4

Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5 Ckt 5

Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6 Ckt 6

Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7 Ckt 7

Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8 Ckt 8

* CU numbers shown on top are for a List 1 or 2 Line Unit. CU numbers on the bottom in parentheses are for a

List 3 or higher Line Unit. CU is a Channel Unit.

Section 363-718-104 Mya 30, 1997 Revision 01

Page 4 PairGain Engineering - Plant Series PG-Flex FCS-718

4. Backplane Connections

4.1 Section 4.2 provides connector pinouts located on the backplane for Alarm or PGTC Interface Unit,

Line Units, and Channel Units.

Section 4.3 provides connectors and termination points located on the backplane for:



battery and CO battery return



frame ground



Local Area Network (LAN)



data



HDSL, test, composite clock, auxiliary power pairs, and ACO cutoff switch



alarm or PGTC test interface



subscriber lines

4.2 Table 3 lists the FCS-718 List 4 connectors (Figure 1) and where each is described in

this practice.

Table 3. FCS-718 List 4 Card Connectors

Connector/Fuse Go to Table(s) On page

Alarm Unit or PGTC Interface Unit 4 5

Line Unit Connectors (Systems 1 and 2) 5 6

Channel Unit Connectors (System 1) 6 7 thru 9

Channel Unit Connectors (System 2) 7 10 thru 12

Use the information in tables 4 through 7 for diagnostic and troubleshooting

procedures under the direction of an authorized PairGain technical support

representative. User terminations are not required on J1.

Revision 01 May 30, 1997 Section 363-718-104

PG-Flex FCS-718 PairGain Engineering - Plant Series Page 5

Table 4. Alarm Unit or PGTC Interface Unit Connector

J1-C Pin J1-C Signal J1-B Pin J1-B Signal J1-A Pin J1-A Signal

1 LAN 1 LGND (CDS) 1 LGND (CDS)

2 N/C 2 INHIBIT 2 N/C

3 PGTC_TIP1 3 SLEEVE1 3 TESTIN-T_1

4 PGTC_RING1 4 SLEEVE2 4 TESTIN-R_1

5 PGTC_TIP2 5 SLEEVE3 5 TESTIN-T_2

6 PGTC_RING2 6 SLEEVE4 6 TESTIN-R_2

7 PGTC_TIP3 7 OH1 7 TESTIN-T_3

8 PGTC_RING3 8 OH2 8 TESTIN-R_3

9 PGTC_TIP4 9 OH3 9 TESTOUT-T_1

10 PGTC_RING4 10 OH4 10 TESTOUT-R_1

11 (BURN-IN) 11 PROCEED1 11 TESTOUT-T_2

12 LOCK1 12 PROCEED2 12 TESTOUT-R_2

13 LOCK2 13 PROCEED3 13 TESTOUT-T_3

14 LOCK3 14 PROCEED4 14 TESTOUT-R_3

15 LOCK4 15 SEIZE 15 TESTOUT-T_4

16 TMAJ 16 SEZBY 16 TESTOUT-R_4

17 +5_2 17 TSTALM 17 +5_1

18 NMA_TX 18 NMA_RX 18 NMA_DTR

19 NMA_DSR 19 N

MA_TCLK

19 NMA_RCLK

20 NMA_BUS_1 20 NMA_BUS_2 20 TESTIN-T_4

21 NMA_BUS_3 21 NMA_BUS_4 21 TESTIN-R_4

22 CC1TIP 22 CC1RING 22 EXT_ACO

23 CC2TIP 23 CC2RING 23 8KHZ_CC

24 SHELF_ID_NO 24 SHELF_ID_COM 24 SHELF_ID_NC

25 MAJ_AUD_NO 25 MAJ_AUD_COM 25 MAJ_AUD_NC

26 MAJ_VIS_NO 26 MAJ_VIS_COM 26 MAJ_VIS_NC

27 MIN_AUD_NO 27 MIN_AUD_COM 27 MIN_AUD_NC

28 MIN_VIS_NO 28 MIN_VIS_COM 28 MIN_VIS_NC

29 FUSEALARM 29 MAJORALARM 29 MINORALARM

30 BATTERY- 30 BATTERY- 30 BATTERY-

31 BATTERY+ 31 BATTERY+ 31 BATTERY+

32 PROTGND 32 GND 32 GND

Section 363-718-104 Mya 30, 1997 Revision 01

Page 6 PairGain Engineering - Plant Series PG-Flex FCS-718

Table 5. Line Unit Connectors

System Line Unit Connector

11 J2

2 2 J10

Pin Signal* Pin Signal

1 PROTGND 2 PROTGND

3 N/C 4 N/C

5 HDSLTIP1EX_n6 HDSLTIP2EX_n

7 HDSLRING1EX_n8 HDSLRING2EX_n

9 N/C 10 N/C

11 BATTERY+ 12 BATTERY+

13 -48_n14 -48_n

15 BATTERY- 16 BATTERY-

17 8KHZ_CC 18 N/C (BURN-IN)

19 TSYNC_n20 TSIG_n

21 TCLK_n22 TSER_n

23 GND 24 RSYNC_n

25 RSIG_n26 RCLK_n

27 RSER_n28 GND

29 SDA_n30 CSYNC_n

31 FUSEALARM 32 SCL_n

33 +5_n34 +5_n

35 GND 36 GND

37 -5_n38 -5_n

39 NMA_BUS_n40 N/C (CID3)

41 GND (CID2) 42 GND (CID1)

43 MAJORALARM 44 MINORALARM

45 TESTIN-T_n46 TESTIN-R_n

47 TESTOUT-T_n48 TESTOUT-R_n

49 N/C 50 N/C

51 BYPASS-T_n52 BYPASS-R_n

53 HDSL_TIP1_n54 HDSL_TIP2_n

55 HDSL_RING1_n56 HDSL_RING2_n

57 N/C 58 N/C

59 PROTGND 60 PROTGND

* Where nis 1 on system 1 and 2 on system 2.

Revision 01 May 30, 1997 Section 363-718-104

PG-Flex FCS-718 PairGain Engineering - Plant Series Page 7

Table 6. Channel Unit Connectors for System 1

System Channel Unit Connector

11 J3 System Channel Unit Connector

12 J4

Pin Signal Pin Signal Pin Signal Pin Signal

1 PROTGND 2 PROTGND 1 PROTGND 2 PROTGND

3 TIPEX01_1 4 RINGEX01_1 3 TIPEX05_1 4 RINGEX05_1

5 TIPEX02_1 6 RINGEX02_1 5 TIPEX06_1 6 RINGEX06_1

7 TIPEX03_1 8 RINGEX03_1 7 TIPEX07_1 8 RINGEX07_1

9 TIPEX04_1 10 RINGEX04_1 9 TIPEX08_1 10 RINGEX08_1

11 BATTERY+ 12 BATTERY+ 11 BATTERY+ 12 BATTERY+

13 -48_1 14 -48_1 13 -48_1 14 -48_1

15 BATTERY- 16 BATTTERY- 15 BATTERY- 16 BATTERY-

17 8KHZ_CC 18 N/C (BURN-IN) 17 8KHZ_CC 18 N/C (BURN-IN)

19 TSYNC_1 20 TSIG_1 19 TSYNC_1 20 TSIG_1

21 TCLK_1 22 TSER_1 21 TCLK_1 22 TSER_1

23 GND 24 RSYNC_1 23 GND 24 RSYNC_1

25 RSIG_1 26 RCLK_1 25 RSIG_1 26 RCLK_1

27 RSER_1 28 GND 27 RSER_1 28 GND

29 SDA_1 30 CSYNC_1 29 SDA_1 30 CSYNC_1

31 N/C 32 SCL_1 31 N/C 32 SCL_1

33 +5_1 34 +5_1 33 +5_1 34 +5_1

35 GND 36 GND 35 GND 36 GND

37 -5_1 38 -5_1 37 -5_1 38 -5_1

39 N/C 40 GND 39 N/C 40 GND

41 GND 42 GND 41 GND 42 GND

43 GND 44 N/C 43 GND 44 N/C

45 TESTIN-T_1 46 TESTIN-R_1 45 TESTIN-T_1 46 TESTIN-R_1

47 GND 48 GND 47 GND 48 GND

49 TESTOUT-T_1 50 TESTOUT-R_1 49 TESTOUT-T_1 50 TESTOUT-R_1

51 TIP01_1 52 RING01_1 51 TIP05_1 52 RING05_1

53 TIP02_1 54 RING02_1 53 TIP06_1 54 RING06_1

55 TIP03_1 56 RING03_1 55 TIP07_1 56 RING07_1

57 TIP04_1 58 RING04_1 57 TIP08_1 58 RING08_1

59 PROTGND 60 PROTGND 59 PROTGND 60 PROTGND

(continued on next page)

Section 363-718-104 Mya 30, 1997 Revision 01

Page 8 PairGain Engineering - Plant Series PG-Flex FCS-718

Table 6. Channel Unit Connectors for System 1 (continued)

System Channel Unit Connector

13 J5 System Channel Unit Connector

14 J6

Pin Signal Pin Signal Pin Signal Pin Signal

1 PROTGND 2 PROTGND 1 PROTGND 2 PROTGND

3 TIPEX09_1 4 RINGEX09_1 3 TIPEX13_1 4 RINGEX13_1

5 TIPEX10_1 6 RINGEX10_1 5 TIPEX14_1 6 RINGEX14_1

7 TIPEX11_1 8 RINGEX11_1 7 TIPEX15_1 8 RINGEX15_1

9 TIPEX12_1 10 RINGEX12_1 9 TIPEX16_1 10 RINGEX16_1

11 BATTERY+ 12 BATTERY+ 11 BATTERY+ 12 BATTERY+

13 -48_1 14 -48_1 13 -48_1 14 -48_1

15 BATTERY- 16 BATTERY- 15 BATTERY- 16 BATTERY-

17 8KHZ_CC 18 N/C (BURN-IN) 17 8KHZ_CC 18 N/C (BURN-IN)

19 TSYNC_1 20 TSIG_1 19 TSYNC_1 20 TSIG_1

21 TCLK_1 22 TSER_1 21 TCLK_1 22 TSER_1

23 GND 24 RSYNC_1 23 GND 24 RSYNC_1

25 RSIG_1 26 RCLK_1 25 RSIG_1 26 RCLK_1

27 RSER_1 28 GND 27 RSER_1 28 GND

29 SDA_1 30 CSYNC_1 29 SDA_1 30 CSYNC_1

31 N/C 32 SCL_1 31 N/C 32 SCL_1

33 +5_1 34 +5_1 33 +5_1 34 +5_1

35 GND 36 GND 35 GND 36 GND

37 -5_1 38 -5_1 37 -5_1 38 -5_1

39 N/C 40 GND 39 N/C 40 GND

41 GND 42 GND 41 GND 42 GND

43 GND 44 N/C 43 GND 44 N/C

45 TESTIN-T_1 46 TESTIN-R_1 45 TESTIN-T_1 46 TESTIN-R_1

47 GND 48 GND 47 GND 48 GND

49 TESTOUT-T_1 50 TESTOUT-R_1 49 TESTOUT-T_1 50 TESTOUT-R_1

51 TIP09_1 52 RING09_1 51 TIP13_1 52 RING13_1

53 TIP10_1 54 RING10_1 53 TIP14_1 54 RING14_1

55 TIP11_1 56 RING11_1 55 TIP15_1 56 RING15_1

57 TIP12_1 58 RING12_1 57 TIP16_1 58 RING16_1

59 PROTGND 60 PROTGND 59 PROTGND 60 PROTGND

(continued on next page)

Altri manuali per PairGain PG-Flex FCS-718

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CopperOptics Hardware di rete

CopperOptics

CopperOptics PairGain PG-Flex FRC-753 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FLL-712 List 1 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FSU-796 List 3 Manuale utente

CopperOptics

CopperOptics PairGain HiGain HRU-512 Manuale utente

CopperOptics

CopperOptics PairGain HiGain ELU-319 List 5 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FCS-719 Manuale utente

CopperOptics

CopperOptics PairGain HiGain HRU-412 Manuale utente

CopperOptics

CopperOptics PairGain PG-FLEX FRC-754 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex RT FRL-772 List 1 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FLC-706 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FLC-703 Manuale utente

CopperOptics

CopperOptics PairGain HiGain HLU-388 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FCS-718 Manuale utente

CopperOptics

CopperOptics PairGain PG-Flex FRL-742 Manuale utente

CopperOptics

CopperOptics PairGain HiGain HDU-45 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
