Core ColourPoint Manuale utente

USER MANUAL

Battery Wireless Up-light Lithium

ColourPoint User Manual V1_2

Contents

Contents ............................................................................................................... 1

Disclaimer............................................................................................................. 3

Product Modification ........................................................................................... 3

Safety Information................................................................................................ 3

Before You Begin................................................................................................. 4

Product Overview................................................................................................. 4

Features............................................................................................................ 4

Product Contents............................................................................................. 4

Safety................................................................................................................ 4

Getting Started..................................................................................................... 5

ColourPoint Key Elements.............................................................................. 5

Power................................................................................................................ 5

Ventilation and Mounting................................................................................ 5

Operation.............................................................................................................. 6

Power................................................................................................................ 6

Charging........................................................................................................... 6

Control Panel ................................................................................................... 6

External Power (Optional Accessory)............................................................ 7

Function Modes ................................................................................................... 8

Cust Col............................................................................................................ 8

Static Operation............................................................................................... 9

DMX Operation............................................................................................... 10

Additional Settings ............................................................................................ 13

Power Mode.................................................................................................... 13

Brightness Control ........................................................................................ 13

Soft Dimmer ................................................................................................... 13

Keypad Lock .................................................................................................. 14

ColourPoint User Manual V1_2

Mechanical.......................................................................................................... 15

Dimensions .................................................................................................... 15

Antenna .......................................................................................................... 15

Locking........................................................................................................... 15

Warranty ............................................................................................................. 16

Compliance Information.................................................................................... 17

System Compliance....................................................................................... 17

FCC & Industry Canada Statement for Radio Compliance............................. 17

W-DMX Transmitter & Receiver.................................................................... 17

WEEE & RoHS Statement.................................................................................. 18

ColourPoint User Manual V1_2

Disclaimer

CORE Lighting Limited believe the information in this manual is accurate and complete however

assumes no responsibility for any error or omissions within this document or any other

documentation accompanying the product. We reserve the right to revise this document at any time.

Please see www.corelighting.co.uk/support to download latest version.

Product Modification

This CORE Lighting product has been designed and manufactured to meet the strict requirements

UK, EU and International safety regulations. Any unauthorised modifications to the product

including replacement of parts with non-standard parts could compromise safety and result in the

product being non-compliant with relevant standards.

There are no user serviceable parts within this product.

Safety Information

Important safety information is contained within this manual. Please read all instructions fully prior to

installation and use of the equipment.

Internationally recognised symbols are used within the document to highlight important messages as

follows:

Critical installation or usage information.

Failure to comply with this information may cause damage to the product, third party

equipment or cause harm or injury

Important installation or usage information.

Failure to comply with this information may cause the product to operate incorrectly

Note: Restrictions apply to transporting this equipment on aircraft

due to the lithium polymer batteries having capacity greater than

100Wh. Please consult IATA Packing Instructions 967 and CORE

Lighting Ltd for further information.

ColourPoint User Manual V1_2

Before You Begin

The CORE ColourPoint fixture is a battery-powered wireless up-lighter capable of providing portable and

instant architectural and feature lighting anywhere. With high-powered red, green, blue and white LEDs

the fixture is capable of producing any colour or shade of white using combinations of those LEDs. Ideal

for illuminating buildings in colour, both indoors and outdoors, the fixture is powerful enough to light

buildings of 3 or 4 storeys. Lighting effects may be created by connecting to effects generators such as

lighting desks or other CORE Master units using the in-built Wireless DMX receiver. Simply connect

wirelessly to the transmitter of the generator.

The product is designed and manufactured in the UK.

Product Overview

Features

High powered 2000lumen RGBW LEDs equivalent to 5300 Lux @ 2m

4 x Cree high-powered RGBW LED arrays

Lithium Ion Battery reducing unit weight to just 4.0Kg

LEE Filter Colour Library or separate red, green, blue, white control (4Bn colours combinations).

Wireless DMX wireless slave control (2.4GHz W-DMX from Wireless Solution, Sweden)

4 or 5 Channel DMX operation

Intuitive LCD menu

Designed and Manufactured in the UK

Operating temperature range -20 to +45 degC or -4 to +113 degF

Product Contents

Please contact your dealer immediately if there are any signs of product damage or parts missing.

Single unit Charging case of six units

1x ColourPoint wireless LED fixture

1x Stainless steel shroud

1x Battery charger

1x Power cable

1x Shortform Manual

6x ColourPoint Wireless LED fixtures

6x Stainless steel shroud

1x Charging case

1x Powercon Cable

1x Shortform Manual

Safety

AVOID direct eye exposure to the light source when illuminated

DO NOT submerge this product in water or expose to excessive water spray

DO NOT hang this product other than by the means indicated in this manual

DO NOT leave any flammable material near product whilst operating or charging

ALWAYS use the supplied charger or charging case

ALWAYS ensure the charger is connected to the specified voltage

ALWAYS ensure the charging case lid is open whilst plugged into mains supply

NEVER connect this product or charger to a dimmer pack

DO NOT operate thi s fixture if it appears damaged in any way

DO NOT operate this fixture where the ambient temperature exceeds 45ºC

In the unlikely event that your product develops a fault, please contact your local dealeror

authorised distributor.

Do not attempt to repair yourself unless specifically instructed by CORE Lighting Ltd.

ColourPoint User Manual V1_2

Getting Started

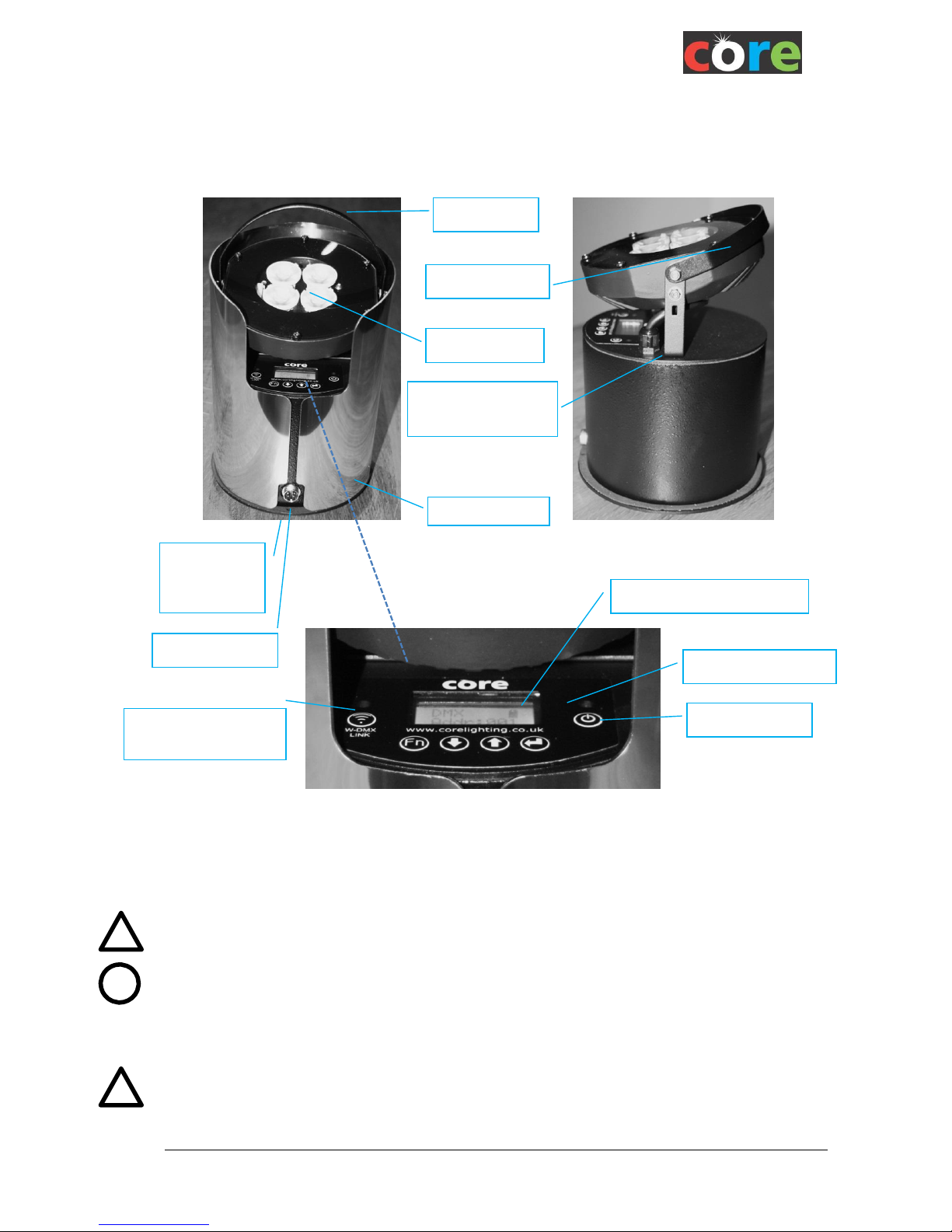

ColourPoint Key Elements

Power

The battery charger may be included as an accessory for individually purchased fixtures or

built into the flight case for multiple charging fixtures. In each case the supply has an input

voltage range of 100-240 VAC at 50/60Hz.

Ensure the product is used only with correct voltage and frequency of mains supply.

Never connect the charger or charging case to a dimmer circuit, even when a

dimmer has

been configured for ‘non-dim‘ or ‘switched’ operation.

Ventilation and Mounting

Always use the product in a safe position and ensure there is enough room around it for ventilation.

Never close the lid during charging; this allows escape of heat.

Charging &

Mains PSU

Port

Carry handle

LED Emitters

Power On/Off

Charging Status LED

Battery charge indicator

Kensington lock

point

Padlock Fixing

Shroud (silver)

WDMX button and

LED indicator

Handle stowed

ColourPoint User Manual V1_2

Operation

Power

Push and hold this power button for >1 second to switch the unit ON or OFF

The display will show “CORE Lighting”and software version for a few seconds before starting

The display backlight will extinguish after a short time to reduce power use

Charging

Turn the unit OFF before connecting to the charger

Only use the supplied charger or charging case

External chargers should be plugged into the 5-pin connector on the front of the unit.

Case chargers the unit should be inserted into the case.

For best results recharge battery fully before storage

When charging the battery in the charging case, ensure the case remains open.

Switch off the charger unit and unplug once fully charged

Whilst charging the LED indicator will illuminate in AMBER

Once fully charged the LED indicator will show GREEN

DO NOT use any charger other than the unit supplied with the ColourPoint.

When using a charging flight case, ensure the unit is pushed fully down on the charging

connector and the protruding screws are located in their positioning holes. The charge

light on top of the unit should illuminate to signify this has been done.

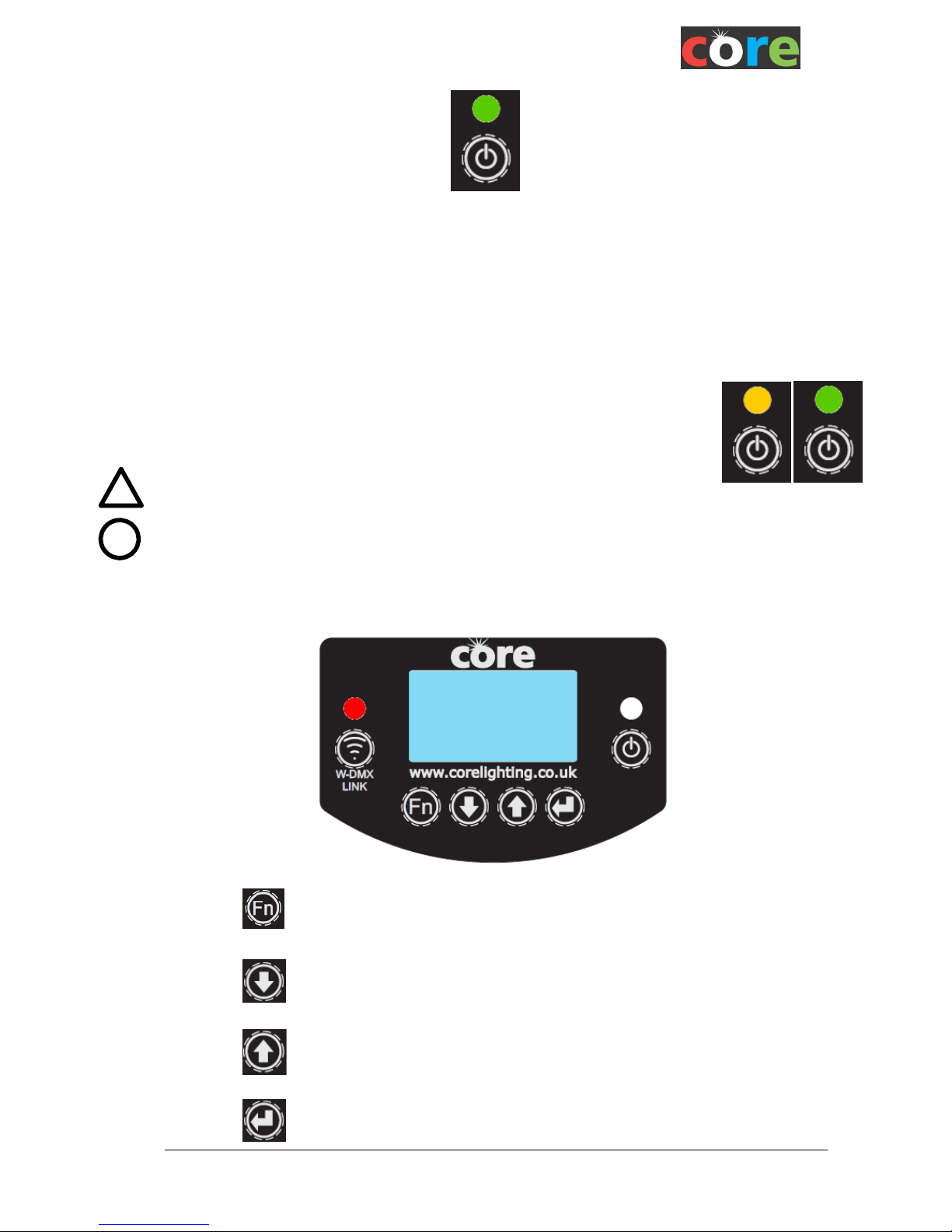

Control Panel

Enables changes to FUNCTION or SETTINGS menus

Exits from the current option or menu

Navigates backwards through the menu list

or decrements a numeric value

or navigates back through available values

Navigates forward through the menu list

or increments a numeric value

or navigates forward through available values

Enters the currently displayed menu option

or saves the currently displayed value

Charged

Charging

FUNCTION

static

ColourPoint User Manual V1_2

External Power (Optional Accessory)

A separately available power supply is available as an accessory to drive the

ColourPoint from mains voltage 100-250VAC 50/60Hz.

Connect this to the charging/power port in the front of the unit.

The device supplies 24VDC to the ColourPoint which replaces battery power.

Battery is disconnected whilst the Power Supply is plugged in so will not be

charged or discharged.

ColourPoint User Manual V1_2

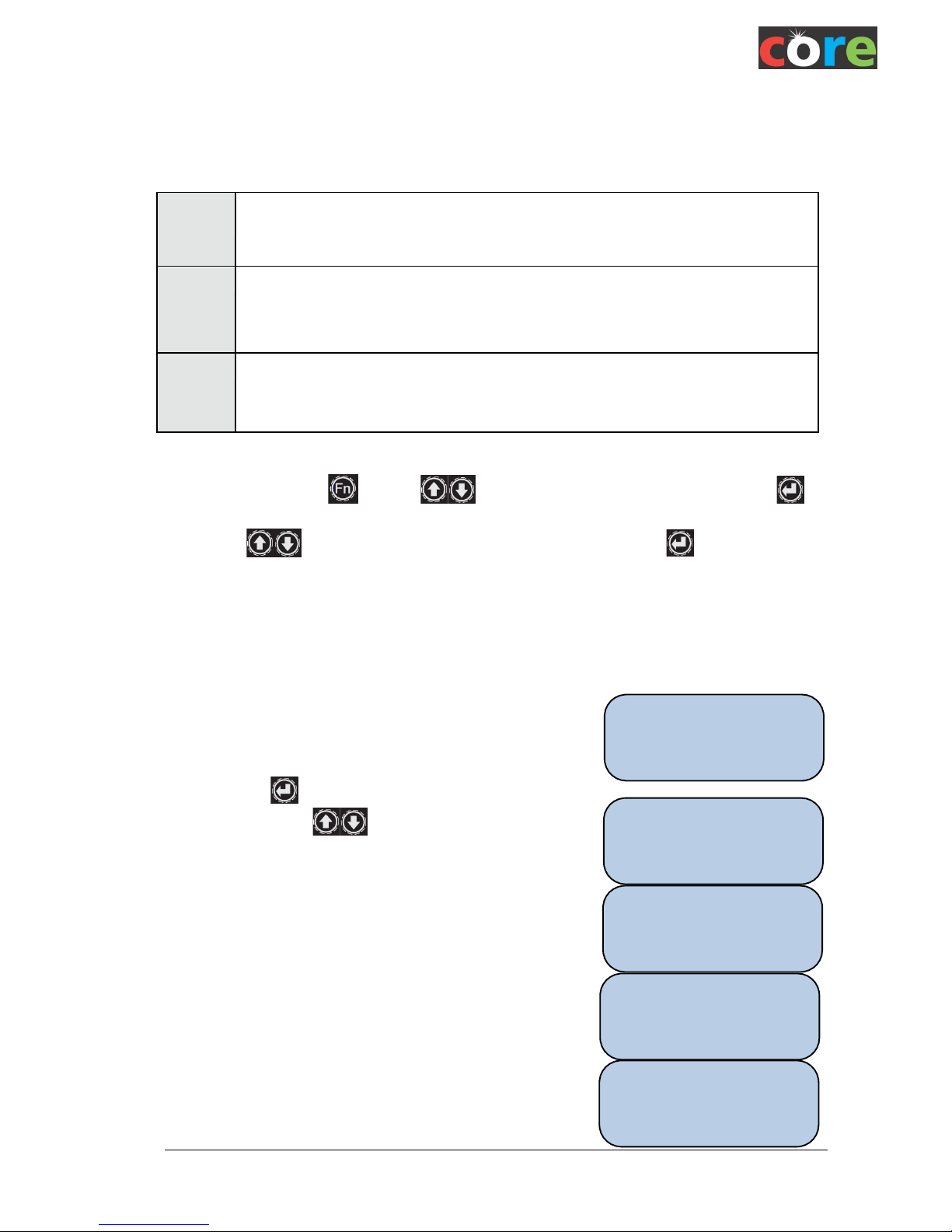

Function Modes

There are three modes of Operation, accessed through the FUNCTION menu;

To change Function press . Use the keys to select “CHANGE Function” and press

to accept.

Then use the keys to select the required function as above and press .

The three modes of operation are discussed in more detail below.

All of these adjust the brightness settings for each colour.

Information for more technical users: the brightness is set using Pulse Width Modulation (PWM).

The PWM frequency is 610Hz.

Cust Col

When in Custom Colour mode the display indicates FUNCTION

the current selected colour. Cust Col

Simply press to step through the colours or accept

a colour value. Use keys to change the value. Set Col.

Red: 255

Value range 0 to 255. Set Col.

Grn: 000

Tip: Mix red & blue for purple/pink Set Col.

Tip: Mix red & green for orange/yellow Blu:128

Tip: Mix red & green with White for warm shades of white Set Col.

Wht: 050

Cust

Col

This mode allows the fixture to output a static Red, Green, Blue or White colour, or any

combination thereof; each colour may be set to any value 0 to 255.

Any W-DMX signal, if present, is ignored.

Static

In this mode the fixture outputs a static LEE or preset ‘cc’ colour as selected.

The selection is remembered if the unit is switched off then back on or put into another

mode.

Any W-DMX signal, if present, is ignored.

DMX

In this mode the fixture is under control of Wireless DMX (W-DMX) so may be controlled

by a W-DMX compatible device or DMX compatible device with a W-DMX transmitter

attached.

The options available within DMX mode are described in more detail below.

Indice

Altri manuali Core Attrezzatura di illuminazione

Core

Core COUGAR 12Z Manuale utente

Core

Core Point 15 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
