Corinex PowerNet Manuale utente

‰

Contents

This Owner’s Manual, as well as the software described in it, is furnished under

license and may be used or copied only in accordance with the terms of the license.

The content of this manual is furnished for informational use only, it is subject to

change without notice, and it does not represent a commitment on the part of

Corinex Global Corp.

Corinex Global Corp. assumes no responsibility or liability for any errors or inaccuracies

that may appear in this book.

It is our policy to enhance our products as new technologies, hardware components,

software and firmware become available; therefore, the information contained in this

document is subject to change without notice.

Some features, functions, and operations described in this manual may not be

included and sold in certain countries due to government regulations or marketing

policies.

The use of the product or its features described in this document may be restricted or

regulated by law in some countries. If you are unsure which restrictions or regulations

apply, you should consult your regional Corinex office or the authorized reseller.

Published by:

Corinex Global Corp.

33076 – 1583 Marine Drive

West Vancouver, B.C., V7V 1HO

Canada

Tel: (604) 214 8787

Fax: (604) 214 8788

Corinex is a registered trademark of Corinex Global Corp.

Microsoft, MS−DOS, MS, Windows, Windows NT are either registered trademarks or

trademarks of Microsoft Corporation in the U.S.A. and/or other countries.

1.1 Overview

Corinex PowerNet USB Adapter• Owner‘s Manual

All products or company names mentioned herein may be the trademarks of their

respective owners.

Source document: Corinex Povernet USB Adapter_Owner's Manual.doc

Contents

1Introduction.................................................................................3

1.1 Overview...................................................................................... 3

1.2 About this Manual....................................................................... 3

2Installation Guide ........................................................................4

2.1 What this Package Contains......................................................... 4

2.2 System Requirements................................................................... 4

2.3 Installing the USB Adapter software ............................................5

3User‘s Guide...............................................................................10

3.1 PowerNet Setup Tool User Guide...............................................10

3.2 Corinex PowerNet USB Adapter .................................................13

3.3 FAQ .................................................................................... 14

3.4 USB Adapter Specifications........................................................ 15

4Troubleshooting Guide..............................................................17

1.1 Overview

Corinex PowerNet USB Adapter• Owner‘s Manual

1Introduction

1.1

Overview

Corinex PowerNet USB Adapter is network interface adapter, using

110/220 powerline as a medium for communication. After successful

installation, indoor PowerNet network behaves as traditional LAN for

computers. The Corinex PowerNet USB Adapter supports 14 Mbps−

network speed.

The product keeps network maintenance cost low and eliminates

usage barriers while there is no need for additional wiring.

The Product is a highly integrated and requires no glue logic or

external memory.

1.2 About this Manual

This Owner‘s Manual is intended to provide sufficient information to

help you understand successfully install the Corinex PowerNet USB

Adapter products to meet your networking needs.

1.1 Overview

Corinex PowerNet USB Adapter• Owner‘s Manual

With the information in this guide, you should be able to:

 Analyze your network needs…

 Plan the configuration of Corinex PowerNet USB Adapter

options…

 Install and configure your Corinex PowerNet USB Adapter

according to your plan…

 Verify and optimize your Corinex PowerNet USB Adapter

performance…

2Installation Guide

2Installation Guide 2

2.1 What this Package Contains

When you receive your Corinex PowerNet USB Adapter, check to be

sure that your package contains:

• Corinex PowerNet USB Adapter

• AC cord

• USB cable

• This manual

• Installation CD

2.2 System Requirements

• IBM compatible PC with one available USB port (Not hub)

• CD−ROM drive

• Windows 98/ME/2000/XP operating system

2.1 What this Package Contains

Corinex PowerNet USB Adapter• Owner‘s Manual

2Installation Guide

2.3 Installing the USB Adapter software

1. Insert the installation CD, it should automatically start. Do not

connect USB Adapter to PC before step 7! If the installation

program does not start automatically, start the application by

selecting „My Computer“, usually found on the desktop.

Navigate to the CD drive, and double click on the drive. The

following screen should be displayed:

2. Click „Yes“ to start installation. The following screen is the

welcome screen. Click „Next“ to continue.

2.3 Installing the USB Adapter software

Corinex PowerNet USB Adapter• Owner‘s Manual

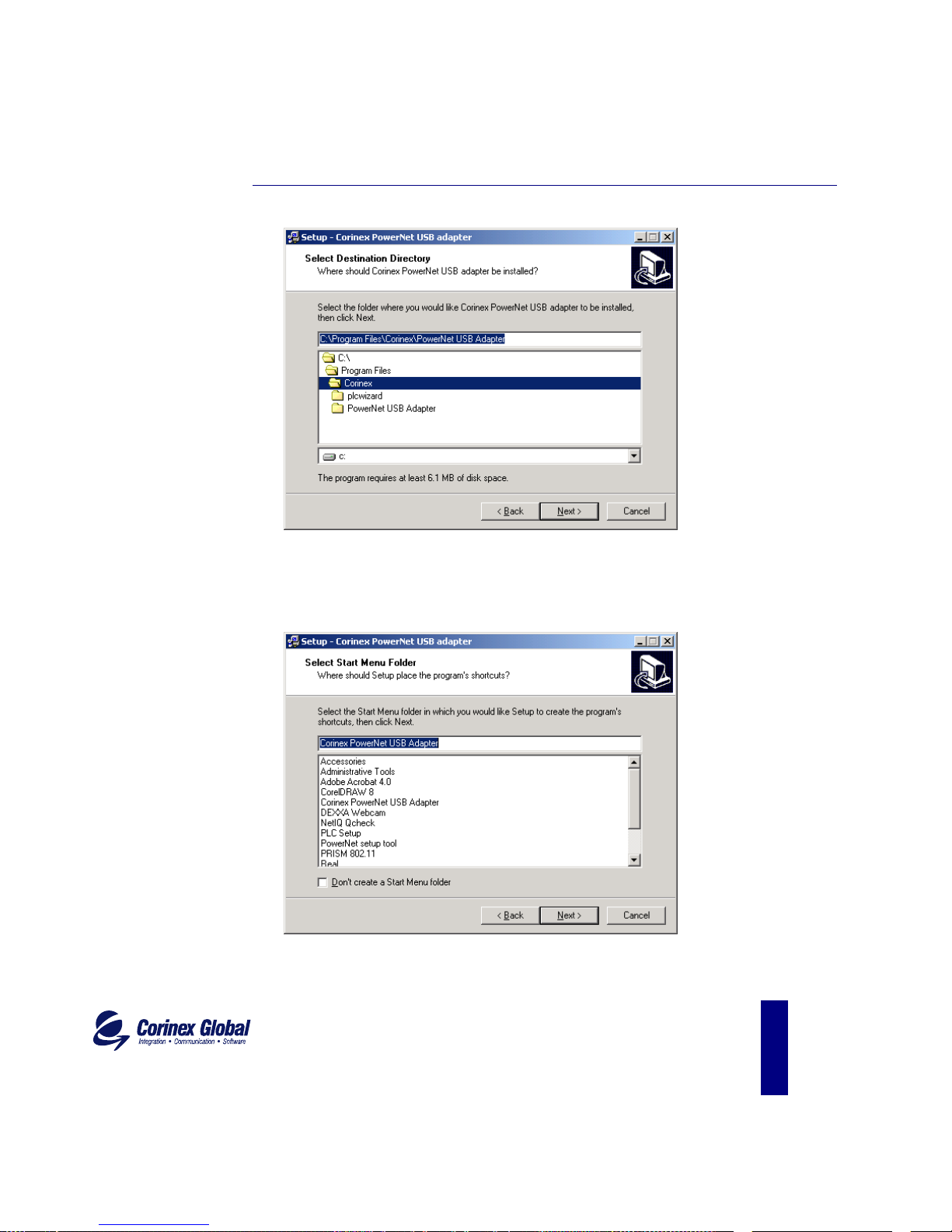

3. The next screen will ask where PowerNet Setup Tool should be

installed. Click „Next“ to continue.

2Installation Guide

4. This screen will ask where Setup should place the program’s

shortcuts. Select Start Menu Folder or simply click „Next“.

2.3 Installing the USB Adapter software

Corinex PowerNet USB Adapter• Owner‘s Manual

2Installation Guide

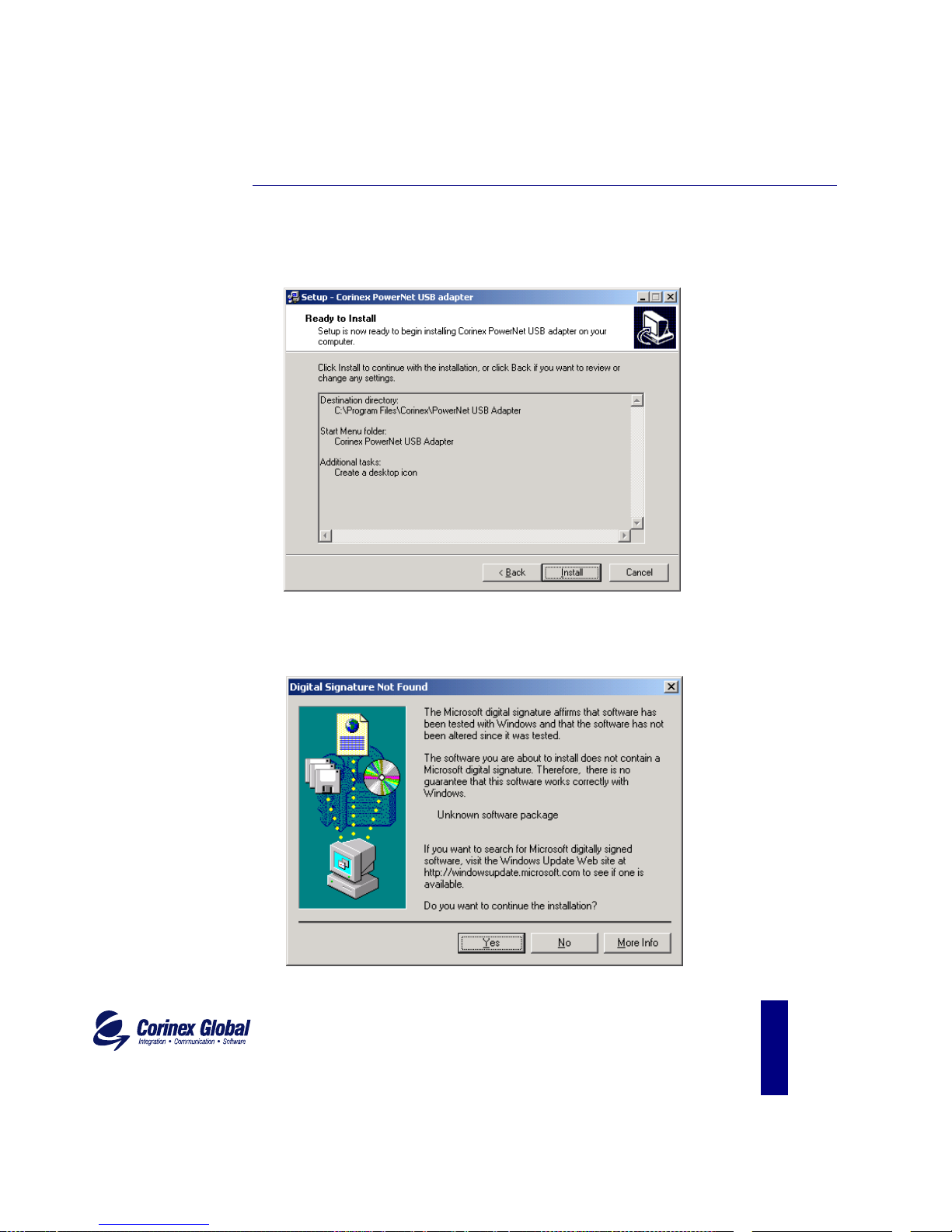

5. The following screen will appear to inform that Setup is ready to

begin installing PowerNet Setup Tool on your computer. Click

„Install“.

6. The following screen will appear to inform that the USB driver

that is about to be installed does not have a Microsoft signature.

Accept this to continue. (this screen varies a little between

versions of Windows)

2.3 Installing the USB Adapter software

Corinex PowerNet USB Adapter• Owner‘s Manual

2Installation Guide

7. The next screen is the last step in the process, it is now time to

connect your Corinex PowerNet USB Adapter. Plug the supplied

AC cord into the USB Adapter and into an AC outlet. Plug the

supplied USB cable into the USB Adapter and to a USB port on

your PC. Another screen similar to the previous may appear.

Accept this to continue.

If the driver was not automatically installed, follow the

instructions in the driver installation wizard and select installation

from c:\program files\Corinex\PowerNet USB Adapter\USB drivers

2.3 Installing the USB Adapter software

Corinex PowerNet USB Adapter• Owner‘s Manual

8. The following screen appear in Windows 98/ME. Click “Yes” to

restart your system.
