IDC Icemaker Adaptor Kit Installation Instructions

INSTALLATION INSTRUCTIONS

IDC ICEMAKER ADAPTOR KIT FOR P/N 629088733

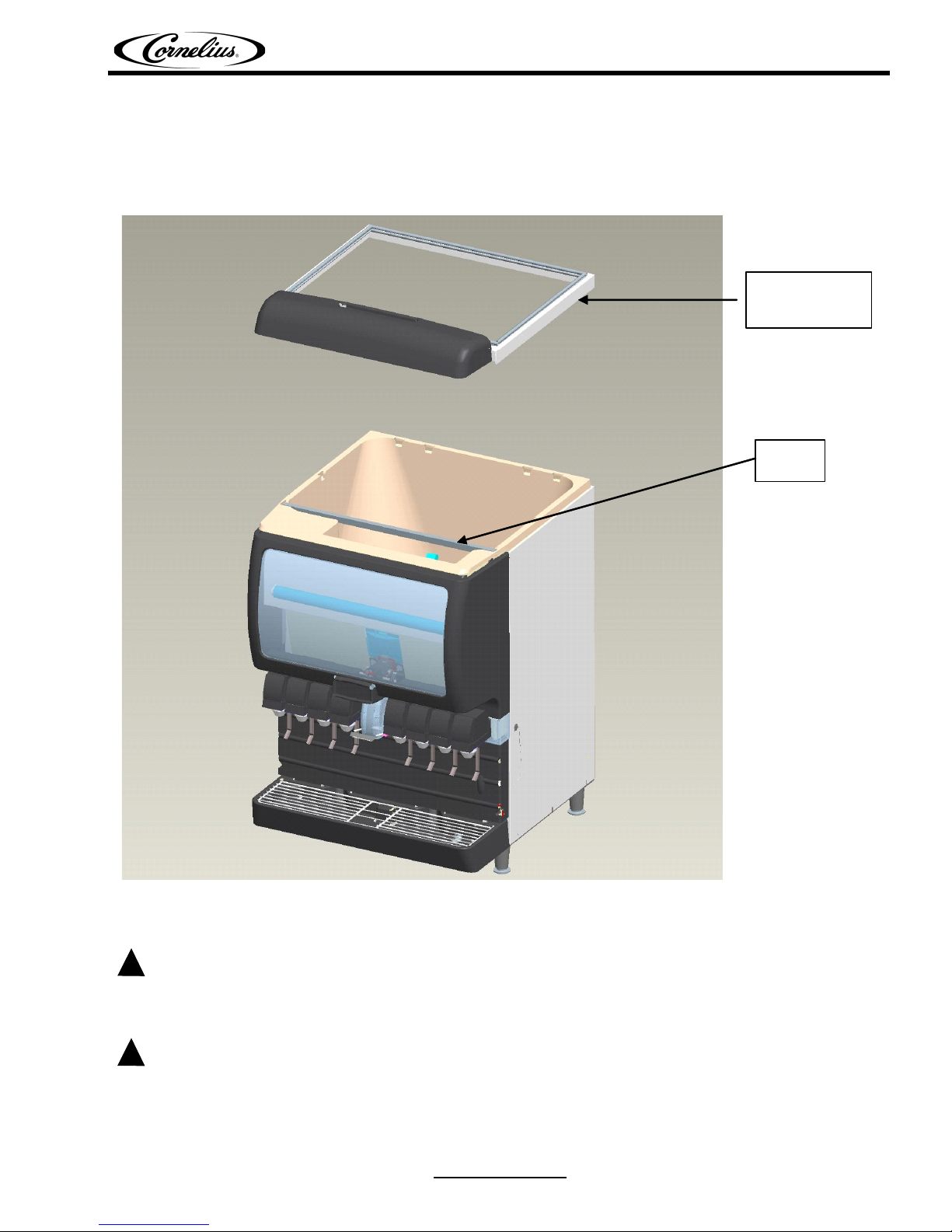

FIGURE 1

WARNING:

Disconnect power to the unit before installing adaptor following all lock out / tag out procedures established by the

user. Verify all of the power is off to the unit before performing any work. Failure to comply could result in serious

injury, death or damage to the equipment.

WARNING:

All of the attachment screws and plates must be installed as directed in this manual. Failure to comply could result in

serious Injury, Death or Damage to the equipment.

Bar

Icemaker

Adaptor kit

Revision Date: August 3, 2010 www.cornelius.com Revision: B

IDC Icemaker Adaptor Kit Installation Instructions

1. First step is to position and secure the kit to the dispensing unit. Whenever possible, this should be

done prior to lifting the dispenser onto the counter to allow sufficient access and also provide easier

and faster installation.

FIGURE 2

2. Place ice maker support rail into the front set of pockets in the ice bin as shown in Figure 2.

ICE MAKER

SUPPORT RAIL

IDC Icemaker Adaptor Kit Installation Instructions

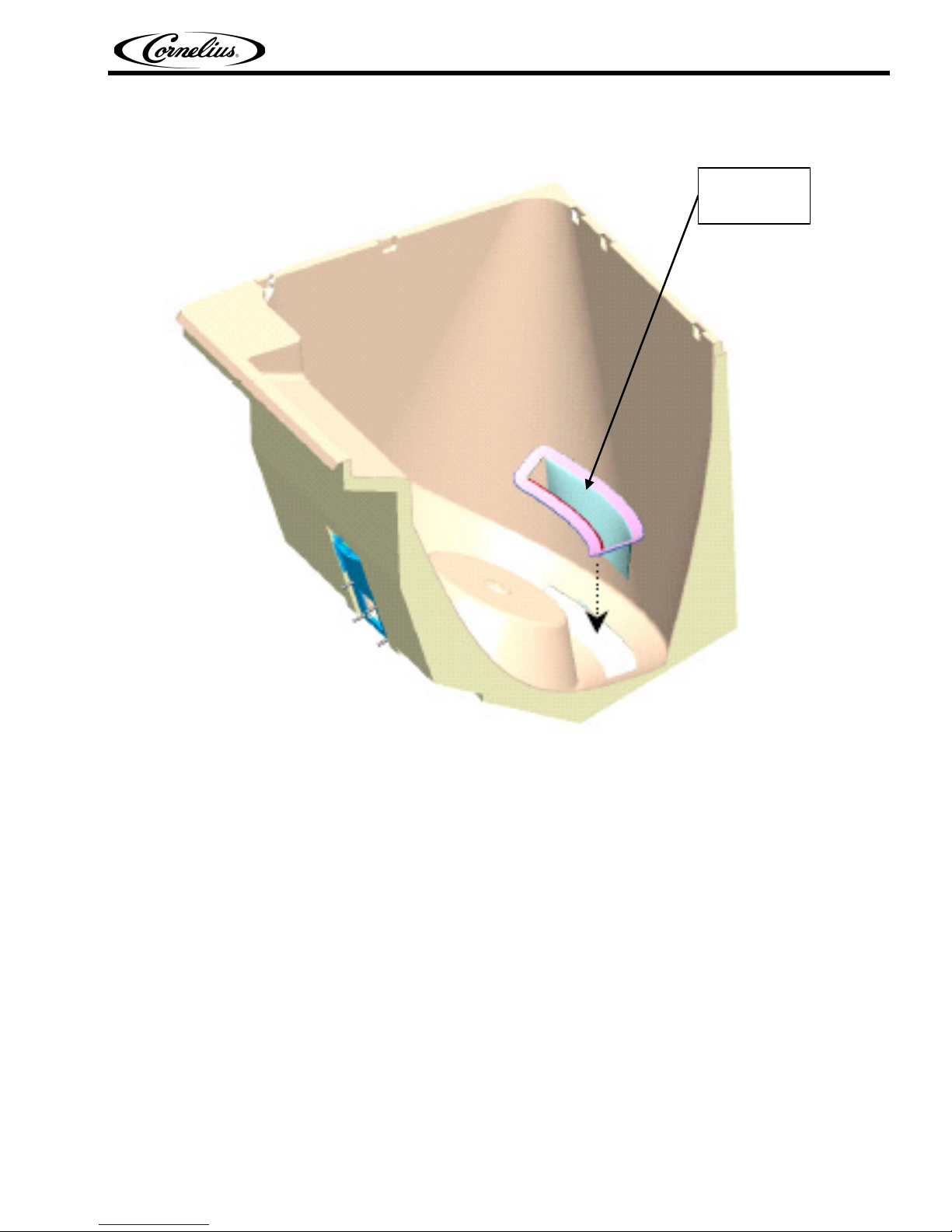

3. Place ice slide into ice drop opening in bin (see Figure 3)

FIGURE 3

4. Place bar into first set of pockets inside the ice bin.

5. Place Icemaker Adaptor Kit on top of unit.

6. Place icemaker on top of kit. DO NOT slide icemaker into position on the lid.

7. Apply continuous bead of NSF international (NSF) listed silastic sealant (Dow 732 or equivalent),

supplied in kit, to seal the icemaker to the top of the adapter kit. All excess sealant must be wiped

away immediately.

ICE

SLIDE

IDC Icemaker Adaptor Kit Installation Instructions

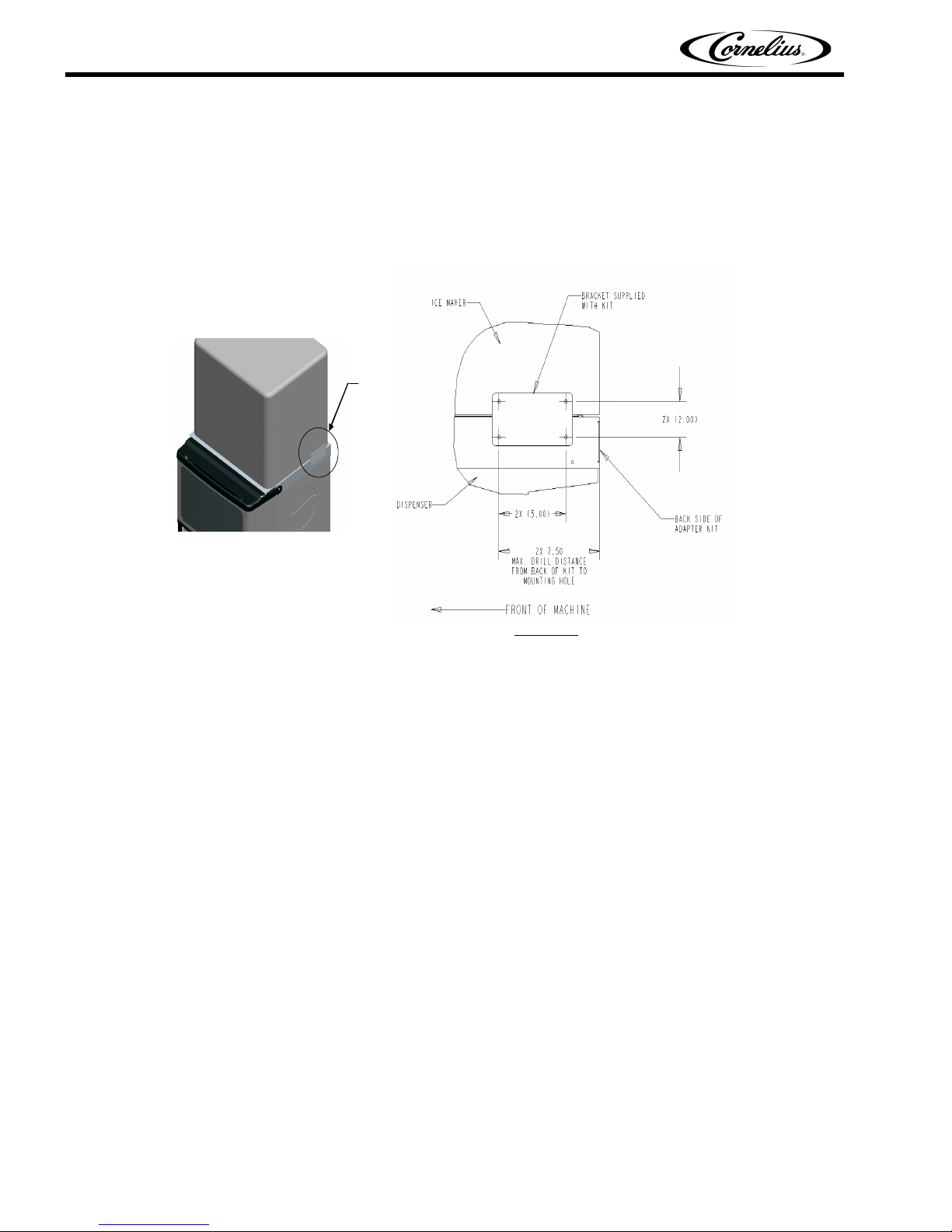

8. The next step is to secure the icemaker to the kit. Use the brackets (supplied) as templates to drill

four 9/64” (.140” Dia.) holes into the adapter kit (2 per side). When drilling holes, the maximum

distance from the back of the kit is 7.50 inches (refer to Figure 4). Failure to comply will result in

damage to the sliding arm mechanisms internal to the kit. Drill four holes of the same diameter into

the icemaker (2 per side). Ensure the location of the brackets will not damage the kit or the

icemaker prior to drilling any holes. USE EXTREME CAUTION NOT TO DRILL INTO ANY OTHER

COMPONENTS. Drill depths should not go further than the thickness of the material being drilled

(just enough to go through). Secure the two brackets using the screws provided.

FIGURE 4

For optimal performance, do not fill the ice bin more than 2/3 capacity (maximum fill is 4” below the top of

bin)

DETAI L “A”

DETAIL A
