ED150 “K” Style Lid Kit Installation Instructions

INSTALLATION INSTRUCTIONS

ED150 “K” STYLE LID KITS (P/N 08008, 02390)

THE FOLLWING ICE MAKER UNITS

WARNING:

Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the

user. Verify that all the power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All ice baffle plates and bin stats, if included or recommended in this kit, must be installed as directed in this manual or

the equipment manufacturer’s instructions.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All of the attachment screws and plates must be installed as directed in this manual.

Failure to comply could result in serious injury, death or damage to the equipment.

Perform the following procedure to install the lid kit.

Table 1. Applicable Ice Maker Models

ICEMAKER MODELS SIZE (WIDTH)

Cornelius 322/522 (includes AC/WC 322) 22”

Crystal Tips 200/300/400 22”

Ice-O-Matic GC 300/550 22”

Manitowoc 320/420 22”

Scotsman SLC 300/400 22”

Servend S2/4 22”

Table 2. Loose Shipped Parts

Item No. Part No. Name Qty.

152994 Cover, Gray - 08008 1

52934 Cover, Black - 02390 1

2 15506 Lid Assembly 1

3 29565 Bracket 2

4 70217 #8 Screw 6

5 50904 RTV 1

6 90221 Label 1

7 92111 Installation Instruction 1

8 620701902 Acorn Nut, 8-32 Nylon 2

9 620701901 Sealing Washer 2

10 620042928 Baffle, Ice DF/ED150 1

11 620701903 #8 Nylon Washer 2

12 620505804 Insulation Strip 1

Release Date: October 22, 2010 www.cornelius.com Revision: B

ED150 “K” Style Lid Kit Installation Instructions

1. Unpack kit.

2. Place insulation strip (item 12) over studs on the ice baffle (item 10) and insert ice baffle into the lid assembly

(item 2).

3. Place (2) sealing washers (item 9) over studs and (2) flat washers (item 11), then fasten in place with (2) plastic

acorn nuts (item 8).

4. Set ice maker lid assembly on the top of the dispenser.

5. Using the slotted holes in the lid as a template, drill four (4) 0.140" diameter (9/64") holes at the bottom of the slots

(see detail A). Use extreme care not to drill into the hopper. Fasten the lid assembly to the dispenser with two (2)

#8 sheet metal screws (item 4), one on each side.

6. Seal the ice maker to the top of the dispenser as follows:

7. Run beads of RTV (item 5) around the opening in the lid assembly and inside of the perimeter of the ice maker

outline so that the ice maker will set on the RTV.

A. Set the ice maker onto the lid assembly and position it as required.

B. Wipe away the excess RTV.

8. Drill 9/64diameter holes into the ice maker cabinet using the bracket (item 3) as a template. Use extreme care

not to drill into any ice maker components (condenser, tubing, etc.). Secure the brackets using four (4) #8 sheet

metal screws (item 4).

9. Follow the ice maker manufacturers instruction to complete the installation of the ice maker including the bin ther-

mostat if so equipped or required.

10. If the plastic ac or rn nuts interfere with the positioning of the plastic manual fill cover, it may be necessary to make

small notches in the back flange of the cover to clear the acorn nuts.

CAUTION:

Bin Thermostat must not interfere with the agitator rotation.

ED150 “K” Style Lid Kit Installation Instructions

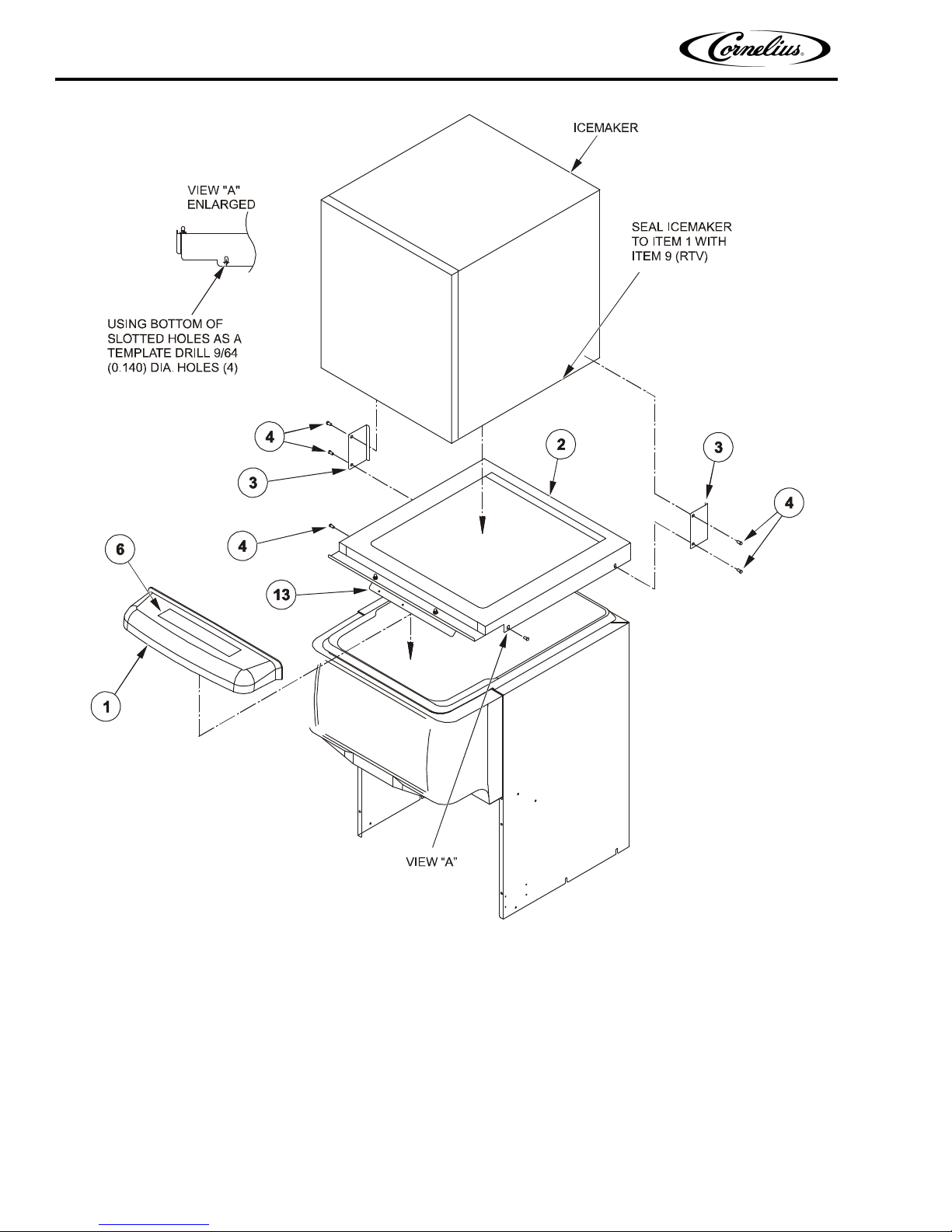

Figure 1. ED150 Kit

ED150 “K” Style Lid Kit Installation Instructions

Figure 2. Dispenser Assembly
