Cornelius IMD300-30 Guida all'installazione

COUNTERTOP ICEMAKER IMD SERIES

ILLUSTRATED PARTS LIST

Release Date: NA

Publication Number: 638085277IPL

Revision Date: August 11, 2011

Revision: E

Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

The products, technical information, and instructions contained in this manual are subject to change without notice.

These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possi-

ble contingency in the installation, operation or maintenance of this equipment. This manual assumes that the per-

son(s) working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic,

and mechanical equipment. It is assumed that appropriate safety precautions are taken and that all local safety and

construction requirements are being met, in addition to the information contained in this manual.

This Product is warranted only as provided in Cornelius’ Commercial Warrant applicable to this Product and is sub-

ject to all of the restrictions and limitations contained in the Commercial Warranty.

Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting

from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal

service conditions with respect to the Product, (2) improper voltage, (3) inadequate wiring, (4) abuse, (5) accident,

(6) alteration, (7) misuse, (8) neglect, (9) unauthorized repair or the failure to utilize suitably qualified and trained per-

sons to perform service and/or repair of the Product, (10) improper cleaning, (11) failure to follow installation, oper-

ating, cleaning or maintenance instructions, (12) use of “non-authorized” parts (i.e., parts that are not 100%

compatible with the Product) which use voids the entire warranty, (13) Product parts in contact with water or the

product dispensed which are adversely impacted by changes in liquid scale or chemical composition.

Contact Information:

To inquire about current revisions of this and other documentation or for assistance with any Cornelius product con-

tact:

www.cornelius.com

800-238-3600

Trademarks and Copyrights:

This document contains proprietary information and it may not be reproduced in any way without permission from

Cornelius.

Printed in U.S.A.

Counter Top Icemaker IMD Series IPL

IMD 300-15 CABINET PARTS ASSEMBLY AND PARTS LIST

* Not Shown

78910

Item

No. Part No. Name

1 638032724 Panel Left Side

638032731 Panel Top

638032721 Panel Right Side

638032768-002 Splash Panel Asmb Push But-

ton

638032768-003 Splash Panel Asmb Lever

638032715-007 Front Panel Push Button

638832715-006 Front Panel Lever

638032766 Drain Tray Kit (Tray, Grill &

Skirt)

638032765 Drain Tray Assembly

638032729 Grill Drain Tray

638032725 Drain Tray Skirt

638032822 Ice Chute

638038588 Cover Dispense Switch, Push

Button

638038589 Switch Dispense, Push Button

638032785 Switch Rocker

638032818 Wire Harness Front Cover

Item

No. Part No. Name

Counter Top Icemaker IMD Series IPL

IMD 300-30 AND IMD 600-30 CABINET PARTS ASSEMBLY AND PARTS LIST

* Not Shown

789

Item

No. Part No. Name

1638032037 Panel Left Side

638032038 Panel Top

638032036 Panel Right Side

638032030-002 Splash Panel Lever Actuated

638032145-006 Splash Panel Push Button

6638032025-

001Front Panel Lever Actuated

638032025-002 Front Panel Push Button

638032050 Drain Tray Kit (Tray, Grill &

Skirt)

638032043 Drain Tray Assembly

638032044 Grill Drain Tray?

638032041 Drain Tray Skirt

638006529 Cover Switch Lever Actuated

638008315 Switch Dispense Lever Actu-

ated

638031162 Boot Switch Lever Actuated

638009627 Plate Dispense Lever Actuated

638032049 Label “Push & Hold for Ice”

638038589 Switch Dispense, Push Button

638011601 Wire Asm. Switch Dispense

(Push Button Actuated)

638038588 Cover Dispense Switch, Push

Button

638011643 Cable Asm. Lever Actuated

638032039 Ice Chute

Item

No. Part No. Name

Counter Top Icemaker IMD Series IPL

IMD 600-90 CABINET PARTS ASSEMBLY AND PARTS LIST

* Not Shown

Item

No. Part No. Name

1638032539 Panel Left Side

638032537 Panel Top

638032538 Panel Right Side

638032040-006 Panel Splash Asm. - Push Button

638032536-002 Front Cover, Push Button

638032536-001 Front Panel Lever Actuated

638032548 Drain Tray Kit (Tray, Grill &

Skirt)

638059270 Kit-Splash Panel 3FL

638058805 Grill Drain Tray

638032531 Drain Tray Skirt

638033508 Drain Tray, 8 Valve Drink Front

638033509 Grill Drain Tray, 8 Valve Drink

Front

638032531-001 Drain Tray Skirt, 8 Valve Drink

Front

638038588 Cover Dispense Switch Push

Button

638006529 Cover Switch, Lever Actuated

638038589 Switch Dispense Push Button

638011601 WIre Asm Dispense Push But-

ton

638008315 Switch Dispense Lever Actu-

ated

638011643 Cable Asm Lever Actuated

638031162 Boot Switch, Lever Actuated

638032287 Ice Chute

Item

No. Part No. Name

13 14 15 16

18 19 20 21

346

Counter Top Icemaker IMD Series IPL

REFRIGERATION AND FRAME ASSEMBLY IMD 300-15

* Not Shown

Item

No. Part No. Name

1638000784 Condenser

638000872 Shroud Fan

638001007 Fan Blade

638003599 Bracket Fan Mounting

630900548 Water Level Control

638000525 Fan Motor 115V

638010016 Fan Motor 220V

638031108 Dispense Mechanism (115V)

638031108-01 Dispense Mechanism (220V)

630000717 Storage Bin Asmb.

638032770 Ice Level Control (115V)

638032770-002 Ice Level Control (220V)

638032776 Electrical Box Asm. (115V)

638032776-002 Electrical Box Asm. (220V)

638031763-002 Drain Receptacle Asm

See Diagram on Page 17 & Chart

on Page 18

638032739 Compressor 1/3hp R-134a

(115V)

638032845 Compressor 1/3hp R-134a

(220V)

638004393 Drier

638030732 Overload 115V

638032845001 Overload 220V

638030733 Relay 115V

638032845002 Relay 220V

638030734 Start Capacitor 115V

638032845-003 Start Capacitor 220V

638032714 Air Filter

638032762 Water Valve (115V)

638032762-002 Water Valve (220V)

638032777 Valve Needle 1/4 X 1/4 Female

Pipe

638032778 1/4 Hose Barb X 1/4 MPT

638007373 Connector 1/4 ML X 1/4 FPT

Brass

638032815 Water Dispense Tube

638006070 Tube Vinyl

Item

No. Part No. Name

345

Counter Top Icemaker IMD Series IPL

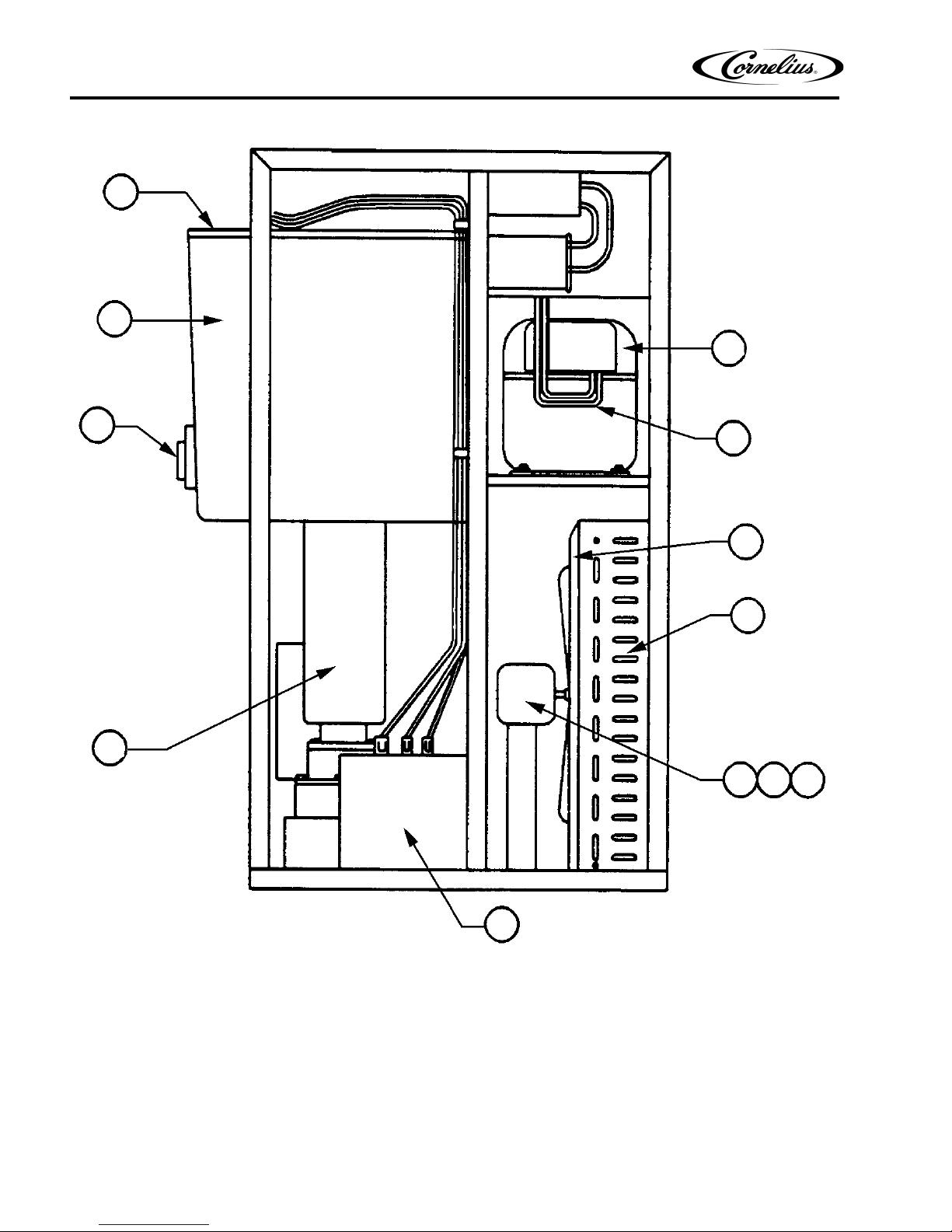

REFRIGERATION AND FRAME ASSEMBLY IMD 300-30 AND IMD 600-30

* Not Shown

NOTE: Compressor kit includes compressor, start components, and drier.

Item

No. Part No. Name

638004204 Condenser Air Cooled

638036383 Condenser IMD 300 Water

Cooled

638036272 Condenser IMD 600 Water

Cooled

638004285 Shroud Fan

638004387 Fan Blade

638004391 Bracket Fan Mounting

630900547 Water Level Control

638008646 Fan Motor (115V)

638008886-001 Fan Motor (220V)

638008943 Exhaust Fan (Water Cooled

Units)

638033058 Mounting Bracket Exhaust Fan

638011480-01 Cable Assembly

638031108 Dispense Mechanism (115V)

638031496-001 Dispense Mechanism (208V)

638031108-01 Dispense Mechanism (220V)

630000716 Storage Bin 300-30

630000715 Storage Bin 600-30

638031494-001 Ice Level Control (115V)

638031494-002 Ice Level Control (220V)

See Diagram on Page 17 &

Chart on Page 18

638031763-002 Drain Receptacle Asm.

164980002 Valve Water Regulating (Water

Cooled)

638009755 Pressure Switch (Water Cooled)

638004393 Drier

Item

No. Part No. Name

Item

No. 300-30 302-30 600-30 602-30 Description

11 631500016 631500017 631500018 631500019 Compressor Kit

* 638090121 638090131 638090221 162964041 Compressor

* 161998008 161998011 161998009 161998015 Start Relay

* 161165007 161165010 161165008 25335 Start Capacitor

* 638090123 161192004 Run Capacitor

* 638090221-001 Overload

456

Counter Top Icemaker IMD Series IPL
